Character Graphic TFT OLED HMI Flagship product & stocks
移動
Resolution Size
(inch)		 Module Series Module Dimension
(mm)		 View area(mm) Controller Interface Other specifications download

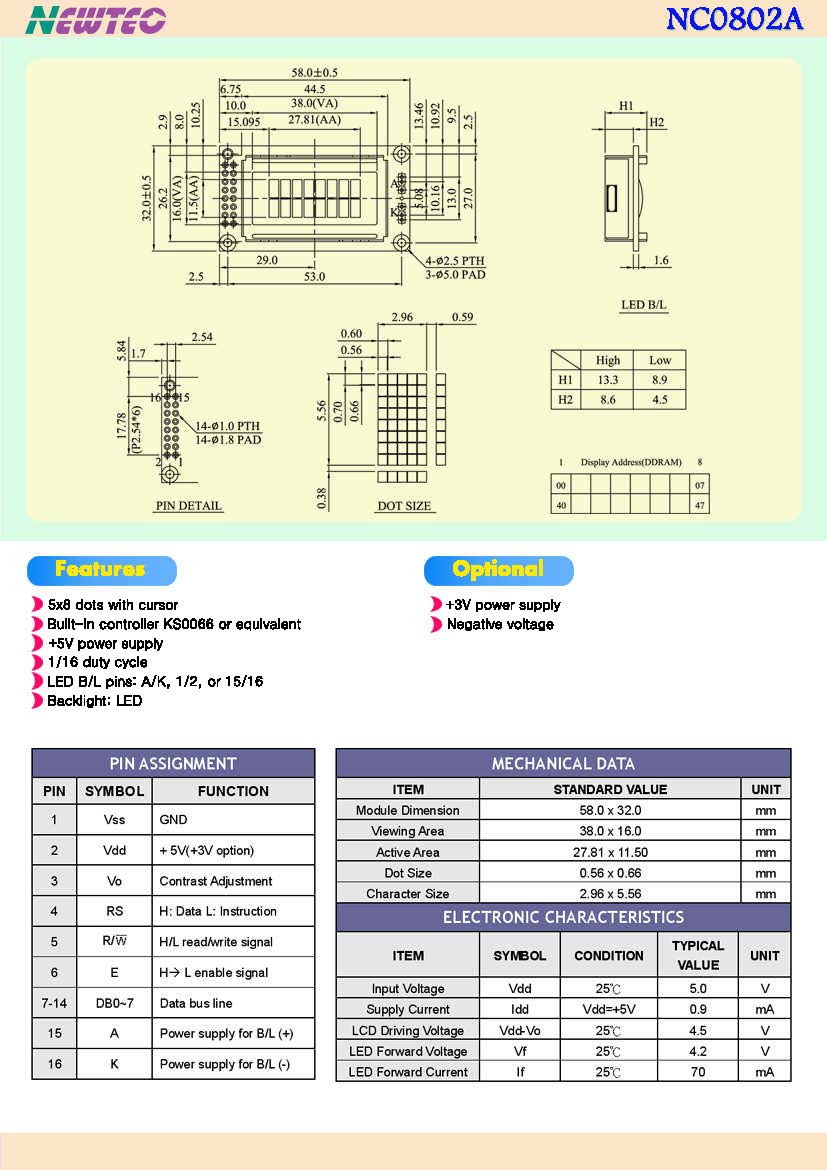

8 X 2 NC0802A 58.0 X 32.0 38.0 X 16.0 ST7066U

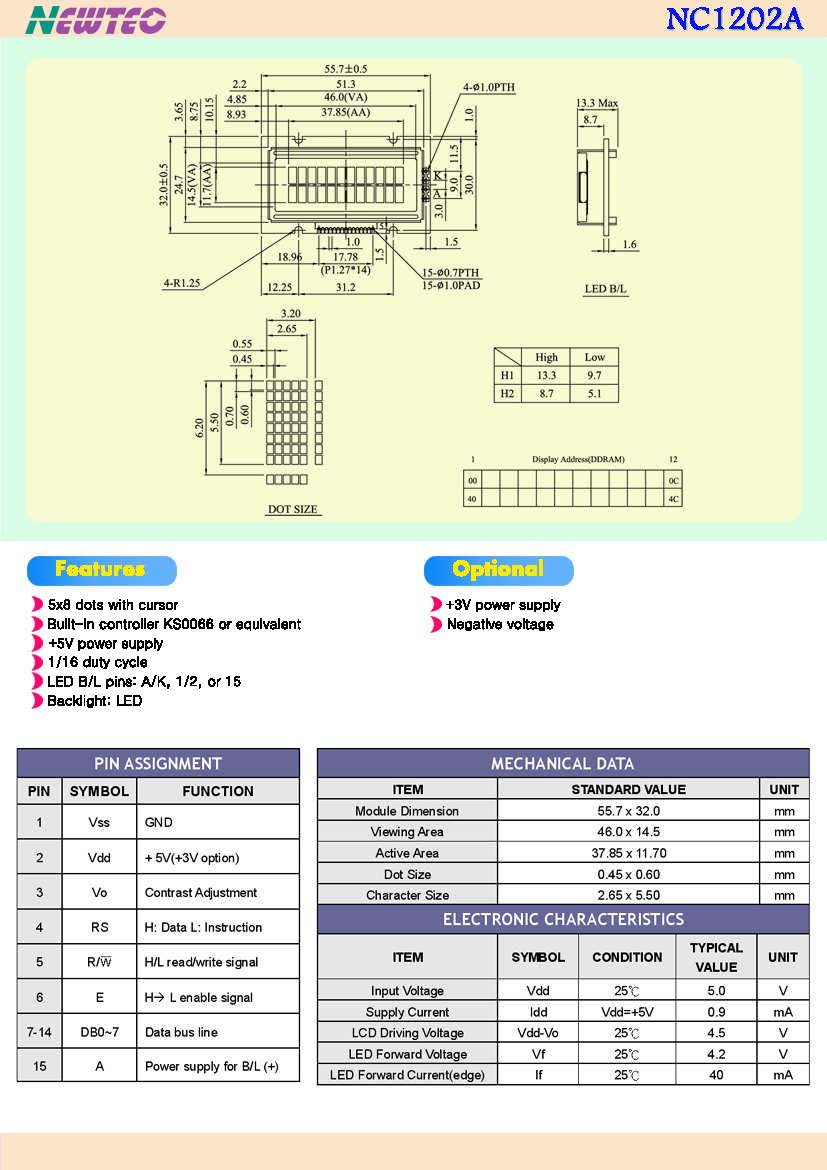

12 X 2 NC1202A 55.7 X 32.0 46.0 X 14.5 ST7066U

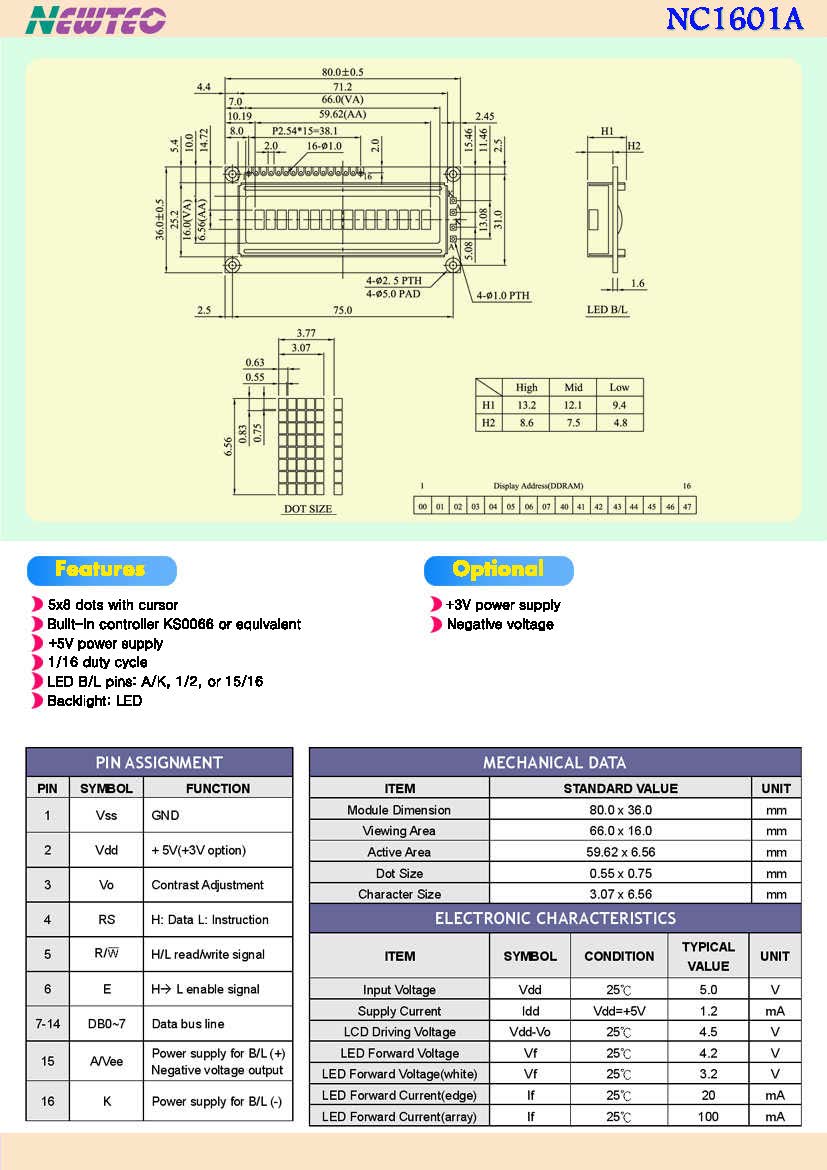

16 X 1 NC1601A 80.0 X 36.0 66.0 X 16.0 ST7066U

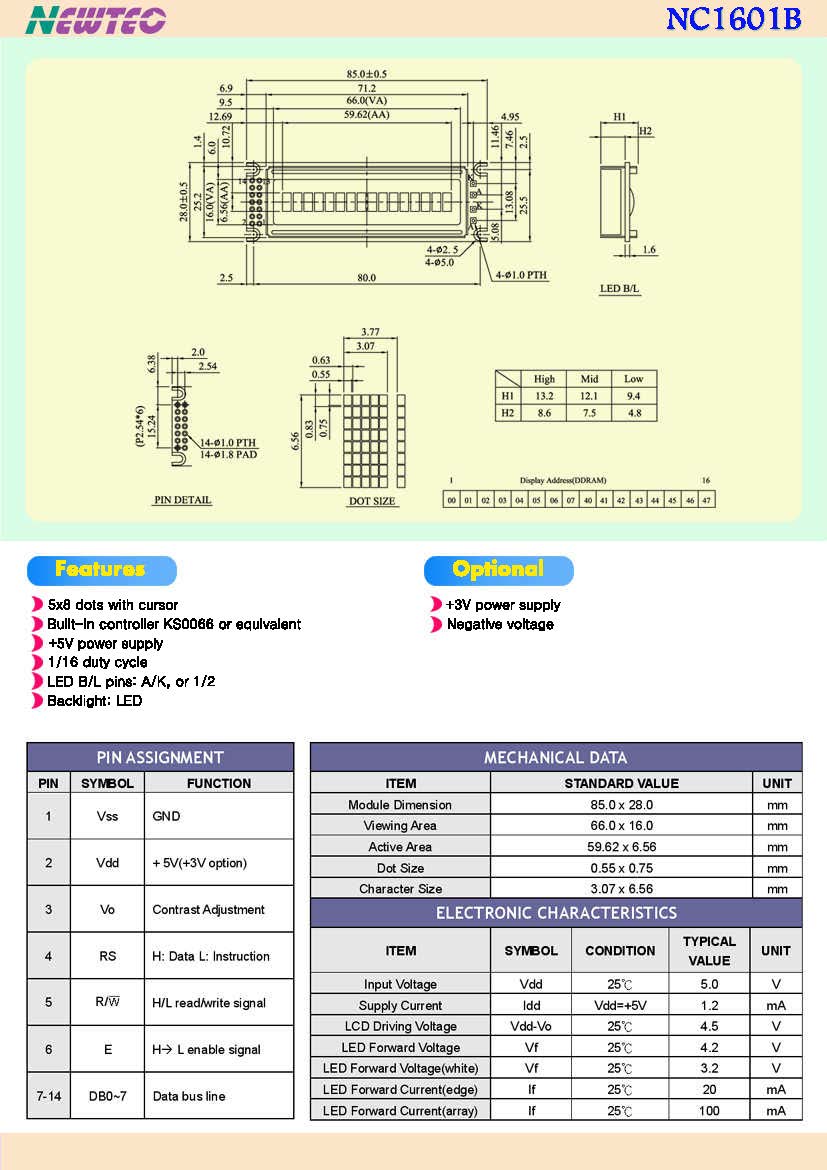

16 X 1 NC1601B 85.0 X 28.0 66.0 X 16.0 ST7066U

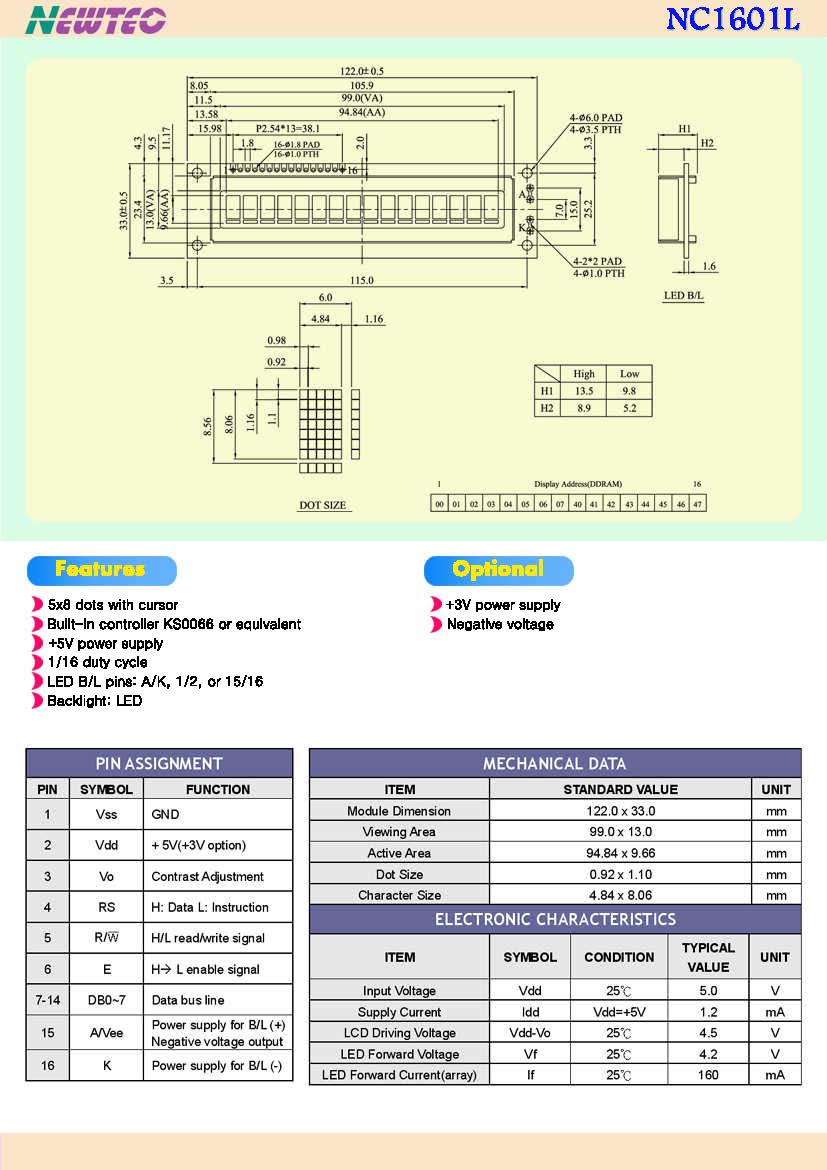

16 X 1 NC1601L 122.0 X 33.0 99.0 X 13.0 ST7066U

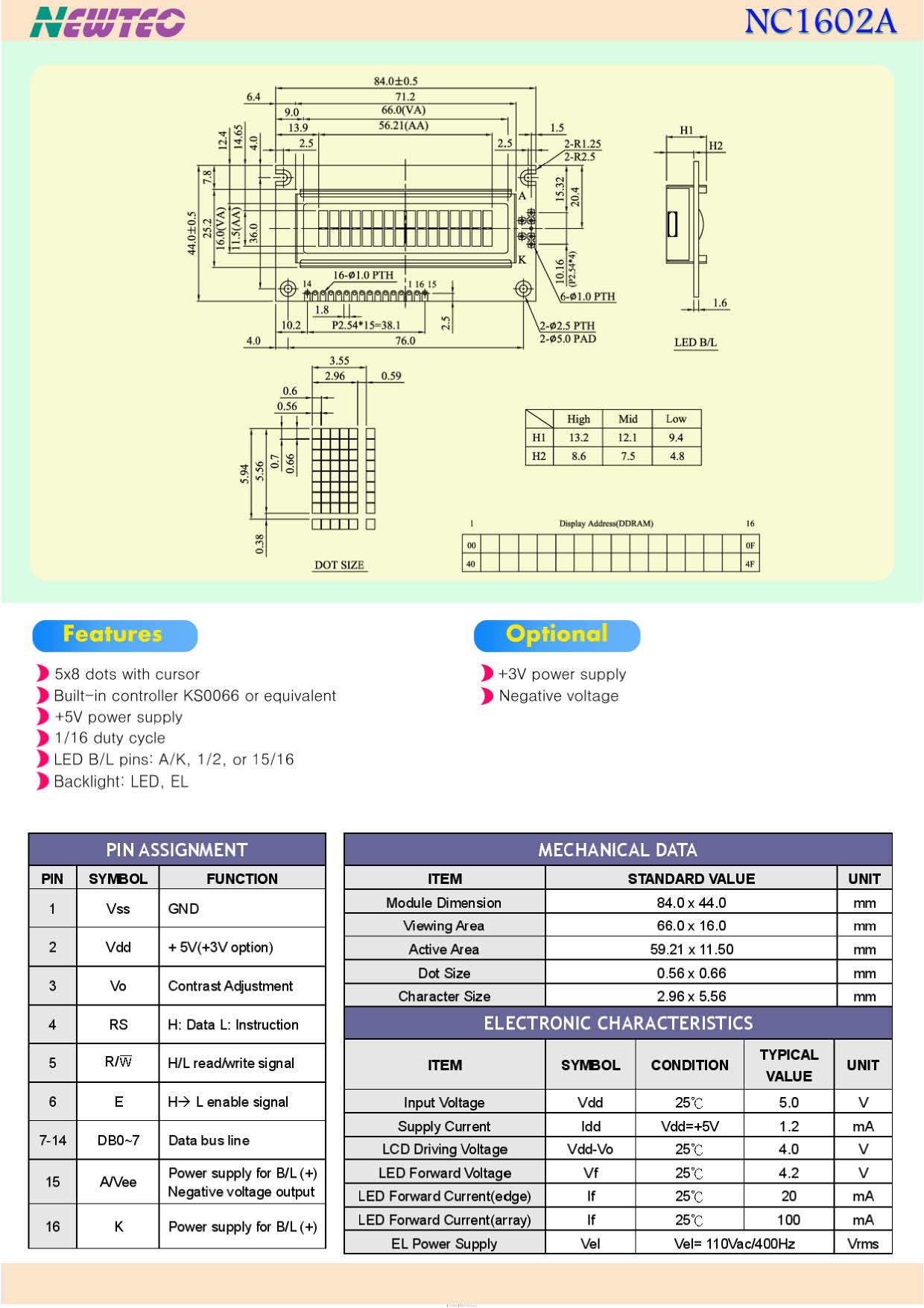

16 X 2 NC1602A 84.0 X 44.0 66.0 X 16.0 ST7066U

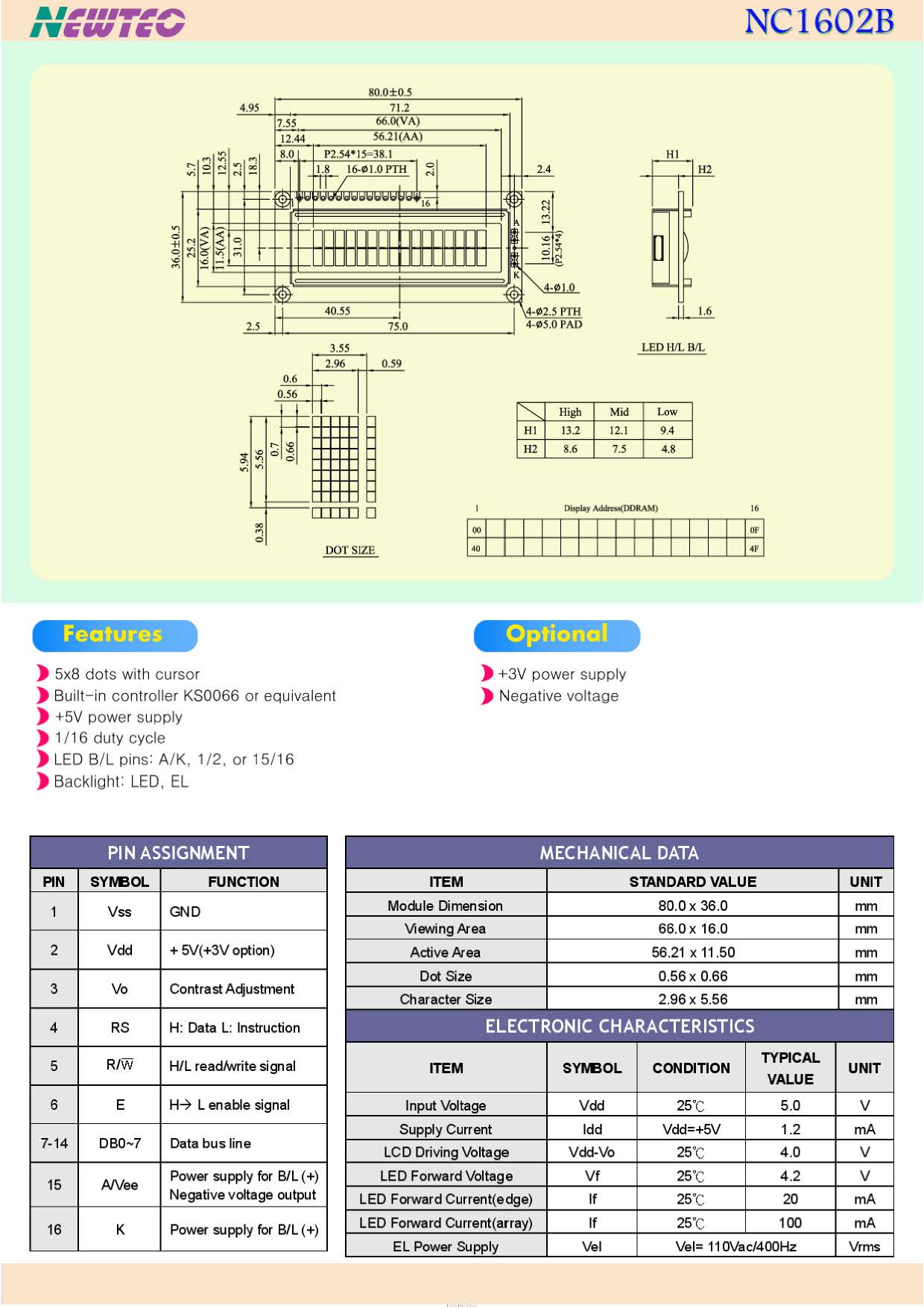

16 X 2 NC1602B 80.0 X 36.0 66.0 X 16.0 ST7066U

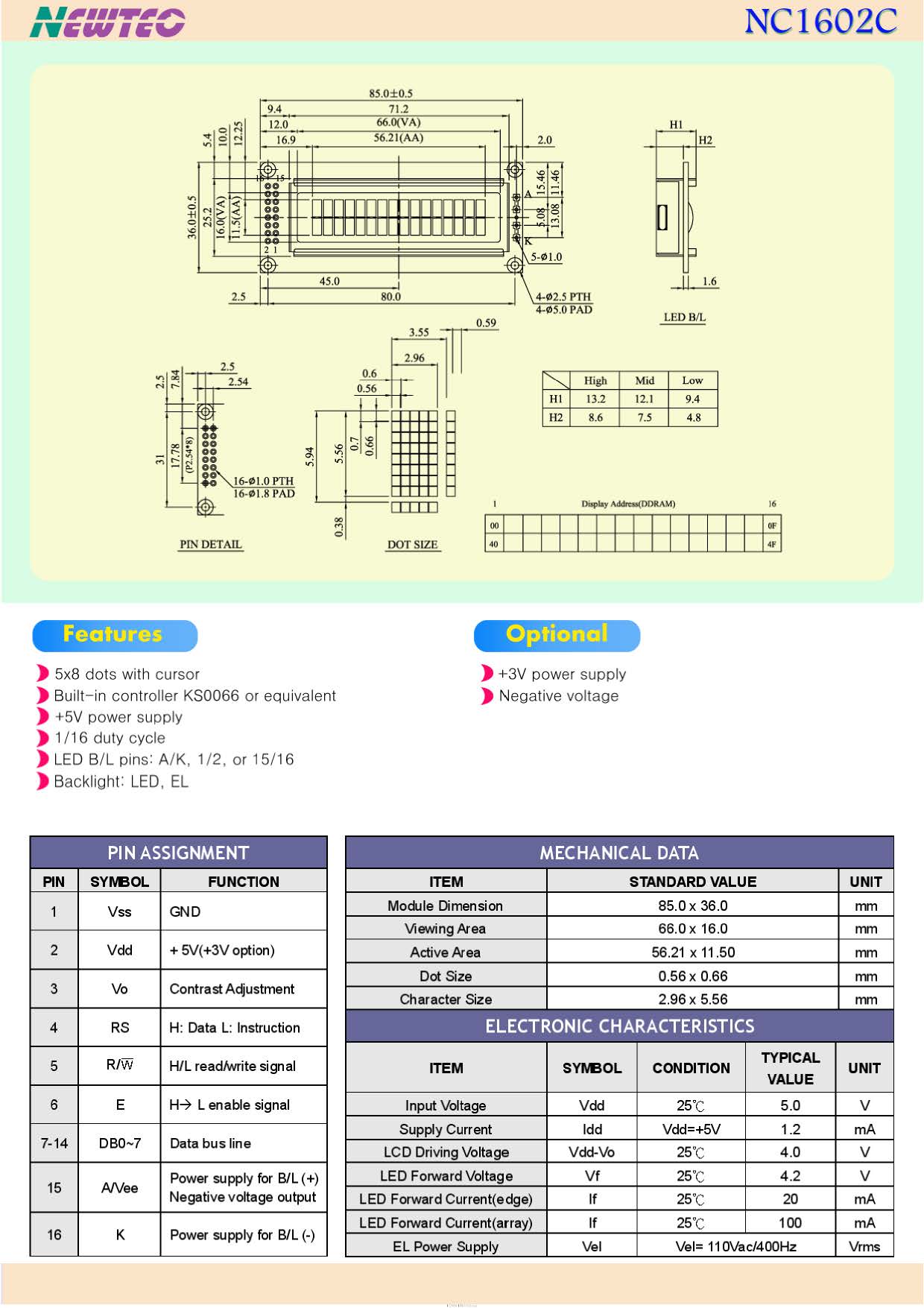

16 X 2 NC1602C 85.0 X 36.0 66.0 X 16.0 ST7066U

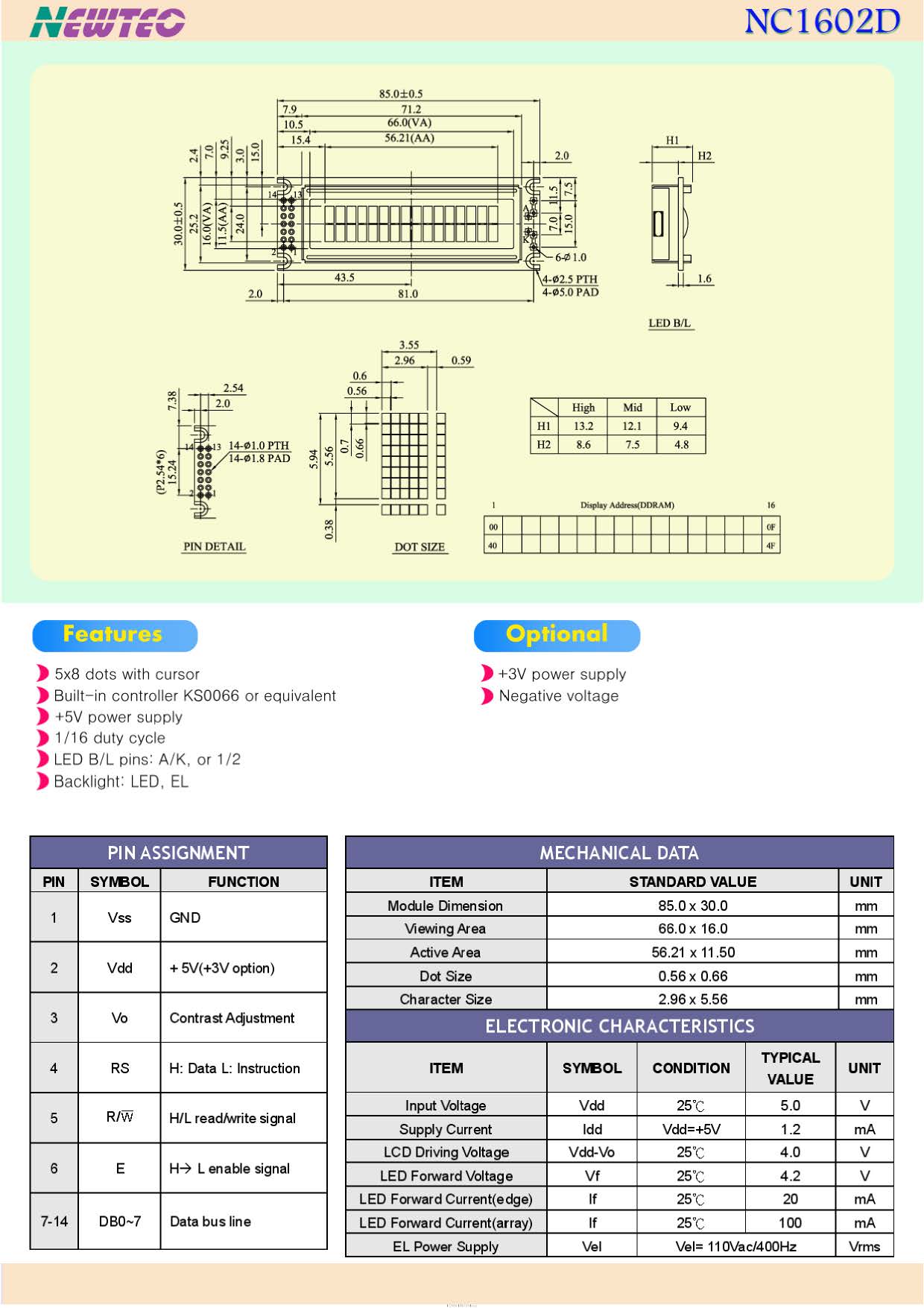

16 X 2 NC1602D 85.0 X 30.0 66.0 X 16.0 ST7066U

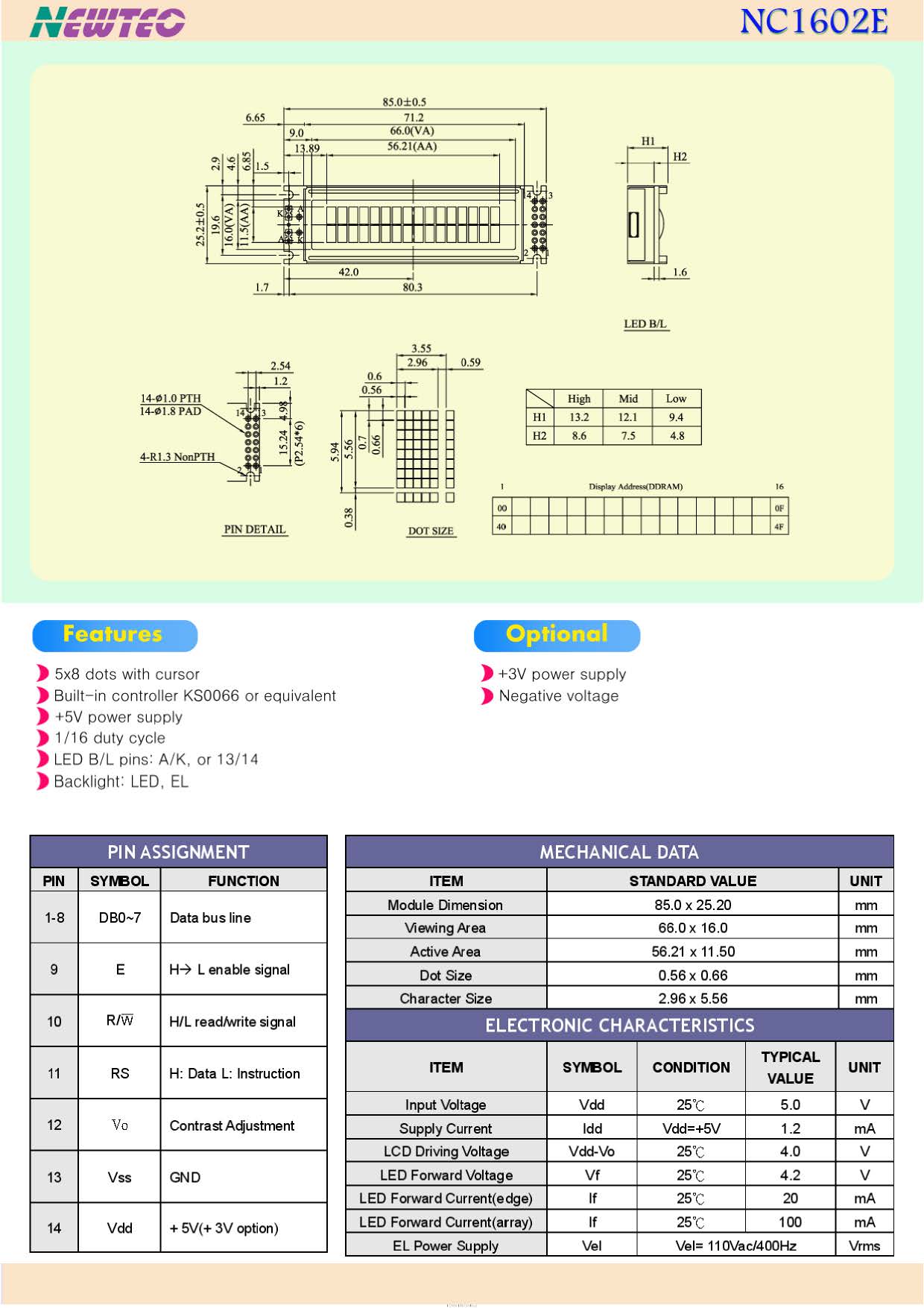

16 X 2 NC1602E 85.0 X 25.2 66.0 X 16.0 ST7066U

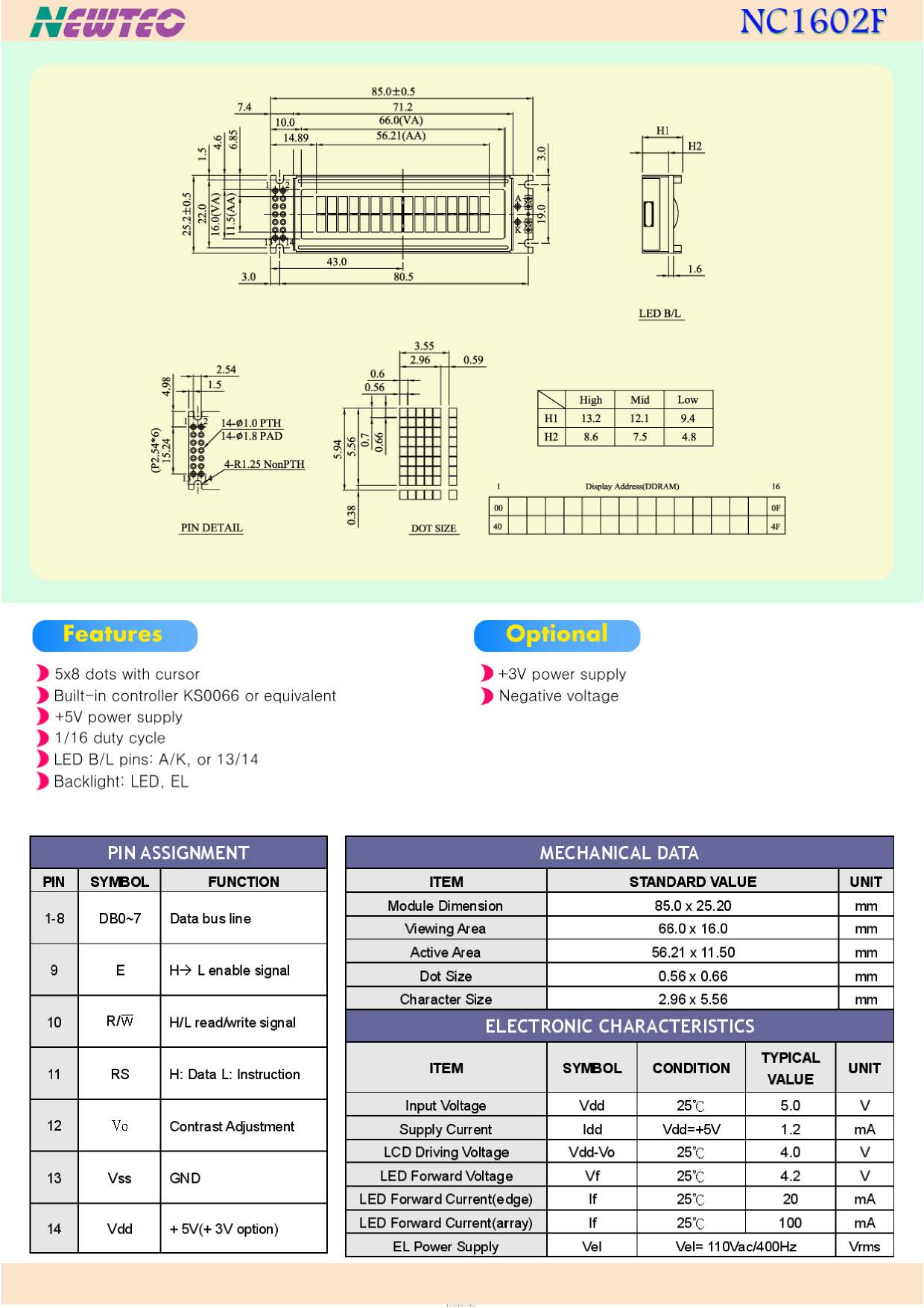

16 X 2 NC1602F 85.0 X 25.2 66.0 X 16.0 ST7066U
16 X 2 NC1602H 59.0 X 32.6 56.3 X 19.4 ST7066U

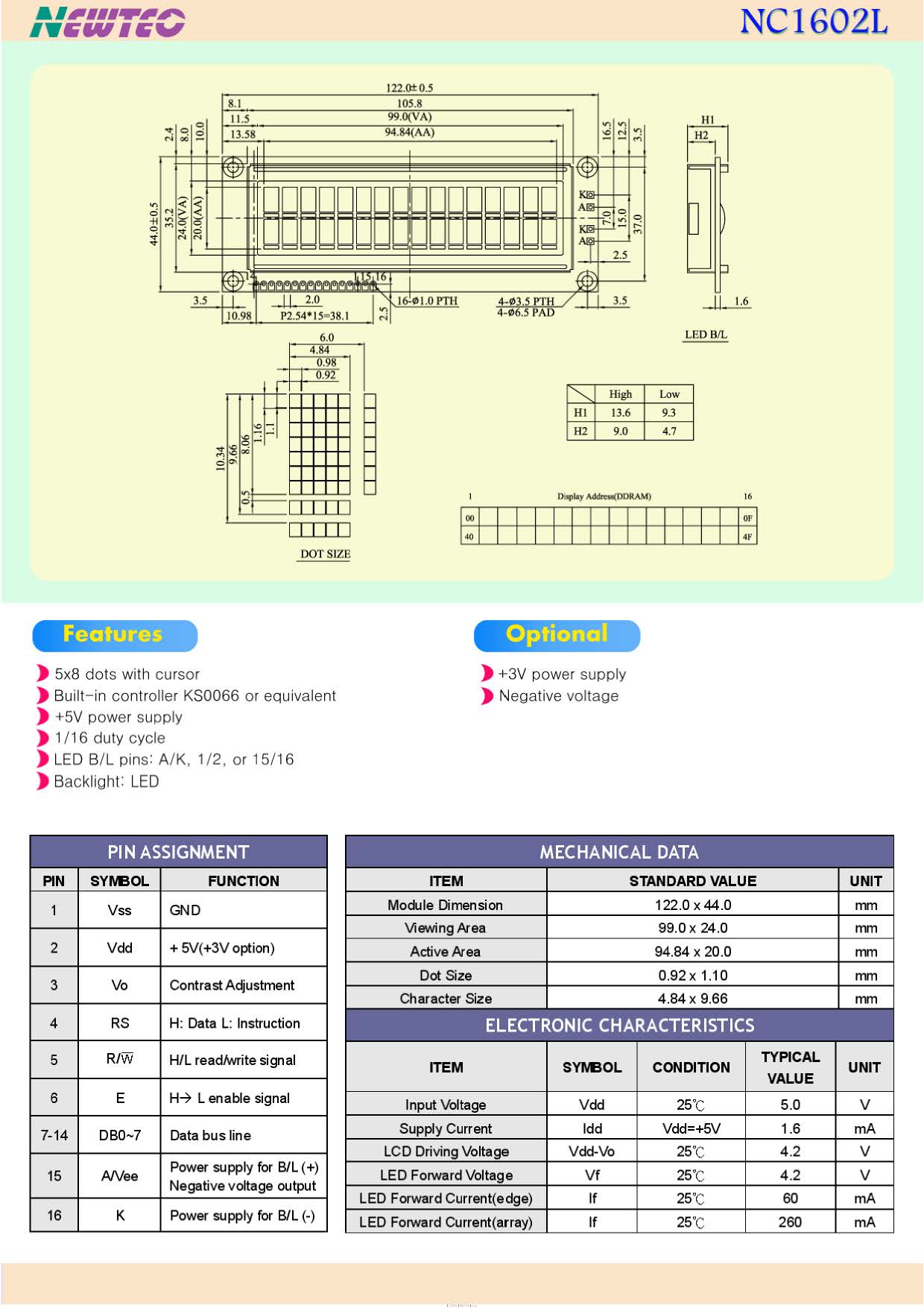

16 X 2 NC1602L 122.0 X 44.0 99.0 X 24.0 ST7066U

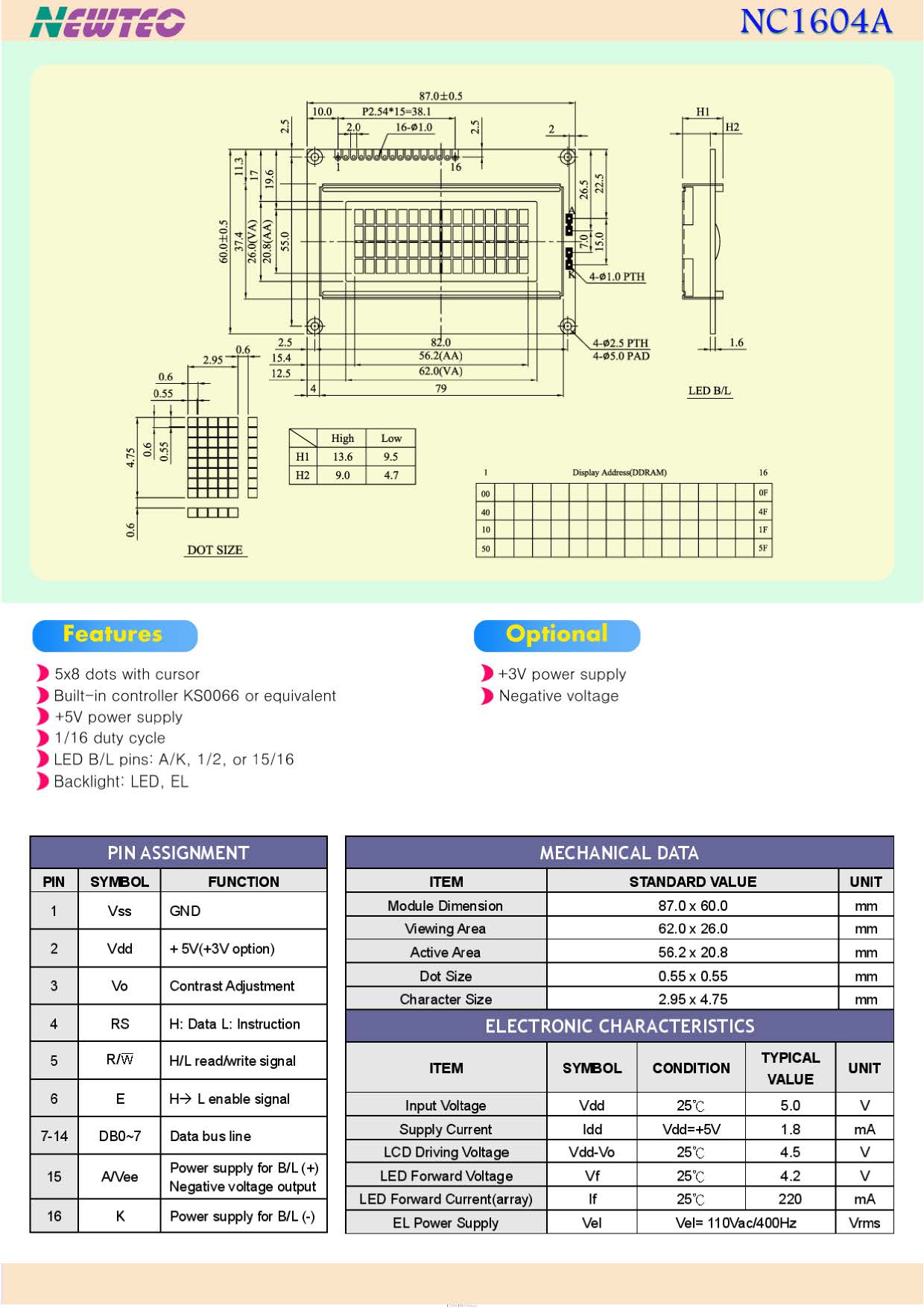

16 X 4 NC1604A 87.0 X 60.0 62.0 X 26.0 ST7066U

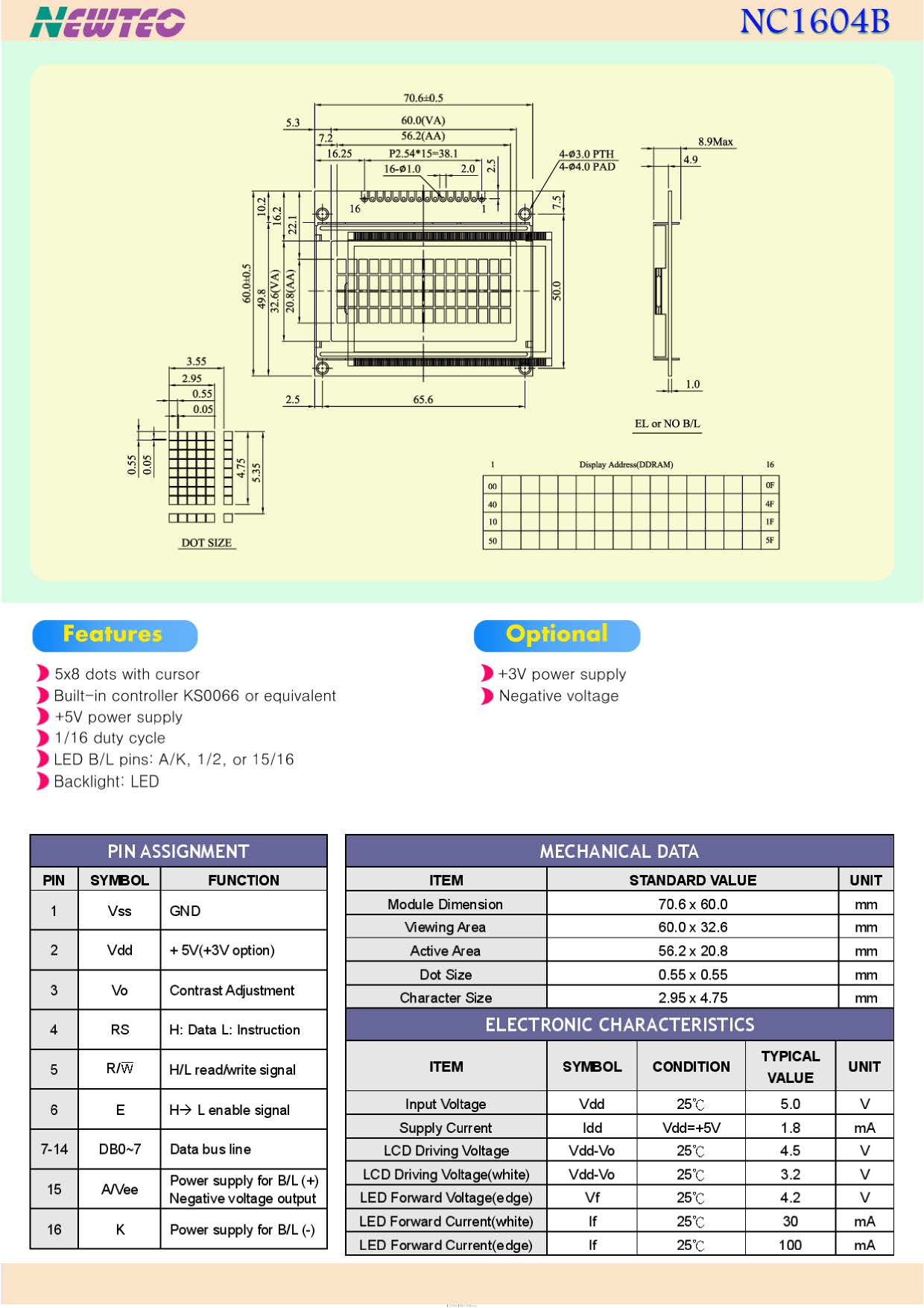

16 X 4 NC1604B 70.6 X 60.0 60.0 X 32.6 ST7066U

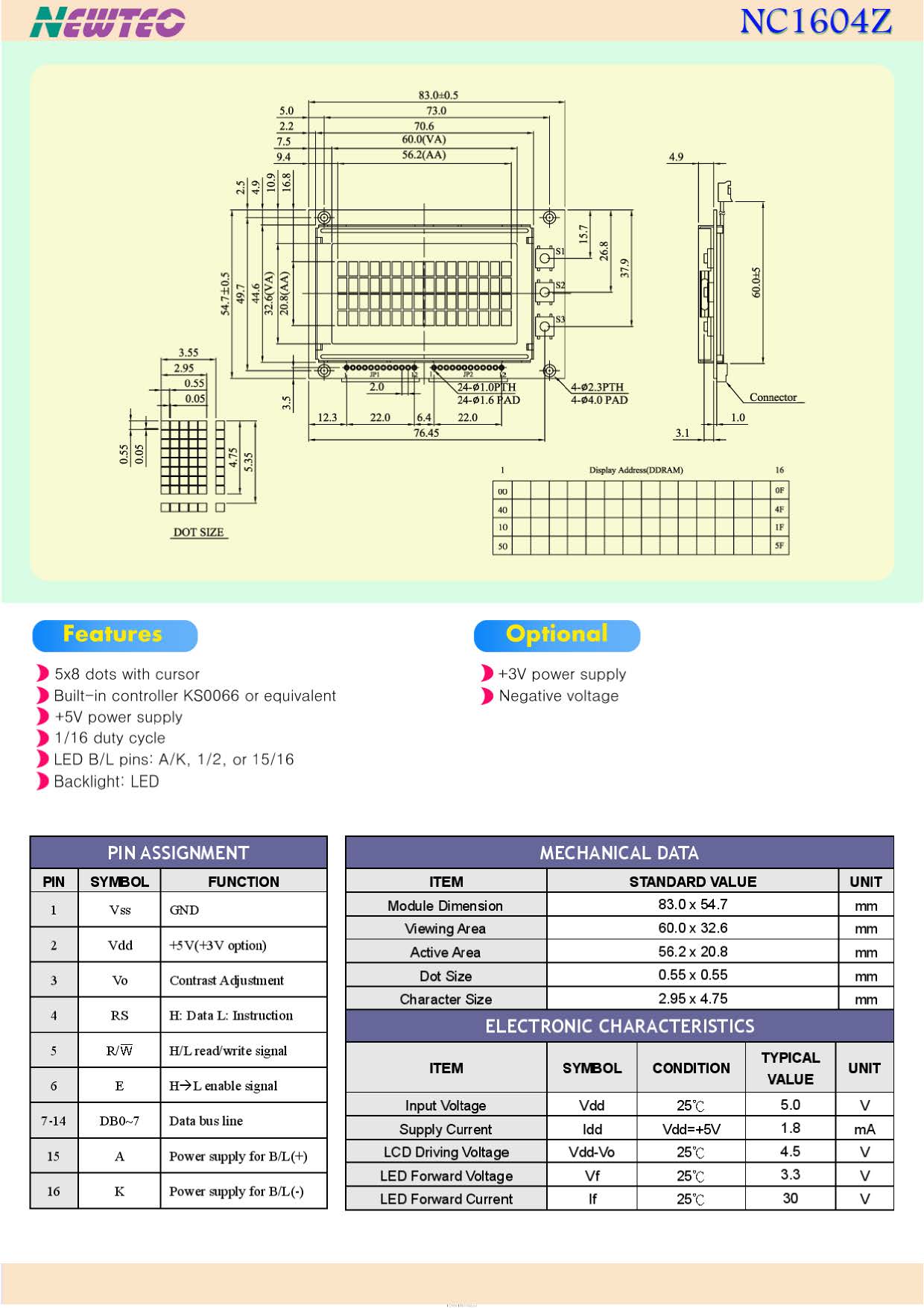

16 X 4 NC1604Z 83.0 X 54.7 66.0 X 32.6 ST7066U
20 X 2 NC2002A 116.0 X 37.0 85.0 X 18.6 ST7066U

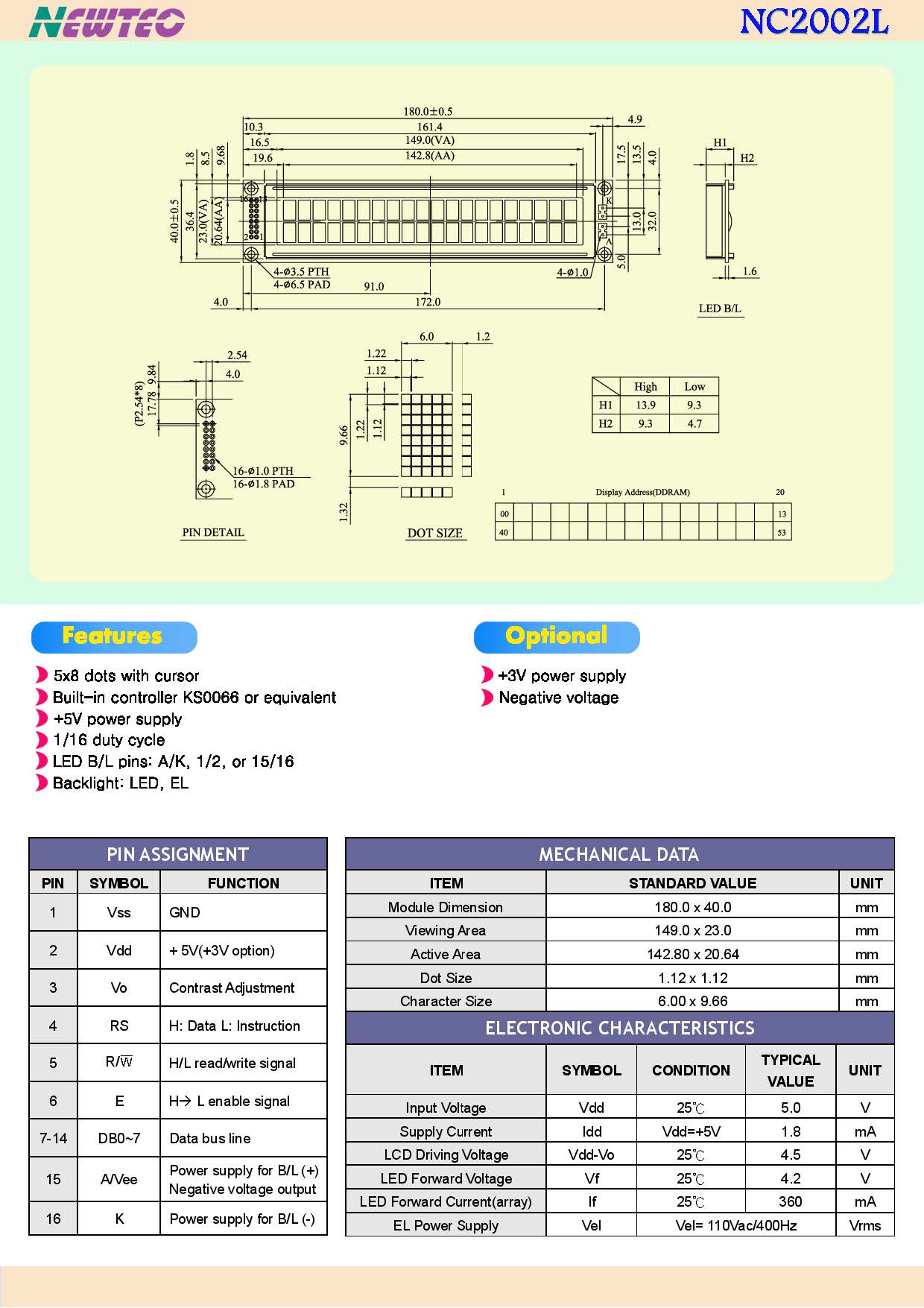

20 X 2 NC2002L 180.0 X 40.0 149.0 X 23.0 ST7066U

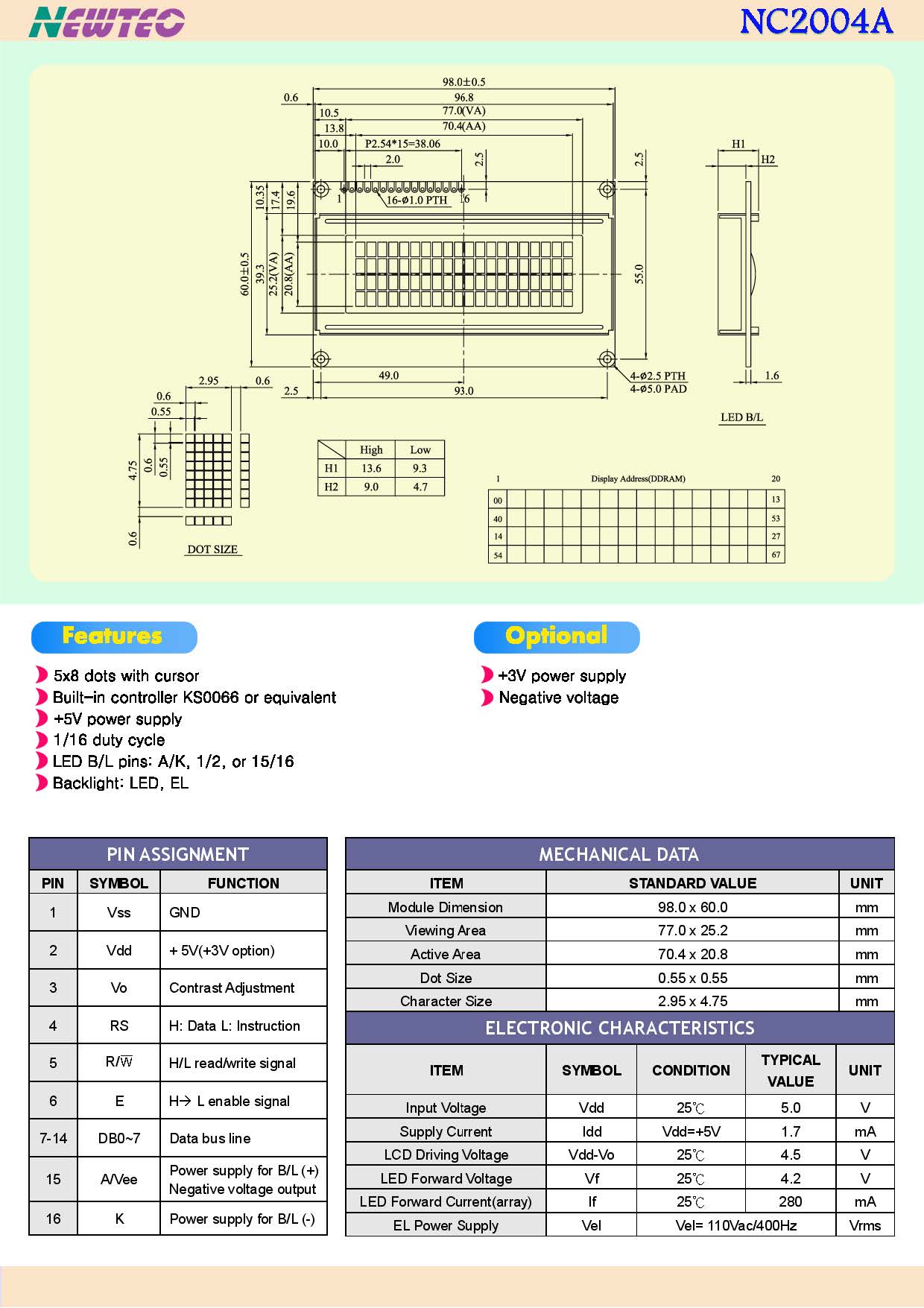

20 X 4 NC2004A 98.0 X 60.0 77.0 X 25.2 ST7066U

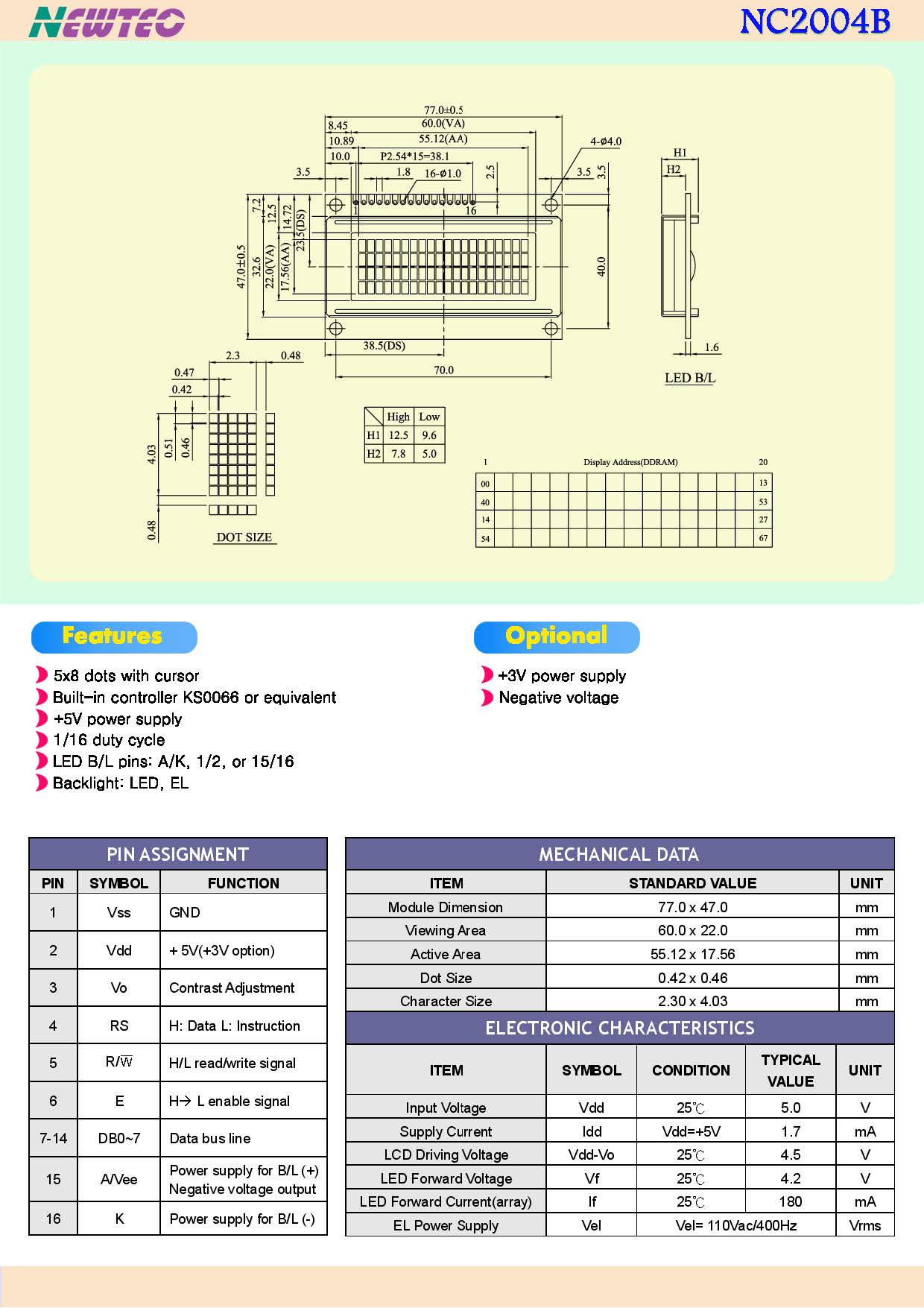

20 X 4 NC2004B 77.0 X 47.0 60.0 X 22.0 ST7066U

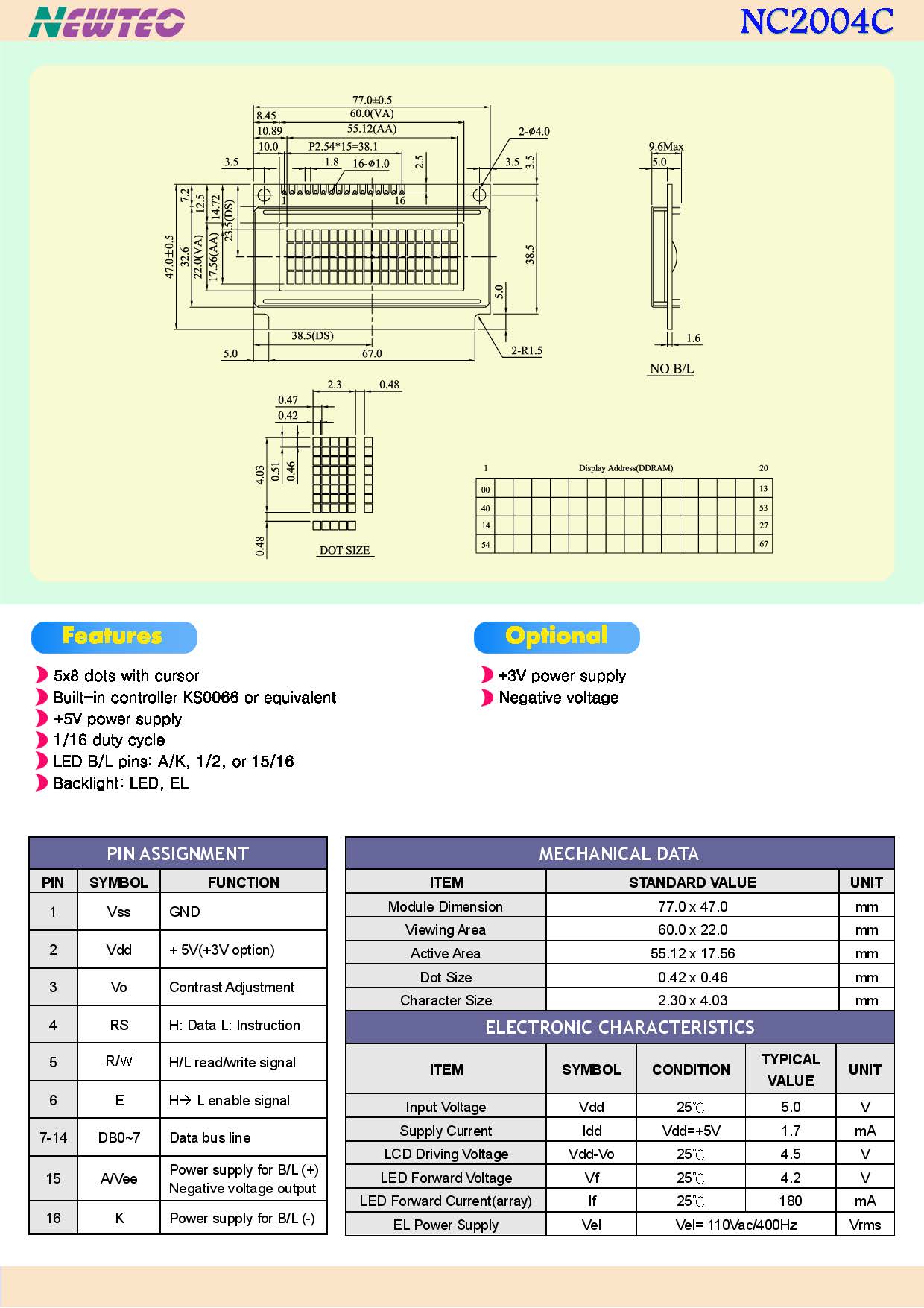

20 X 4 NC2004C 77.0 X 47.0 60.0 X 22.0 ST7066U

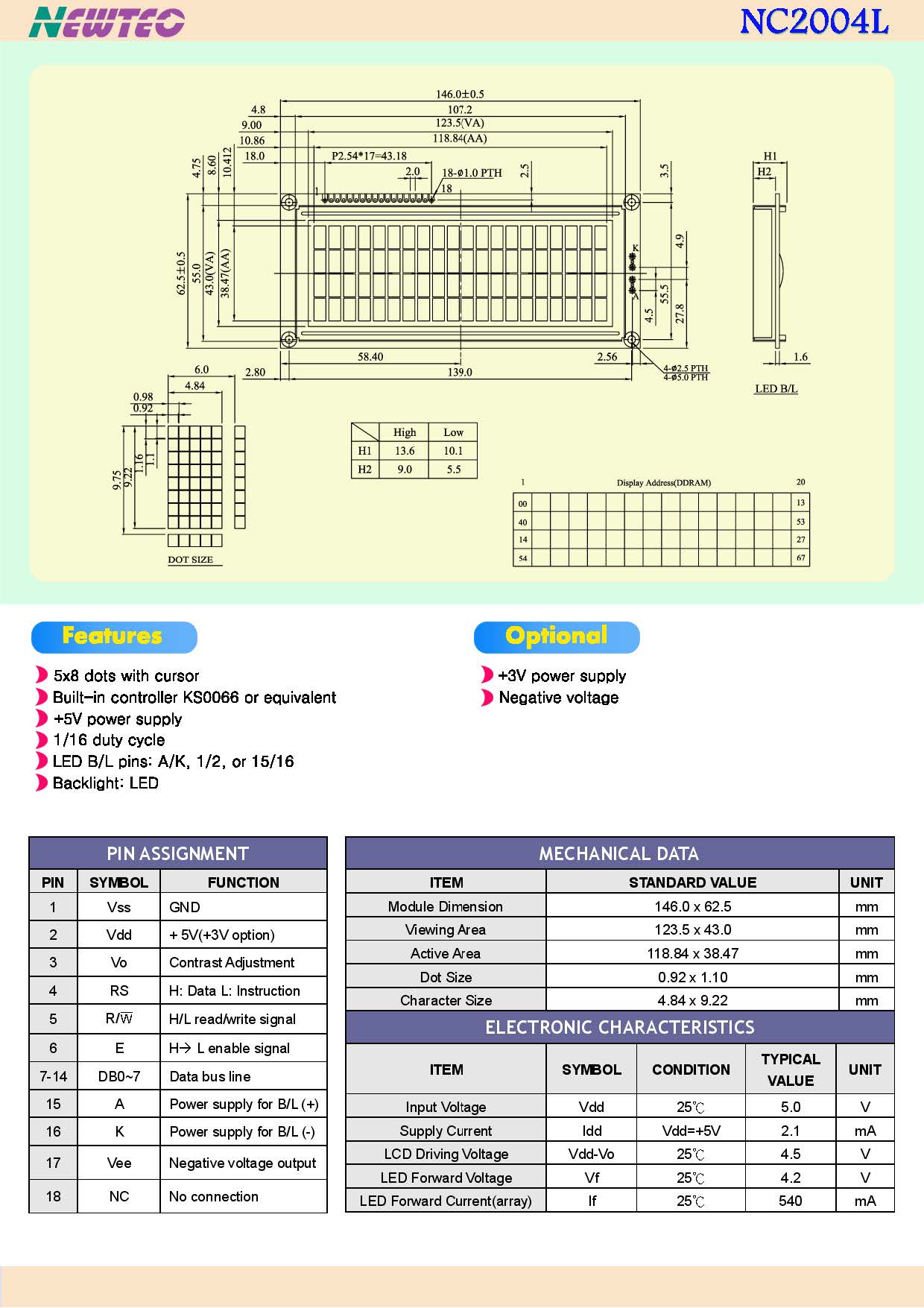

20 X 4 NC2004L 146.0 X 62.5 123.5 X 43.0 ST7066U

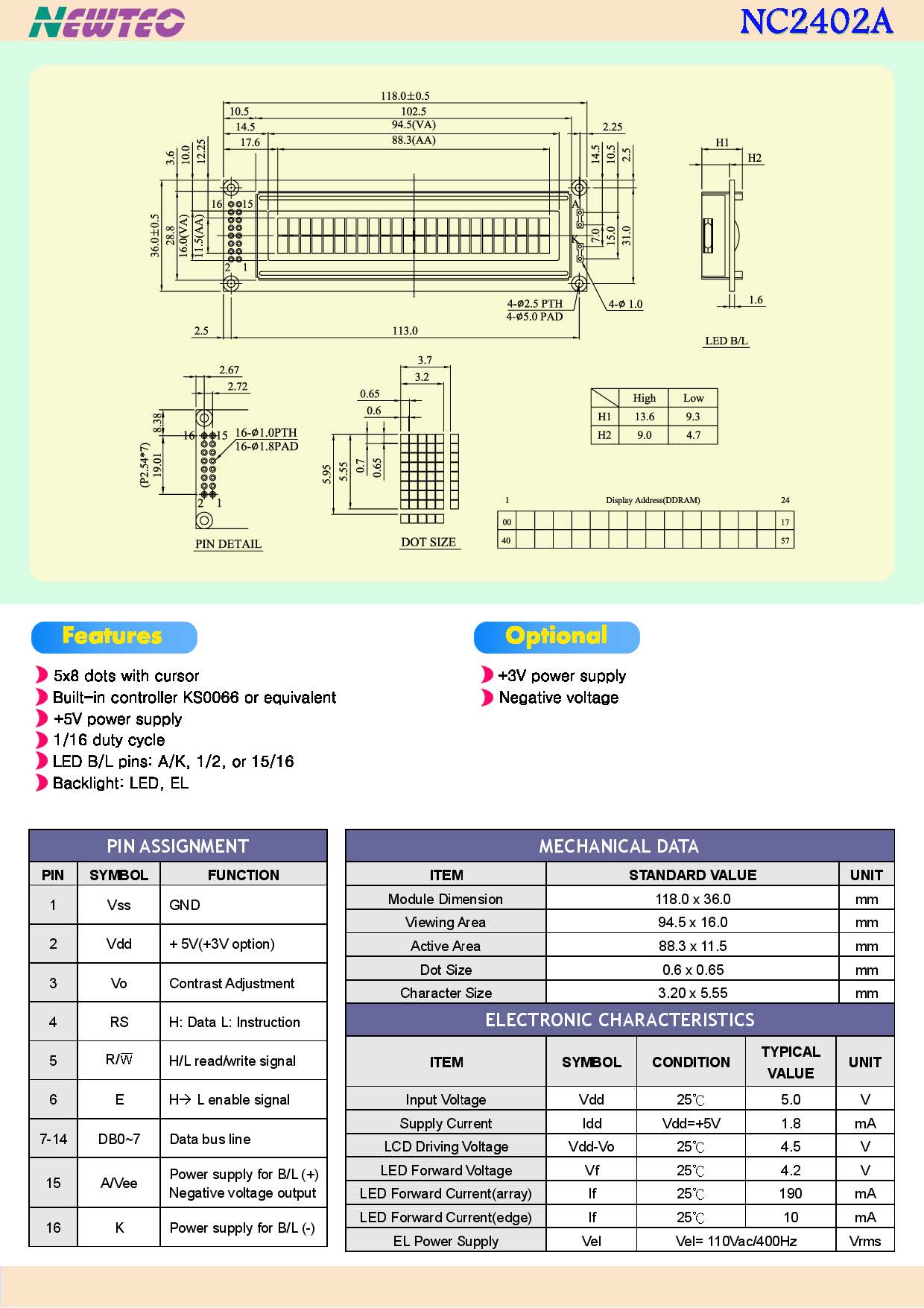

24 X 2 NC2402A 118.0 X 36.0 94.5 X 16.0 ST7066U

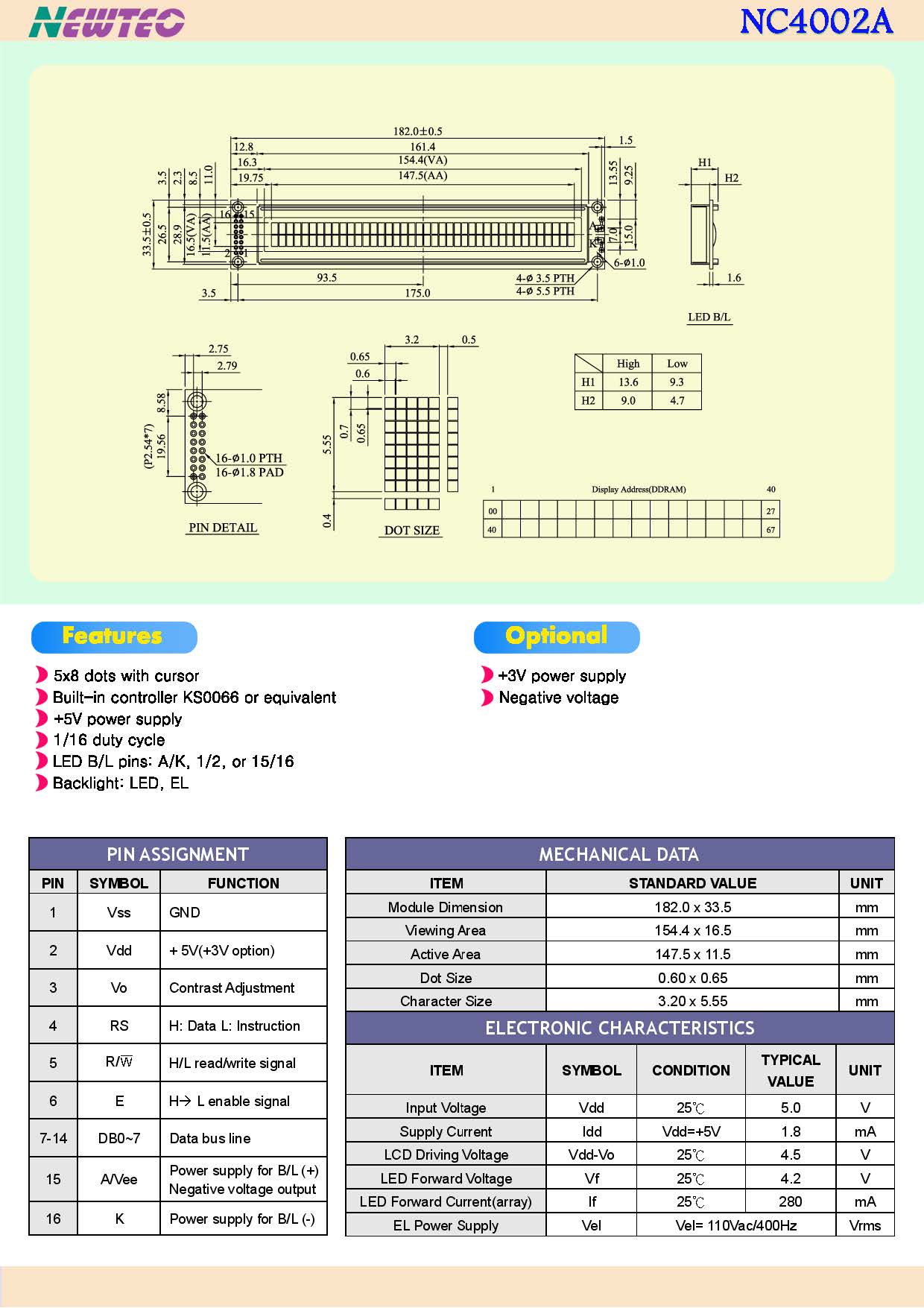

40 X 2 NC4002A 182.0 X 33.5 154.4 X 16.5 ST7066U

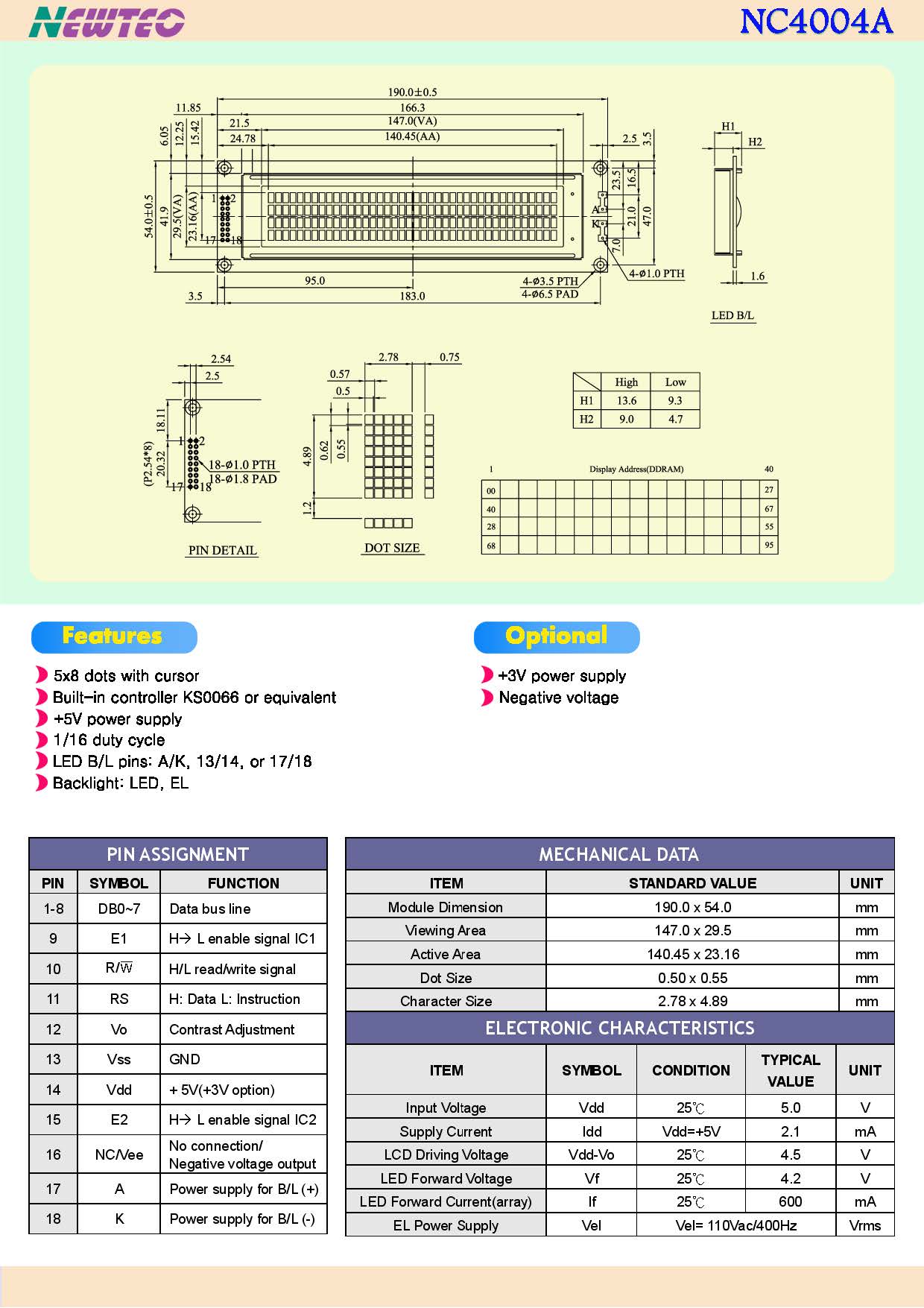

40 X 4 NC4004A 190.0 X 54.0 147.0 X 29.5 ST7066U

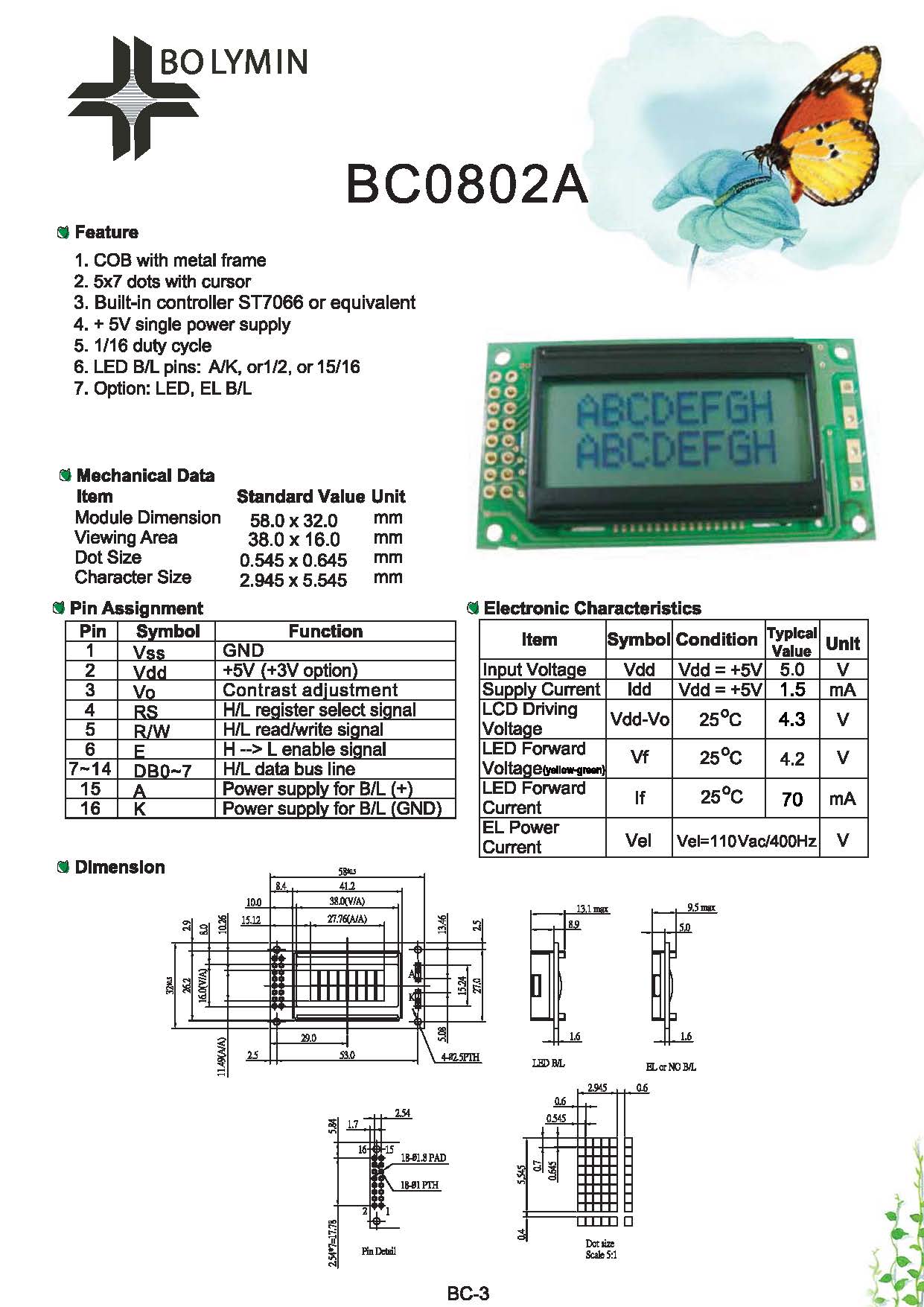

8 x 2 BC0802A 58.0 x 32.0 38.0 x 16.0 ST7066 or equivalent

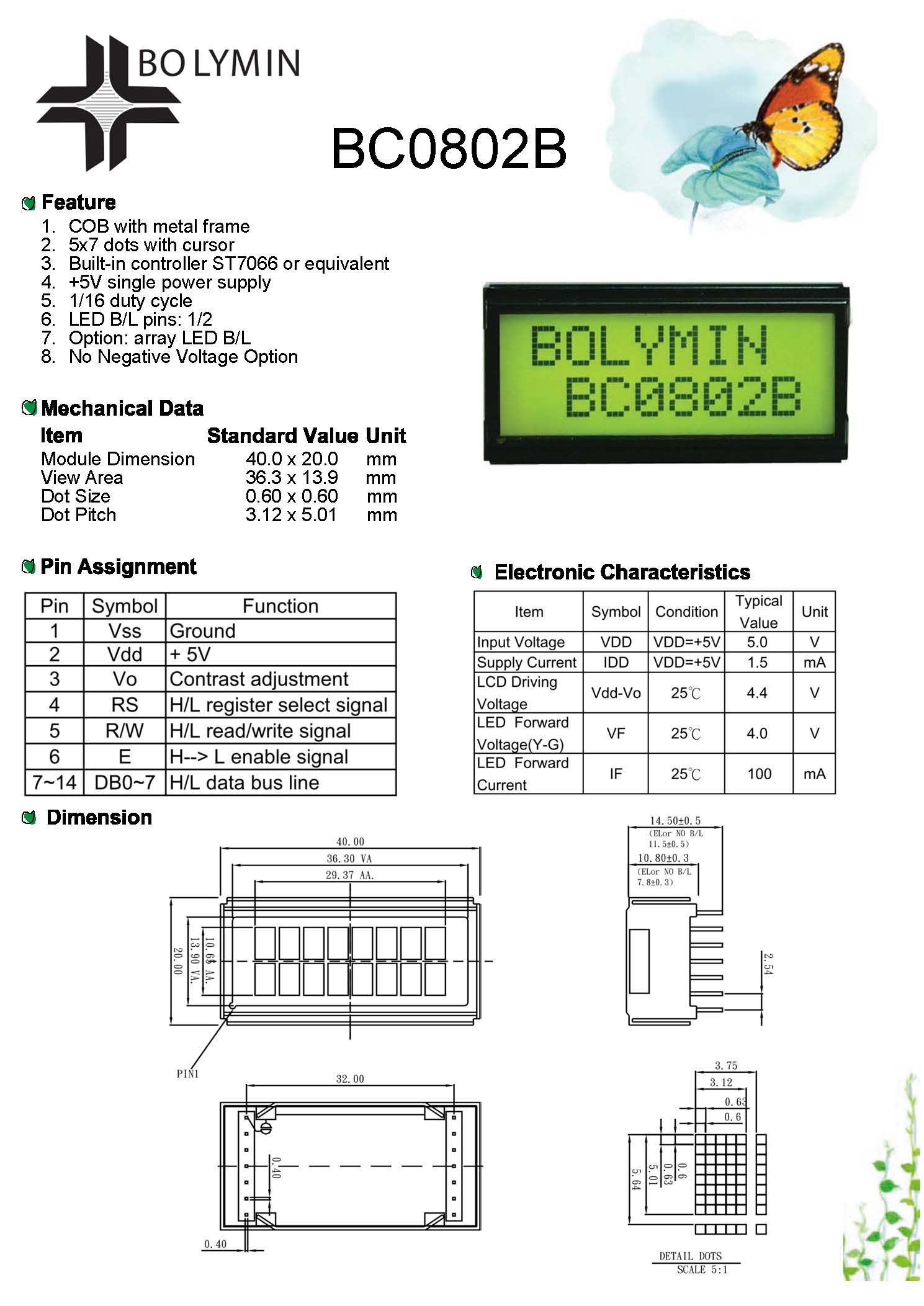

8 x 2 BC0802B 40.0 x 20.0 36.30 x 13.90 ST7066 or equivalent

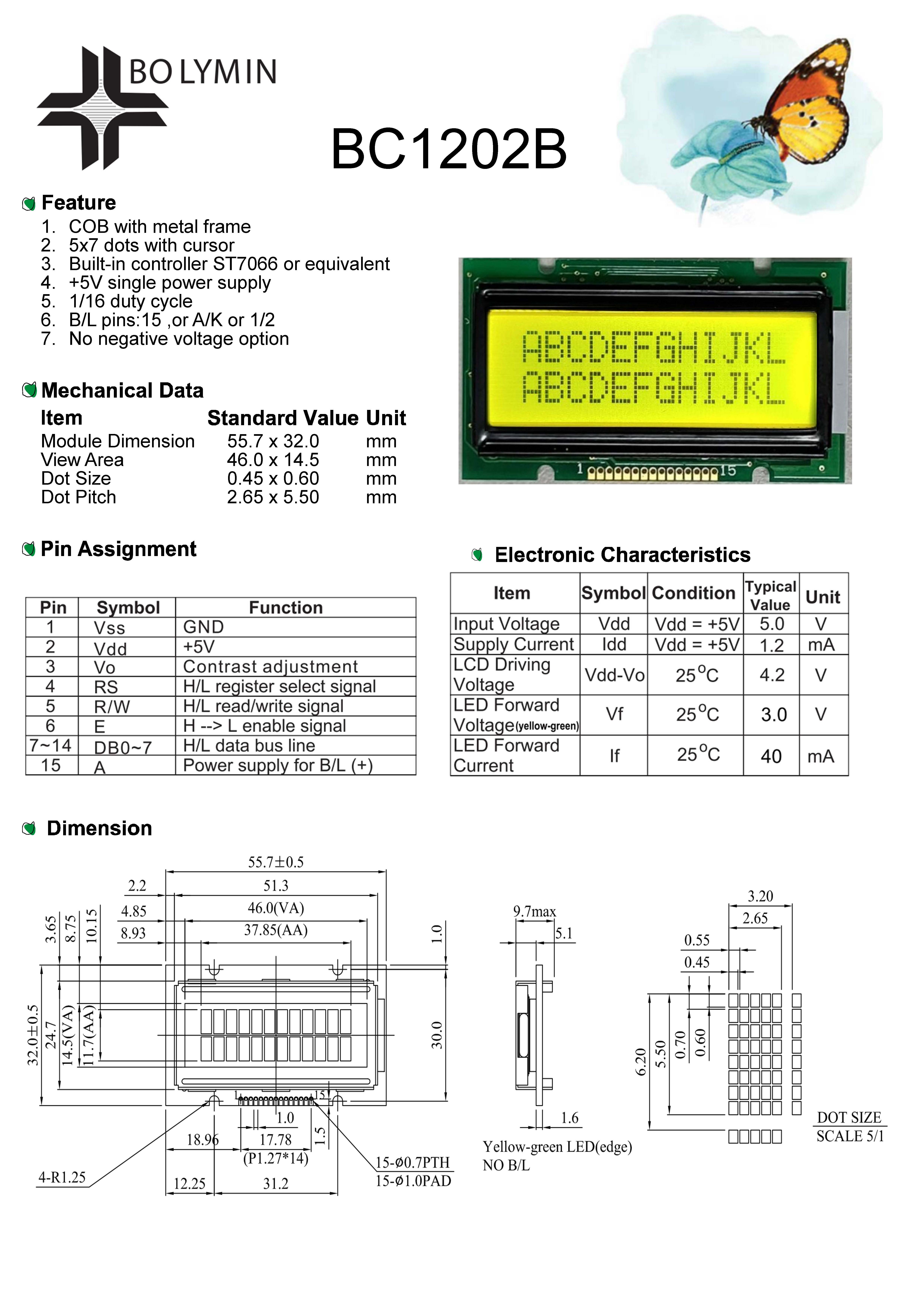

12 x 2 BC1202B 55.7 x 32.0 46.0 x 14.50 ST7066 or equivalent

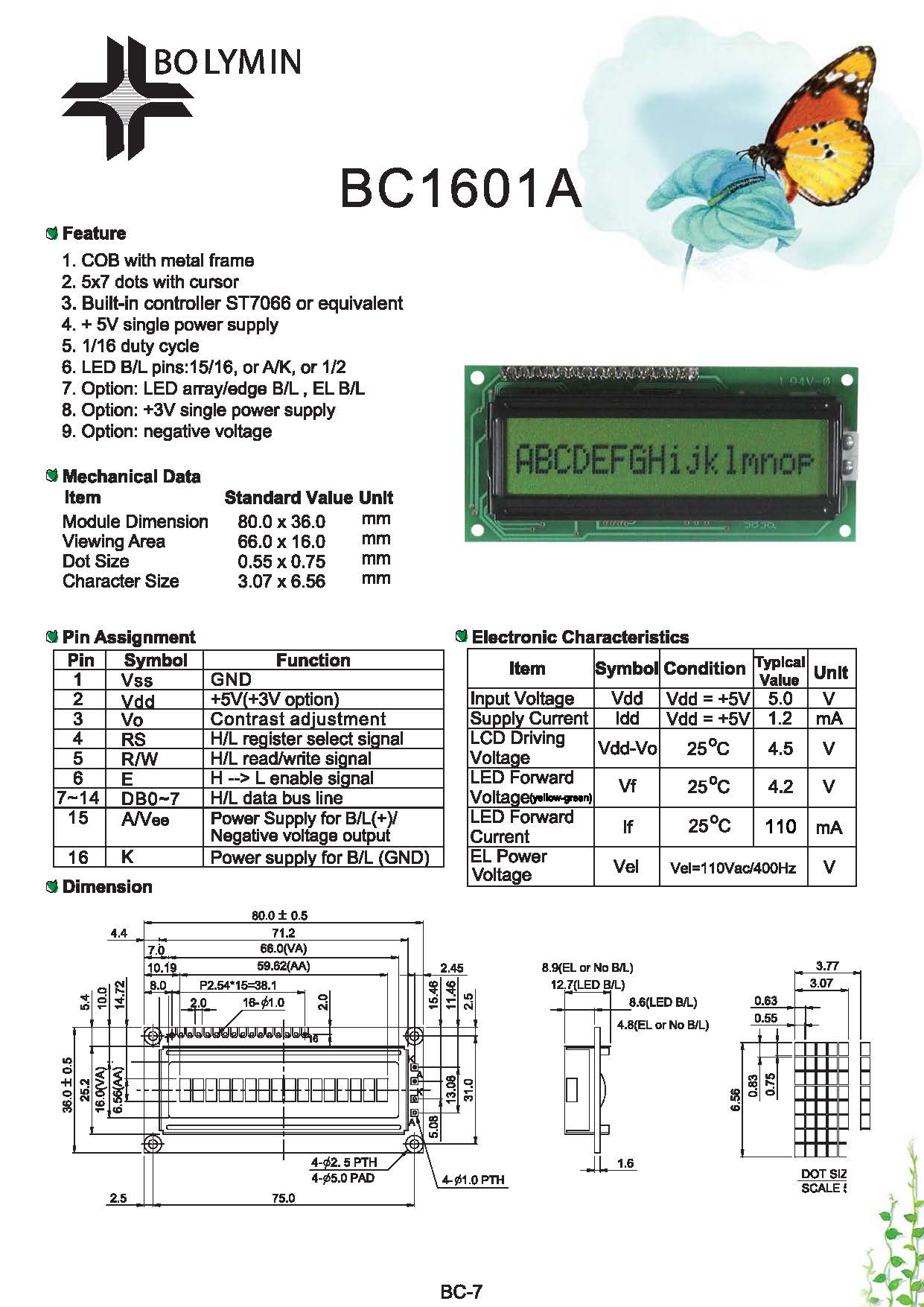

16 x 1 BC1601A 80.0 x 36.0 66.0 x 16.0 ST7066 or equivalent

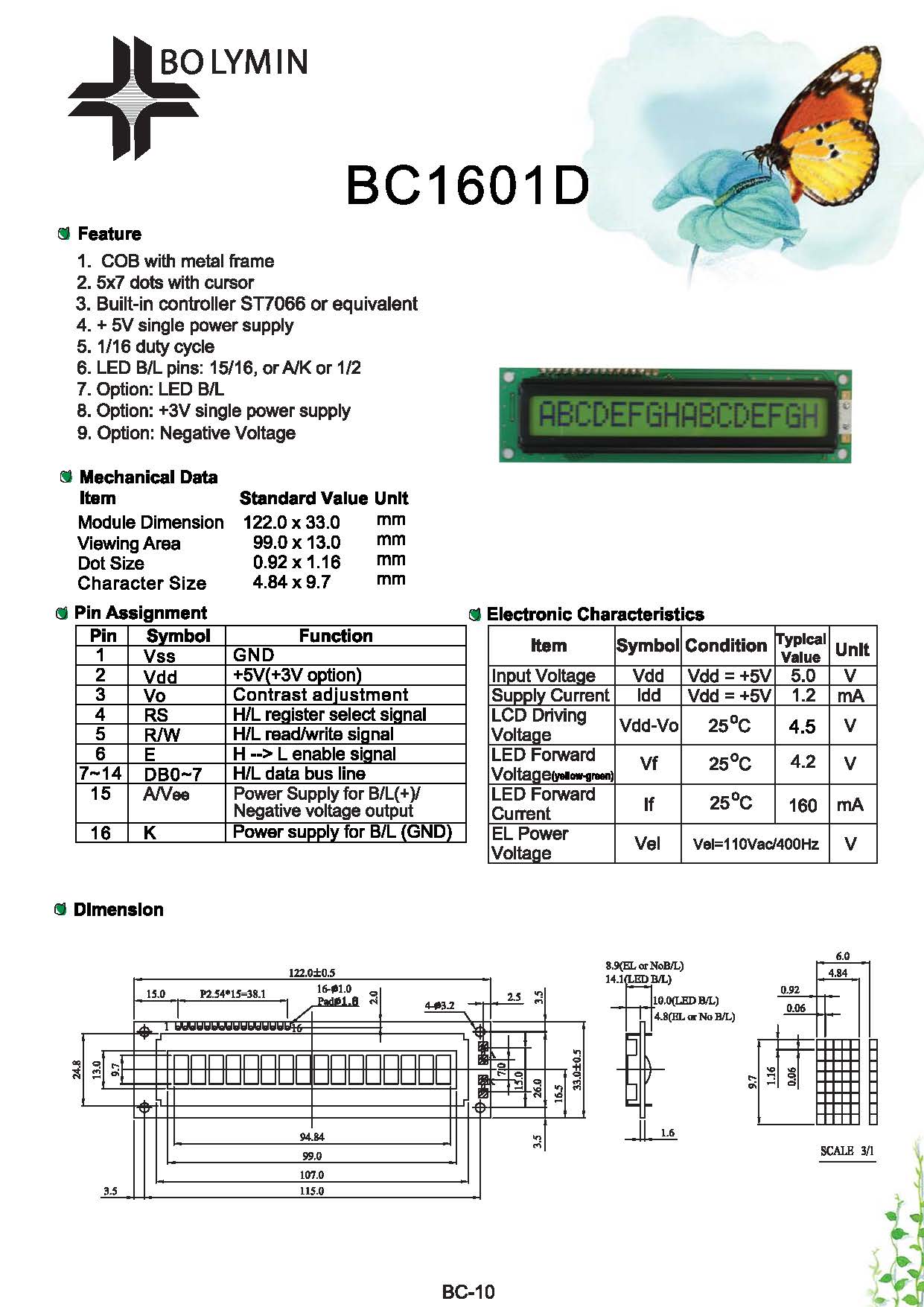

16 x 1 BC1601D 122.0 x 33.0 99.0 x 13.0 ST7066 or equivalent

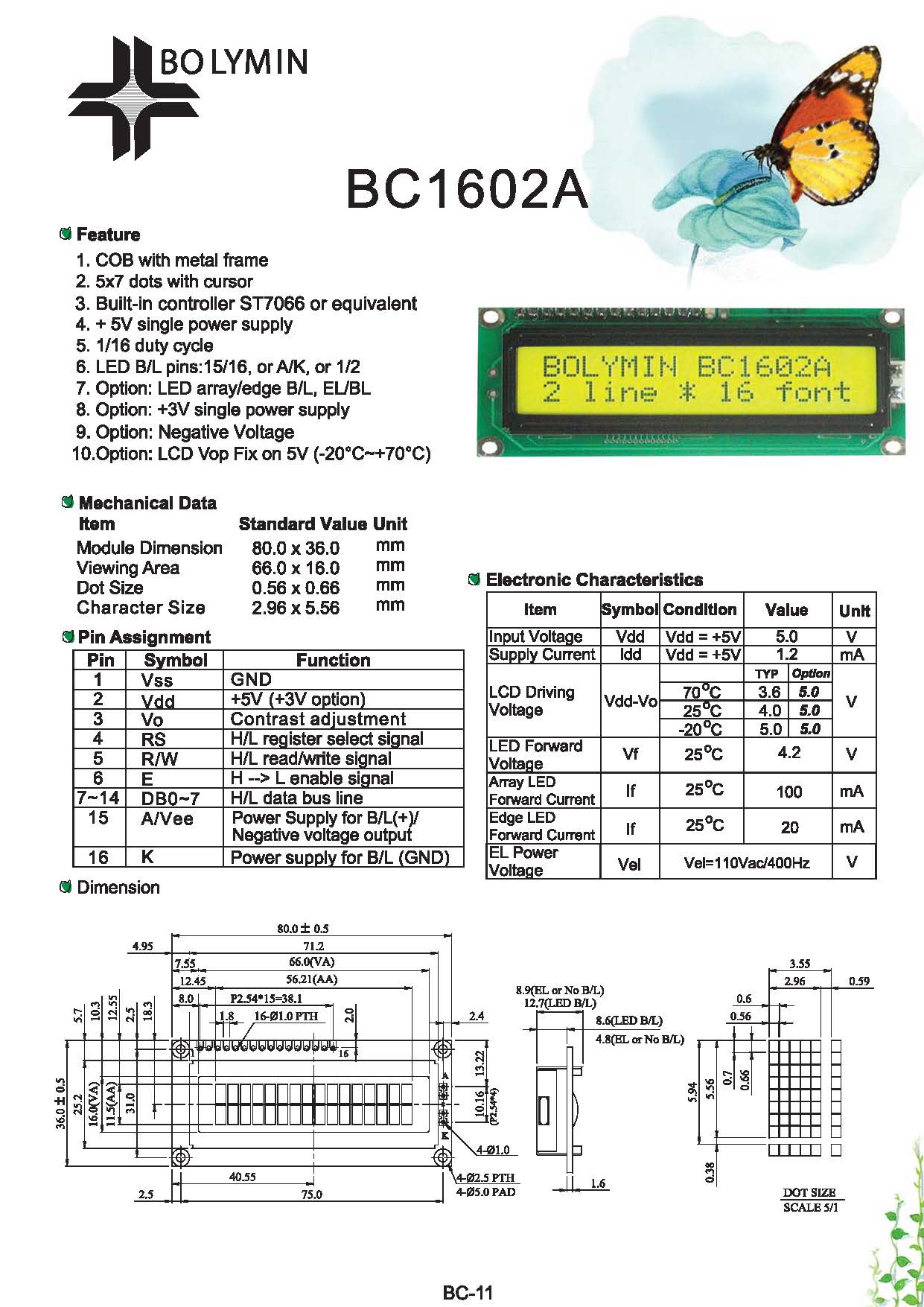

16 x 2 BC1602A 80.0 x 36.0 66.0 x 16.0 ST7066 or equivalent
16 x 2 BC1602AR 80.0 x 36.0 66.0 x 16.0 RW1063

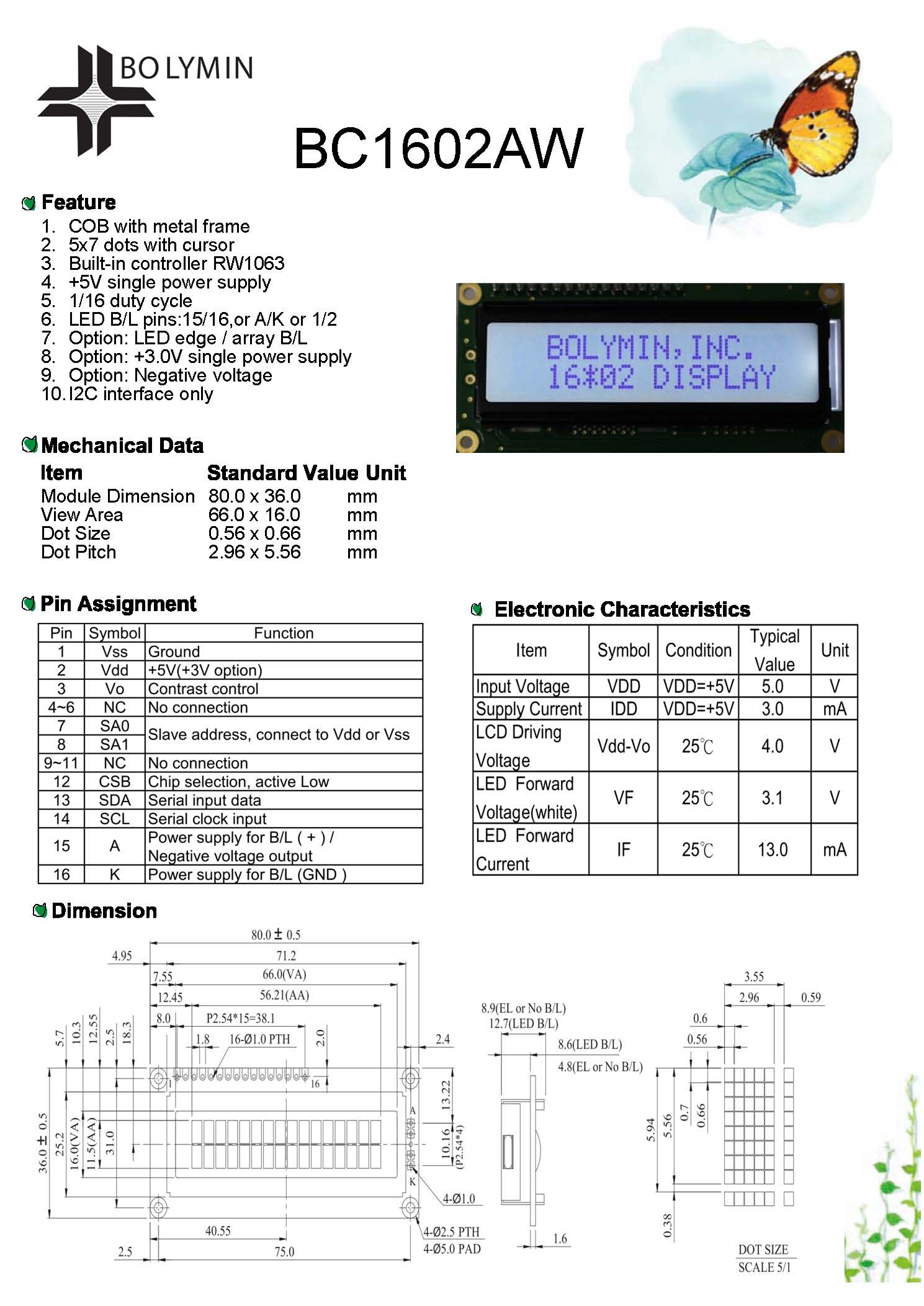

16 x 2 BC1602AW 80.0 x 36.0 66.0 x 16.0 RW1063
16 x 2 BC1602B 85.0 x 30.0 66.0 x 16.0 ST7066 or equivalent

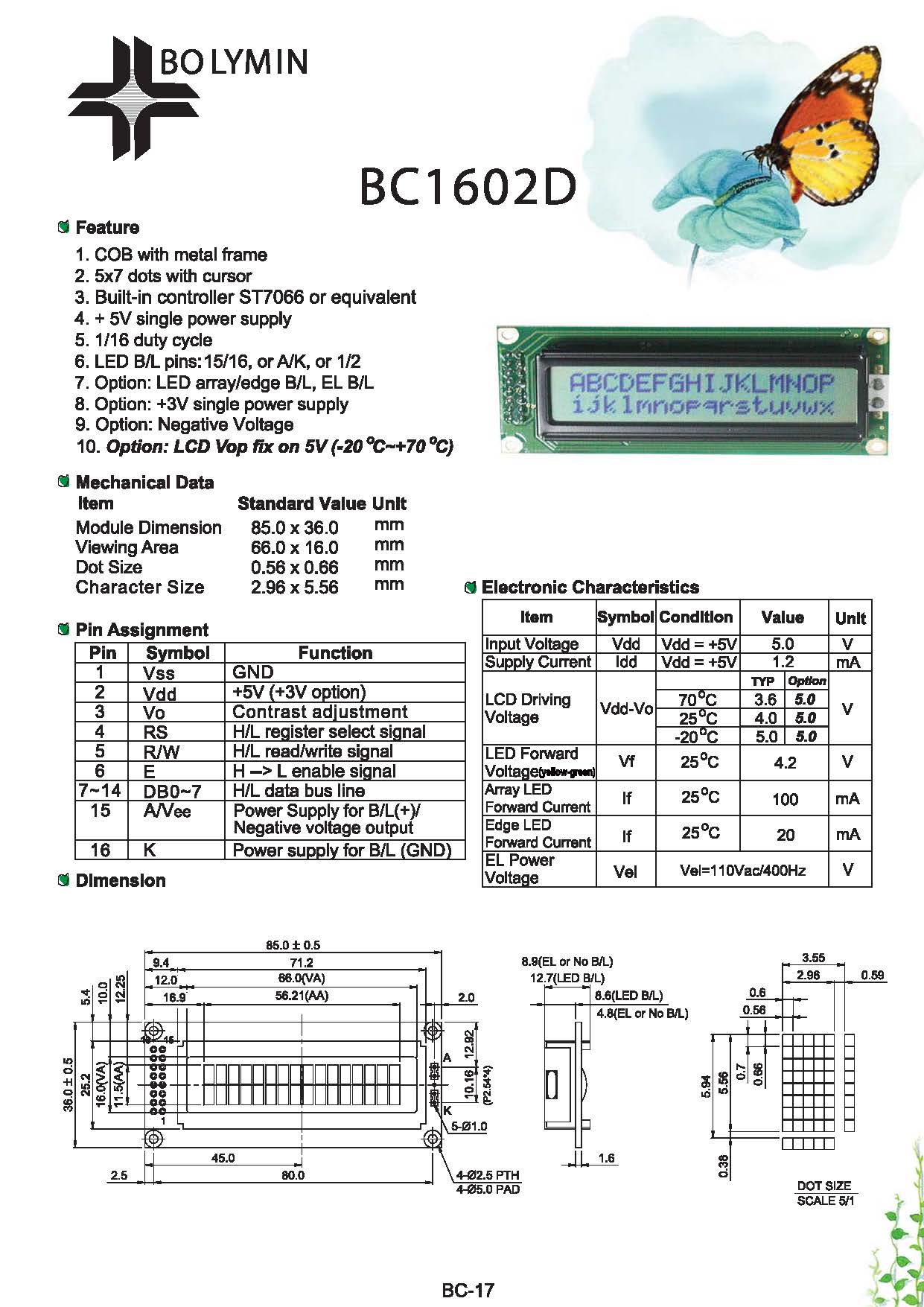

16 x 2 BC1602D 85.0 x 36.0 66.0 x 16.0 ST7066 or equivalent

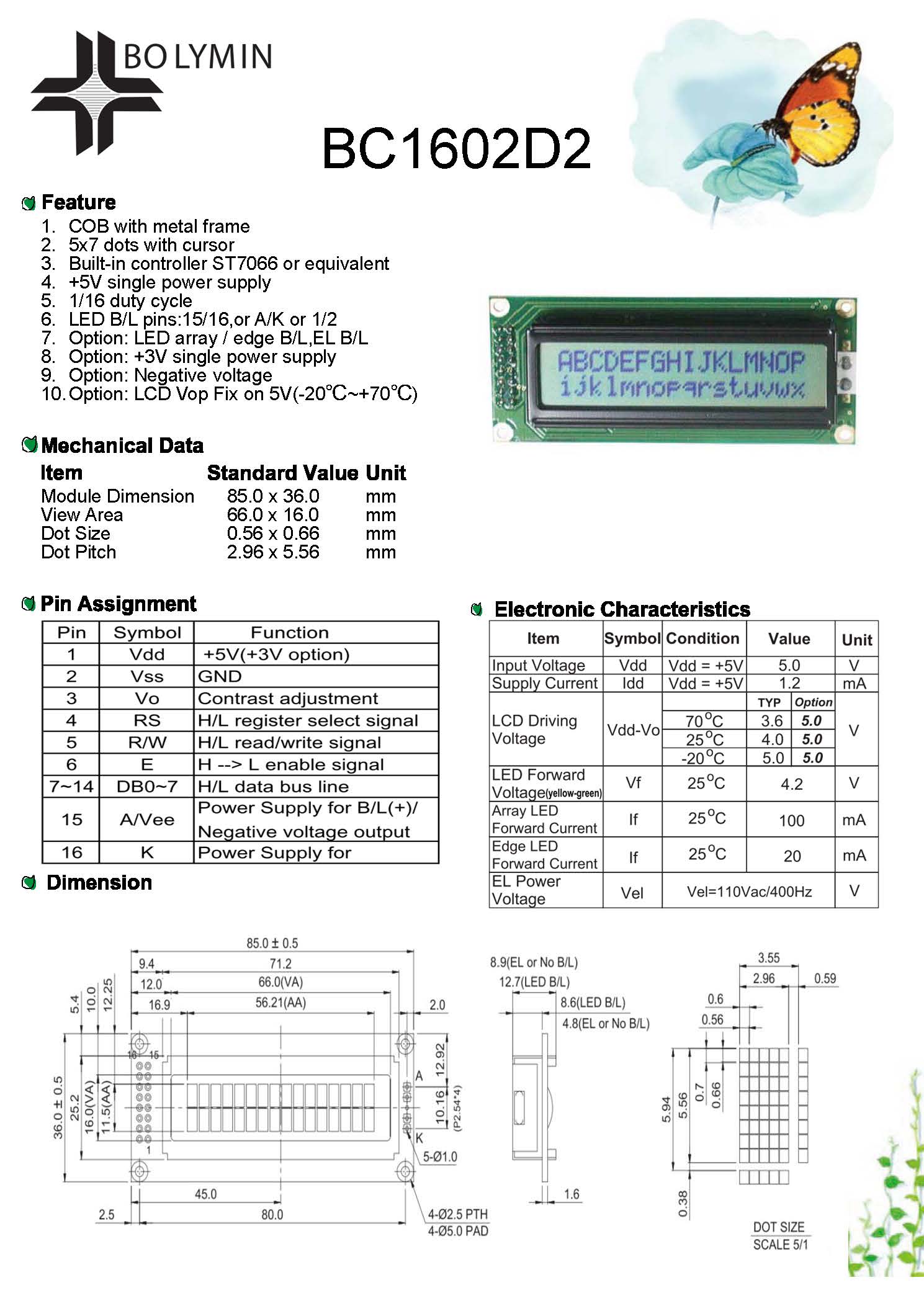

16 x 2 BC1602D2 85.0 x 36.0 66.0 x 16.0 ST7066 or equivalent

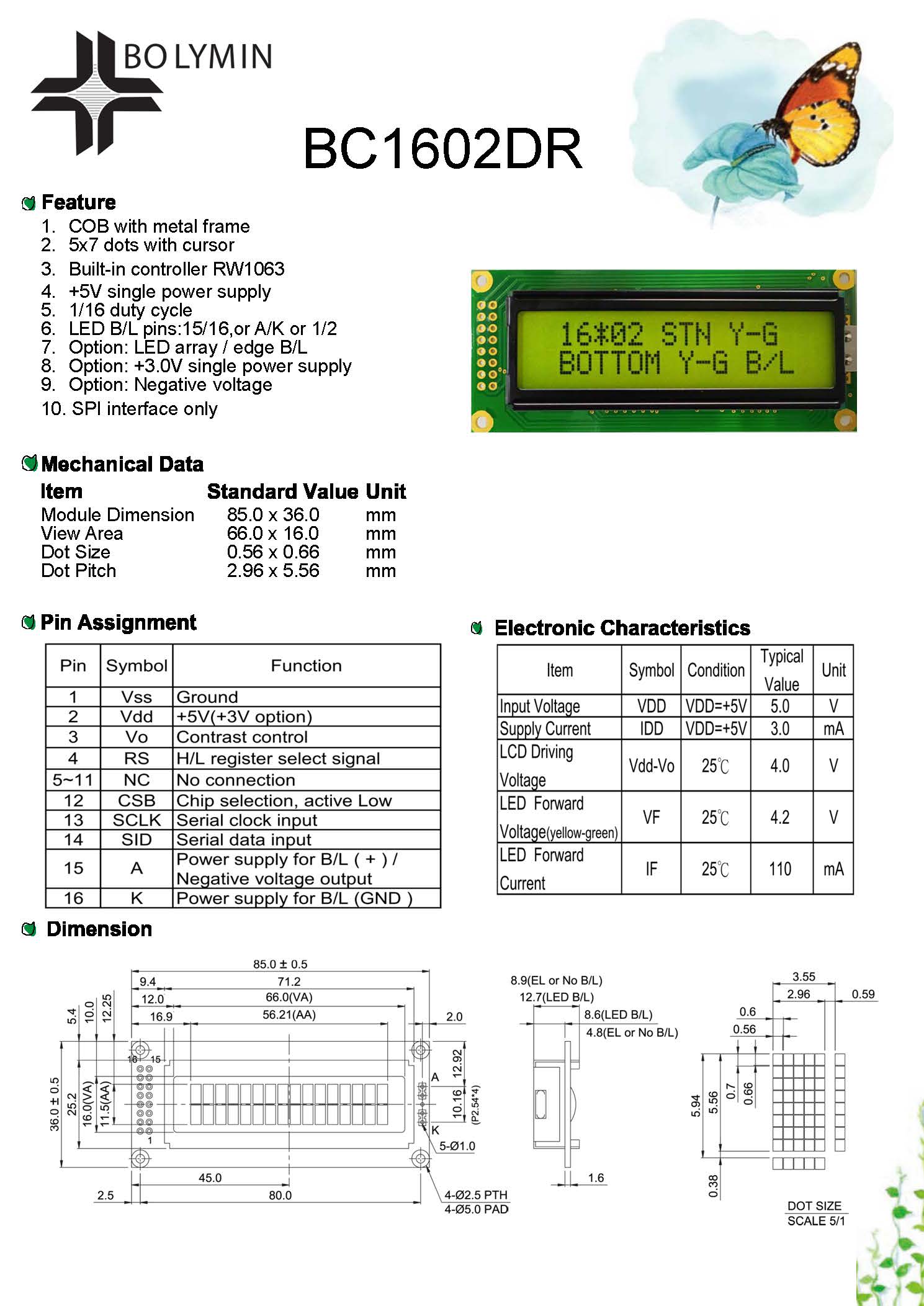

16 x 2 BC1602DR 85.0 x 36.0 66.0 x 16.0 RW1063
16 x 2 BC1602DW 85.0 x 36.0 66.0 x 16.0 RW1063

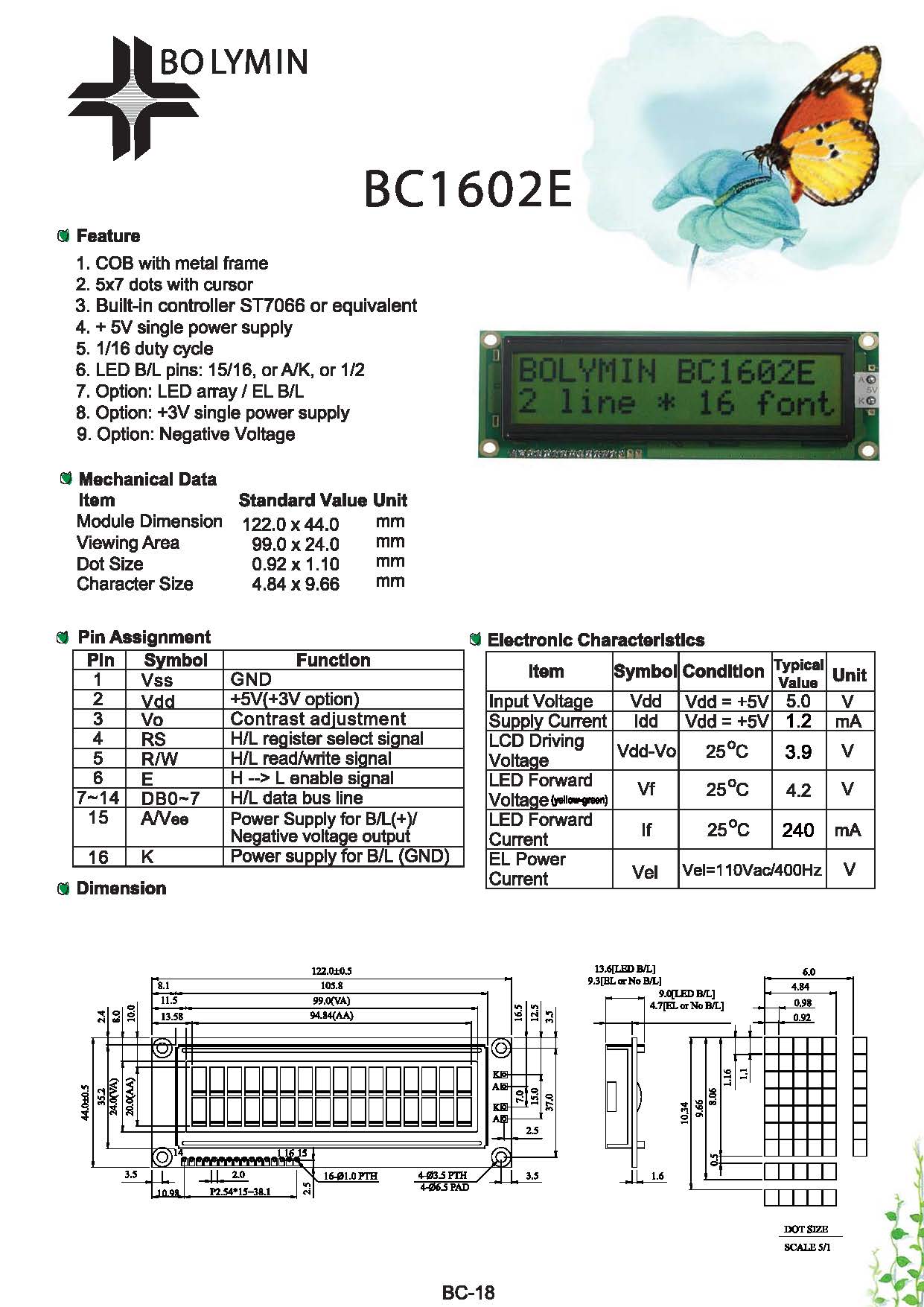

16 x 2 BC1602E 122.0 x 44.0 99.0 x 24.0 ST7066 or equivalent

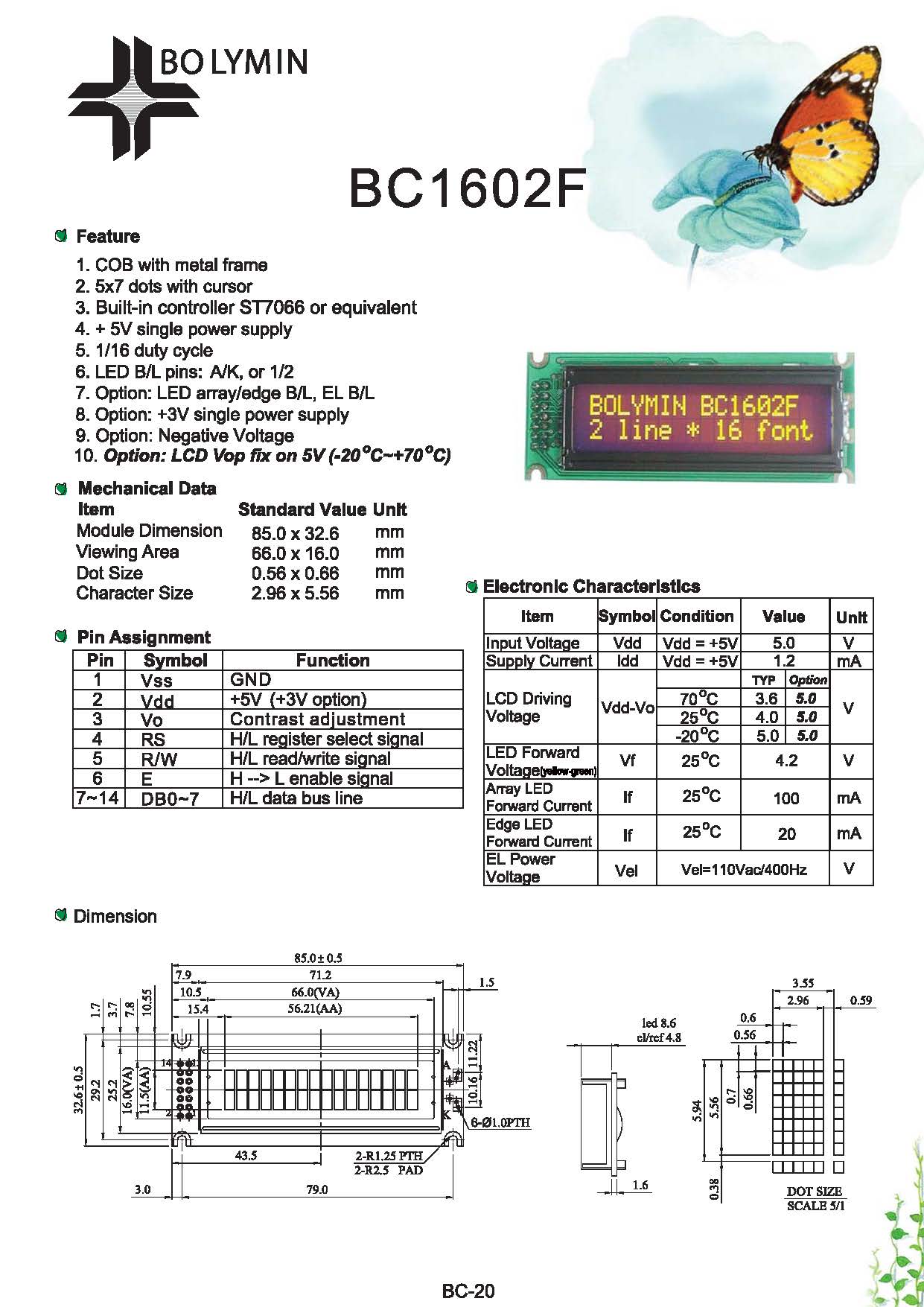

16 x 2 BC1602F 85.0 x 32.6 66.0 x 16.0 ST7066 or equivalent

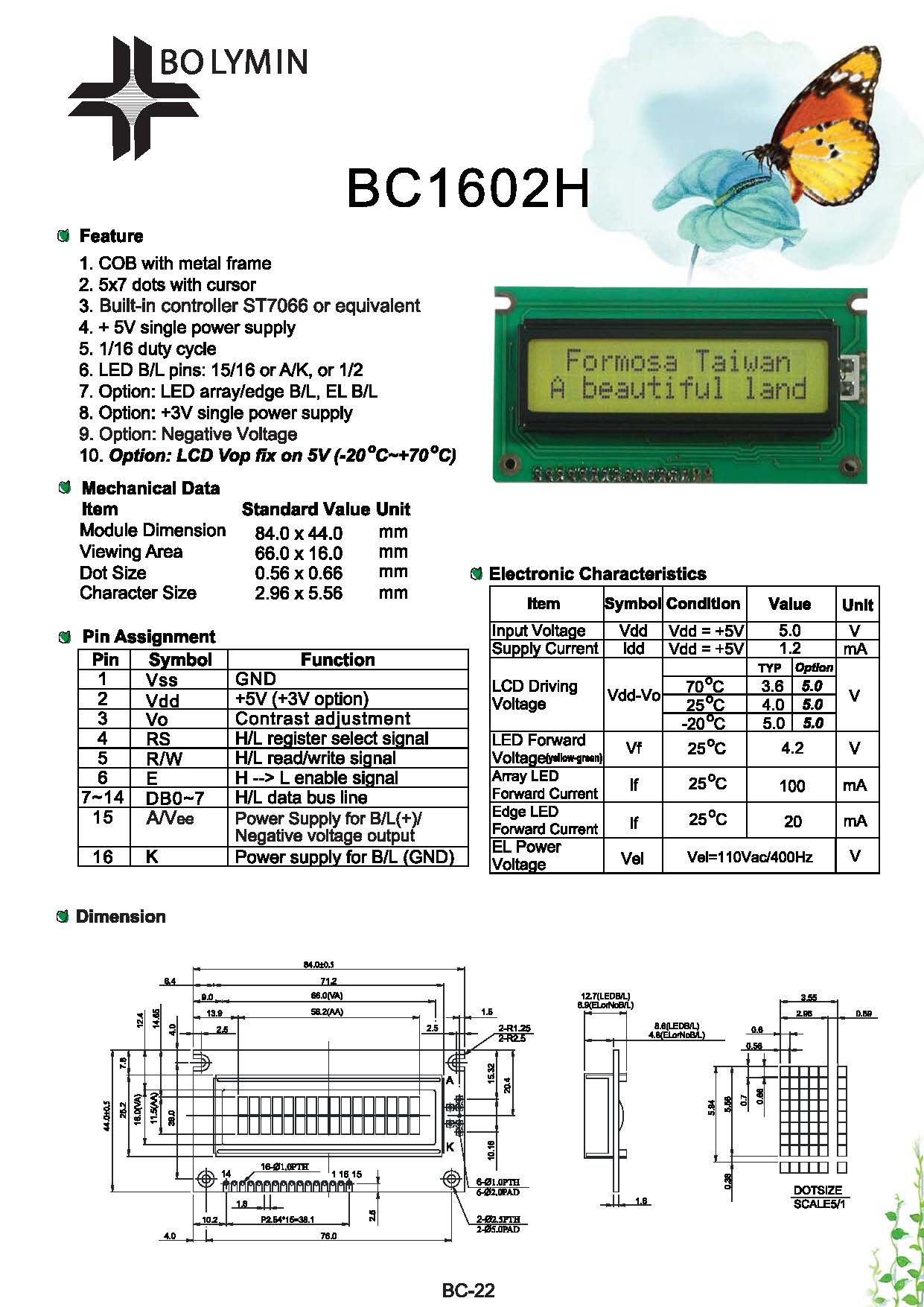

16 x 2 BC1602H 84.0 x 44.0 66.0 x 16.0 ST7066 or equivalent

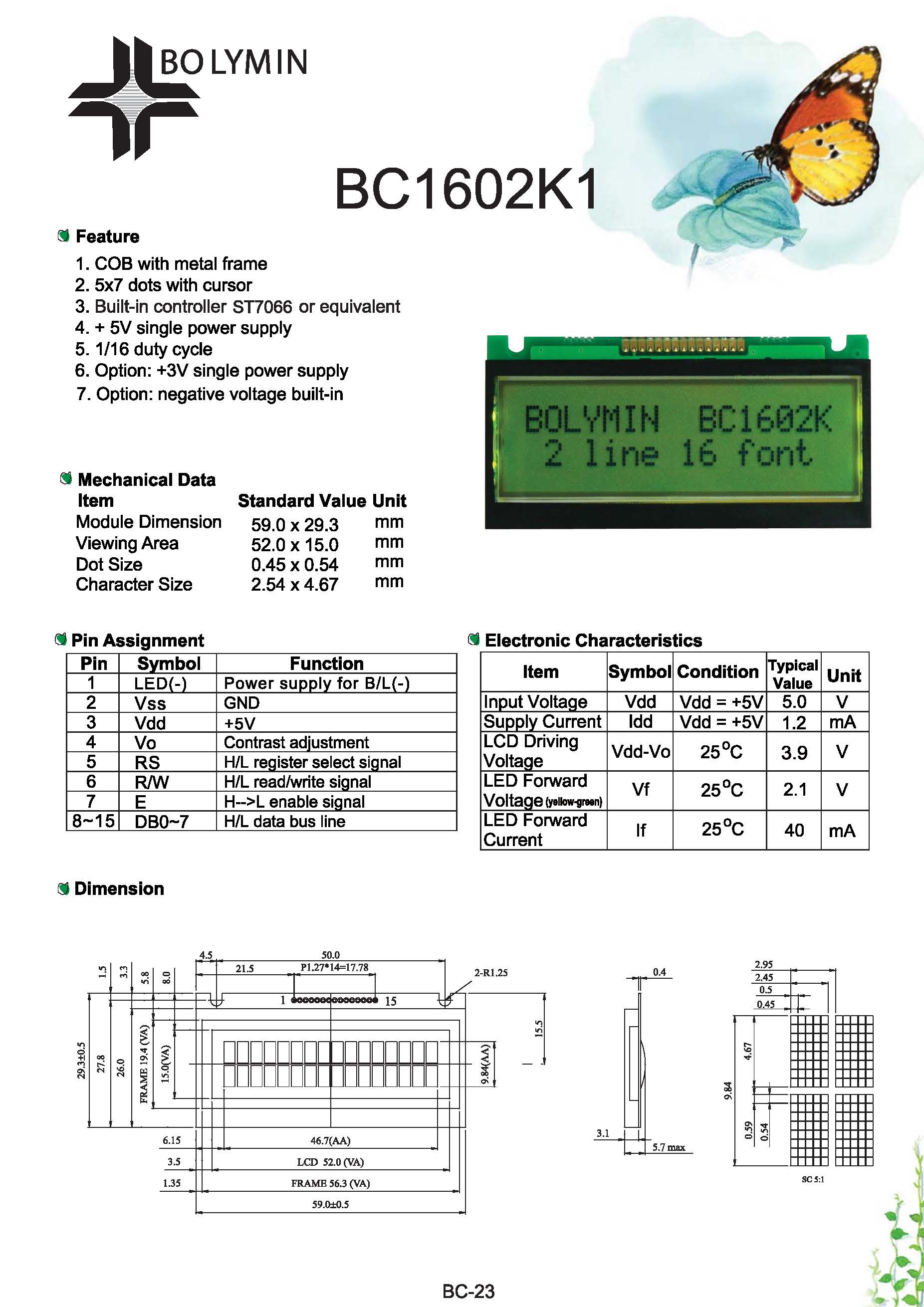

16 x 2 BC1602K1 59.0 x 29.3 52.0 x 15.0 ST7066 or equivalent

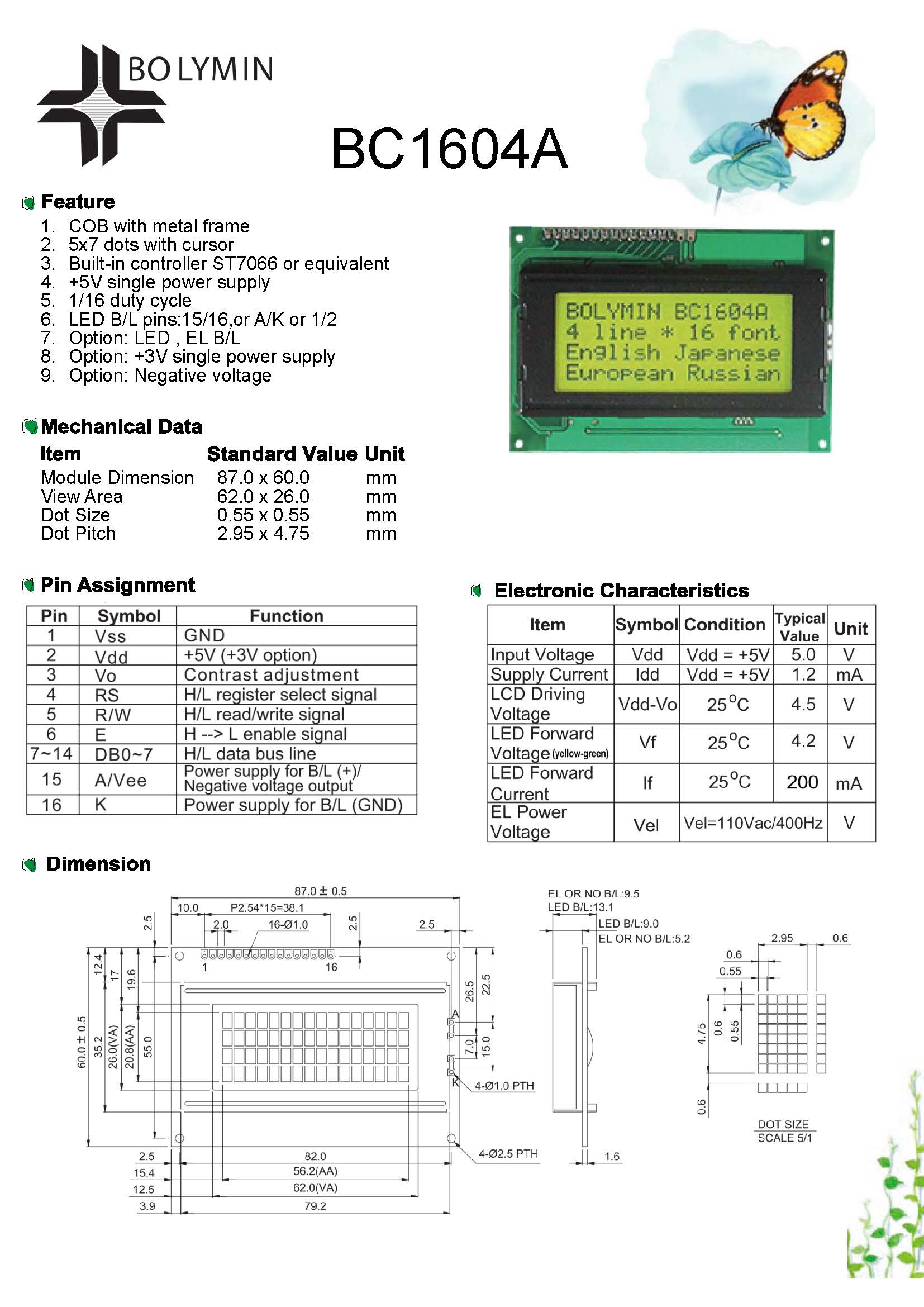

16 x 4 BC1604A 87.0 x 60.0 62.0 x 26.0 ST7066 or equivalent
16 x 4 BC1604AR 87.0 x 60.0 62.0 x 26.0 RW1063

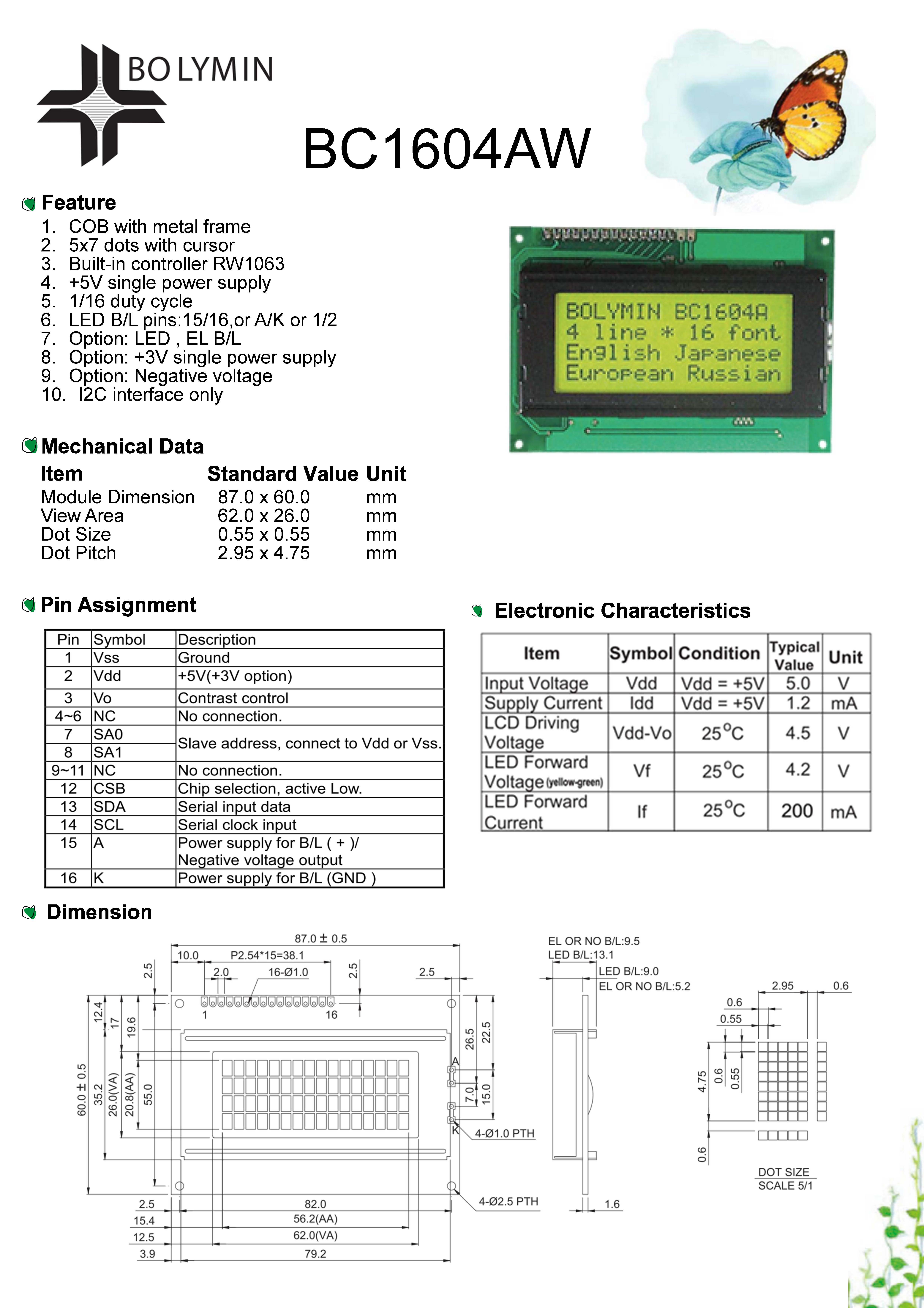

16 x 4 BC1604AW 87.0 x 60.0 62.0 x 26.0 RW1063

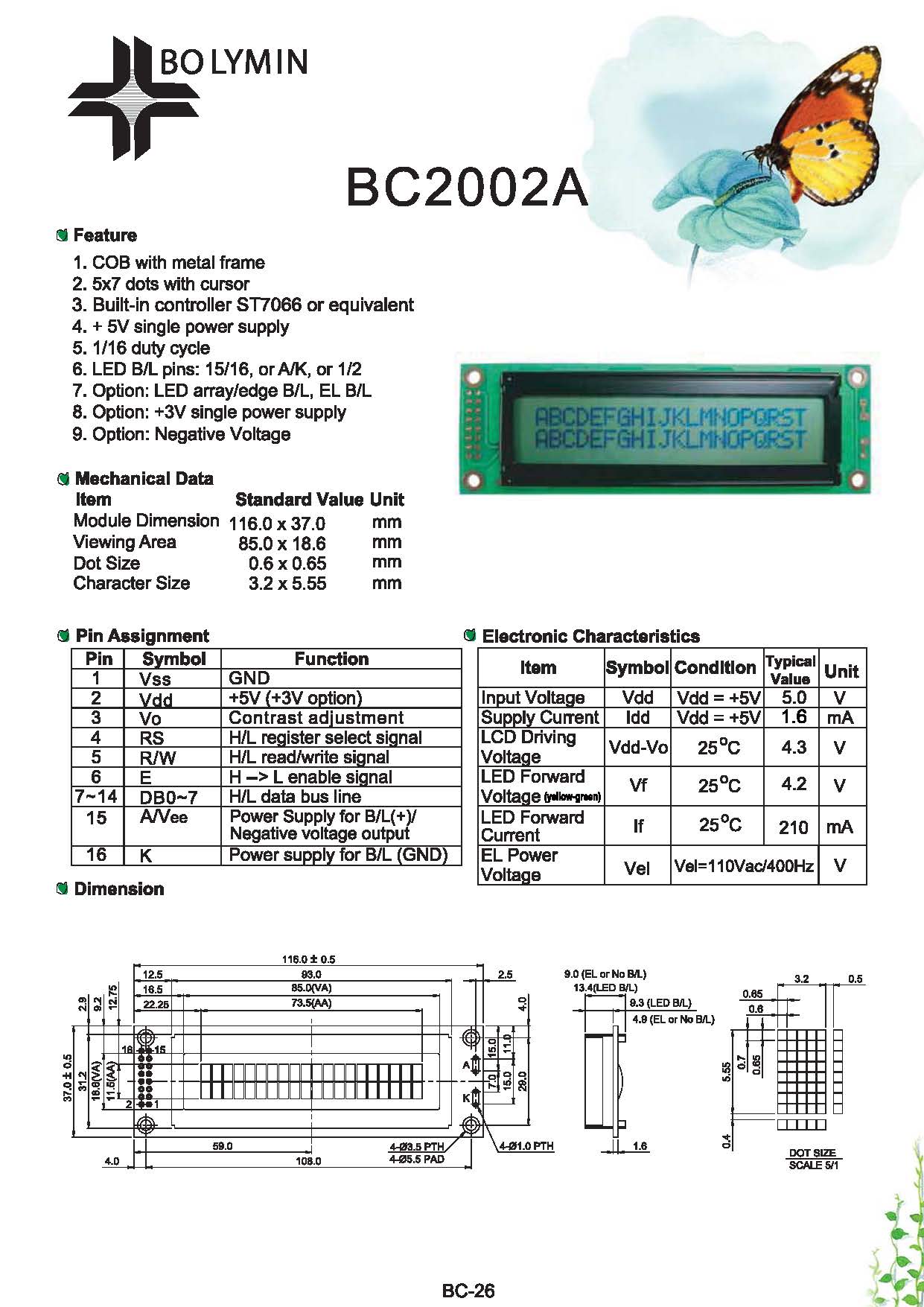

20 x 2 BC2002A 116.0 x 37.0 85.0 x 18.6 ST7066 or equivalent

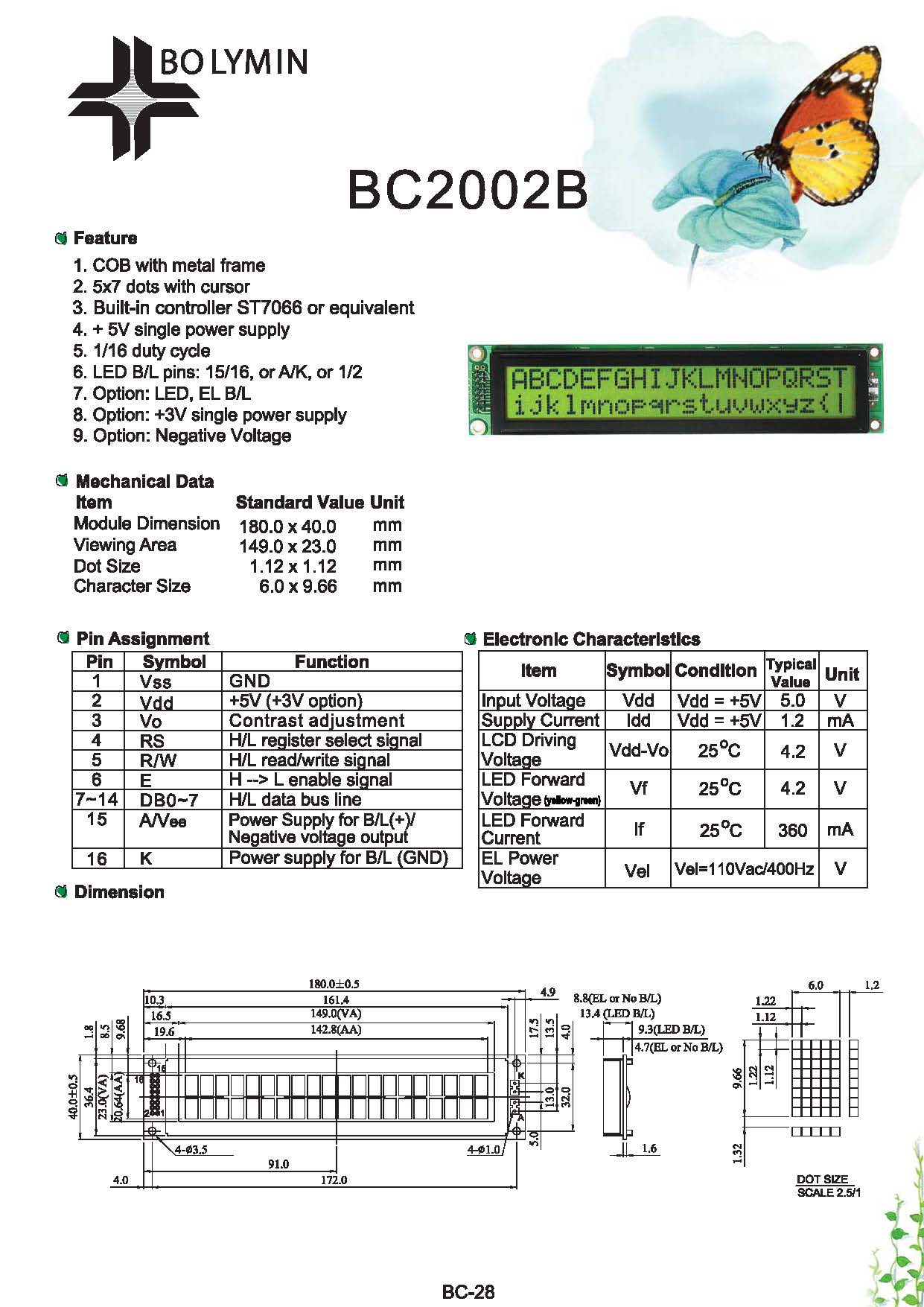

20 x 2 BC2002B 180.0 x 40.0 149.0 x 23.0 ST7066 or equivalent

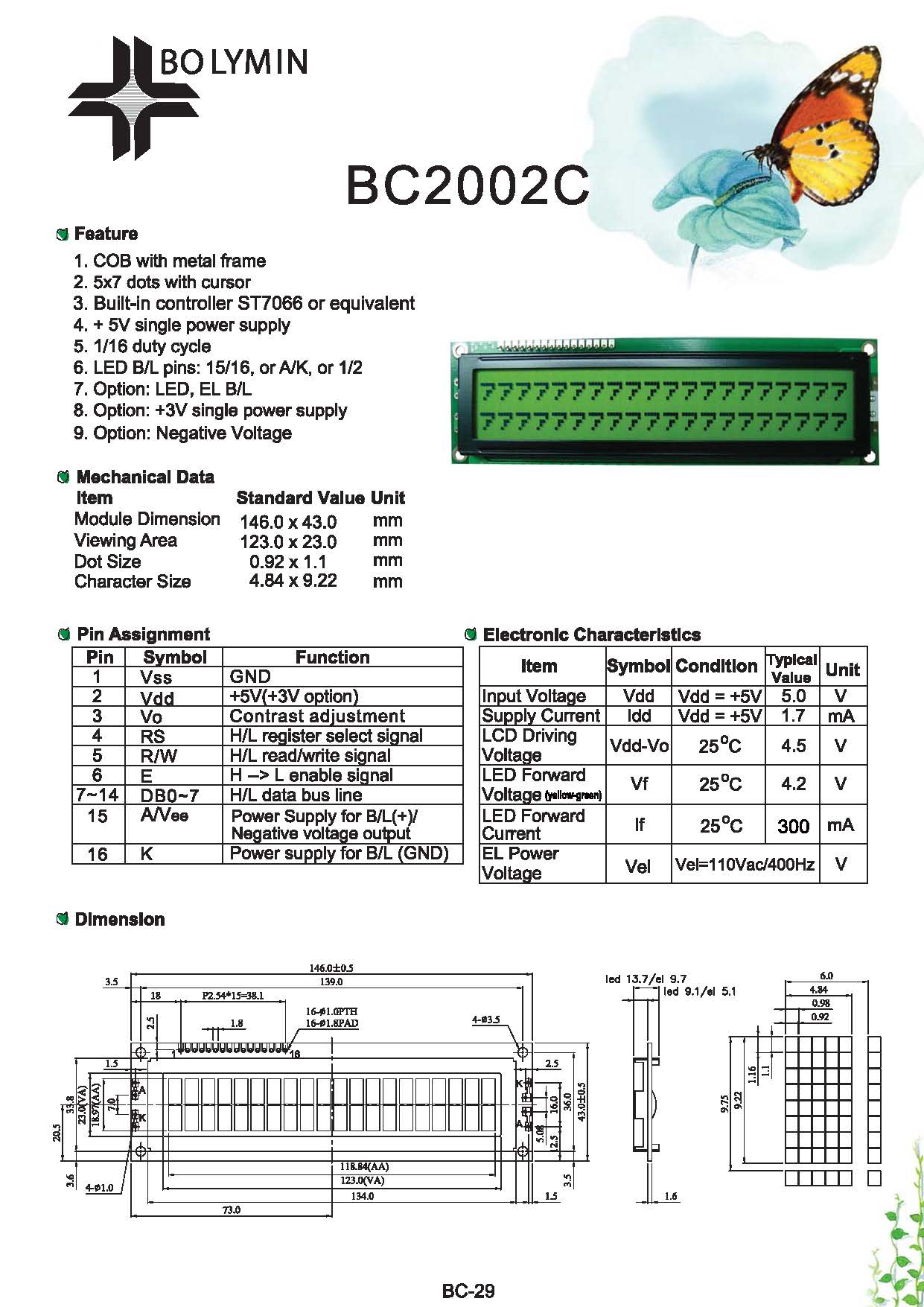

20 x 2 BC2002C 146.0 x 43.0 123.0 x 23.0 ST7066 or equivalent

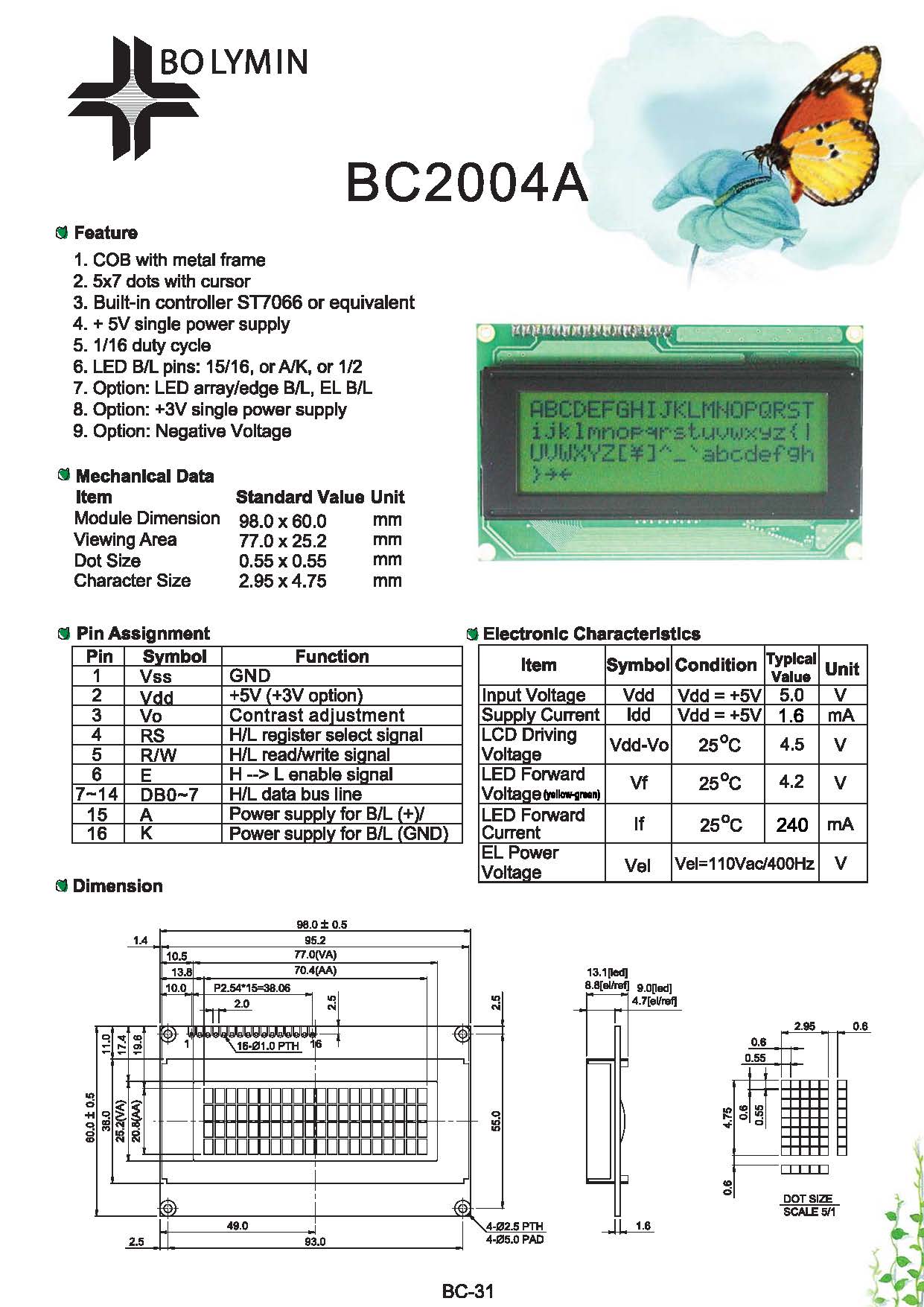

20 x 4 BC2004A 98.0 x 60.0 77.0 x 25.2 ST7066 or equivalent
20 x 4 BC2004AR 98.0 x 60.0 77.0 x 25.2 RW1063

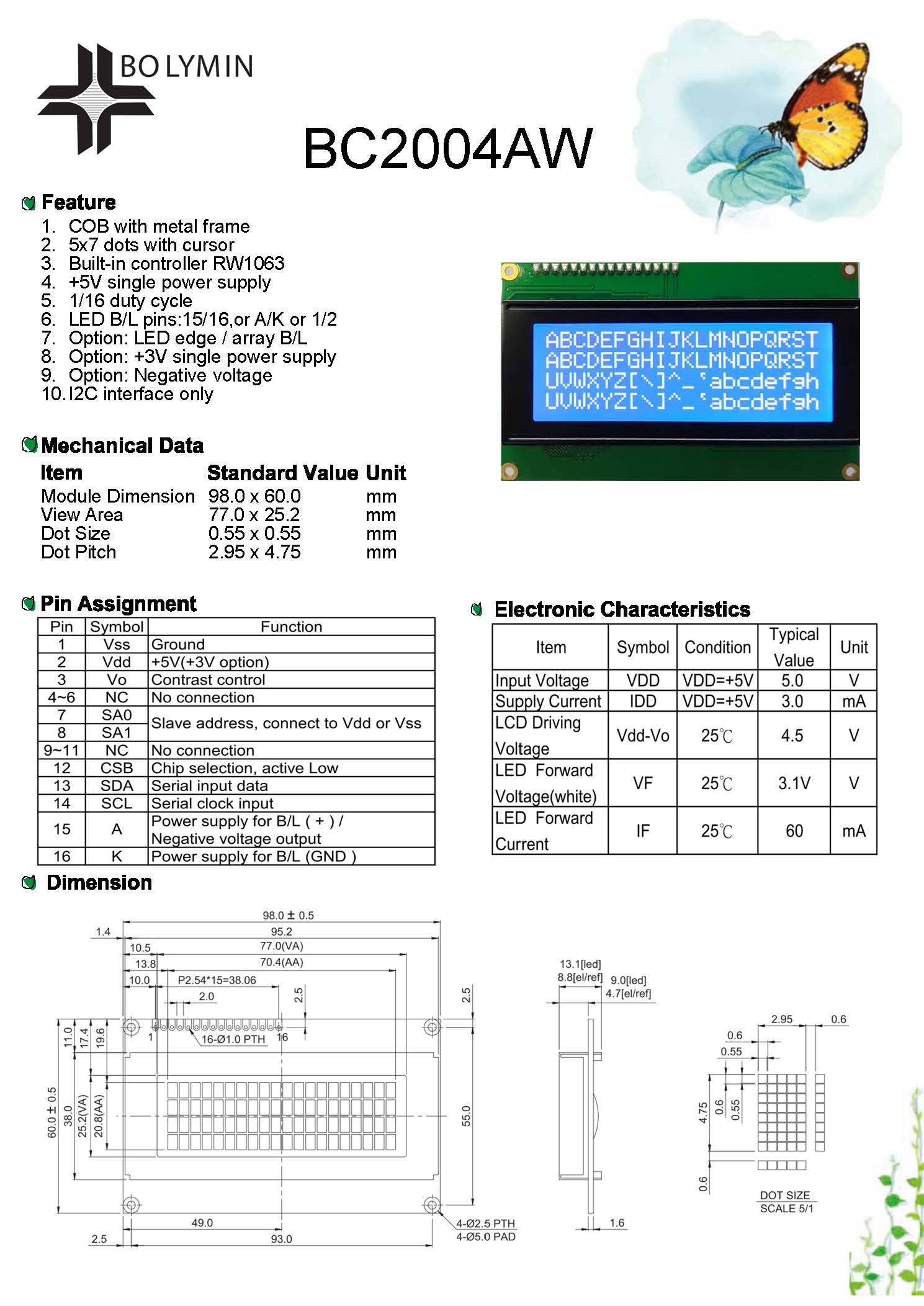

20 x 4 BC2004AW 98.0 x 60.0 77.0 x 25.2 RW1063

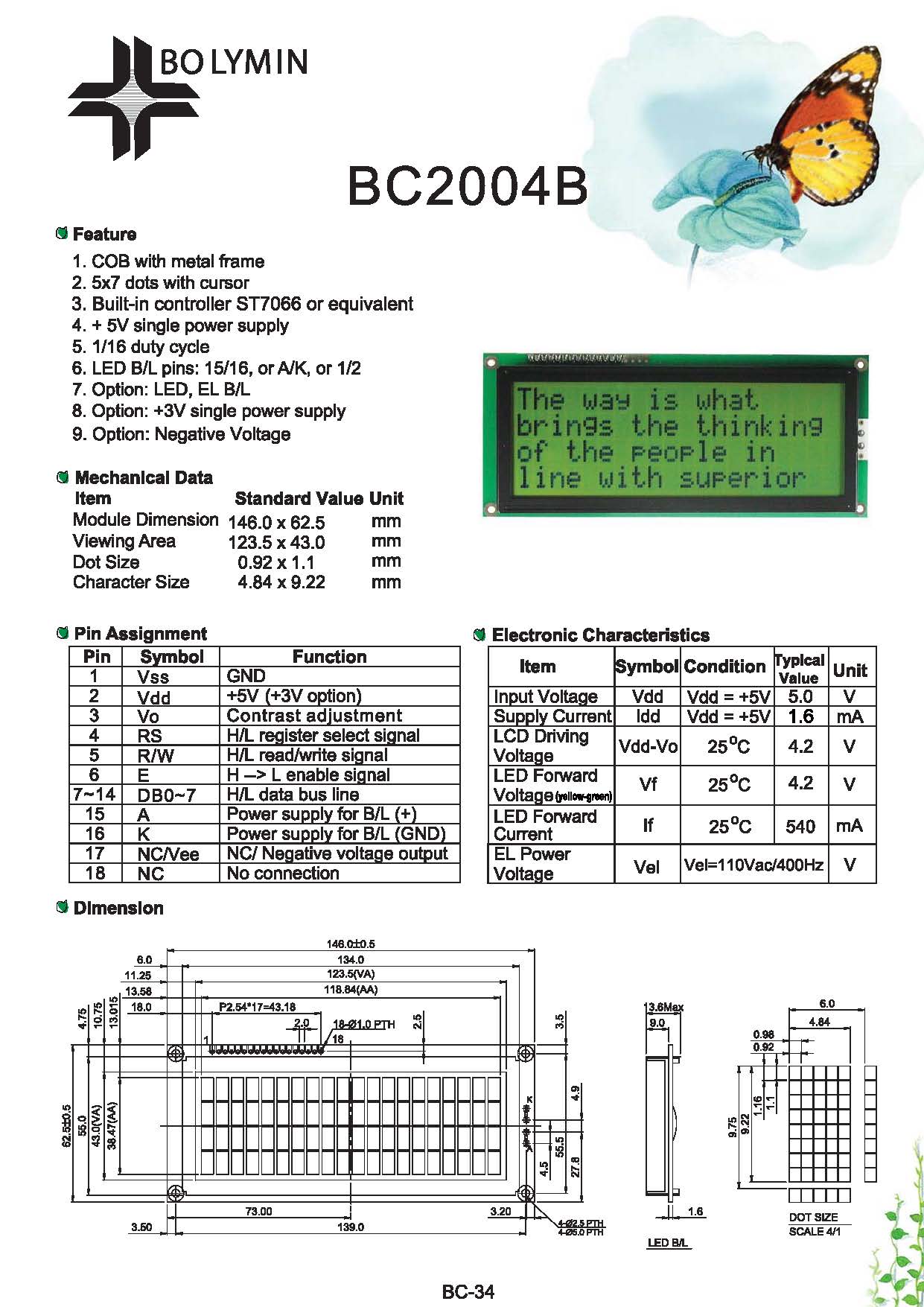

20 x 4 BC2004B 146.0 x 62.5 123.5 x 43.0 ST7066 or equivalent

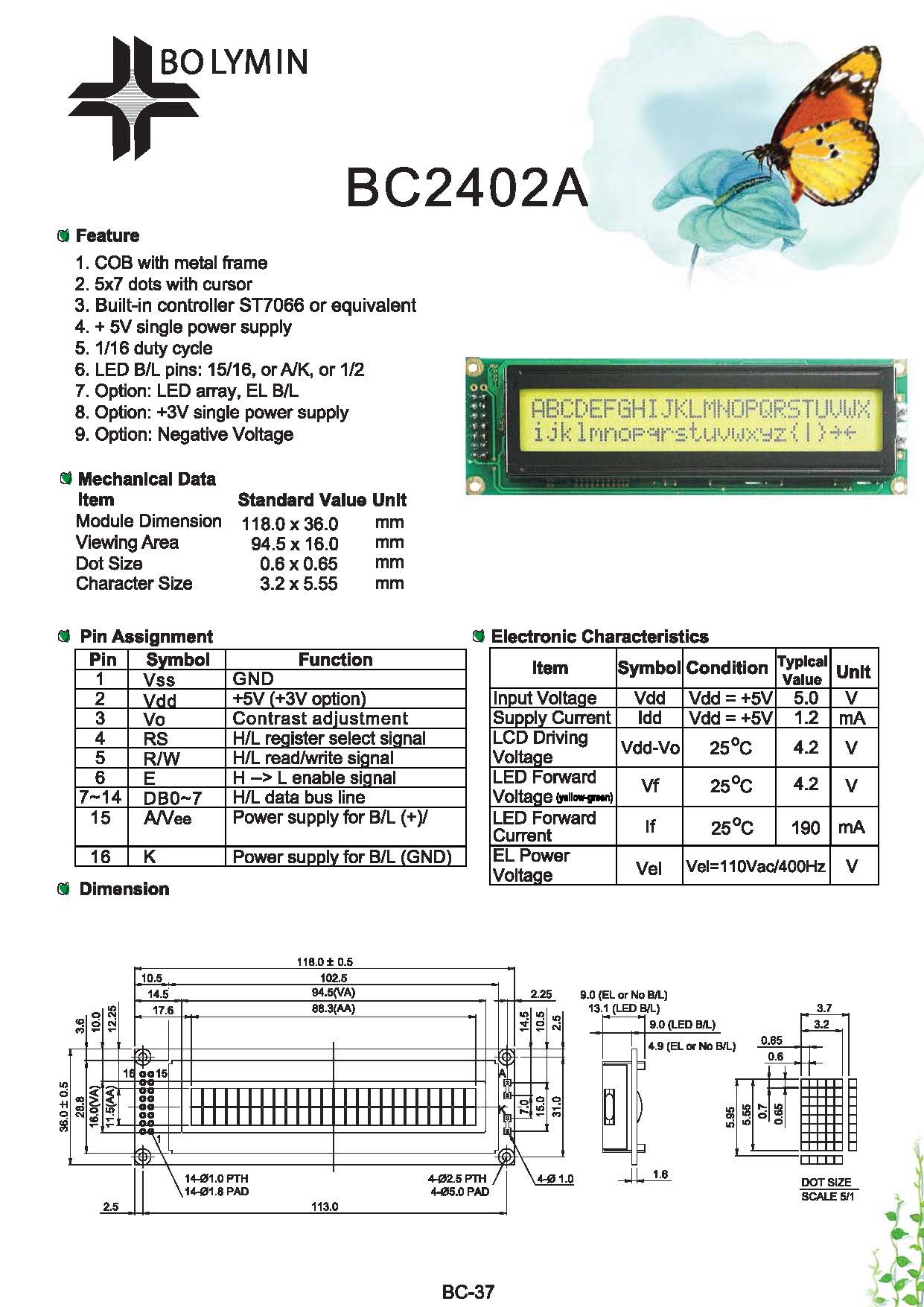

24 x 2 BC2402A 118.0 x 36.0 94.5 x 16.0 ST7066 or equivalent

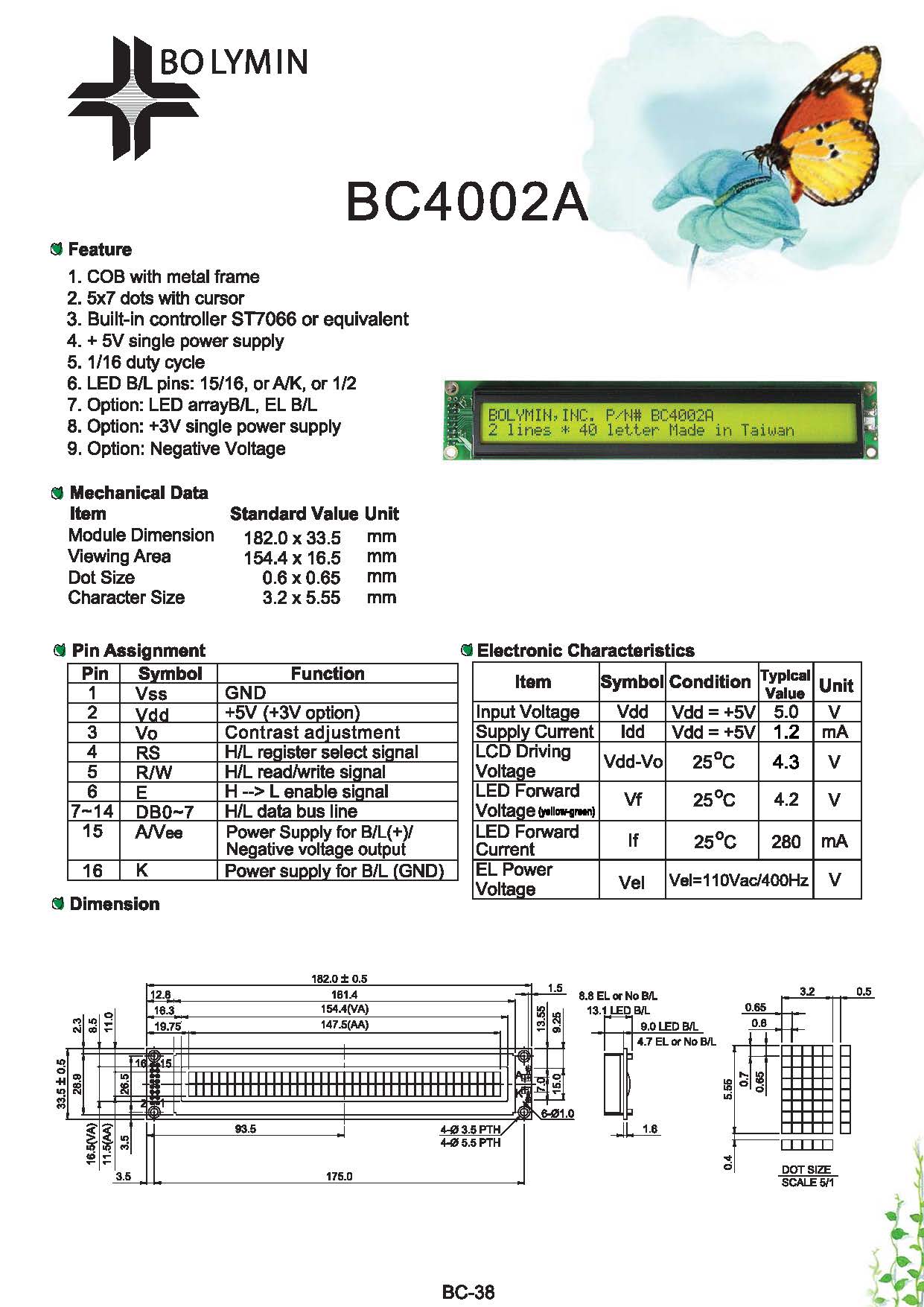

40 x 2 BC4002A 182.0 x 33.5 154.4 x 16.5 ST7066 or equivalent

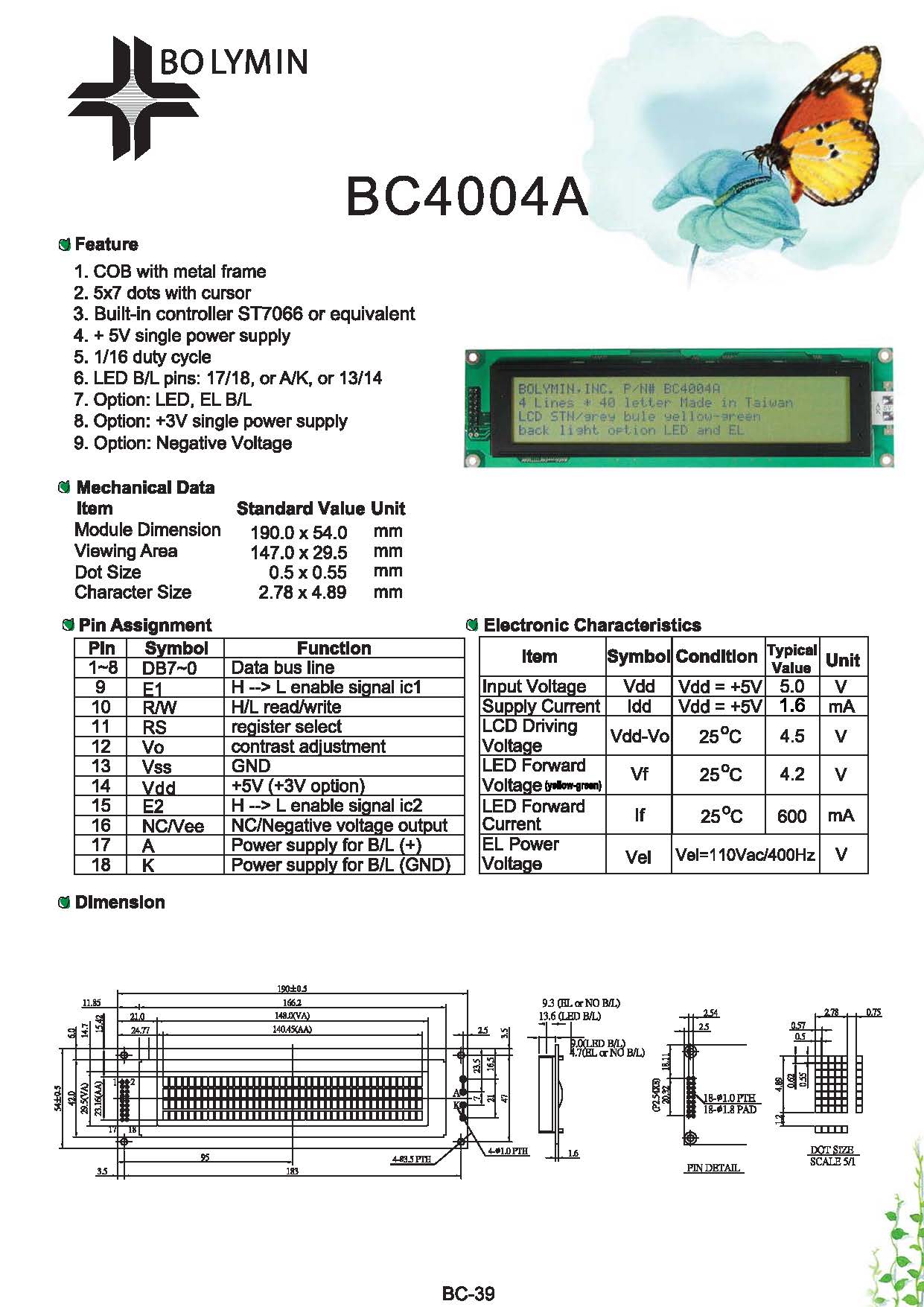

40 x 4 BC4004A 190.0 x 54.0 148.0 x 29.5 ST7066 or equivalent
