Character Graphic TFT OLED HMI Flagship product & stocks
移動
Resolution Size
(inch)		 Module Series Module Dimension
(mm)		 View area(mm) Controller Interface Other specifications download

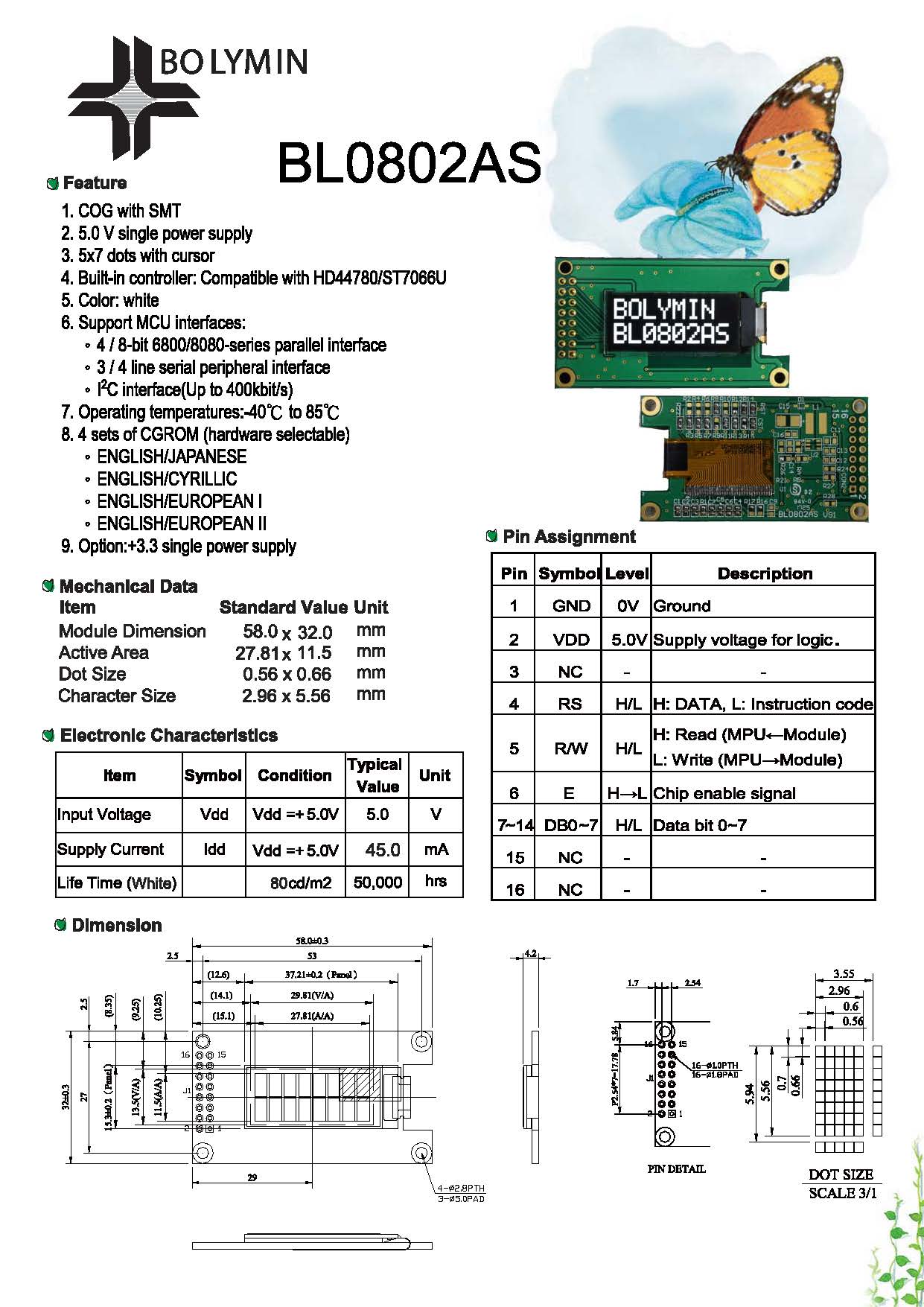

8 x 2 BL0802AS 58.0 x 32.0 29.81 x 13.5 HD44780/ST7066U white

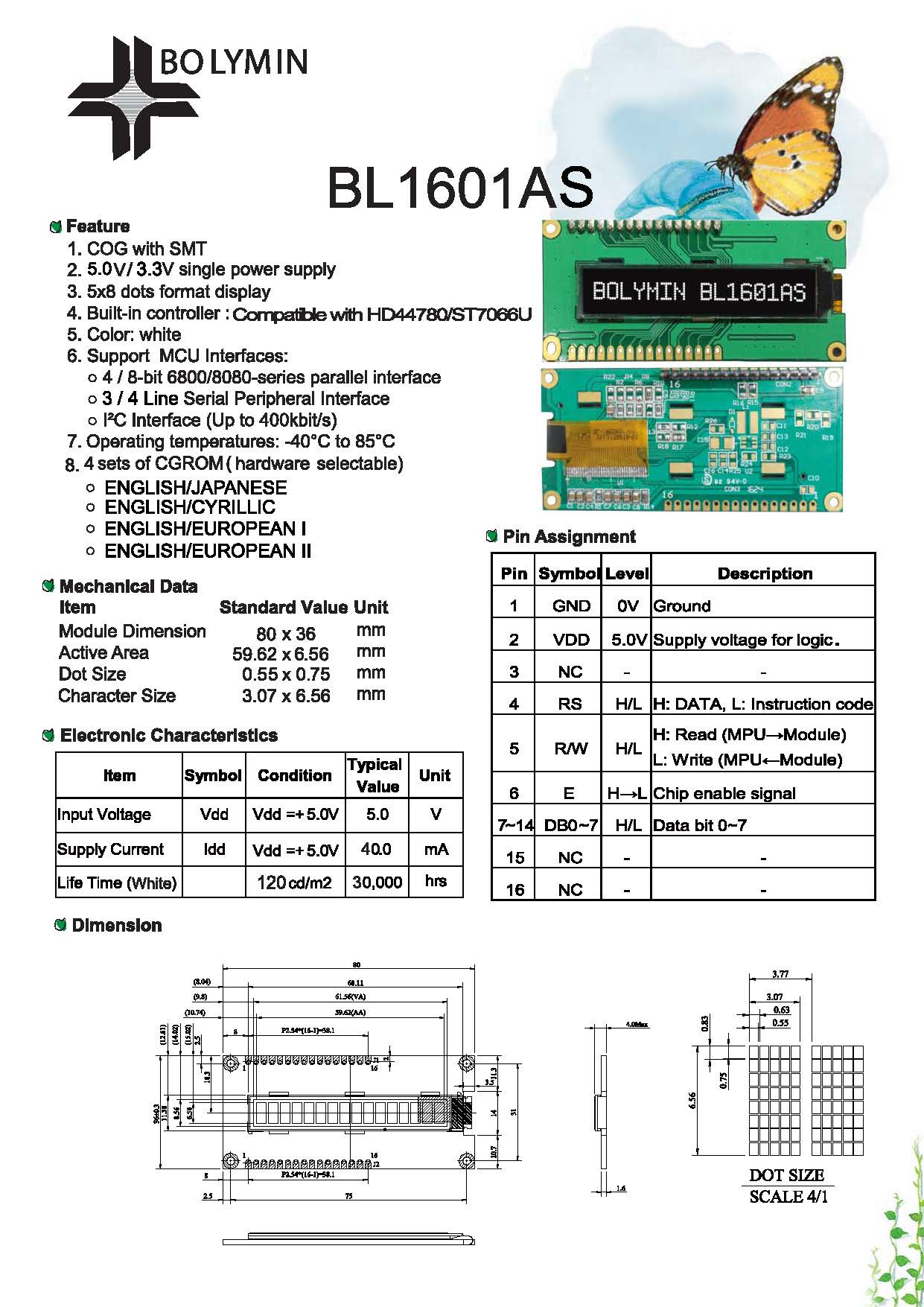

16 x 1 BL1601AS 80 x 36 61.56 x 8.56 HD44780/ST7066U white

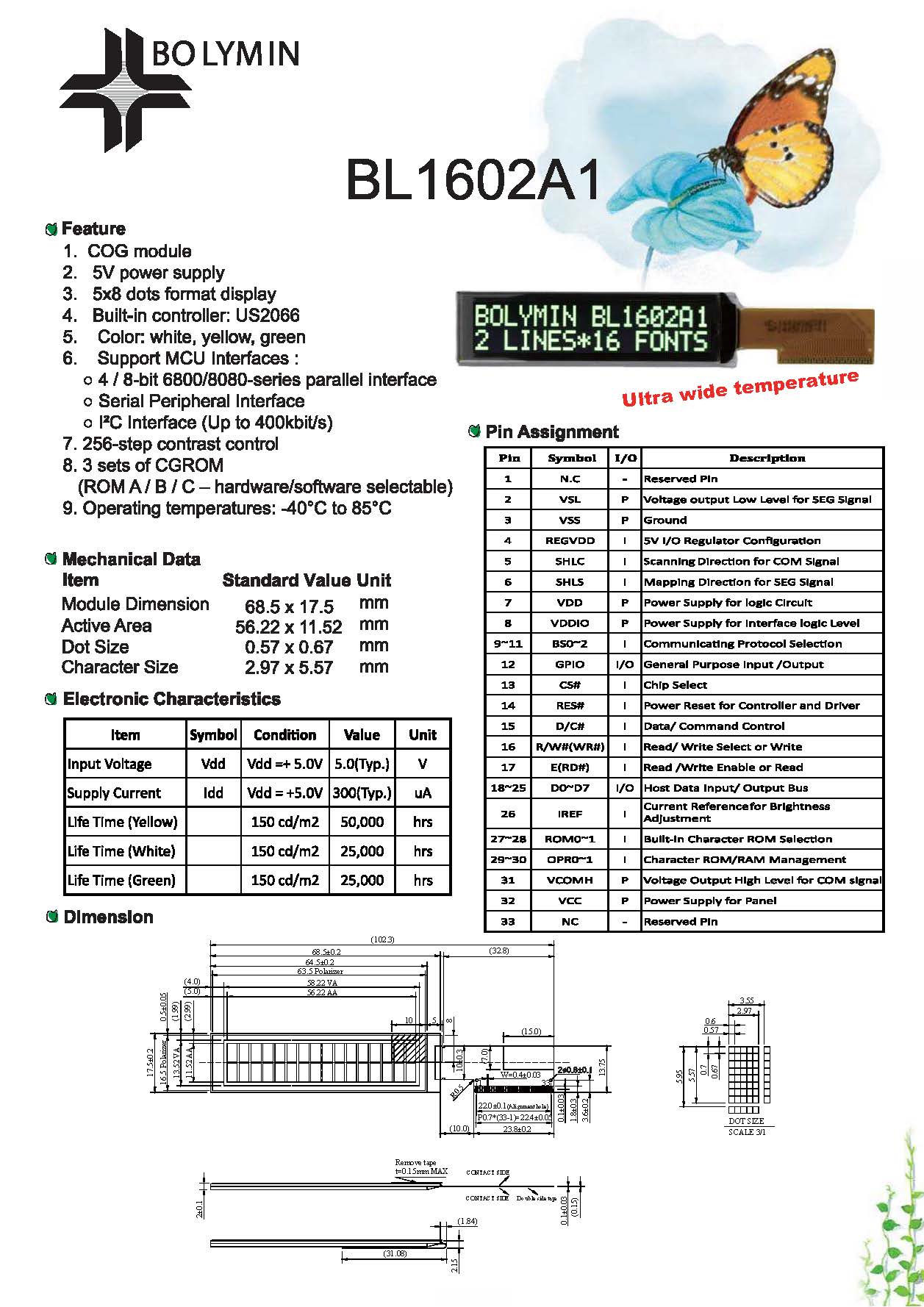

16 x 2 BL1602A1 68.5 x 17.5 58.22 x 13.52 US2066 white, yellow, green

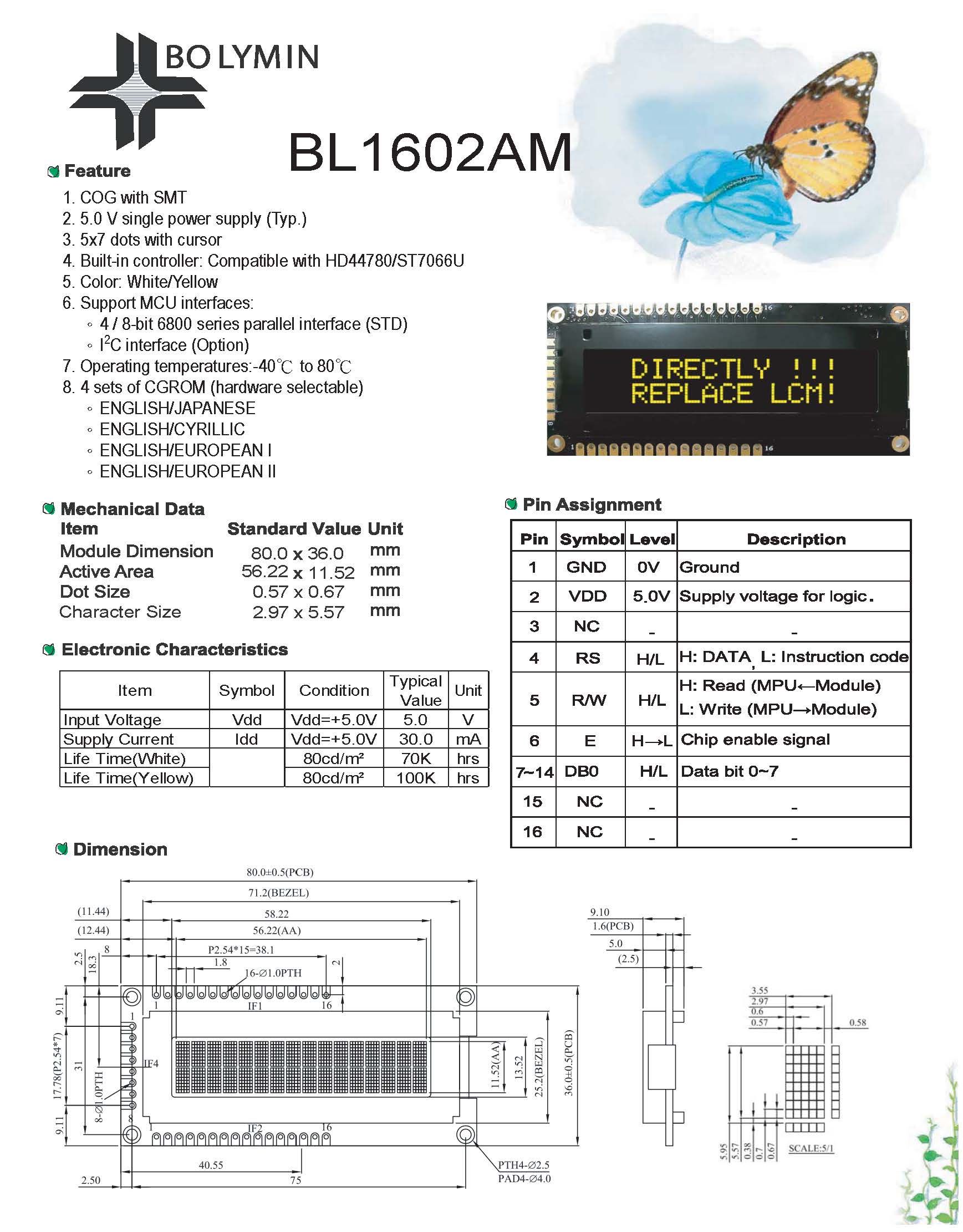

16 x 2 BL1602AM 80.0 x 36.0 58.22 x 13.52 HD44780/ST7066U White/Yellow

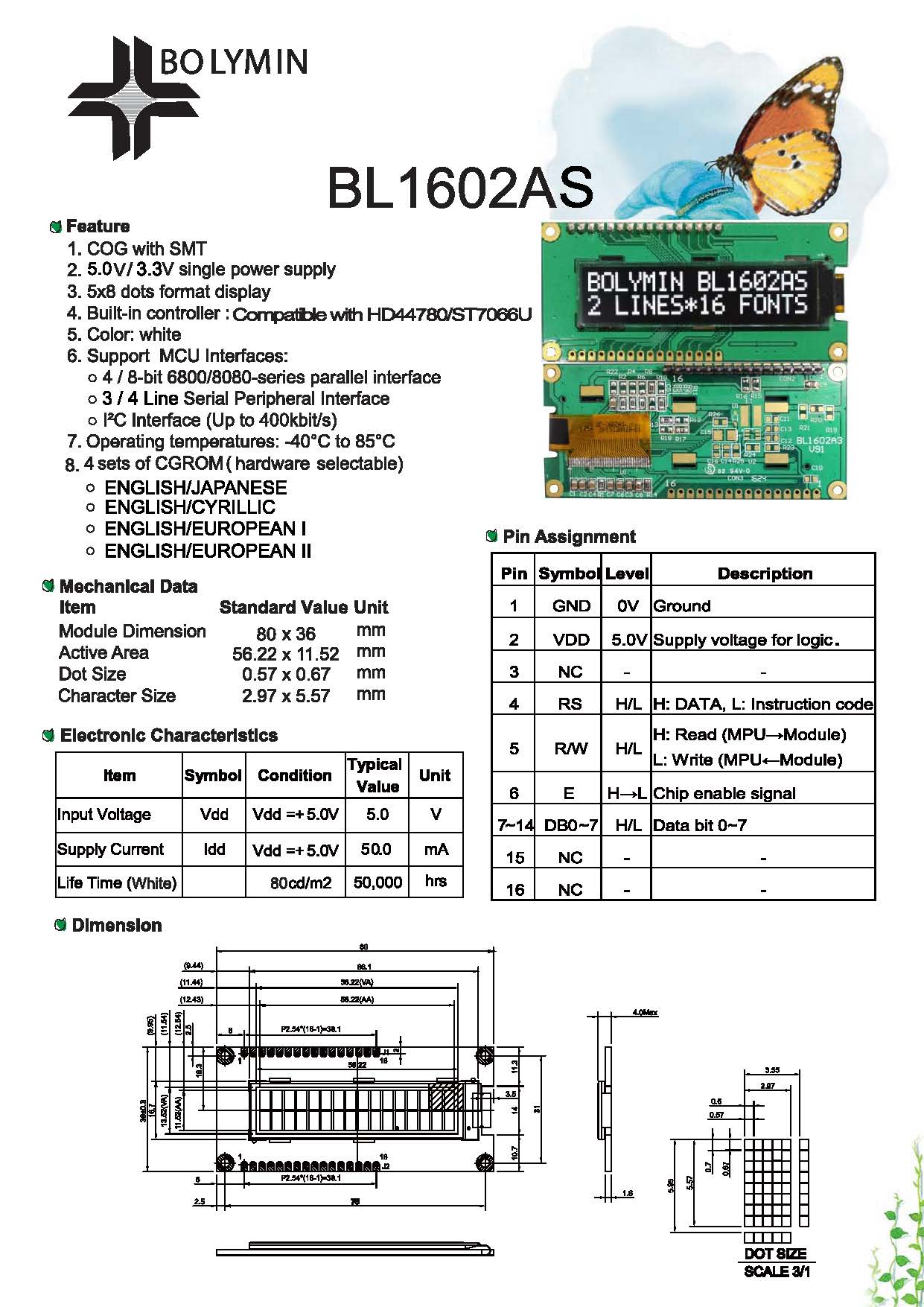

16 x 2 BL1602AS 80.0 x 36.0 58.22 x 13.52 HD44780/ST7066U white

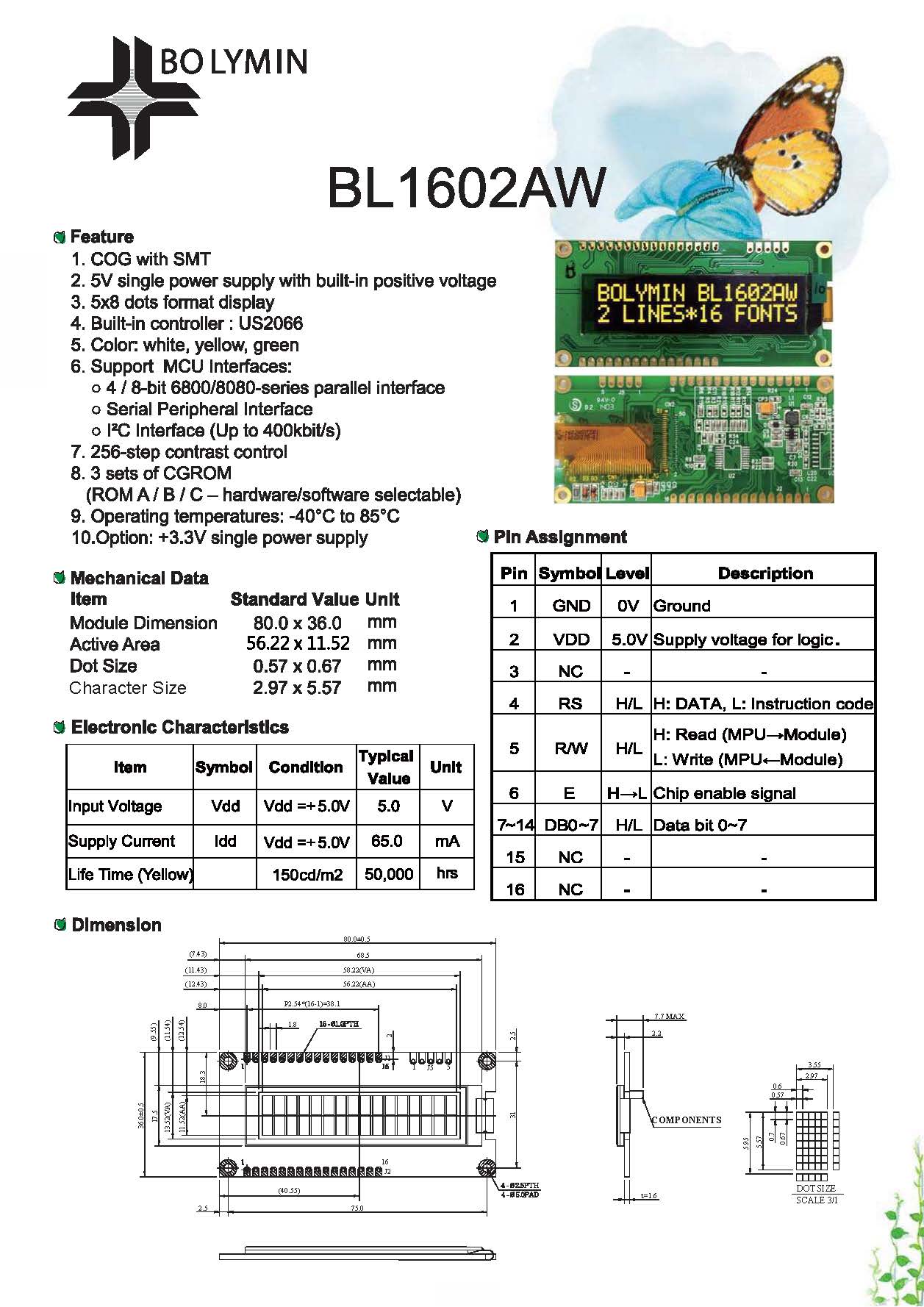

16 x 2 BL1602AW 80.0 x 36.0 58.22 x 13.52 US2066 white, yellow, green

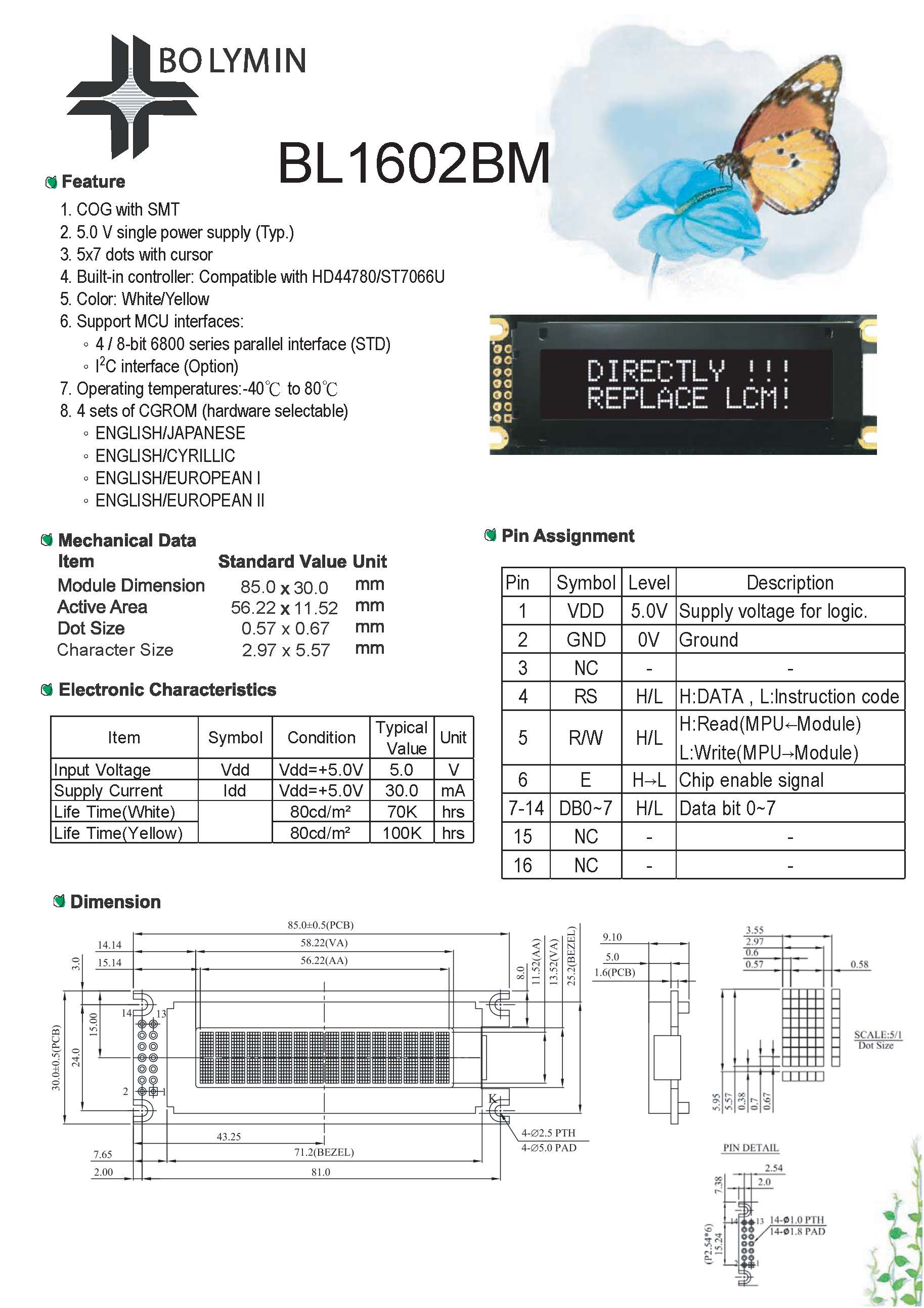

16 x 2 BL1602BM 85.0 x 30.0 58.22 x 13.52 HD44780/ST7066U White/Yellow

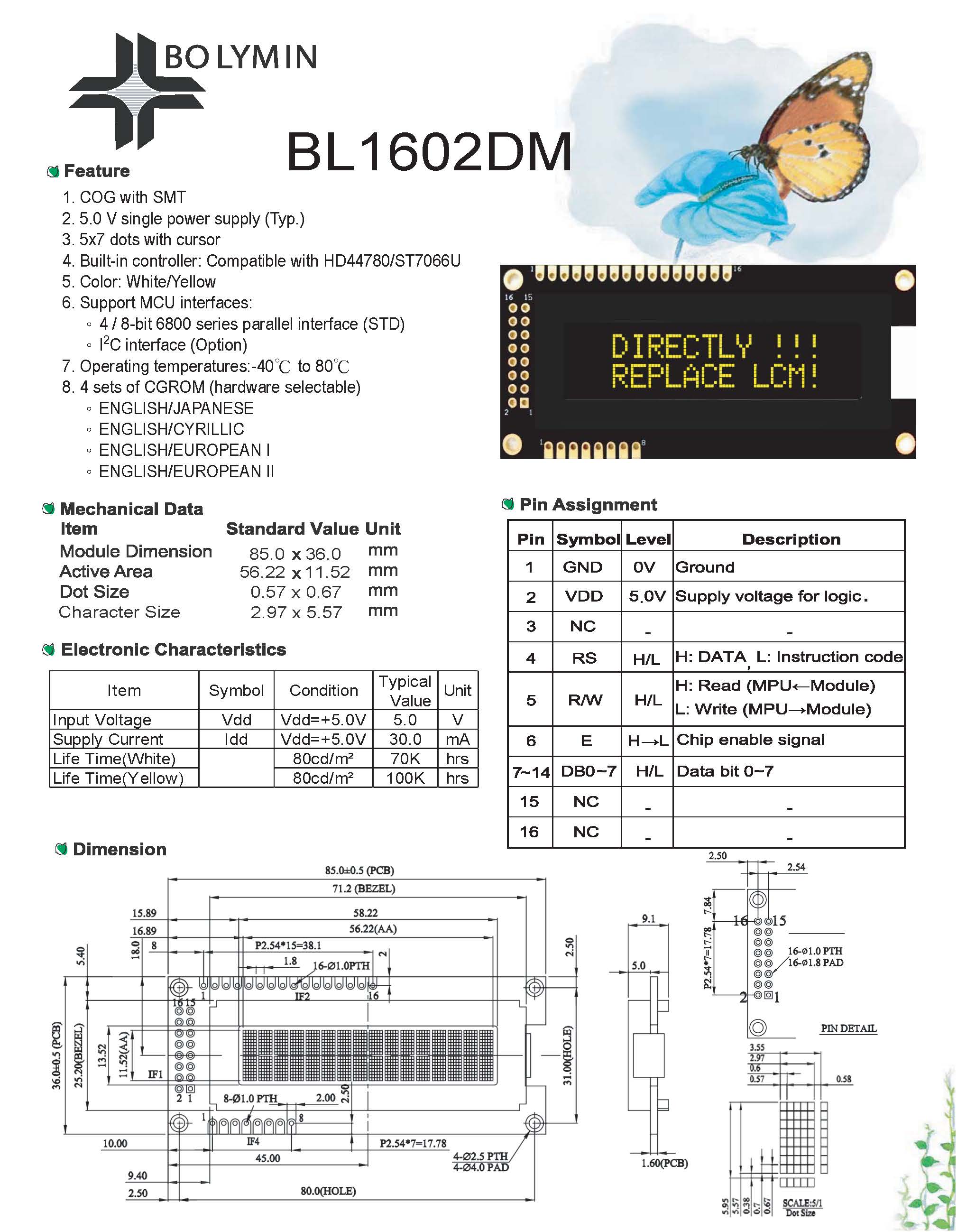

16 x 2 BL1602DM 85.0 x 36.0 58.22 x 13.52 HD44780/ST7066U White/Yellow
16 x 2 BL1602E1 105 x 26.5 93.14 x 20.98 US2066 white, yellow, green

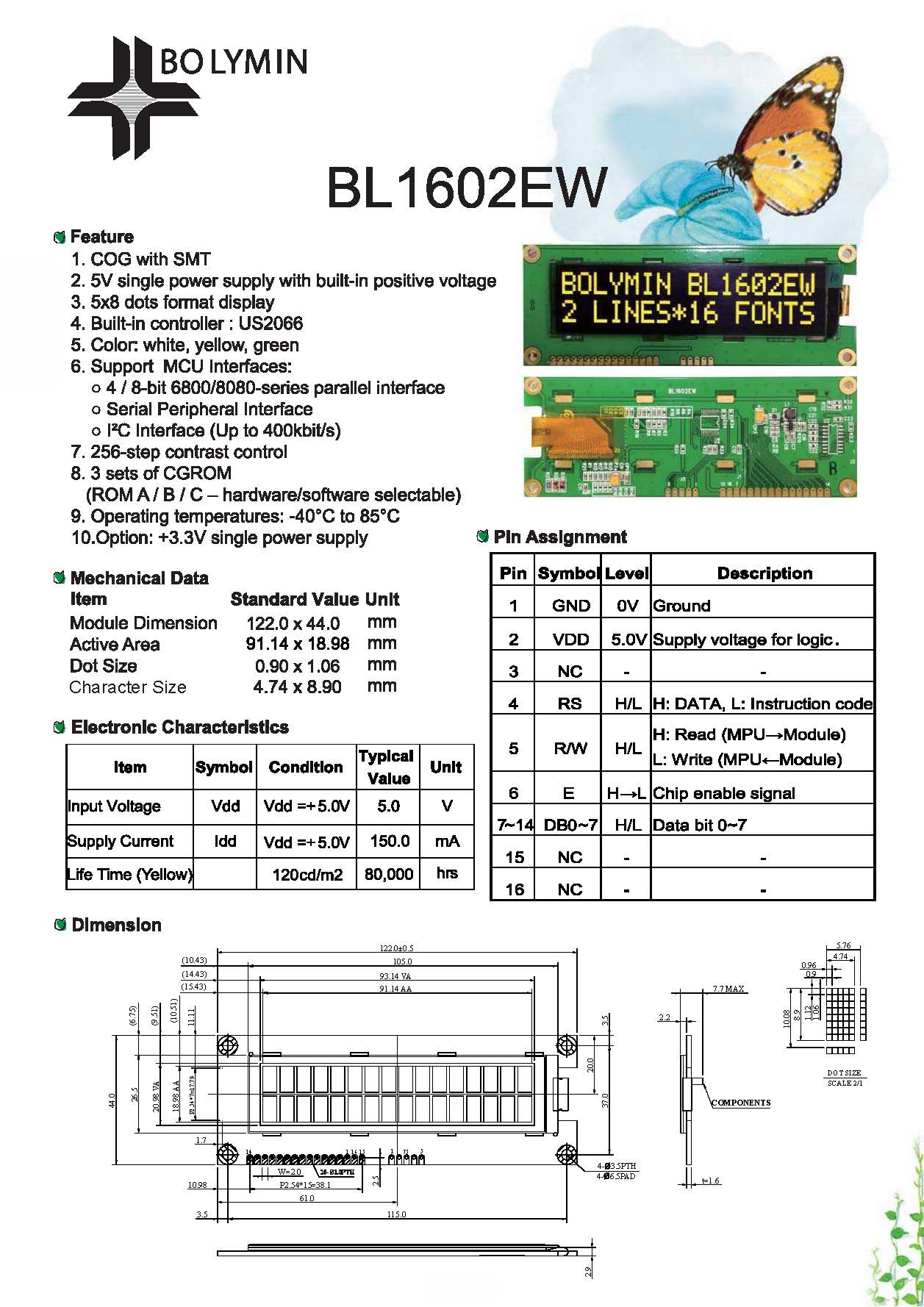

16 x 2 BL1602EW 122.0 x 44.0 93.14 x 20.98 US2066 white, yellow, green

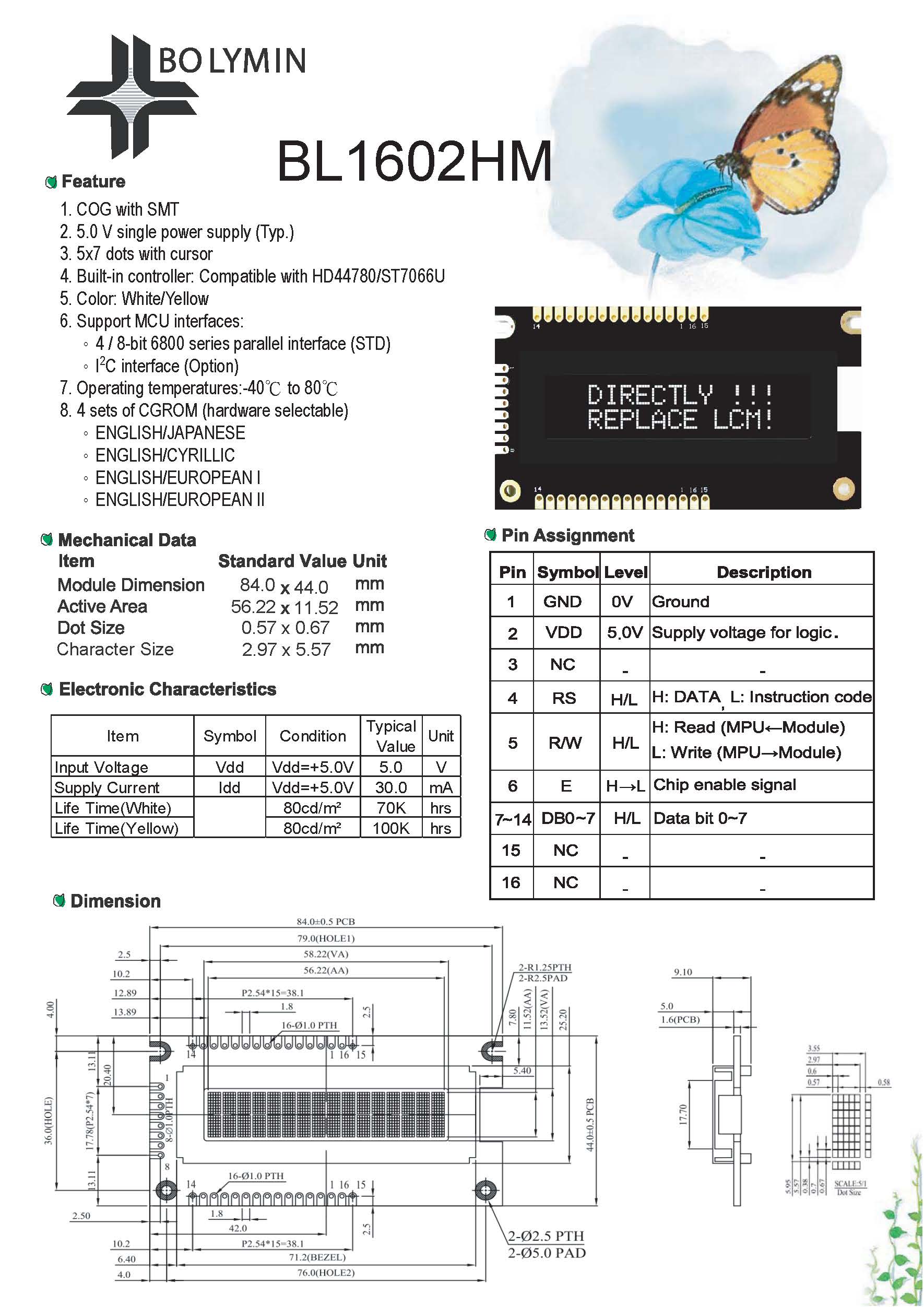

16 x 2 BL1602HM 84.0 x 44.0 58.22 x 13.52 HD44780/ST7066U White/Yellow

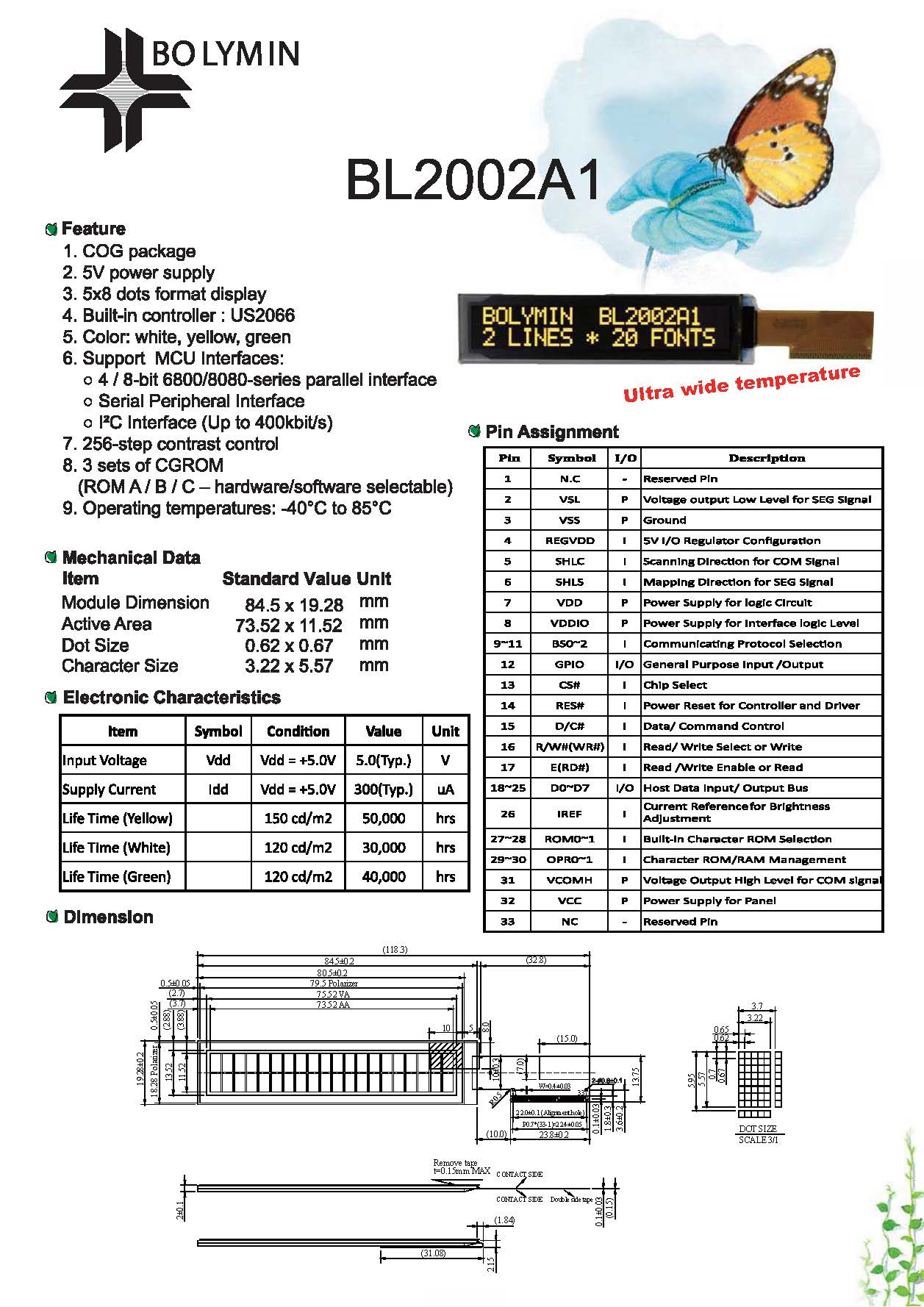

20 x 2 BL2002A1 84.5 x 19.28 75.52 x 13.52 US2066 white, yellow, green

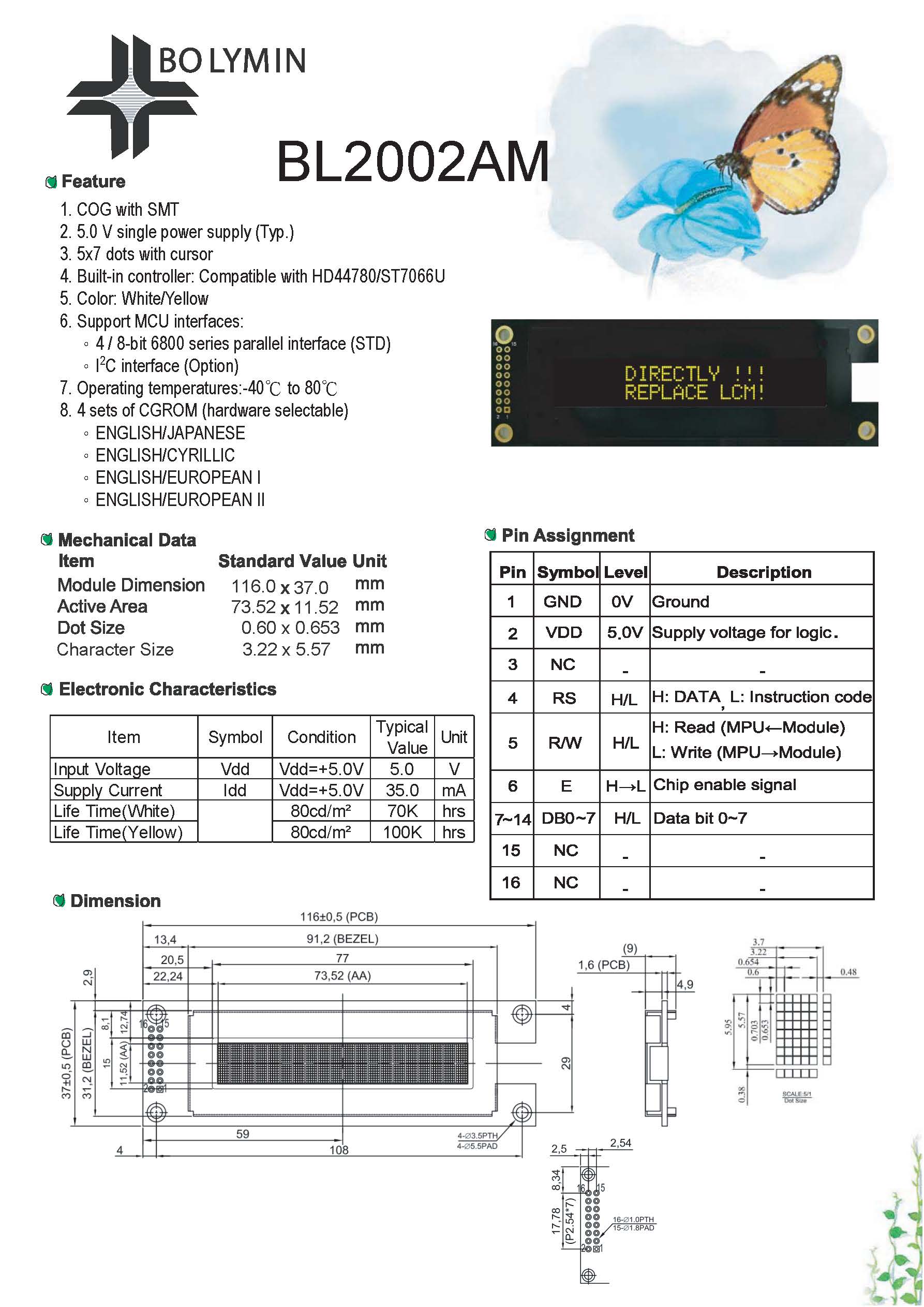

20 x 2 BL2002AM 116.0 x 37.0 77 x 15 HD44780/ST7066U White/Yellow

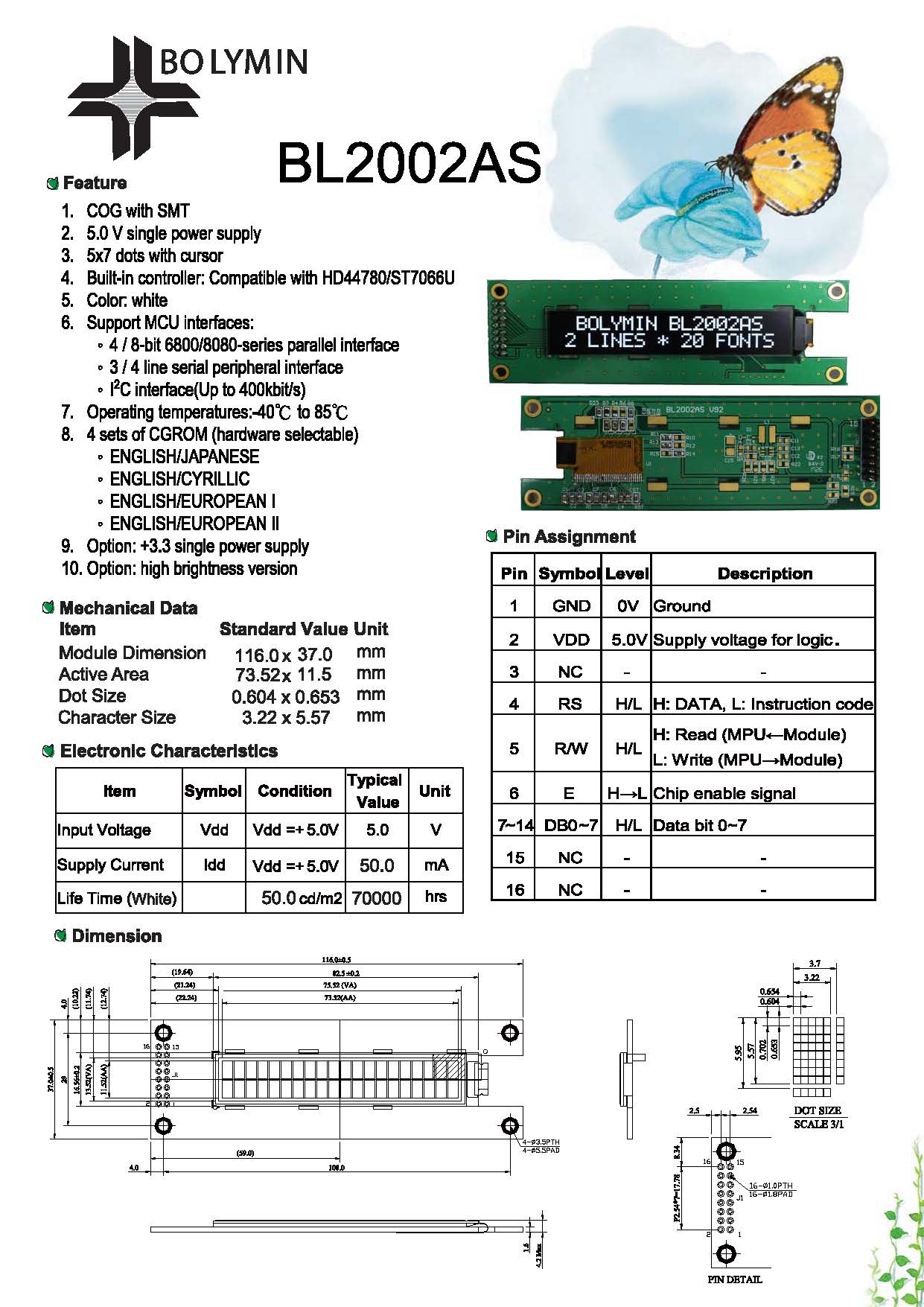

20 x 2 BL2002AS 116.0 x 37.0 75.52 x 13.52 HD44780/ST7066U white

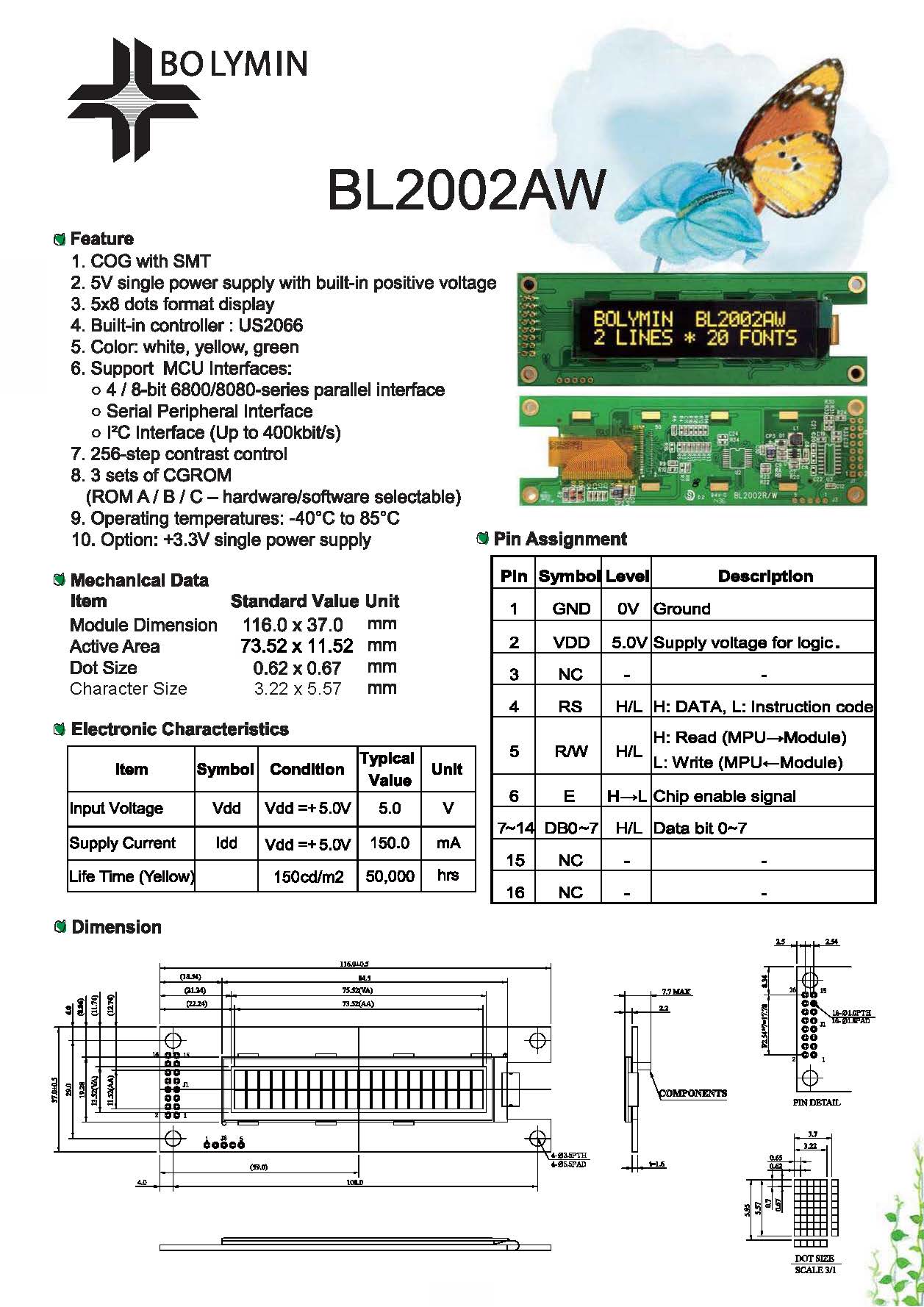

20 x 2 BL2002AW 116.0 x 37.0 75.52 x 13.52 US2066 white, yellow, green

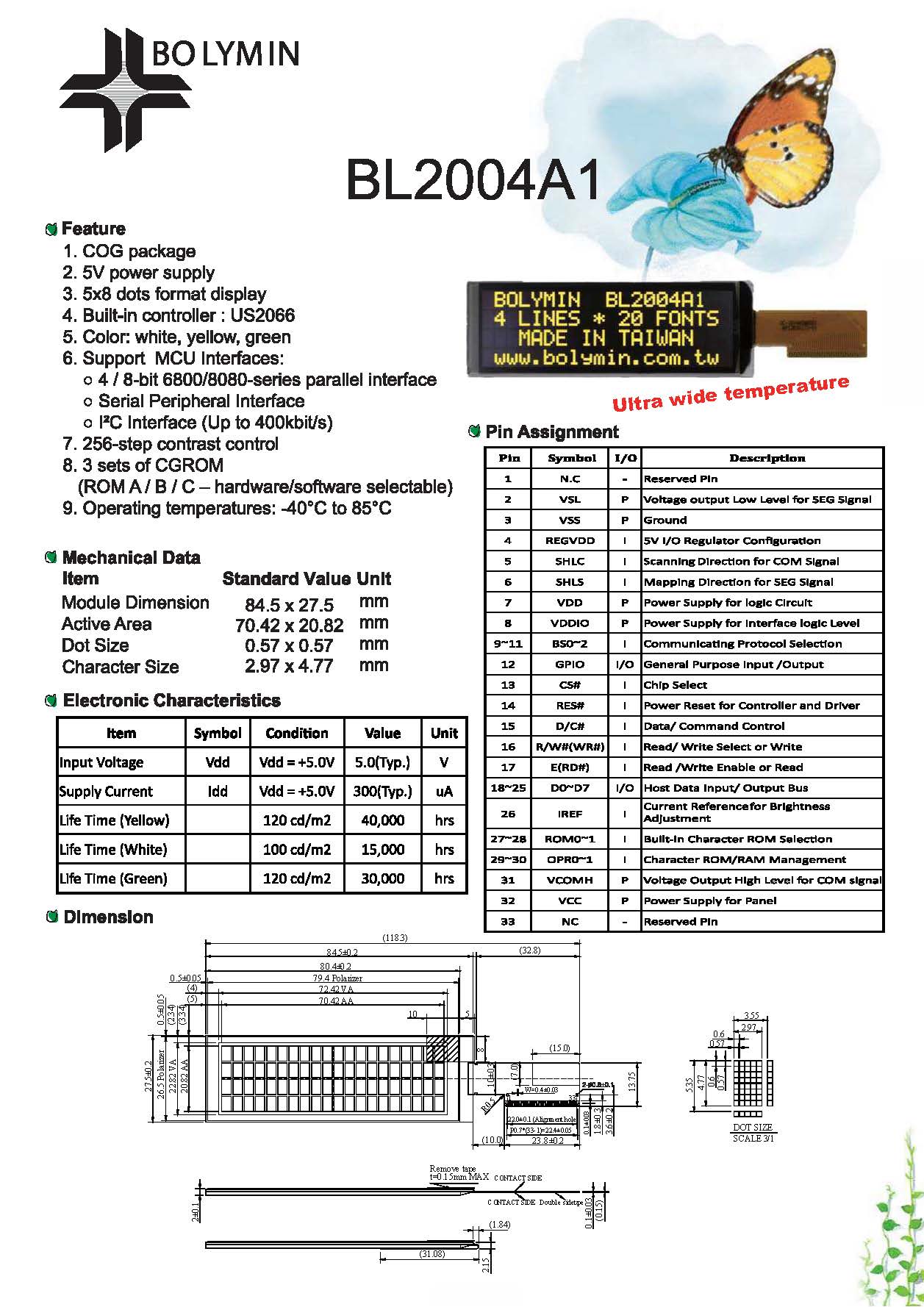

20 x 4 BL2004A1 84.5 x 27.5 72.42 x 22.82 US2066 white, yellow, green

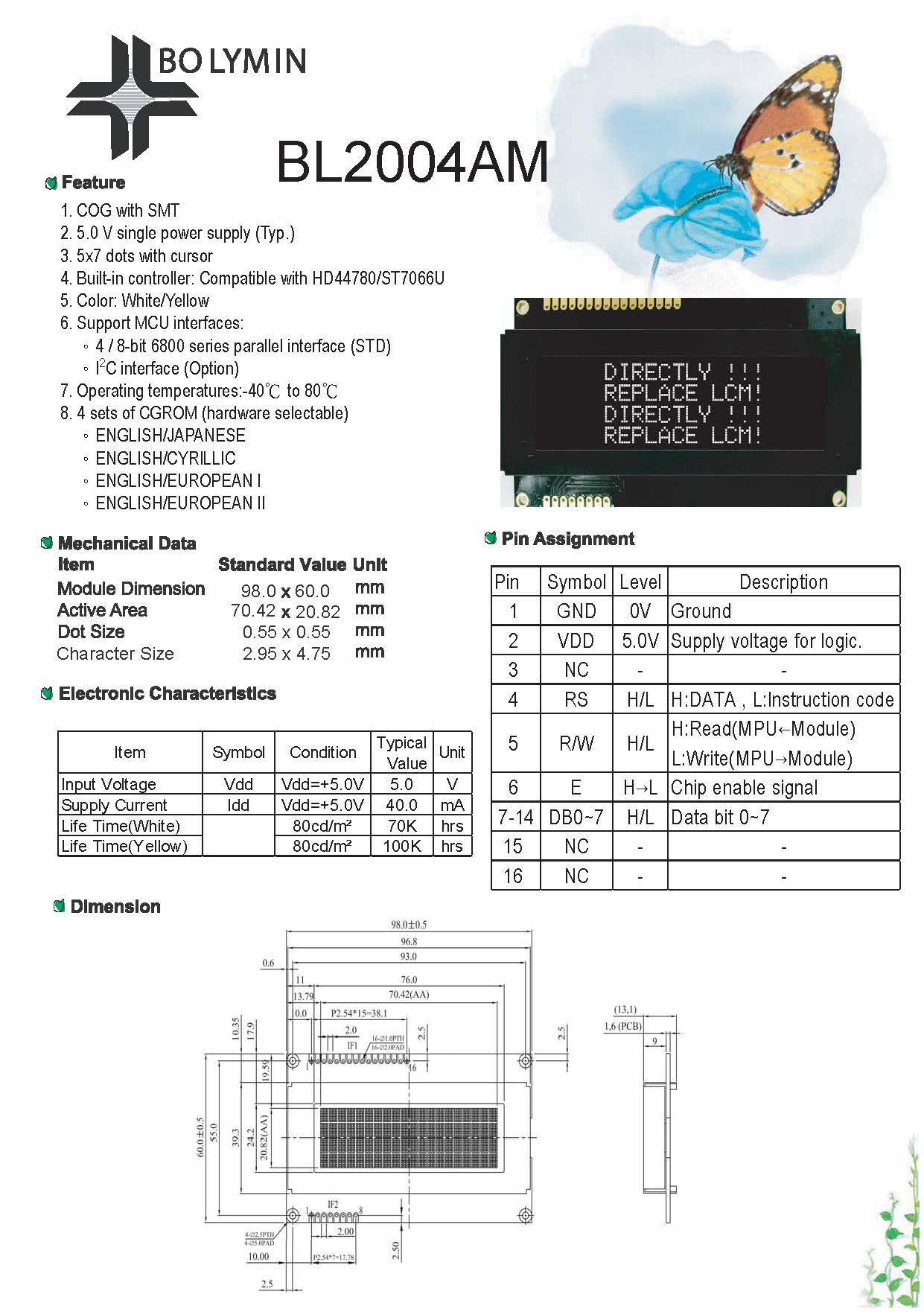

20 x 4 BL2004AM 98.0 x 60.0 76.0 x 24.2 HD44780/ST7066U White/Yellow

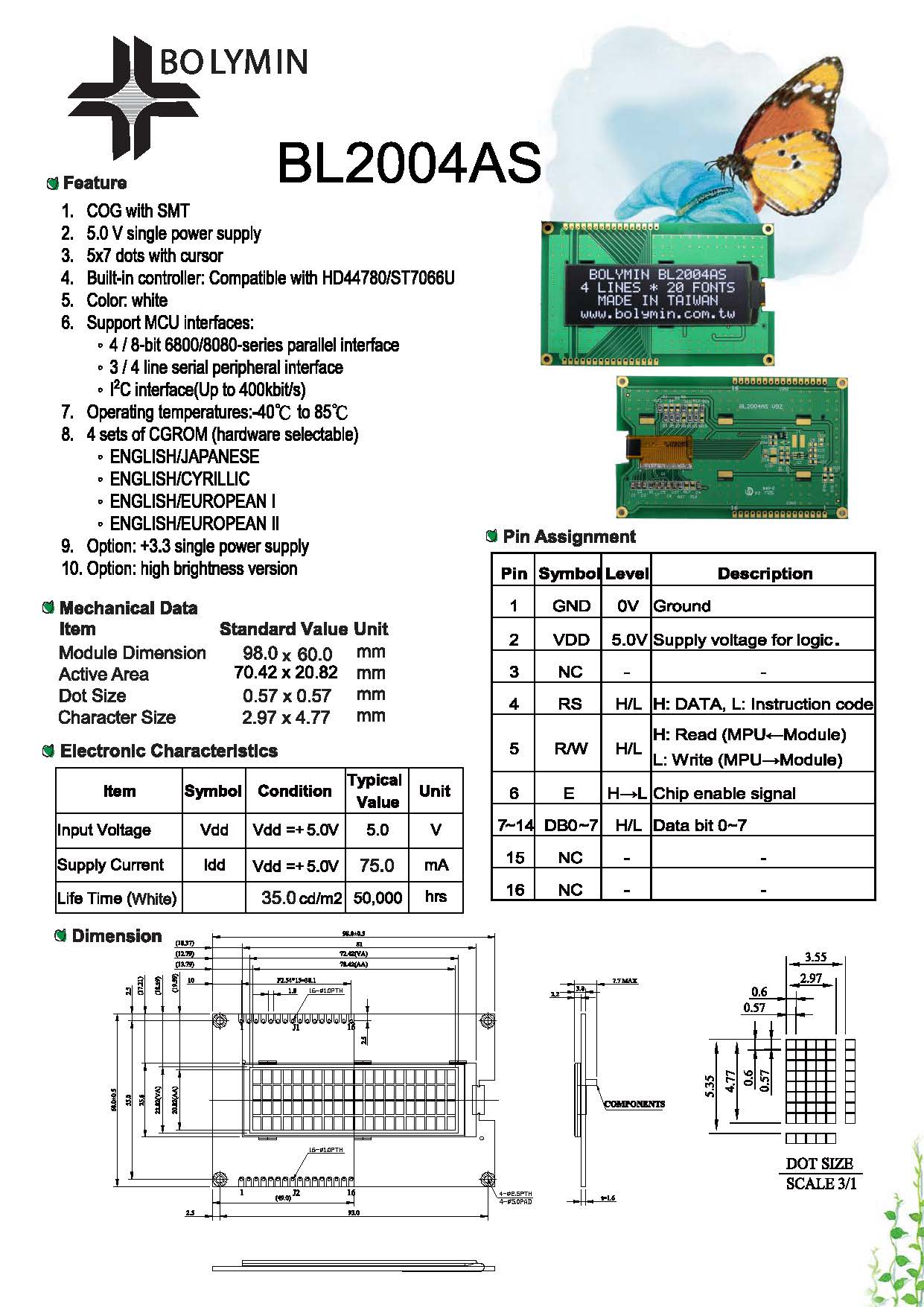

20 x 4 BL2004AS 98.0 x 60.0 72.42 x 22.82 HD44780/ST7066U white

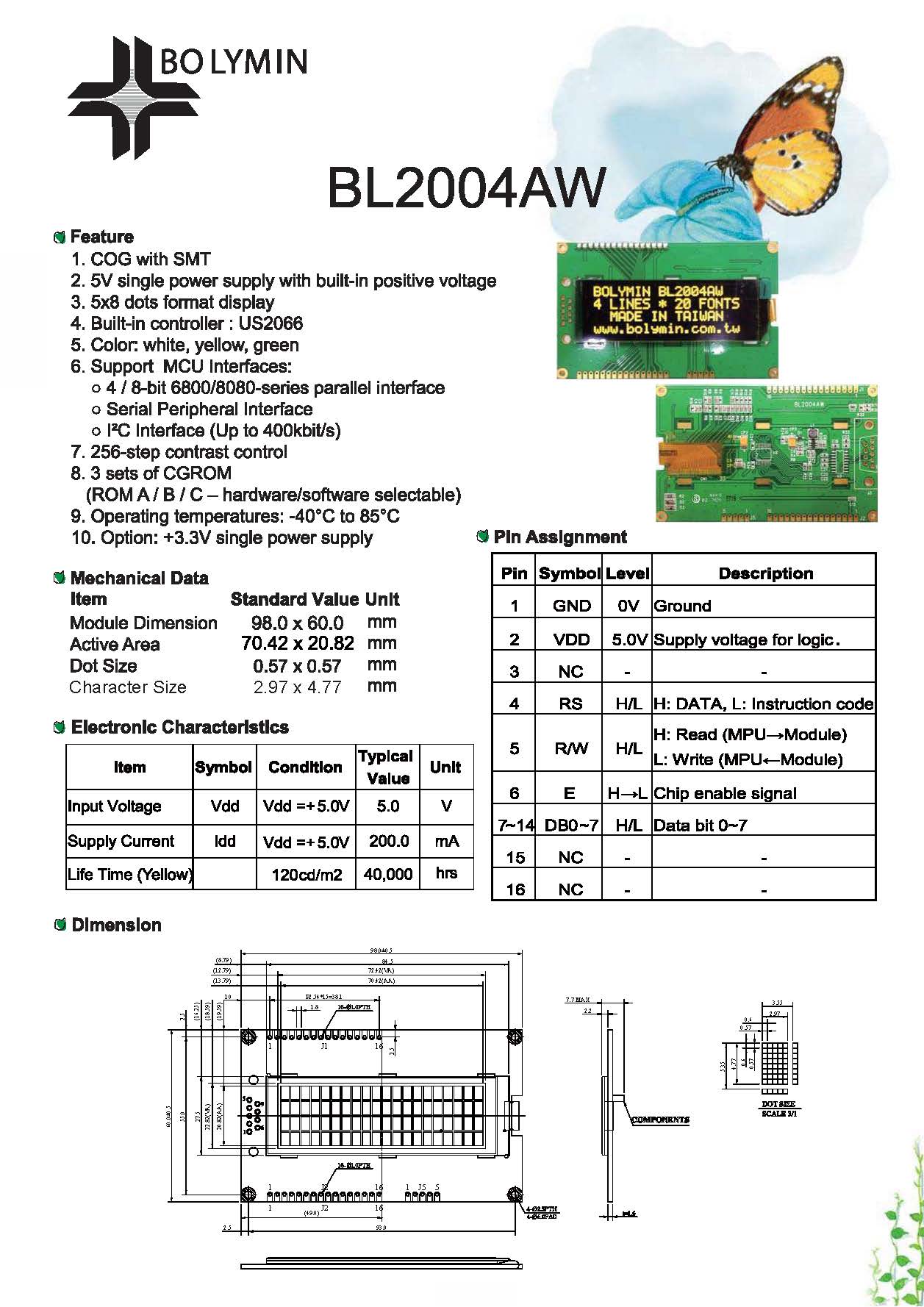

20 x 4 BL2004AW 98.0 x 60.0 72.42 x 22.82 US2066 white, yellow, green

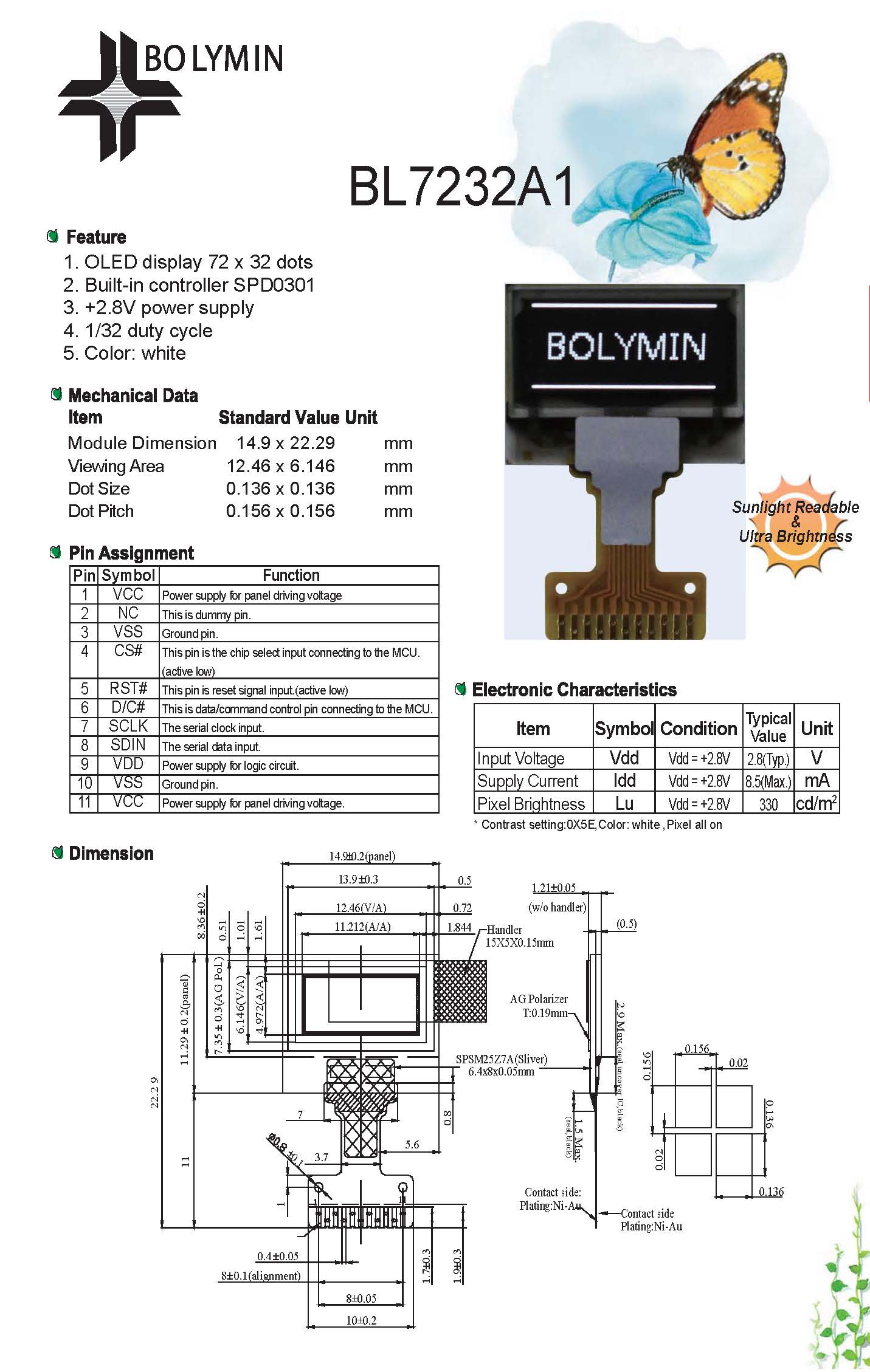

72 x 32 BL7232A1 14.9 x 22.29 11.212 x 4.972 SPD0301 white

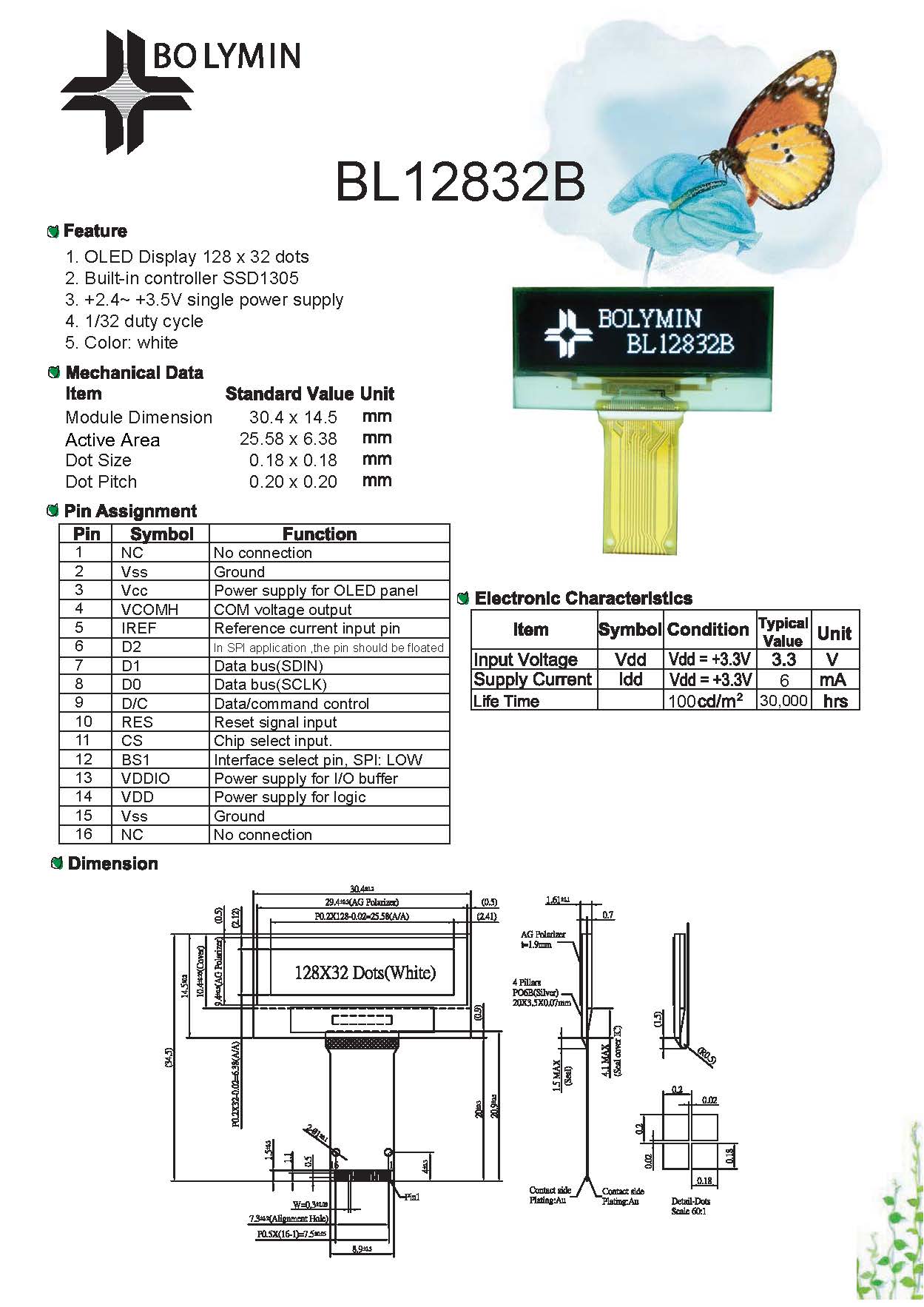

128 x 32 BL12832B 30.4 x 14.5 25.58 x 6.38 SSD1305 white

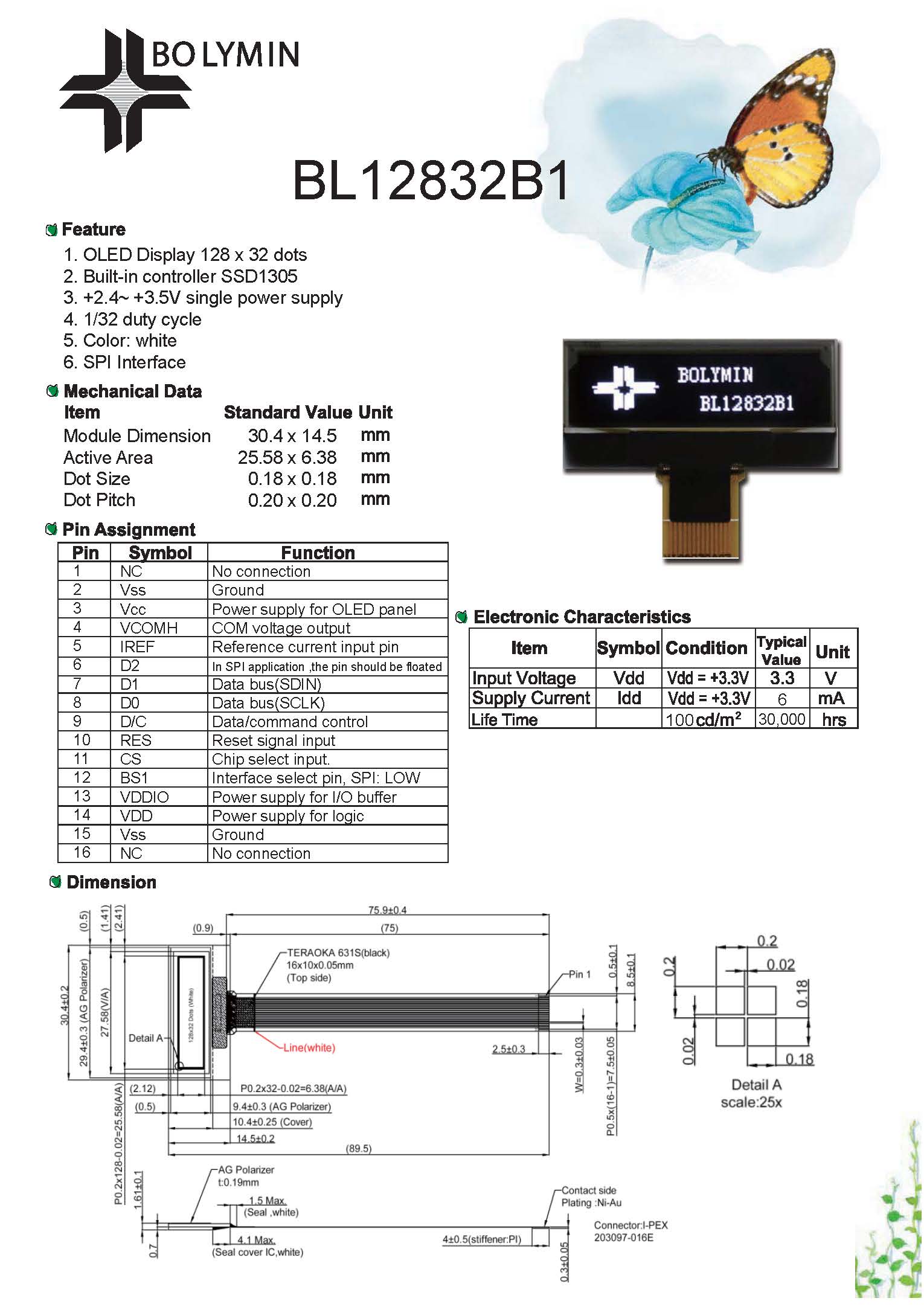

128 x 32 BL12832B1 30.4 x 14.5 25.58 x 6.38 SSD1305 white
128 x 32 BL12832B2 30.4 x 14.5 25.58 x 6.38 SSD1305 white

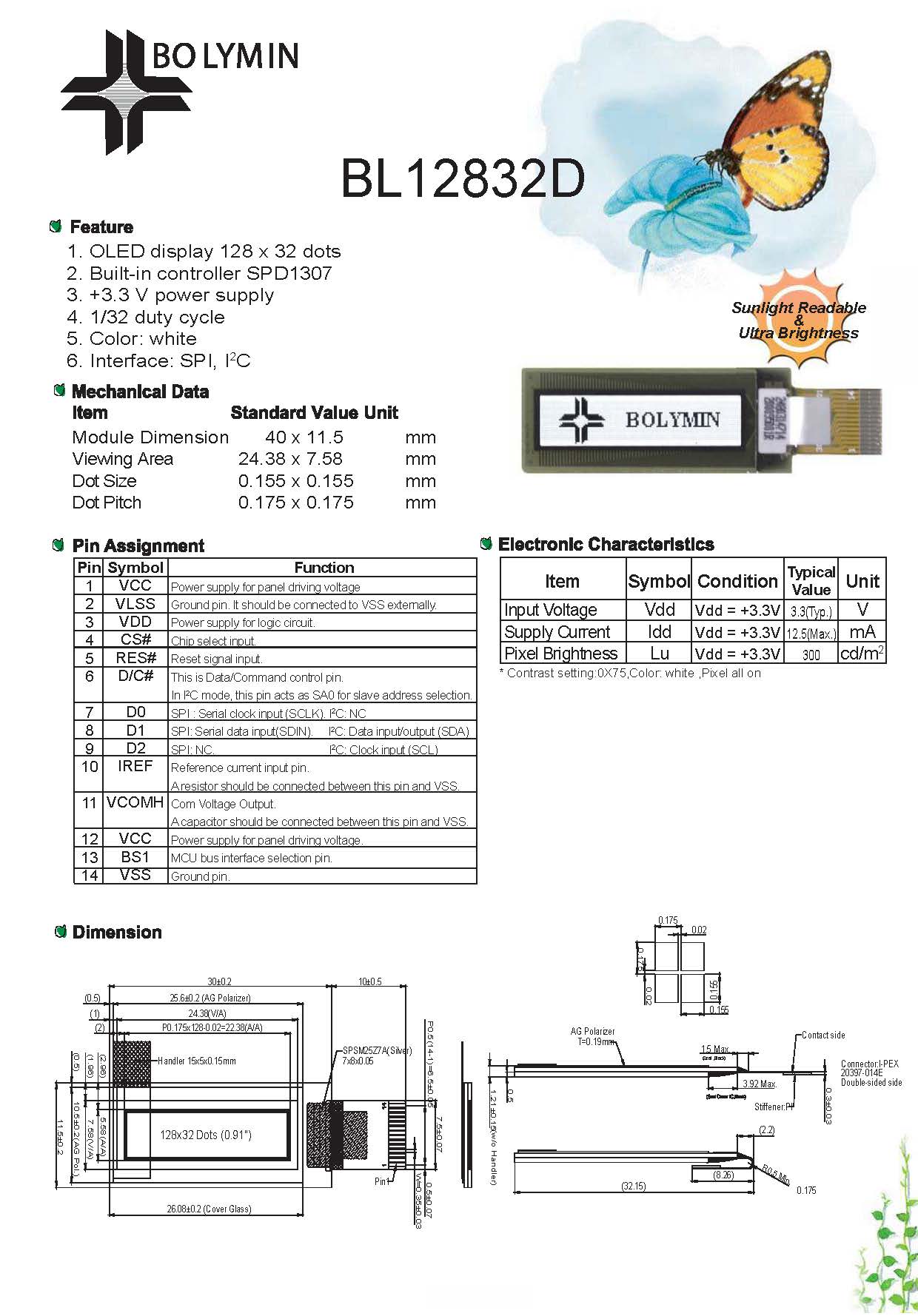

128 x 32 BL12832D 40 x 11.5 22.38 x 5.58 SSD1307 white

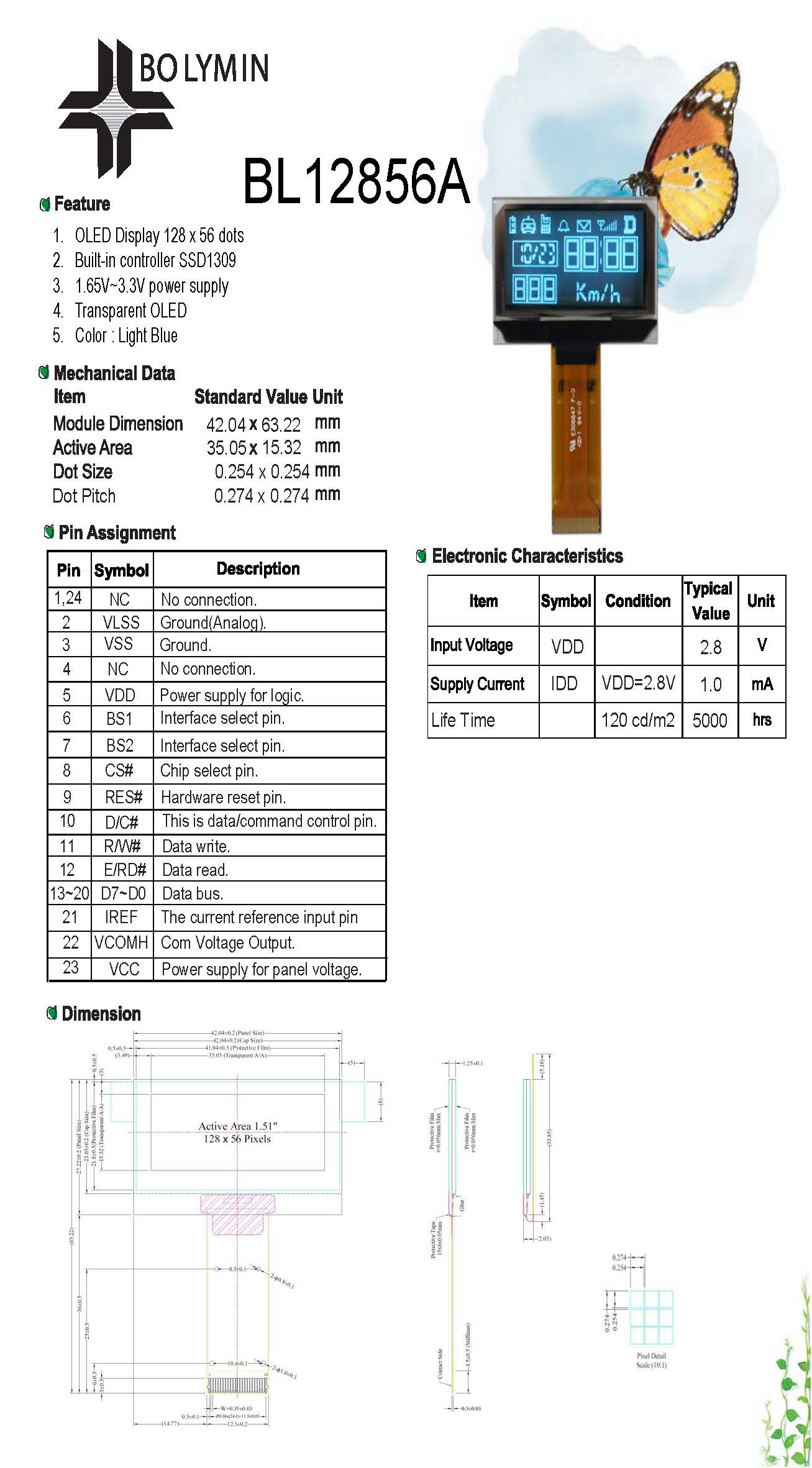

128 x 56 BL12856A 42.04 x 63.22 30.05 x 15.32 SSD1309 Light Blue

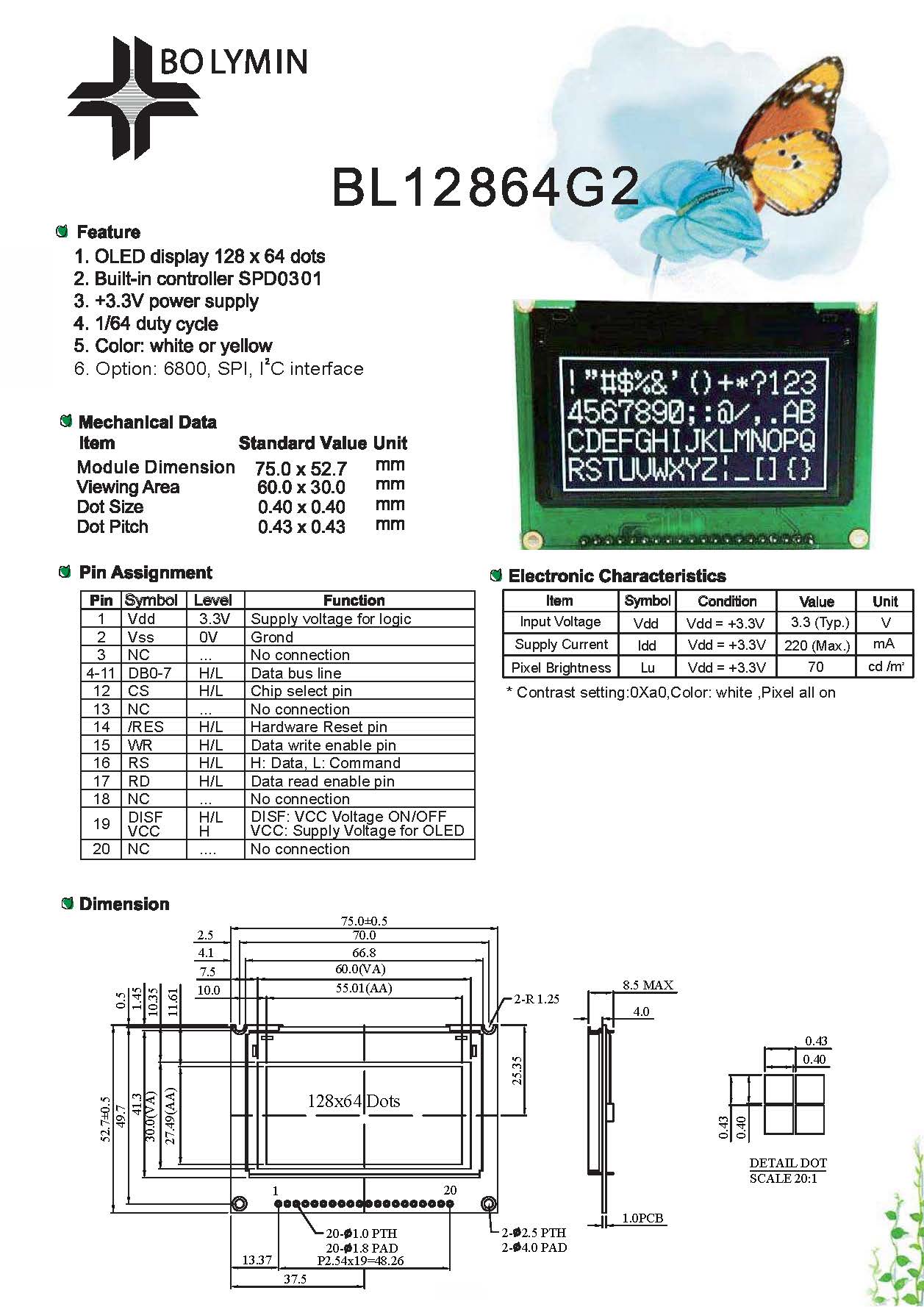

128 x 64 BL12864G2 75.0 x 52.7 55.01 x 27.49 SPD0301 SPD0301

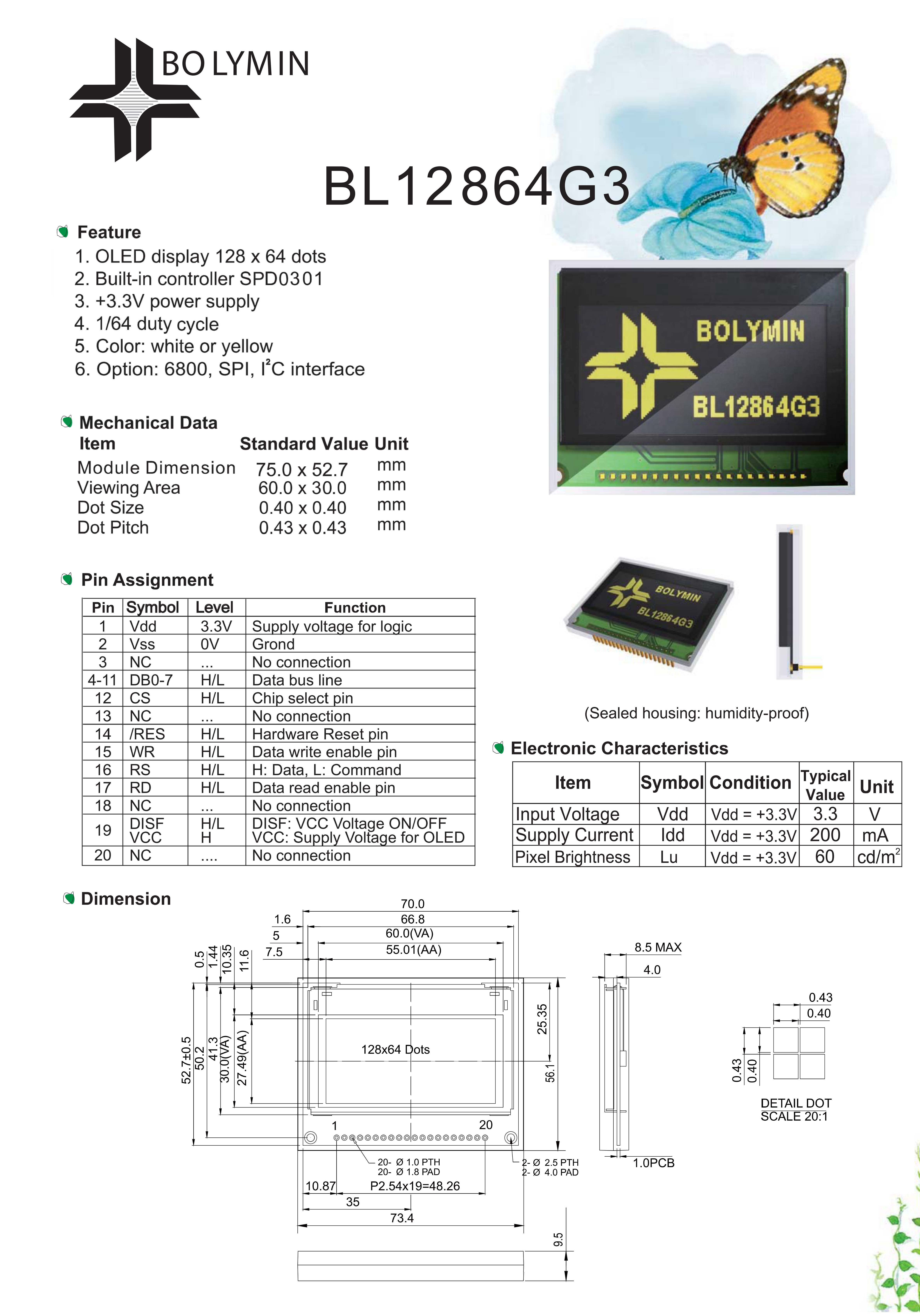

128 x 64 BL12864G3 75.0 x 52.7 55.01 x 27.49 SPD0301 white or yellow

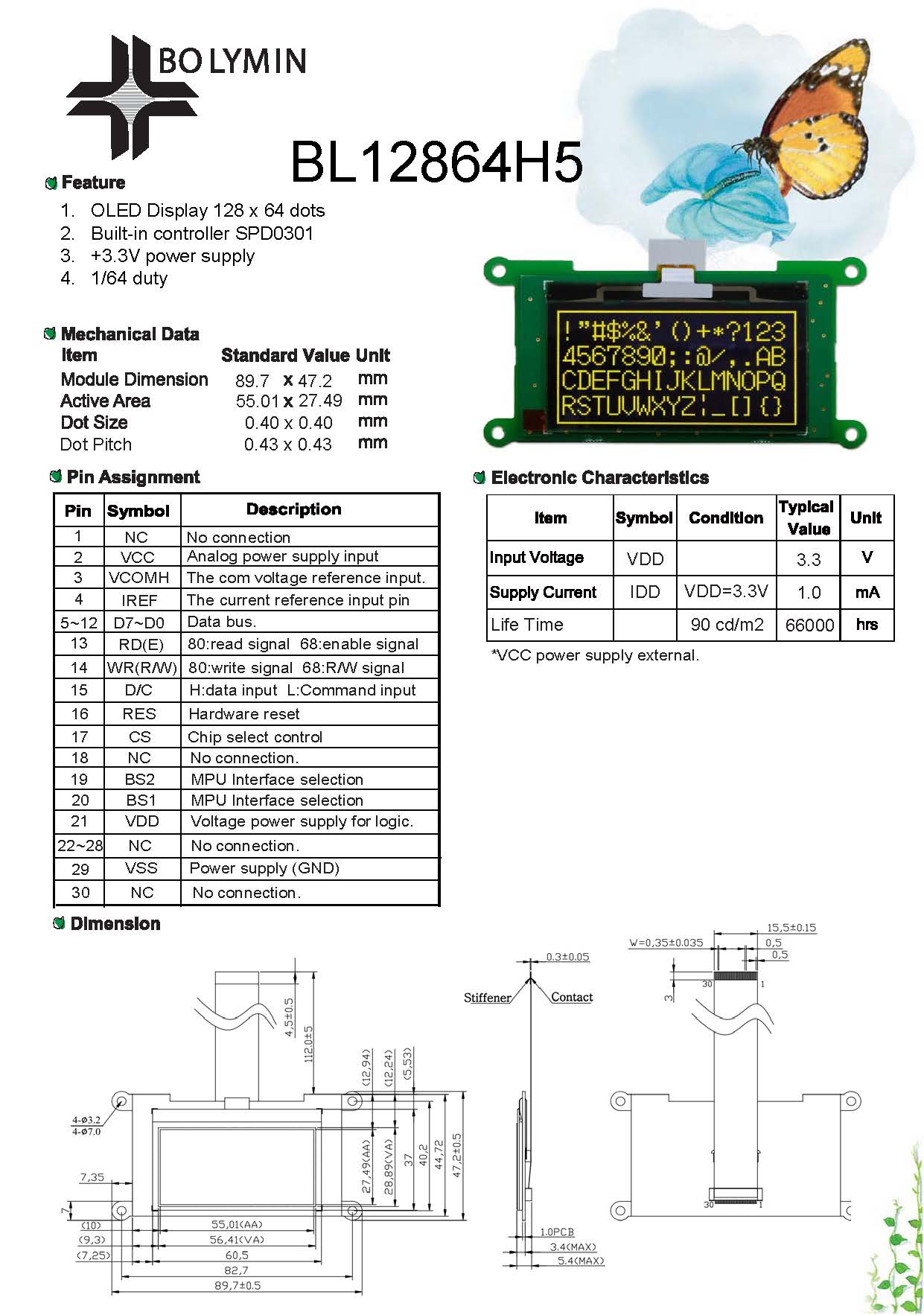

128 x 64 BL12864H5 89.7 x 47.2 55.01 x 27.49 SPD0301

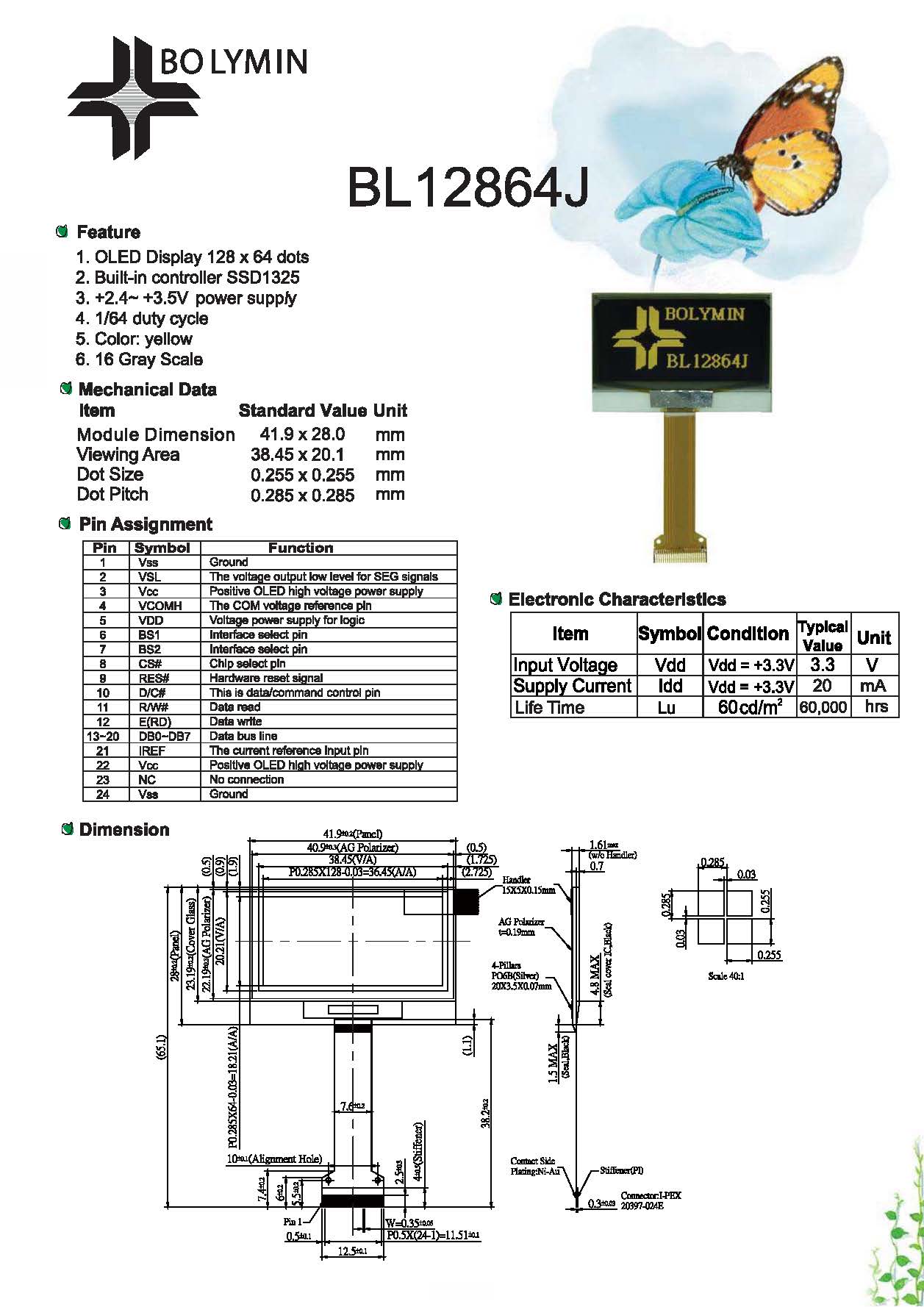

128 x 64 BL12864J 41.9 x 28.0 36.45 x 18.21 SSD1325 yellow

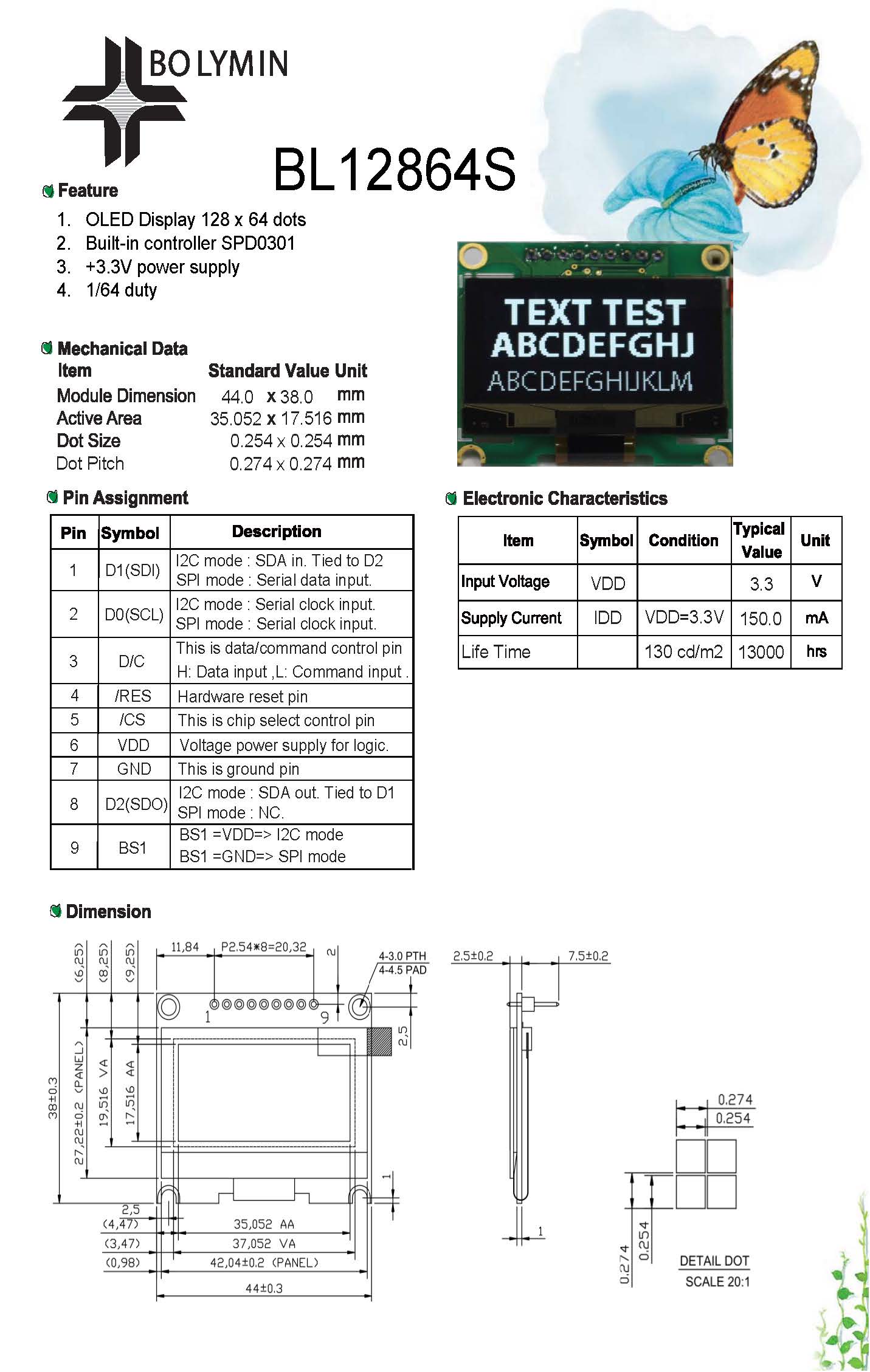

128 x 64 BL12864S 44.0 x 38.0 35.052 x 17.516 SPD0301

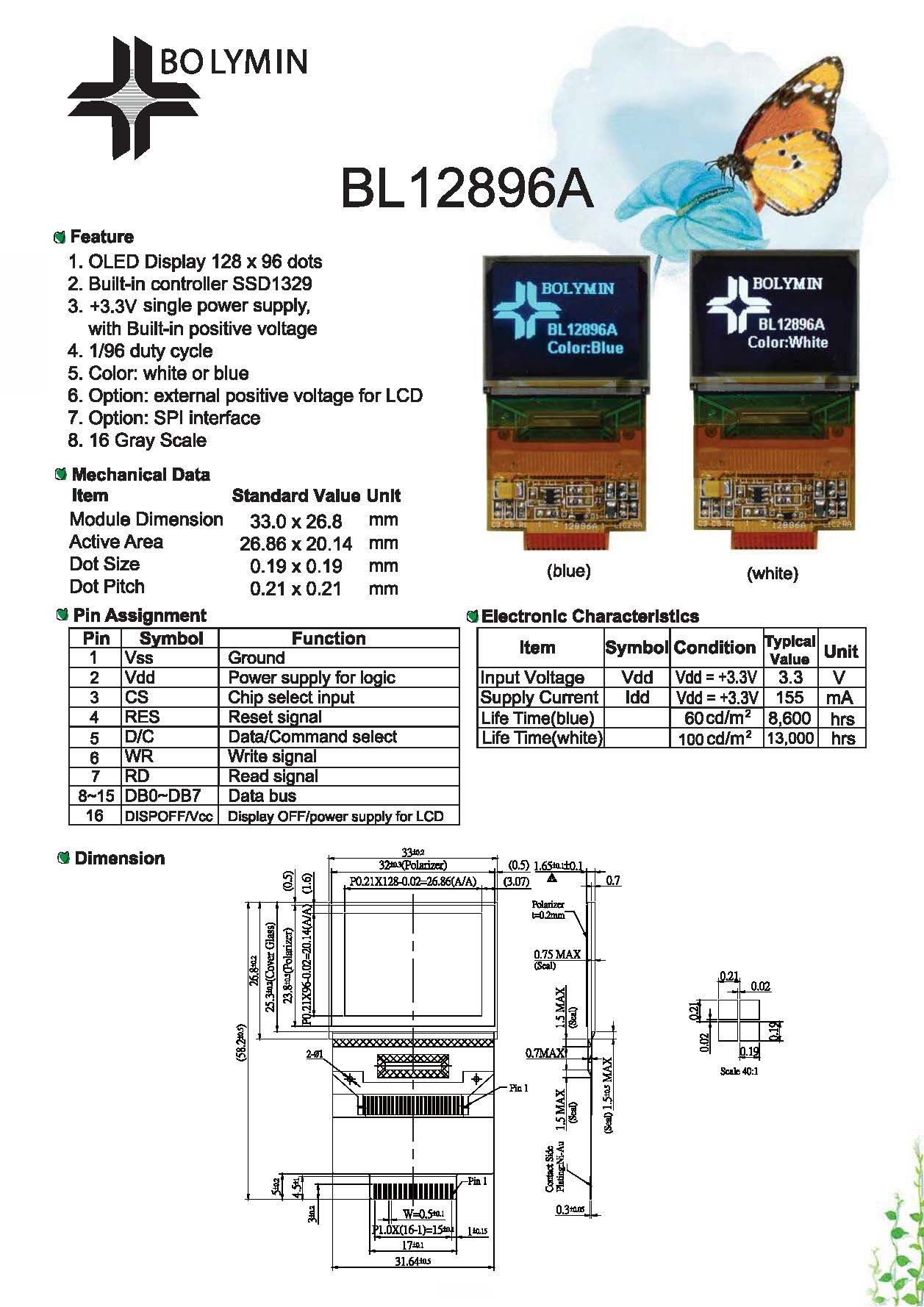

128 x 96 BL12896A 33.0 x 26.8 26.86 x 20.14 SSD1329 white or blue

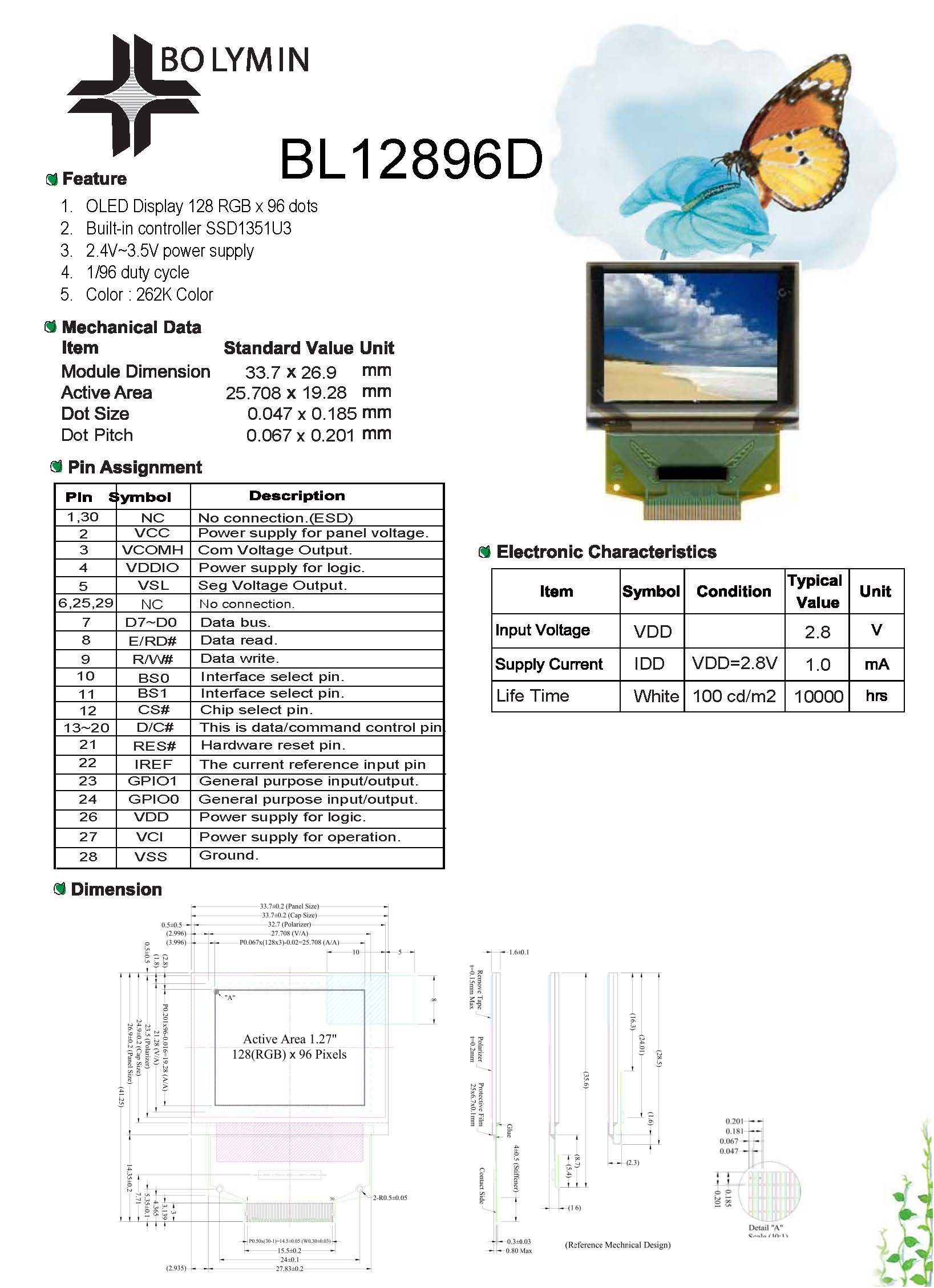

128 x 96 BL12896D 33.7 x 26.9 25.708 x 19.28 SSD1351U3 262K color

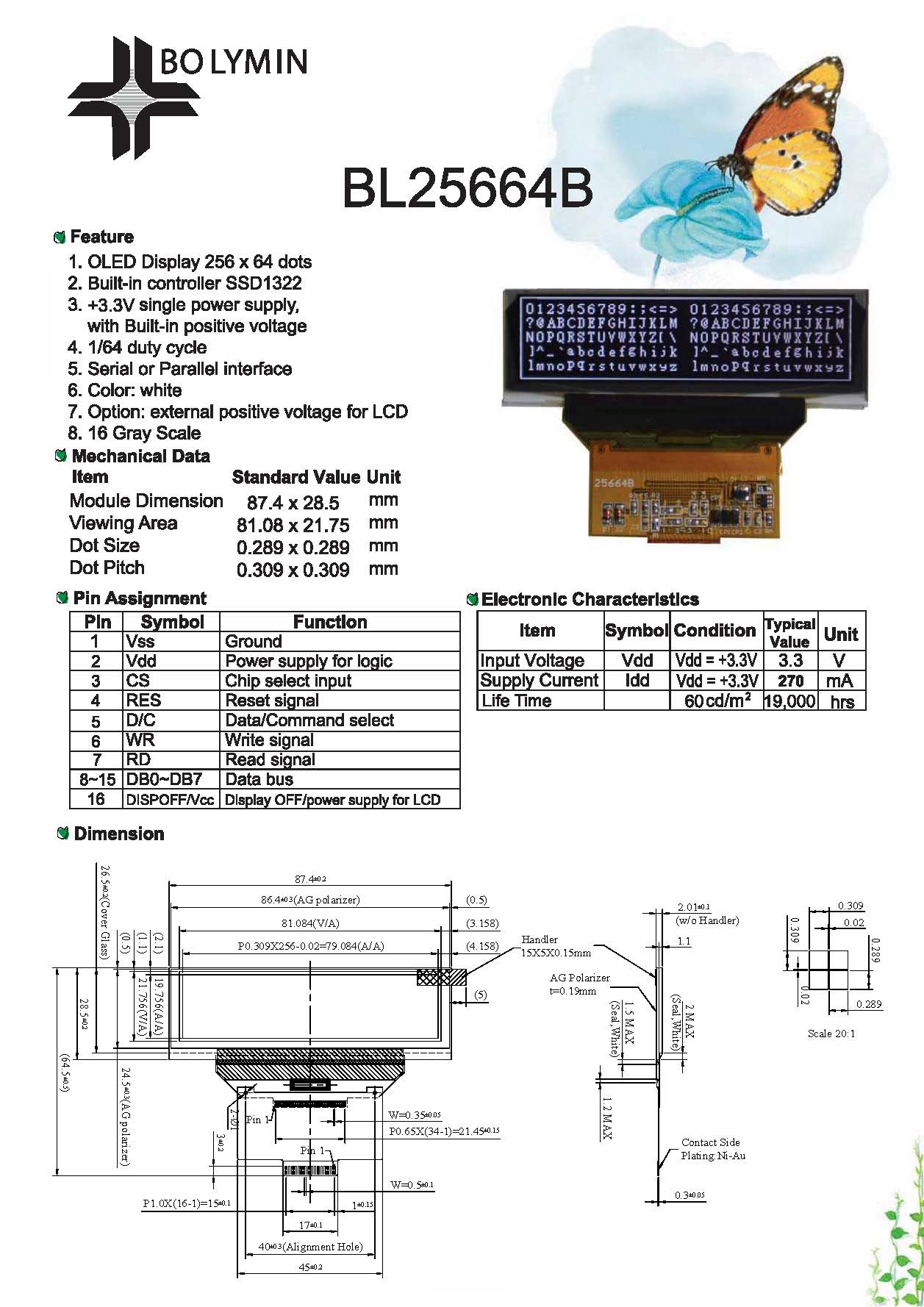

256 x 64 BL25664B 87.4 x 28.5 79.084 x 19.756 SSD1322 white

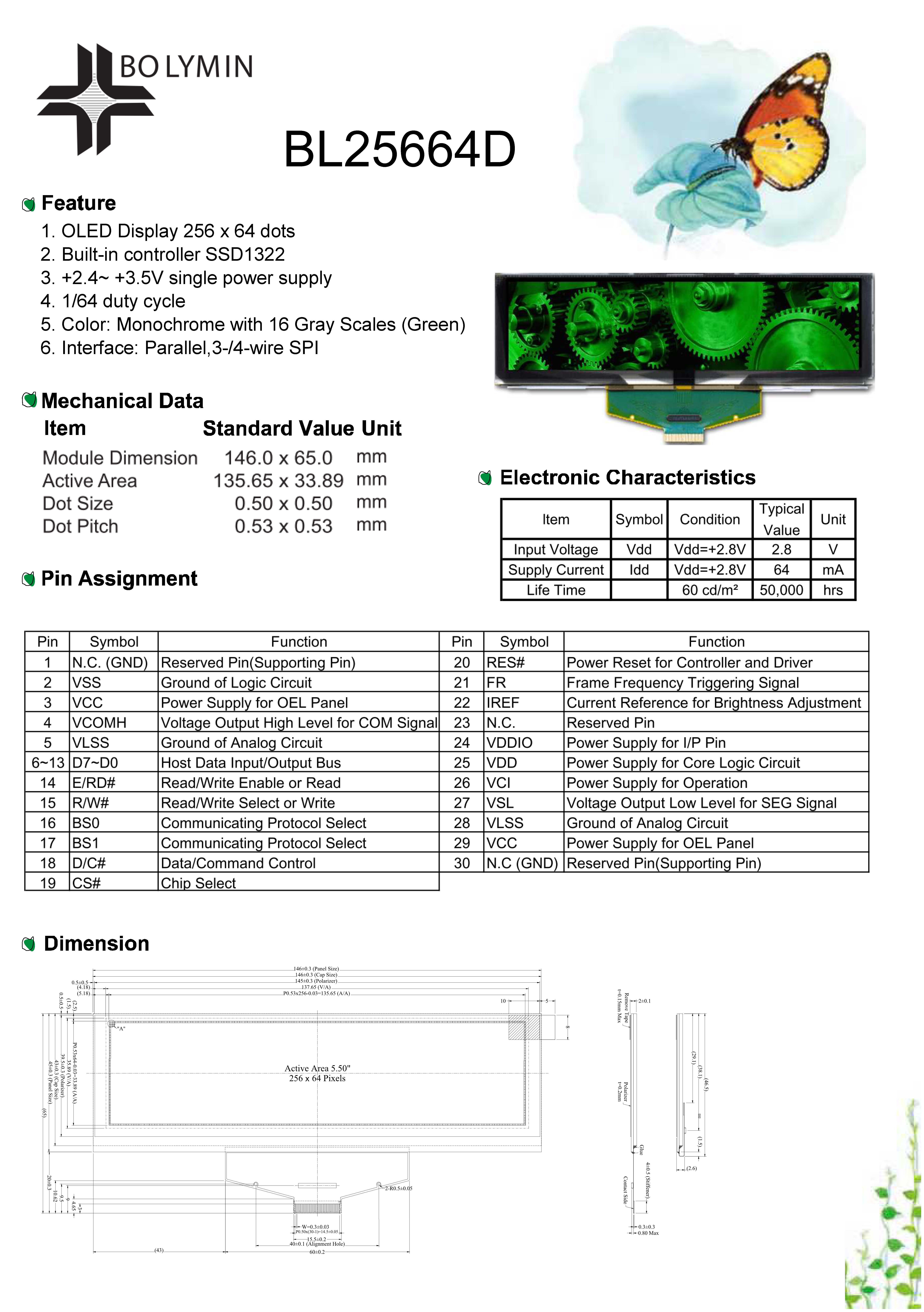

256 x 64 BL25664D 146.0 x 65.0 135.65 x 33.89 SSD1322 Monochrome with 16 Gray Scales (Green)

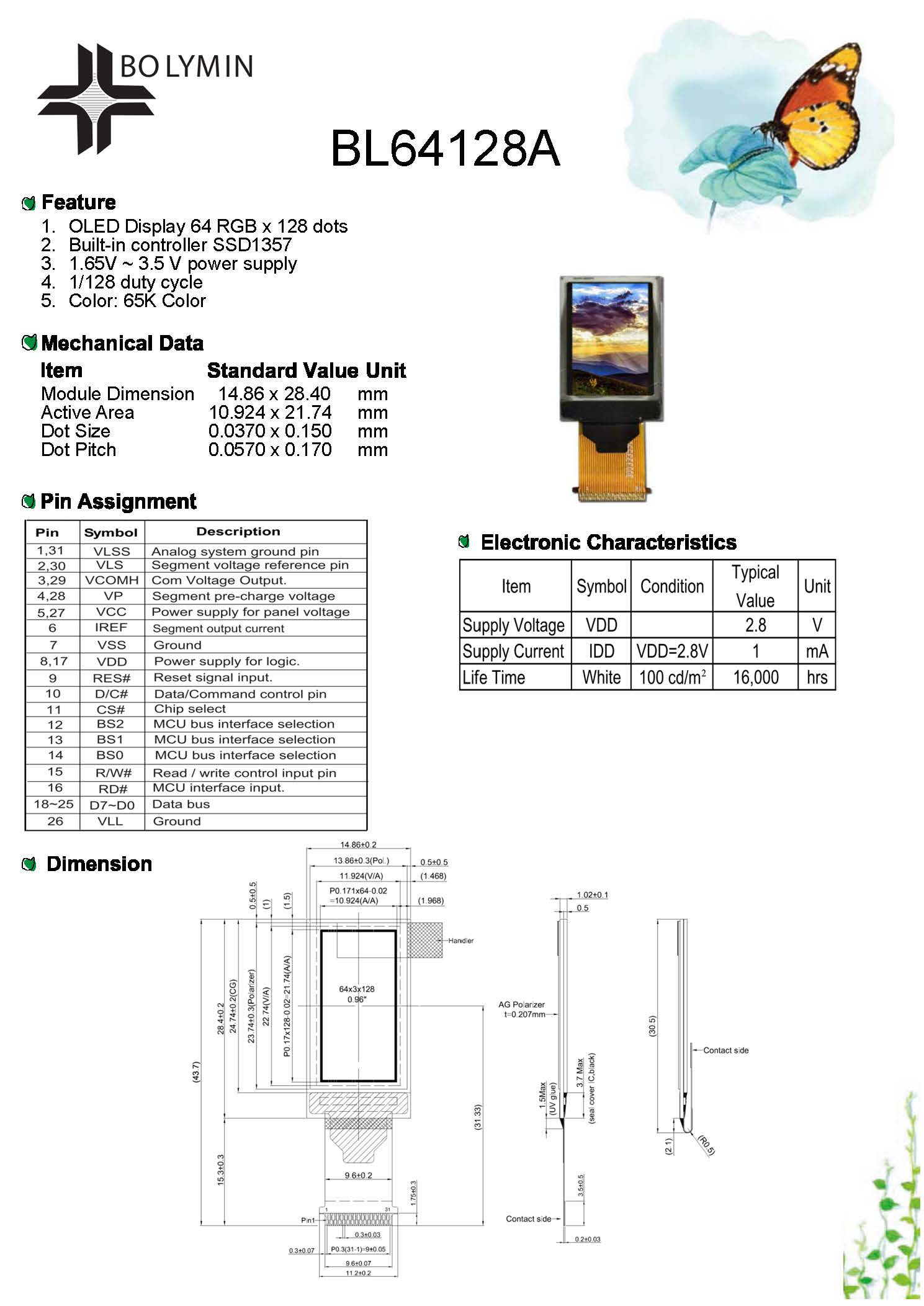

64 x 128 BL64128A 14.86 x 28.4 10.924 x 21.74 SSD1357 65K color

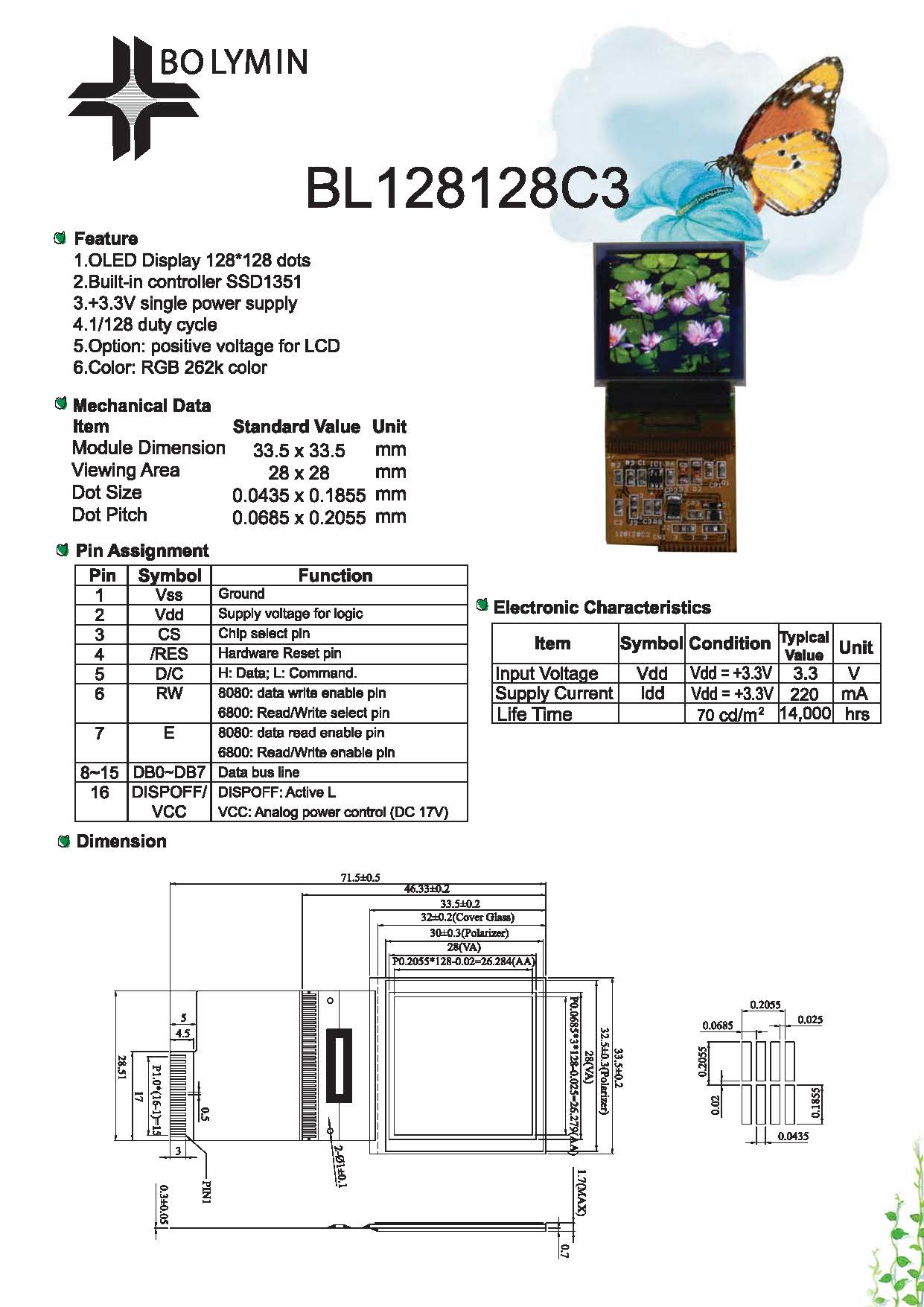

128 x 128 BL128128C3 33.5 x 33.5 26.284 x 26.279 SSD1351U3 RGB 262k color

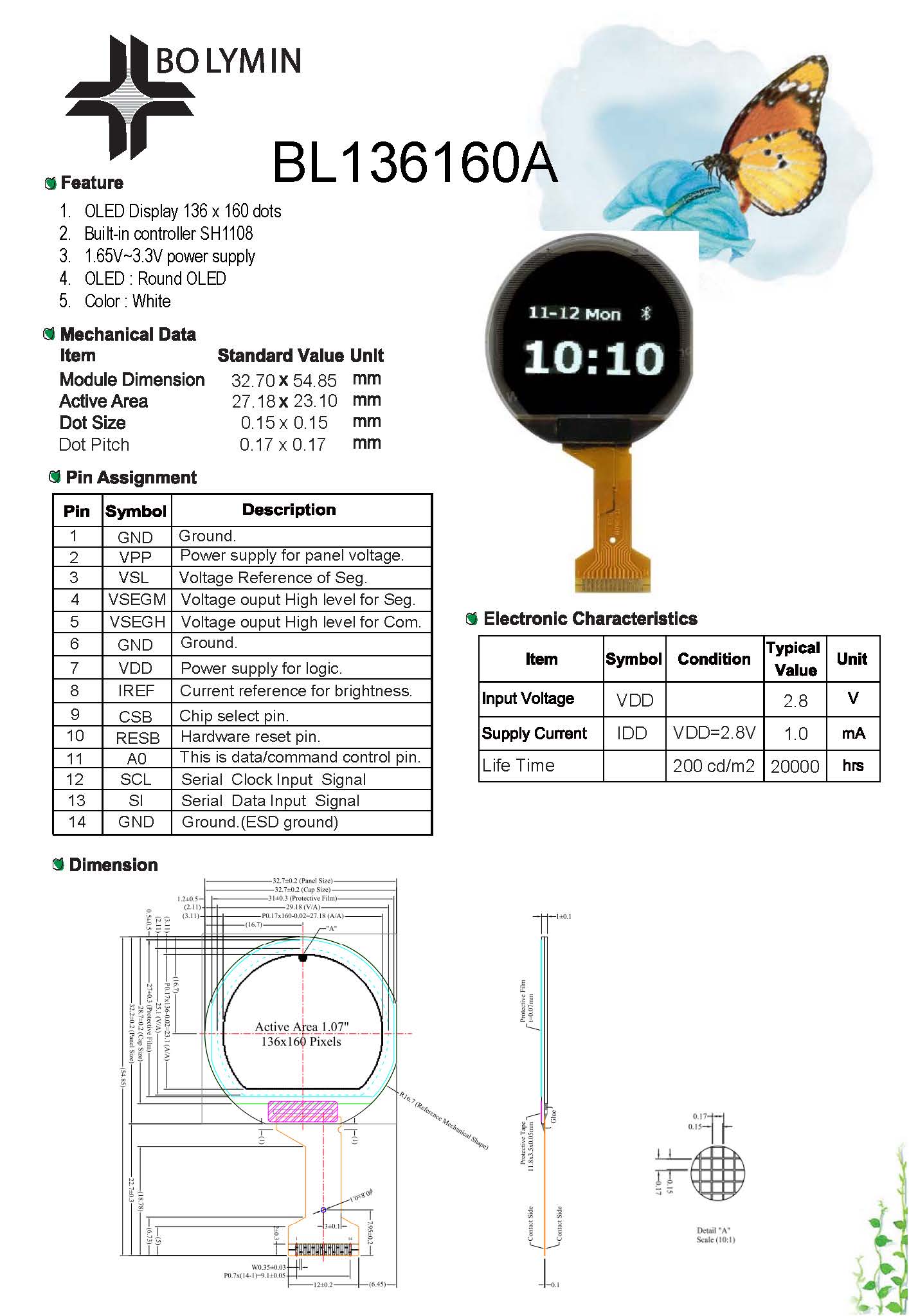

136 x 160 BL136160A 32.70 x 54.85 27.18 x 23.1 SH1108 white

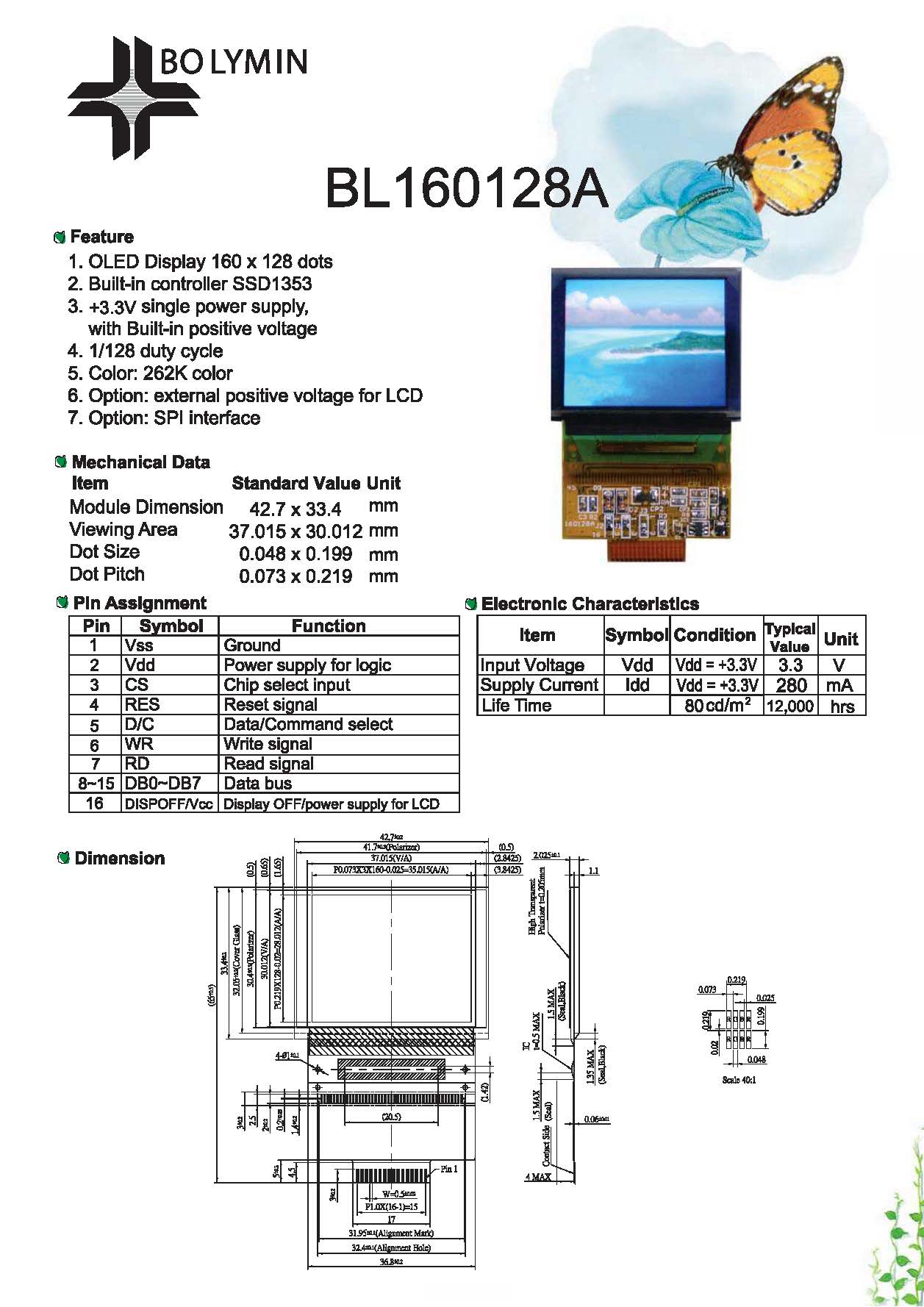

160 x 128 BL160128A 42.7 x 33.4 35.015 x 28.012 SSD1353 262K color

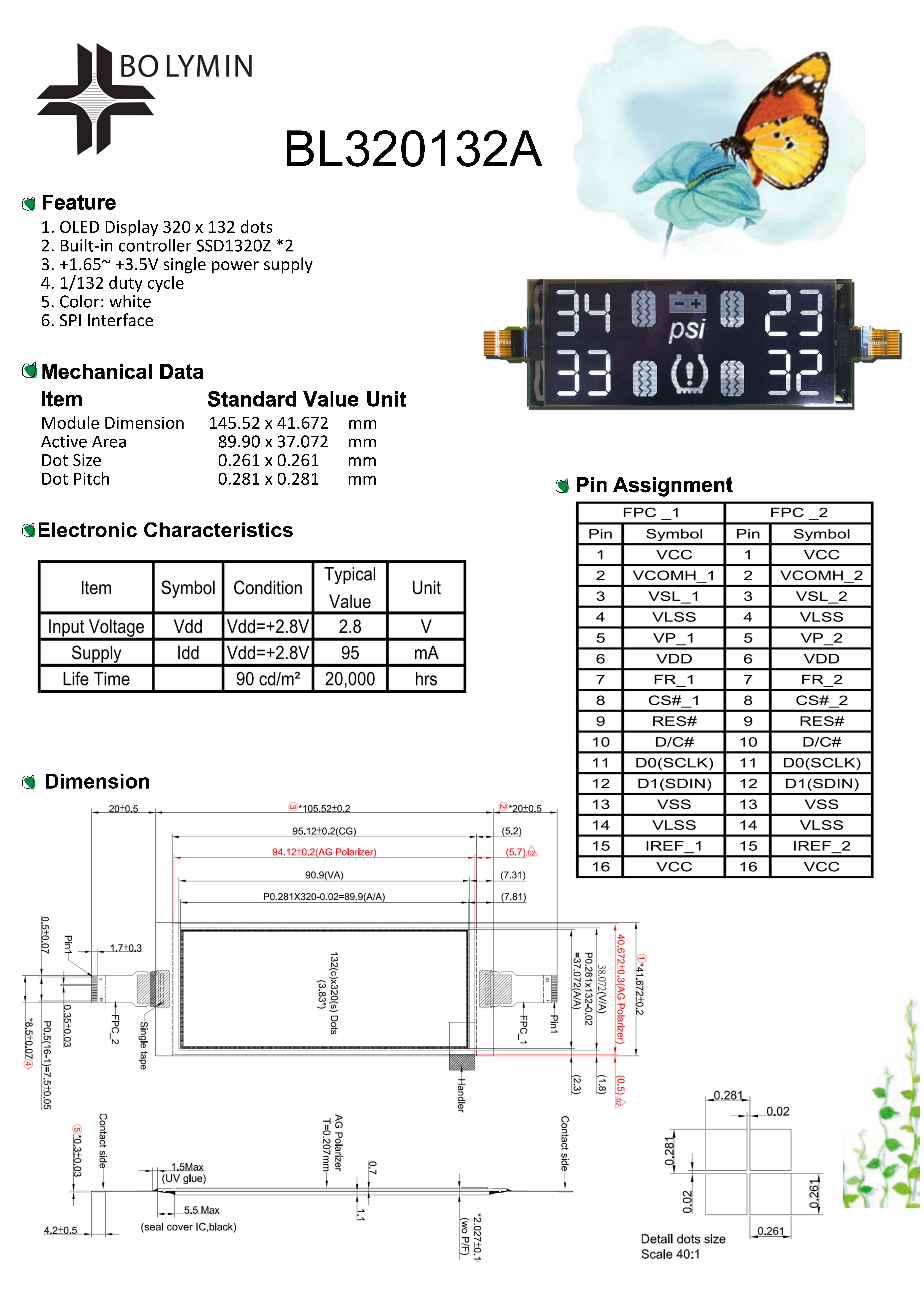

320 x 132 BL320132A 145.52 x 41.672 89.9 x 37.072 SSD1320Z *2 white
