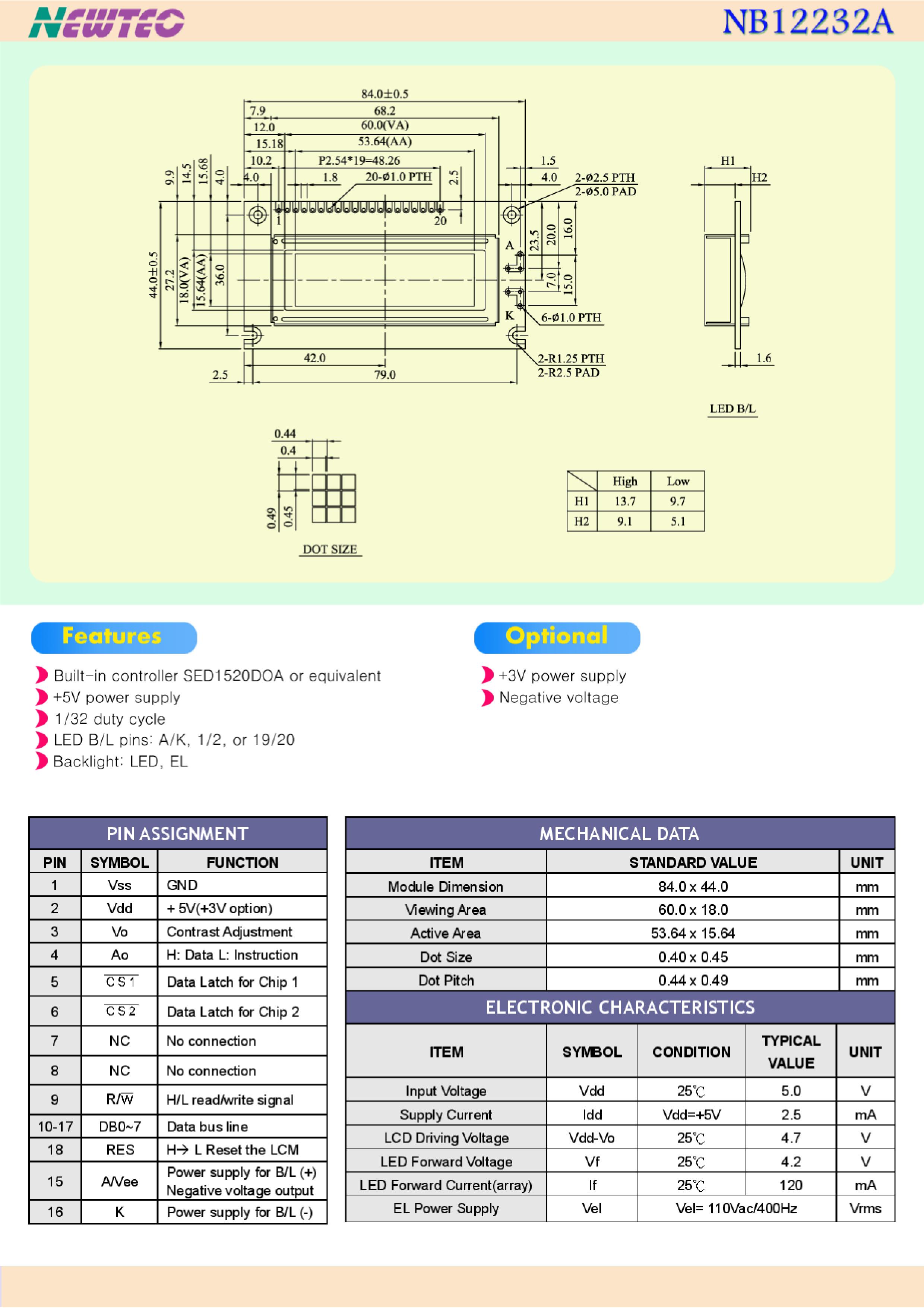

| Resolution Size (inch) |
Module Series | Module Dimension (mm) |
View area(mm) | Controller Interface | Other specifications | download |
|---|---|---|---|---|---|---|
| 122 X 32 | NB12232A | 84.0 X 44.0 | 60.0 X 18.0 | SED1520D0A | DUTY1/32 | |

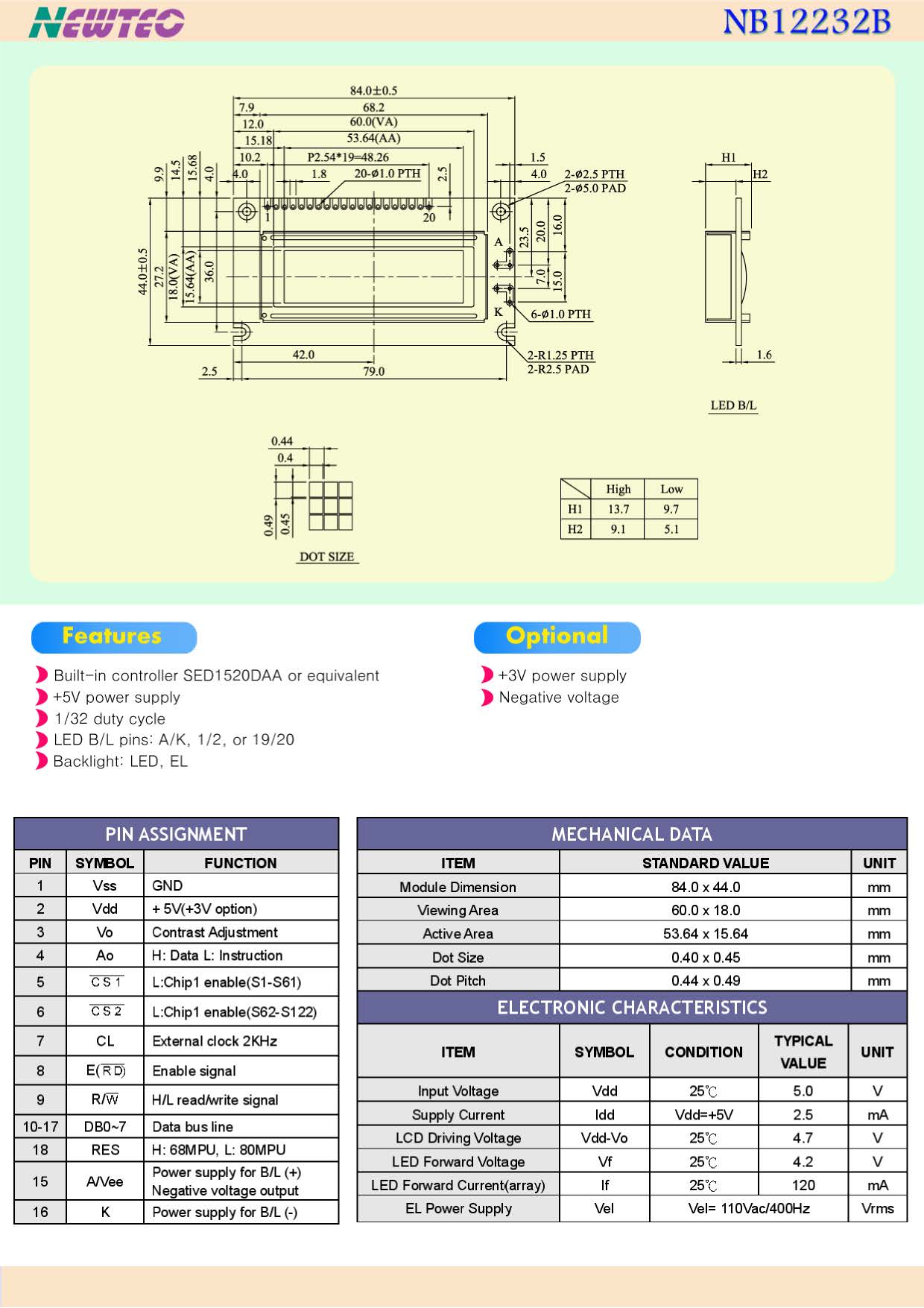

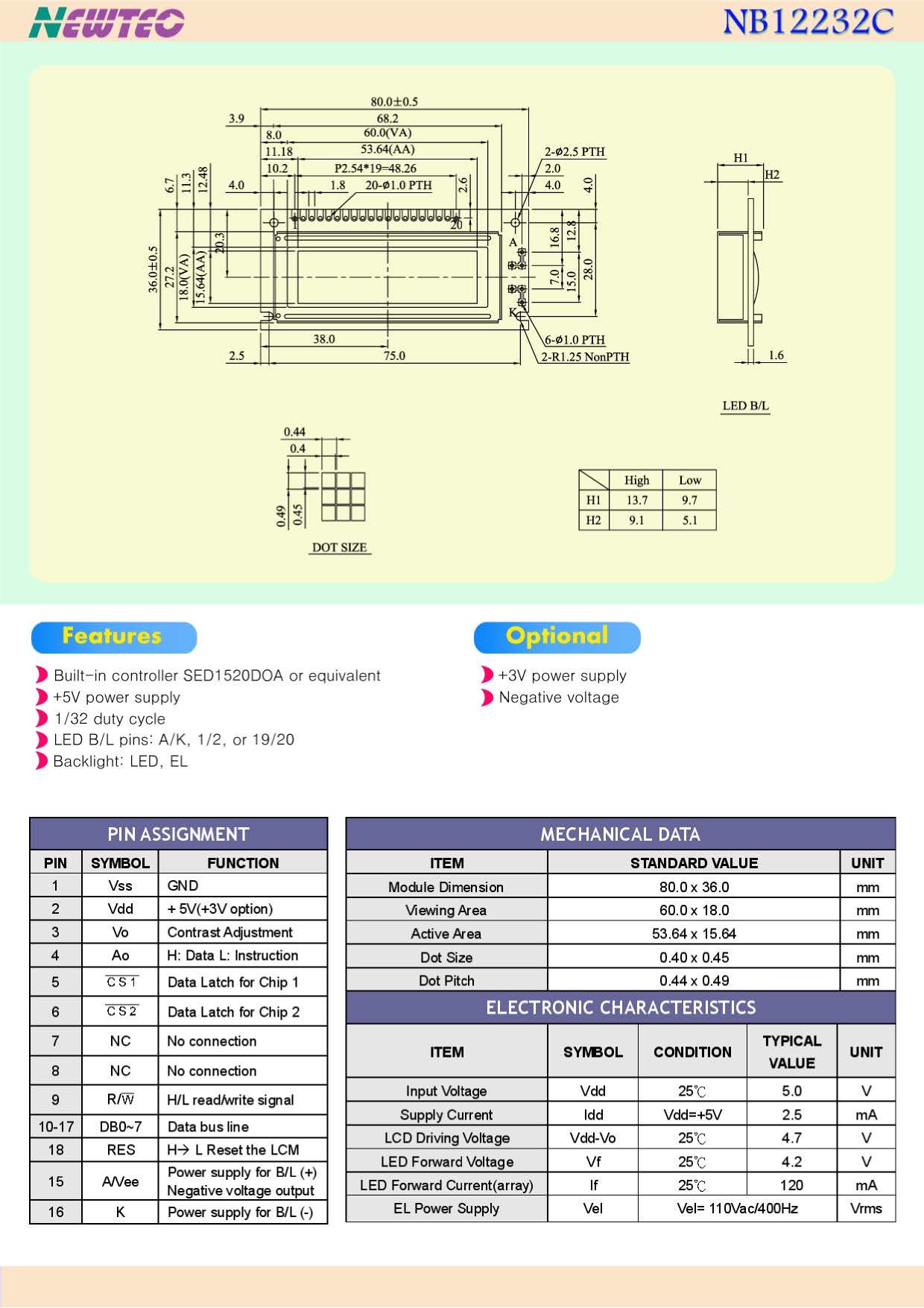

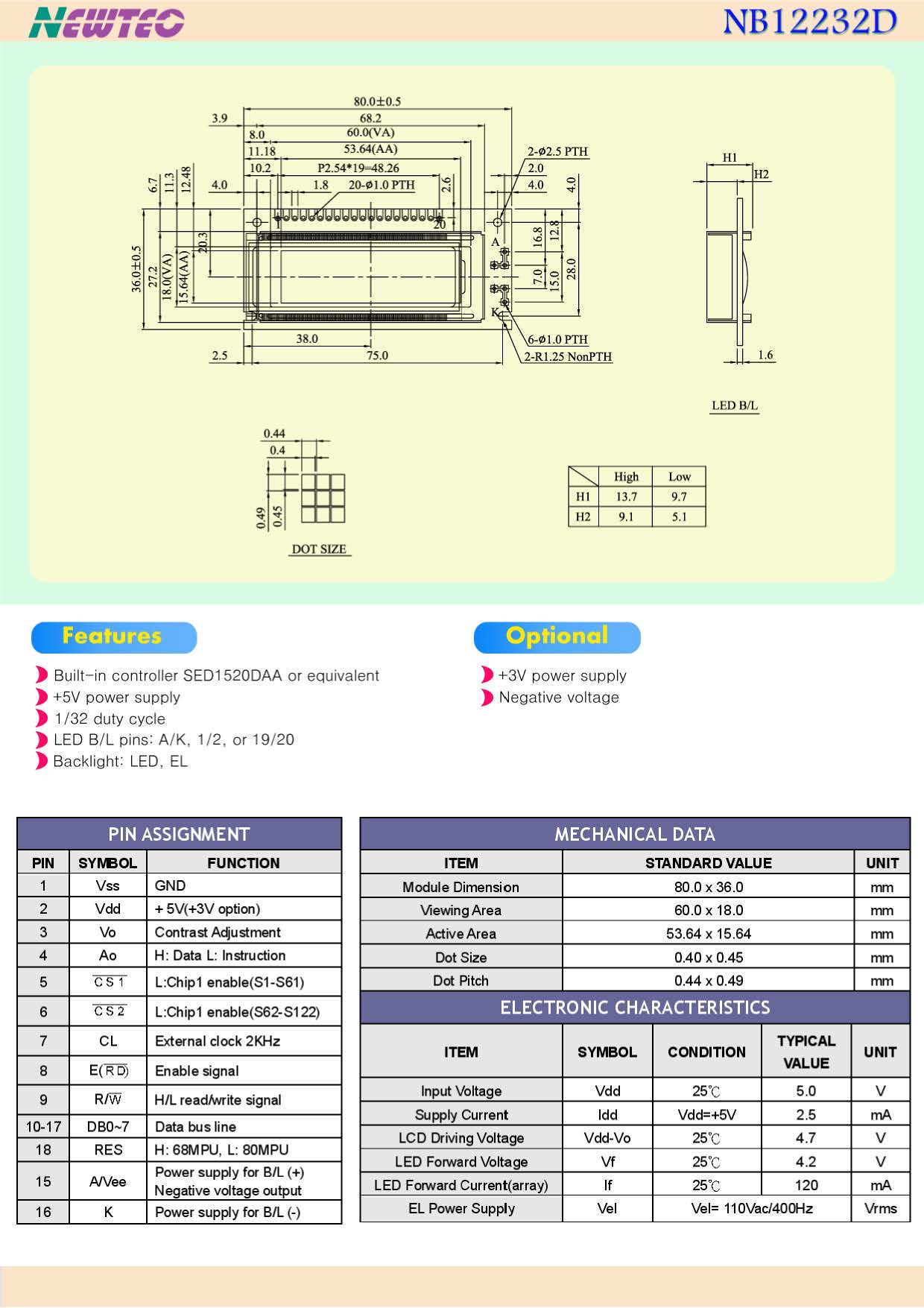

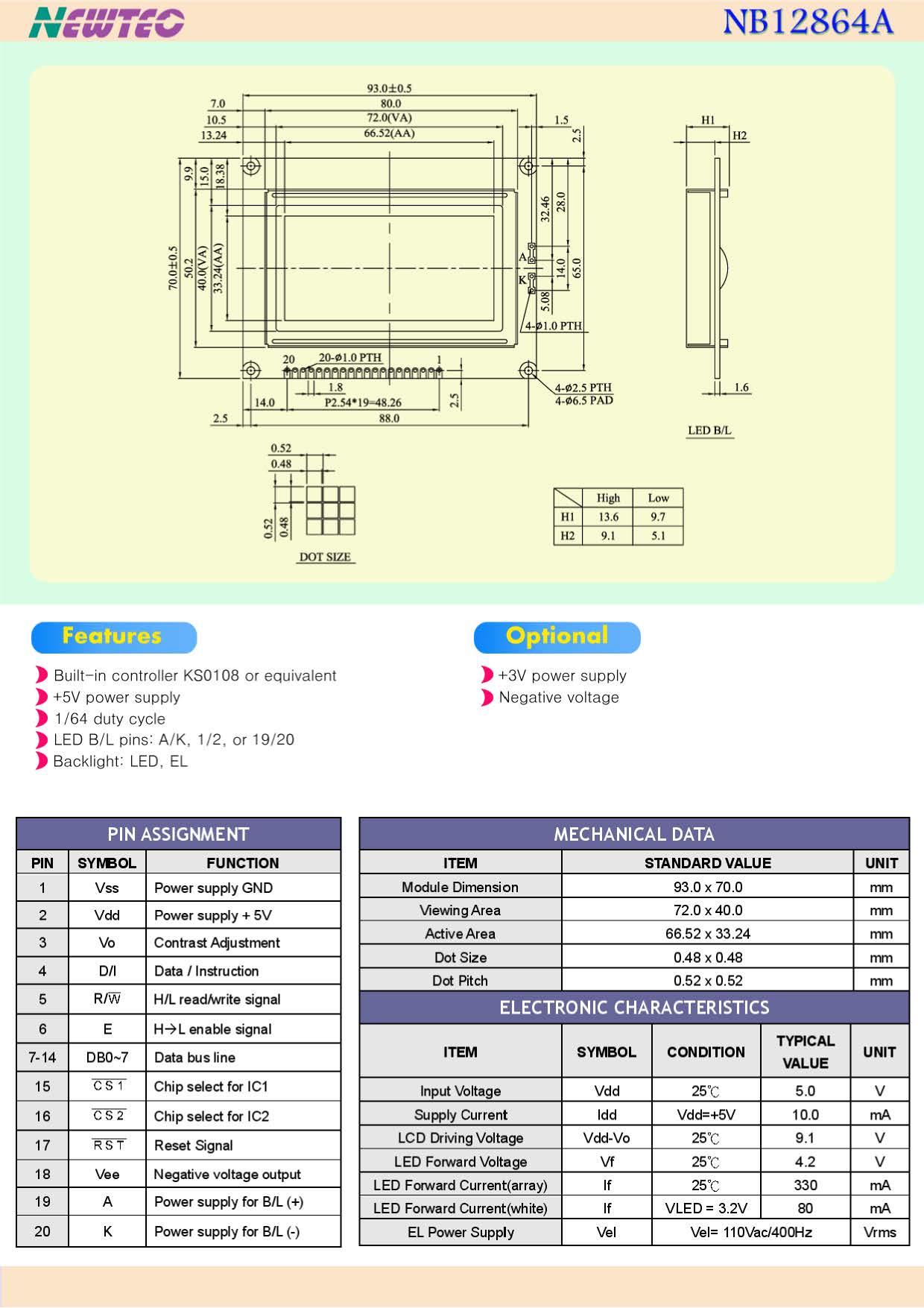

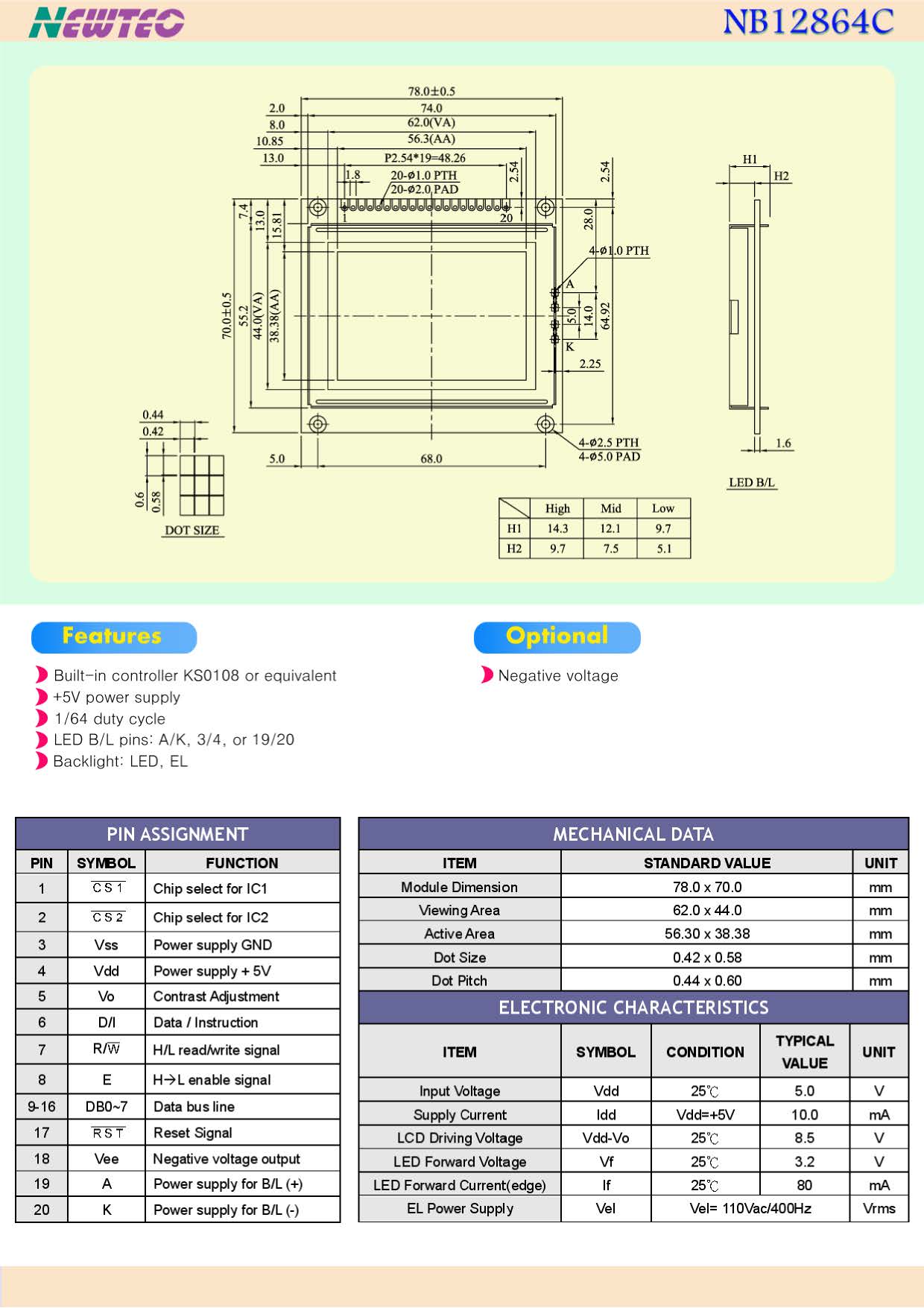

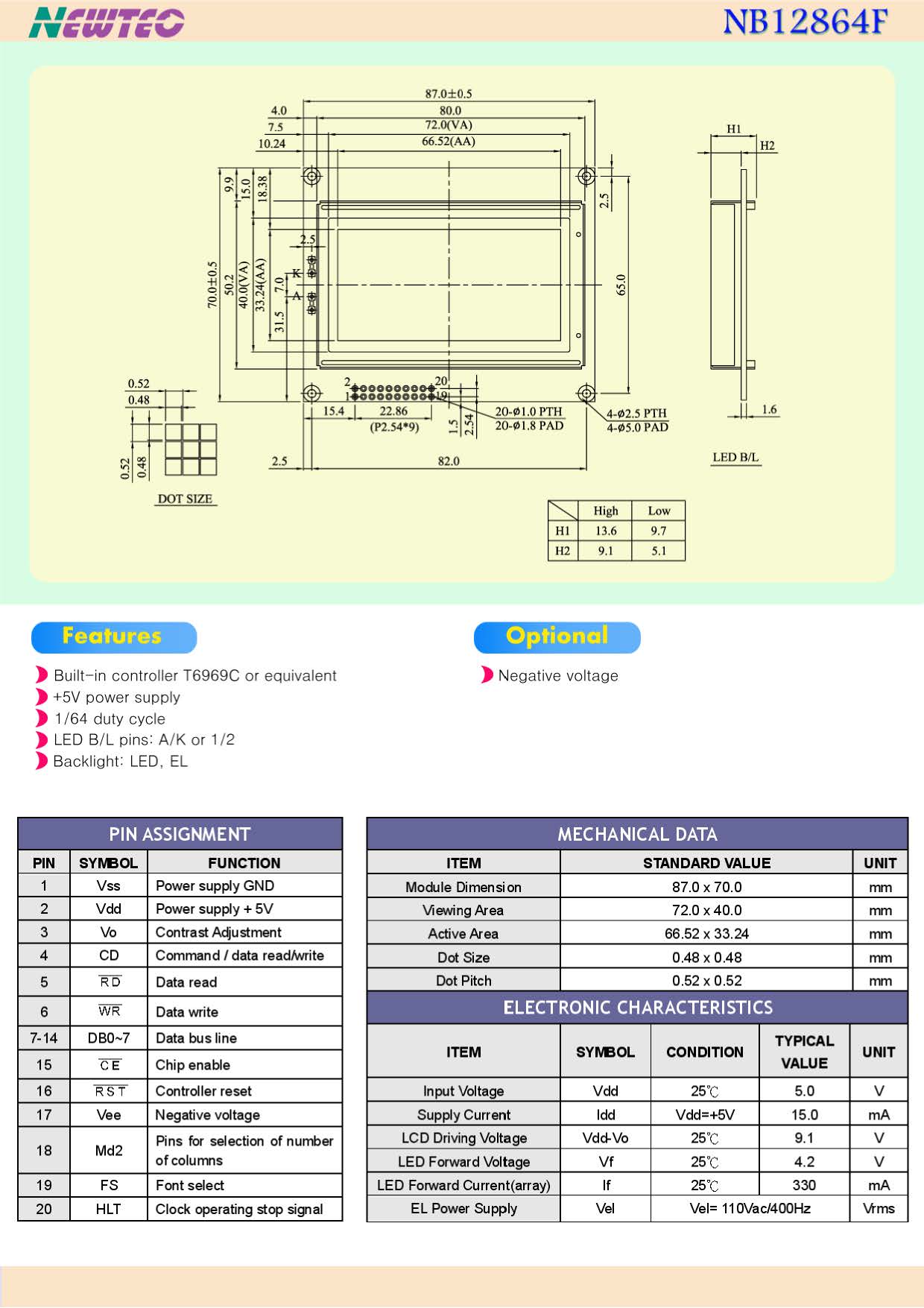

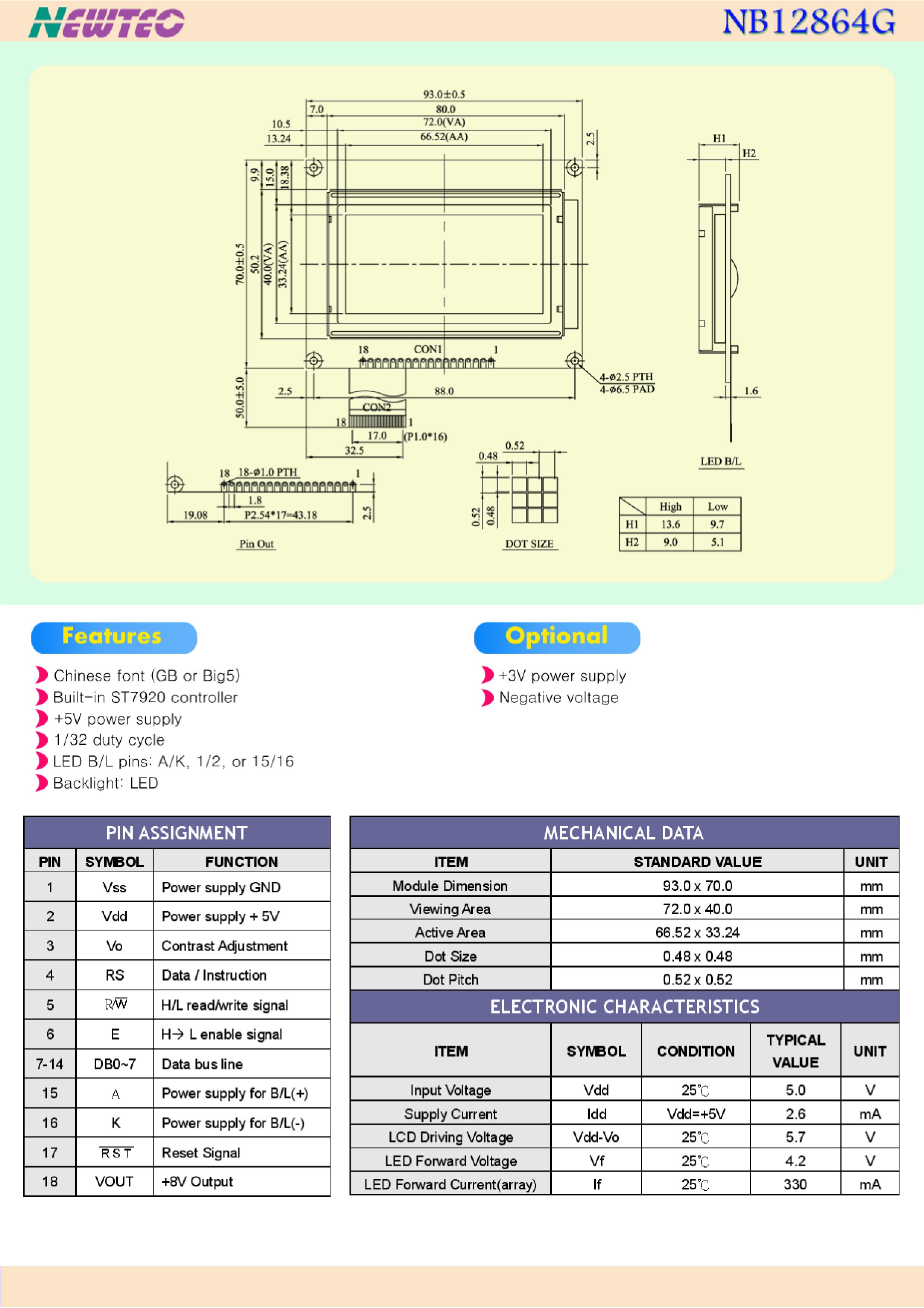

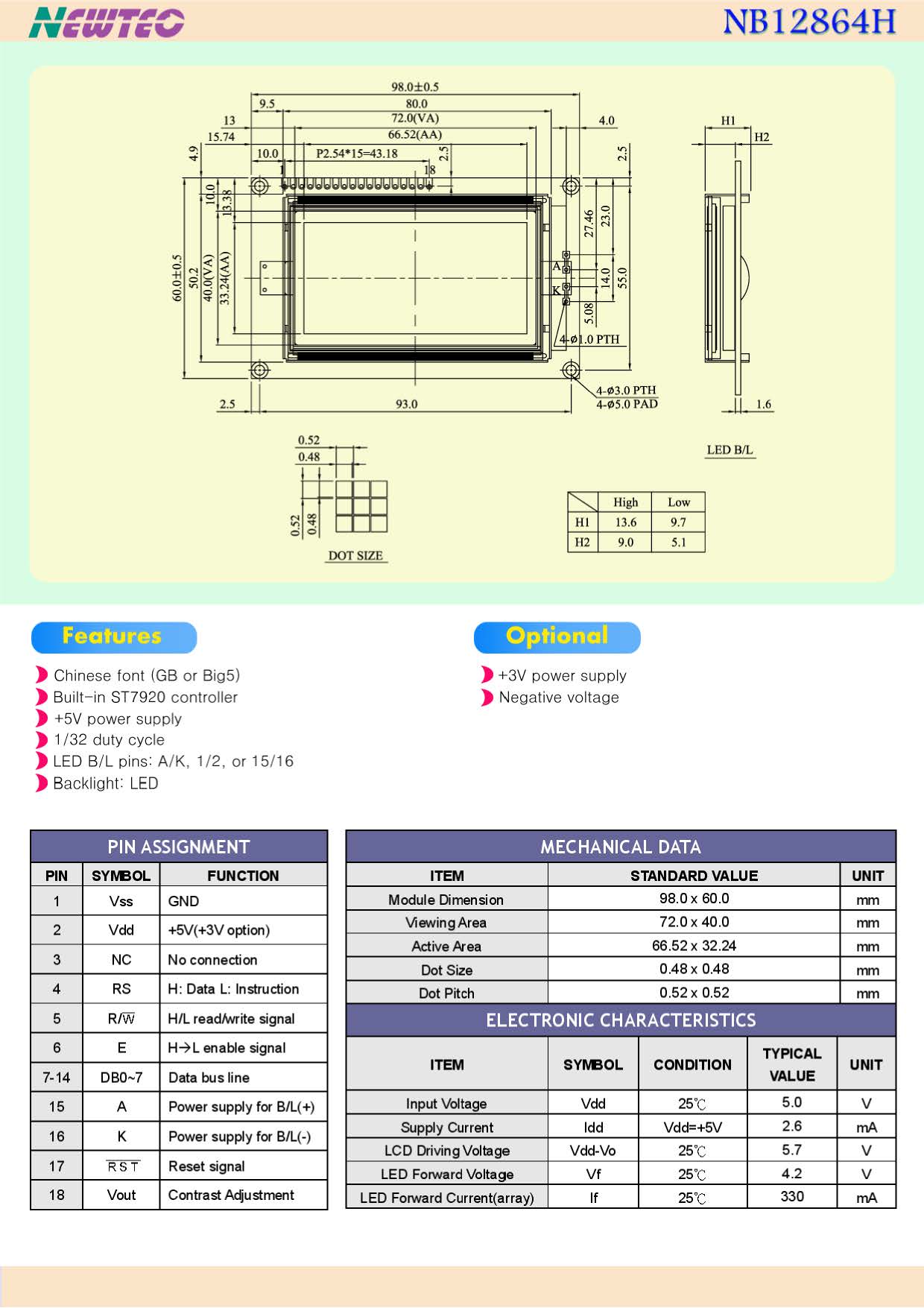

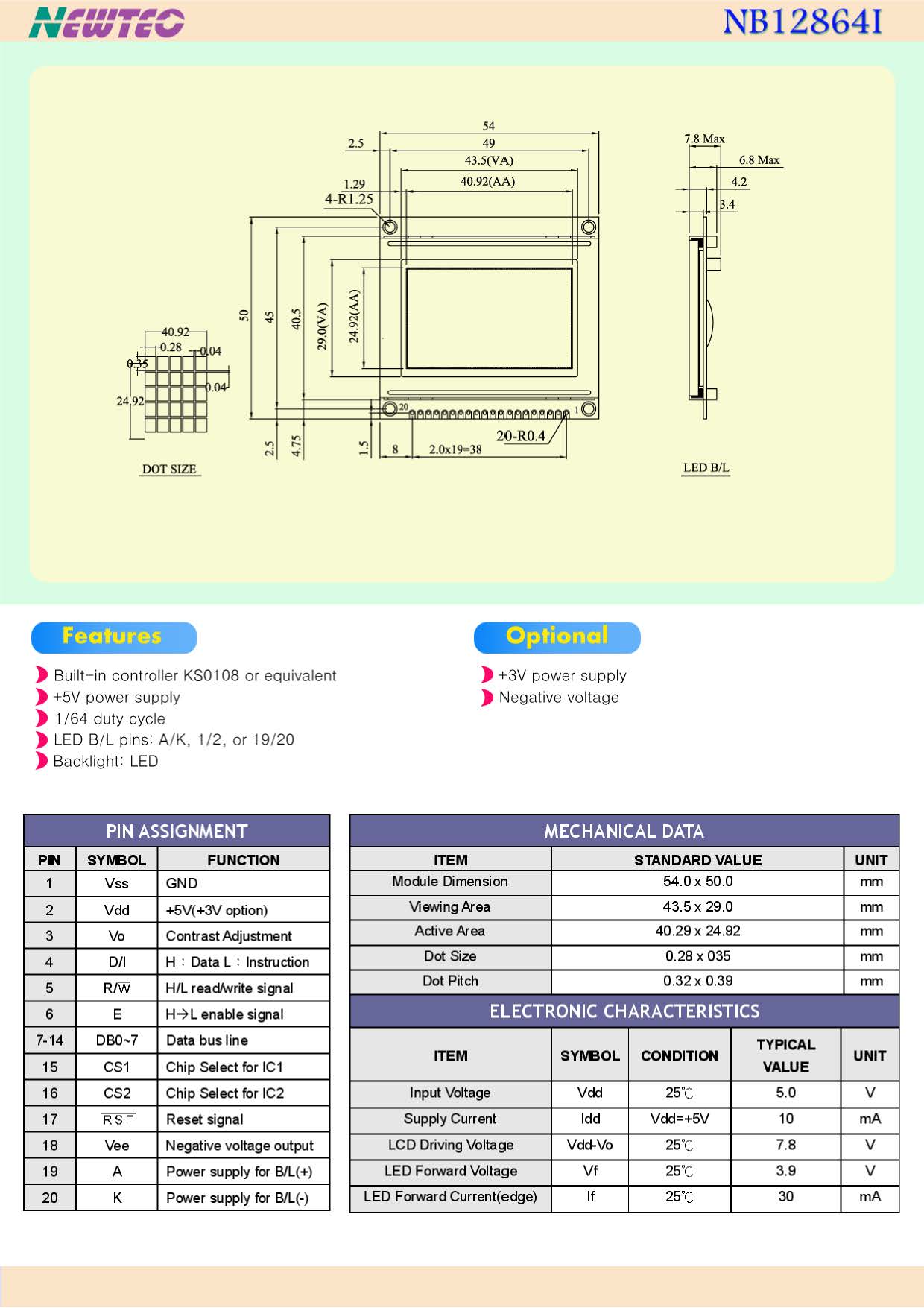

| 122 X 32 | NB12232B | 84.0 X 44.0 | 60.0 X 18.0 | SED1520DAA | DUTY1/32 | |
| 122 X 32 | NB12232C | 80.0 X 36.0 | 60.0 X 18.0 | SED1520D0A | DUTY1/32 | |
| 122 X 32 | NB12232D | 80.0 X 36.0 | 60.0 X 18.0 | SED1520DAA | DUTY1/32 | |
| 128 X 64 | NB12864A | 93.00 X 70.00 | 72.00 X 40.00 | NT7108 | DUTY1/64 | |
| 128 X 64 | NB12864B | 75.00 X 52.7 | 60.00 X 32.60 | NT7108 | DUTY1/64 | |
| 128 X 64 | NB12864C | 78.00 X 70.00 | 62.00 X 44.00 | NT7108 | DUTY1/64 | |
| 128 X 64 | NB12864D | 78.00 X 70.00 | 62.00 X 44.00 | RA6963 | DUTY1/64 | |
| 128 X 64 | NB12864F | 87.00 X 70.00 | 72.00 X 40.00 | RA6963 | DUTY1/64 | |
| 128 X 64 | NB12864G | 93.00 X 70.00 | 72.00 X 40.00 | ST7920 | DUTY1/64 | |
| 128 X 64 | NB12864H | 98.00 X 60.00 | 72.00 X 40.00 | ST7920 | DUTY1/64 | |
| 128 X 64 | NB12864I | 54.00 X 50.00 | 43.50 X 29.00 | NT7108 | DUTY1/64 | |

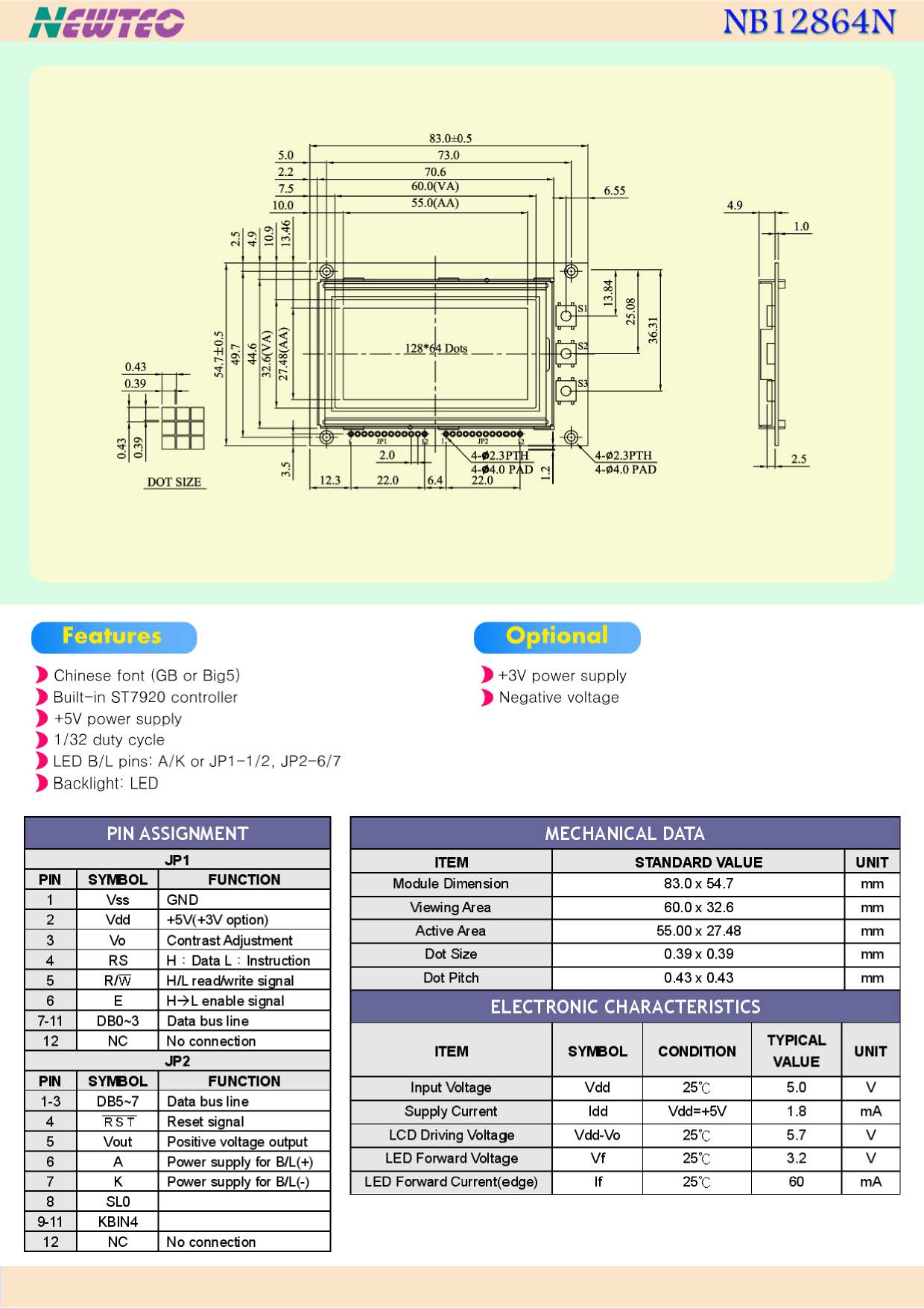

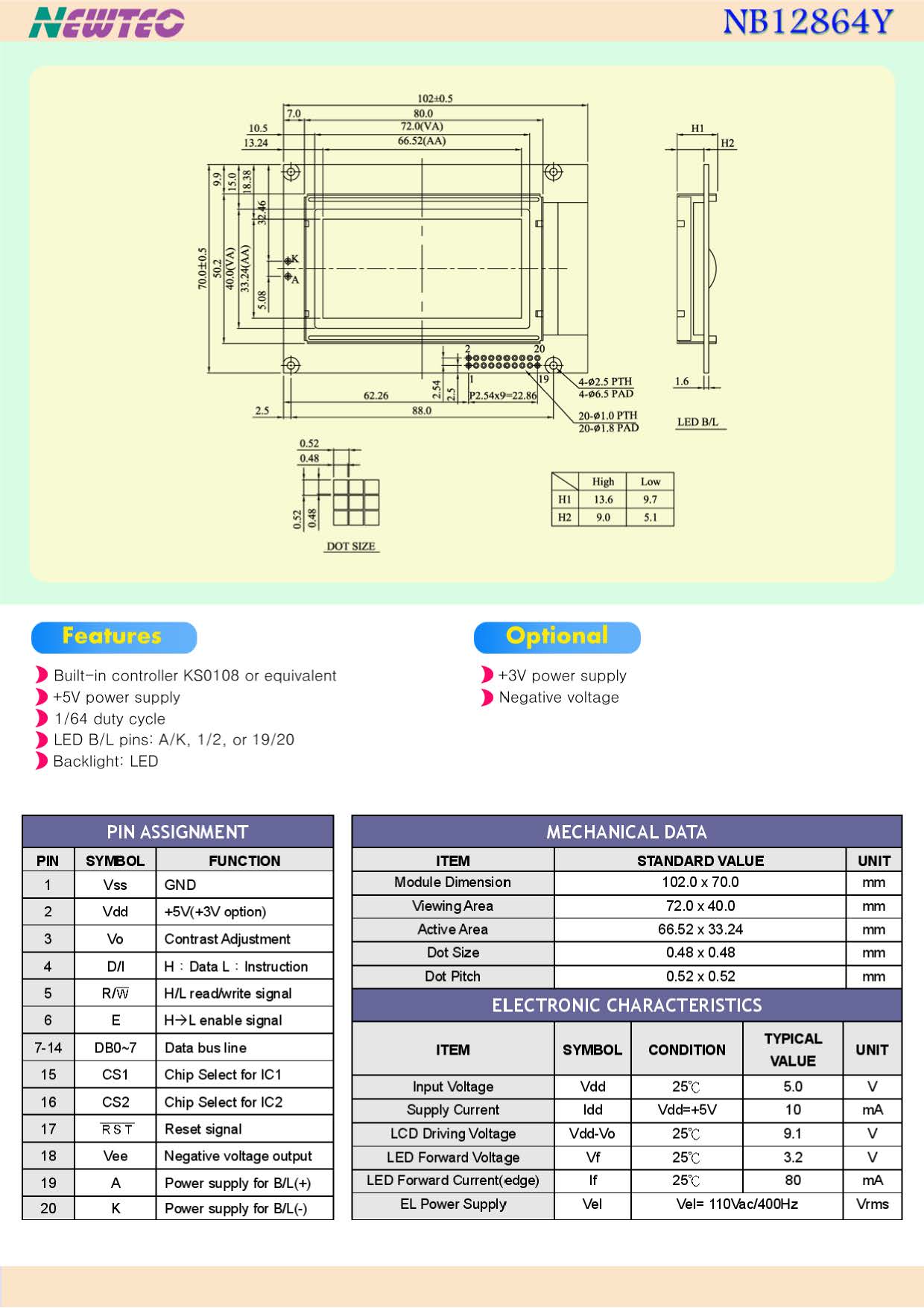

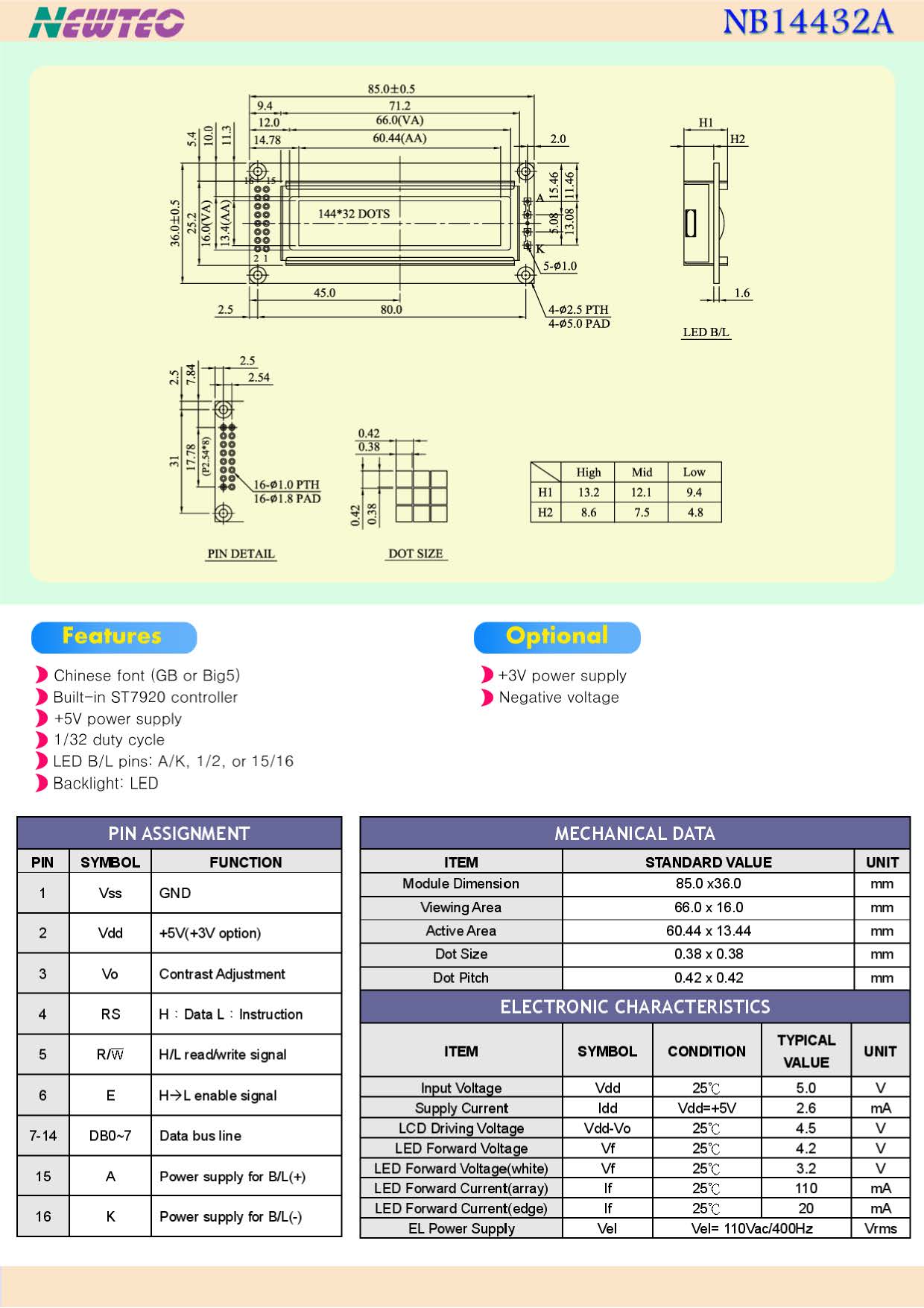

| 128 X 64 | NB12864N | 83.00 X 54.70 | 60.00 X 32.60 | ST7920 | DUTY1/64 | |
| 128 X 64 | NB12864Y | 102.00 X 70.00 | 72.00 X 40.00 | NT7108 | DUTY1/64 | |
| 144 X 32 | NB14432A | 85.00 X 36.00 | 66.00 X 16.00 | ST7920 | DUTY1/64 | |

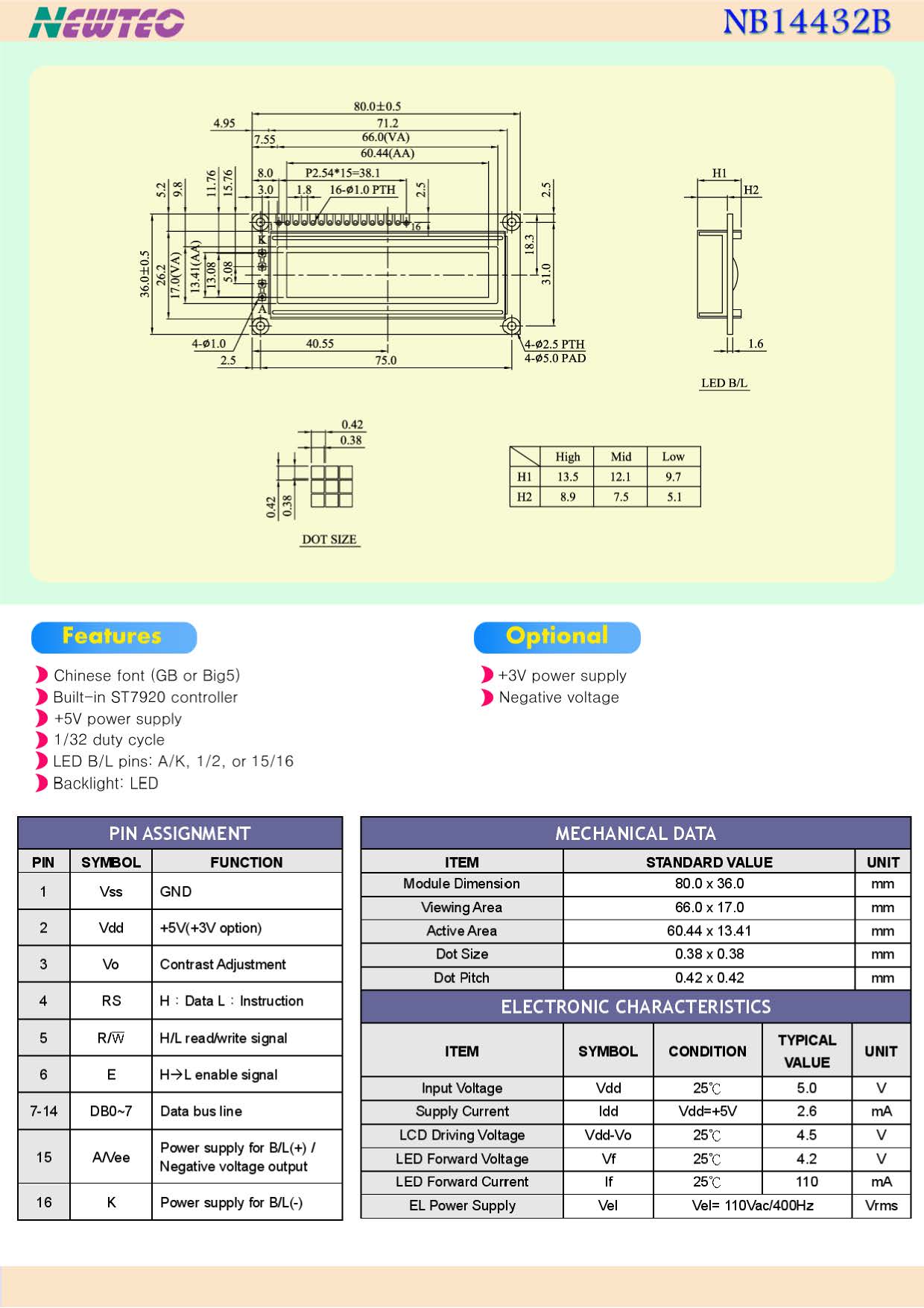

| 144 X 32 | NB14432B | 83.00 X 36.00 | 66.00 X 17.00 | ST7920 | DUTY1/64 | |

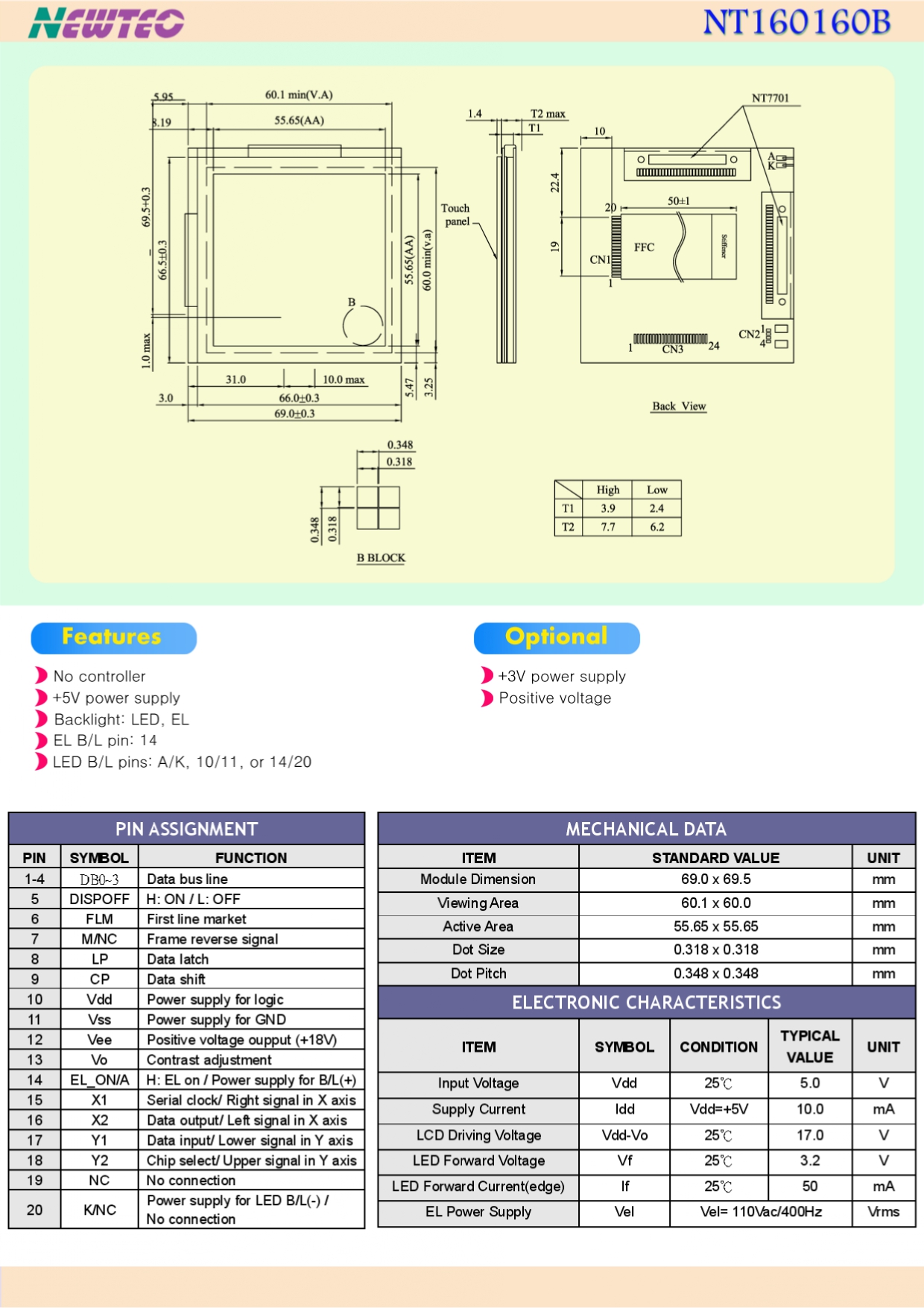

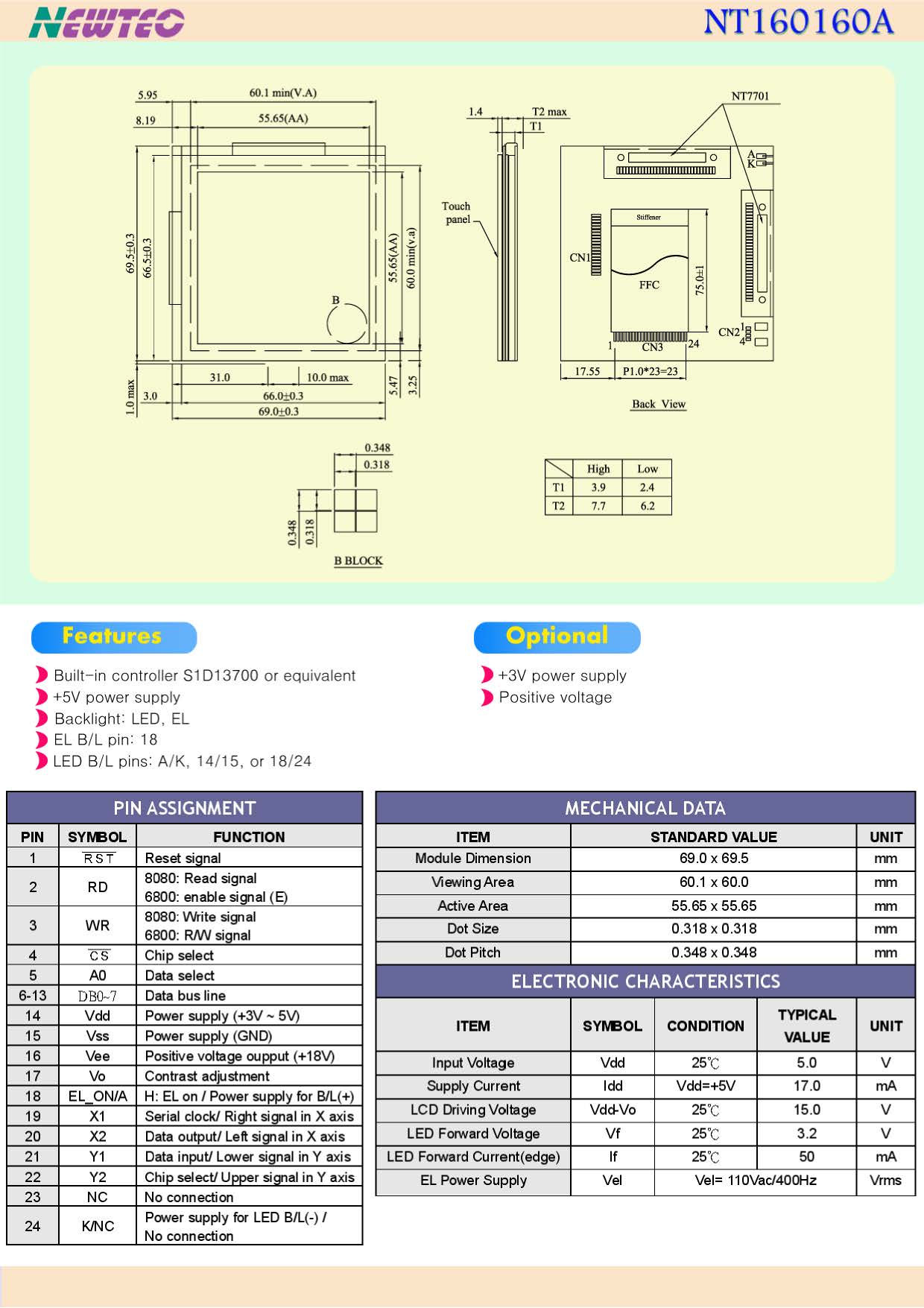

| 160 X 160 | NT160160A | 69.00 X 69.50 | 60.10 X 55.65 | SID13700 | DUTY1/60 | |
| 160 X 160 | NT160160B | 69.00 X 69.50 | 60.10 X 55.65 | NONE | DUTY1/160 | |

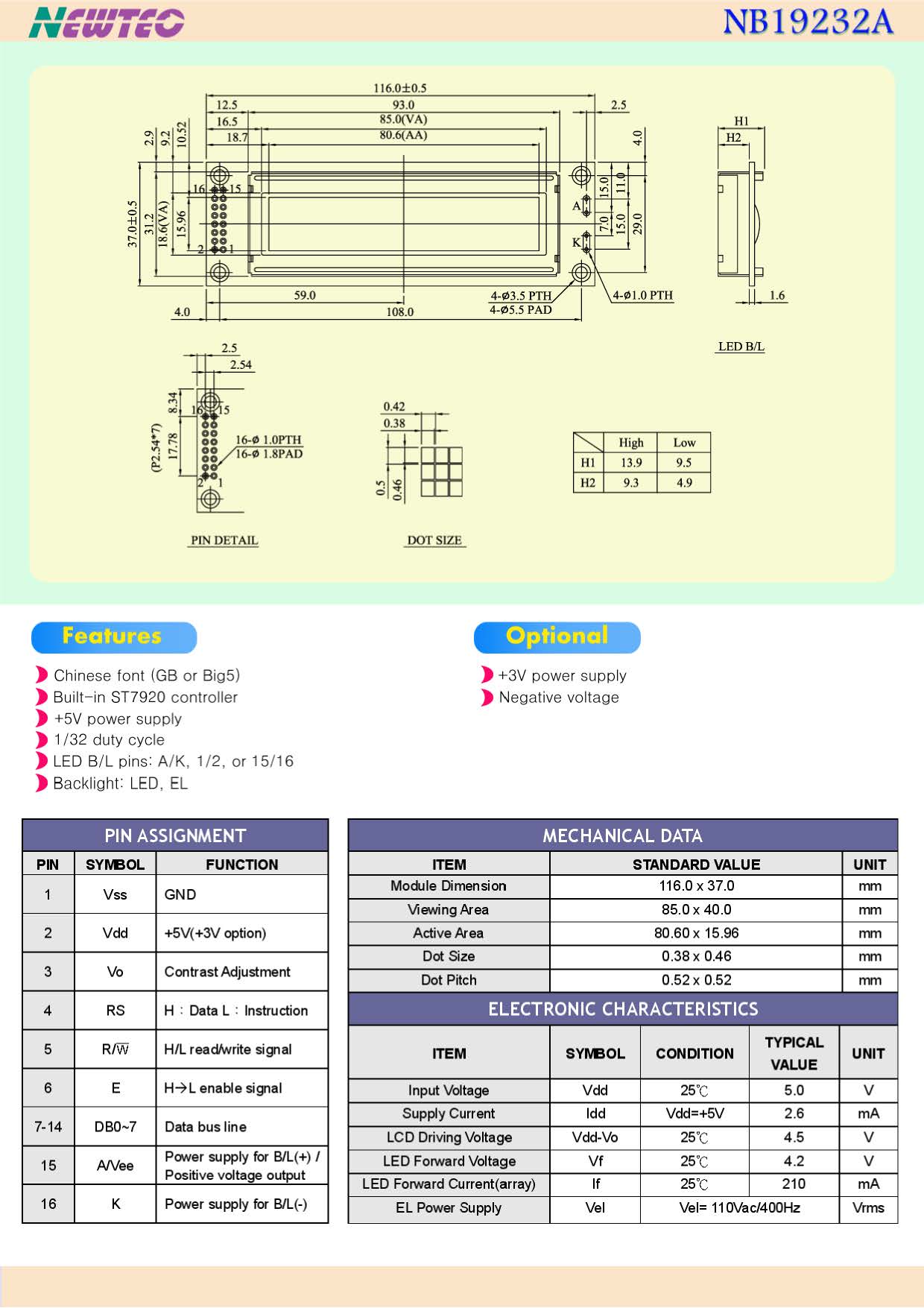

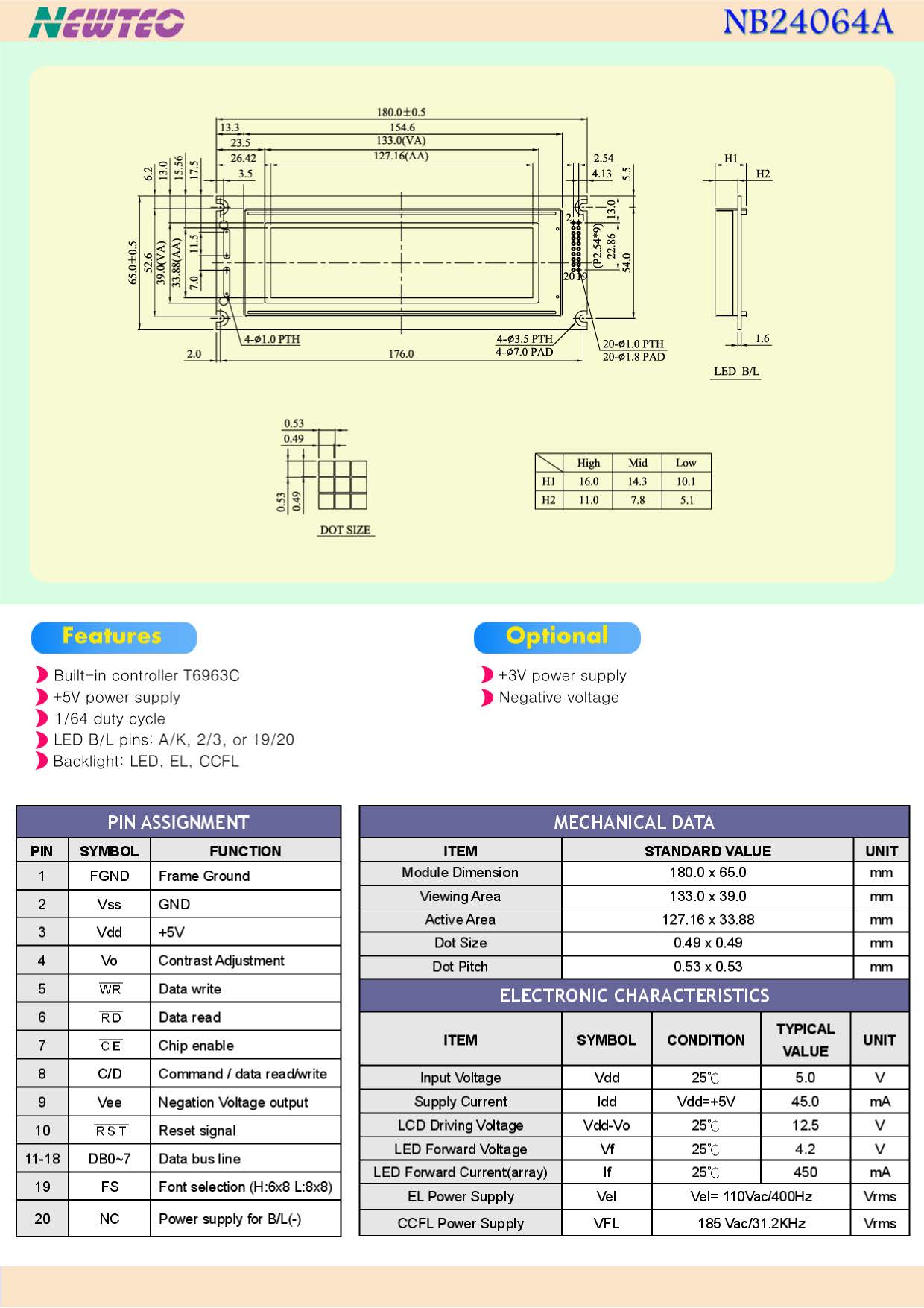

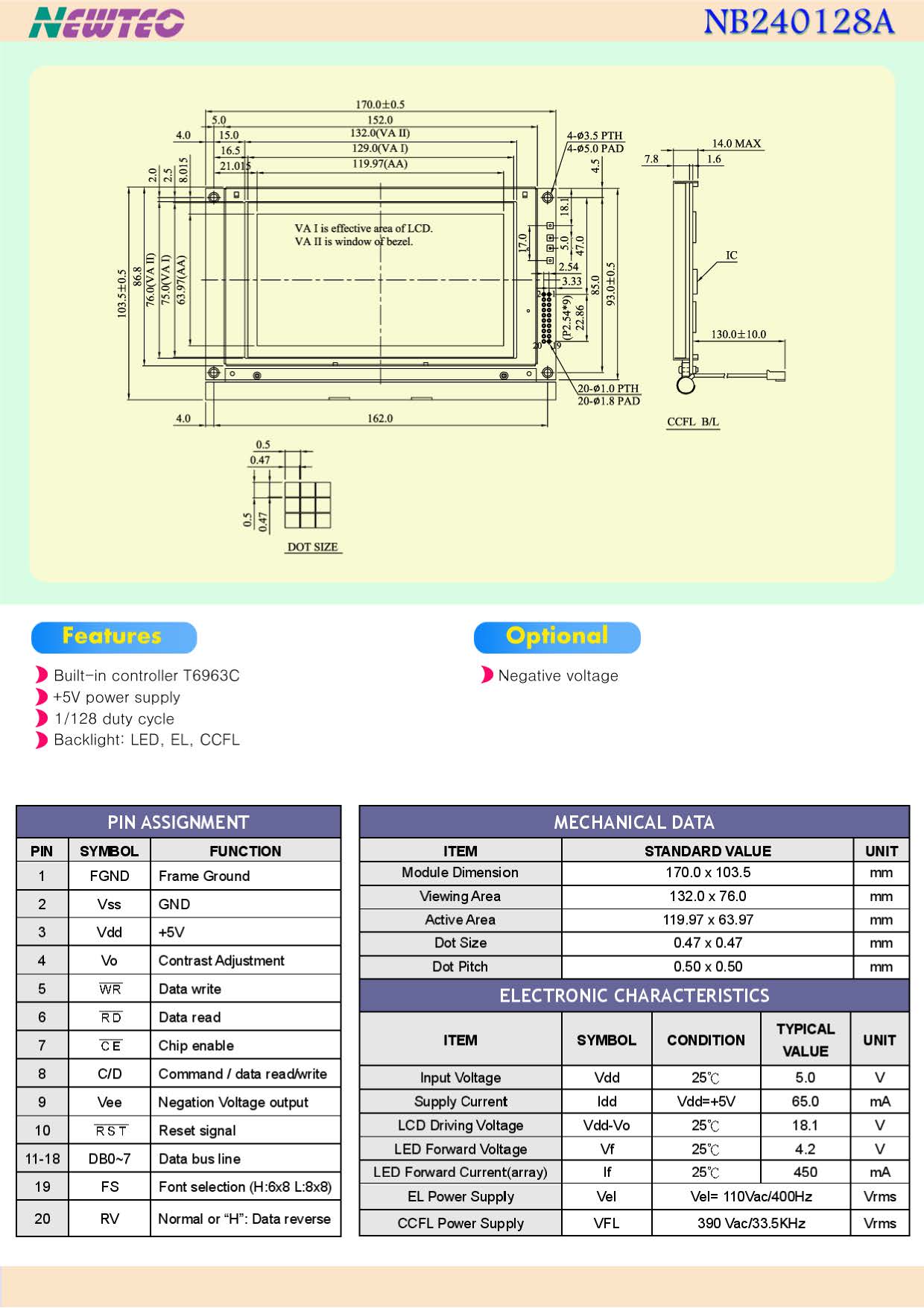

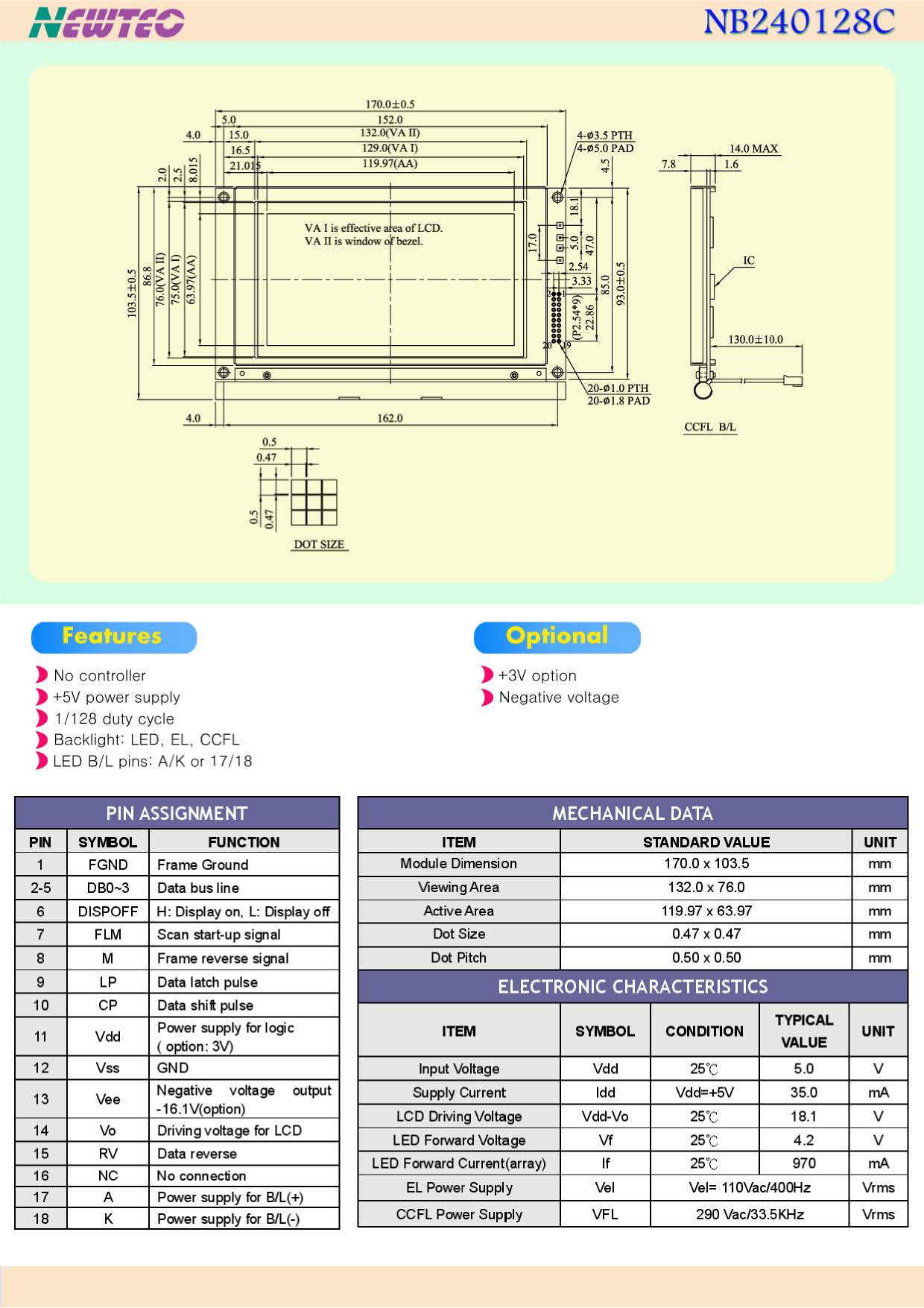

| 192 X 32 | NB19232A | 166.00 X 37.00 | 85.00 X 18.60 | ST7920 | DUTY1/32 | |
| 240 X 64 | NB24064A | 180.00 X 65.00 | 133.00 X 39.00 | RA6963 | DUTY1/64 | |
| 240 X 128 | NB240128A | 170.00 X 103.50 | 132.00 X 76.00 | RA6963 | DUTY1/128 | |

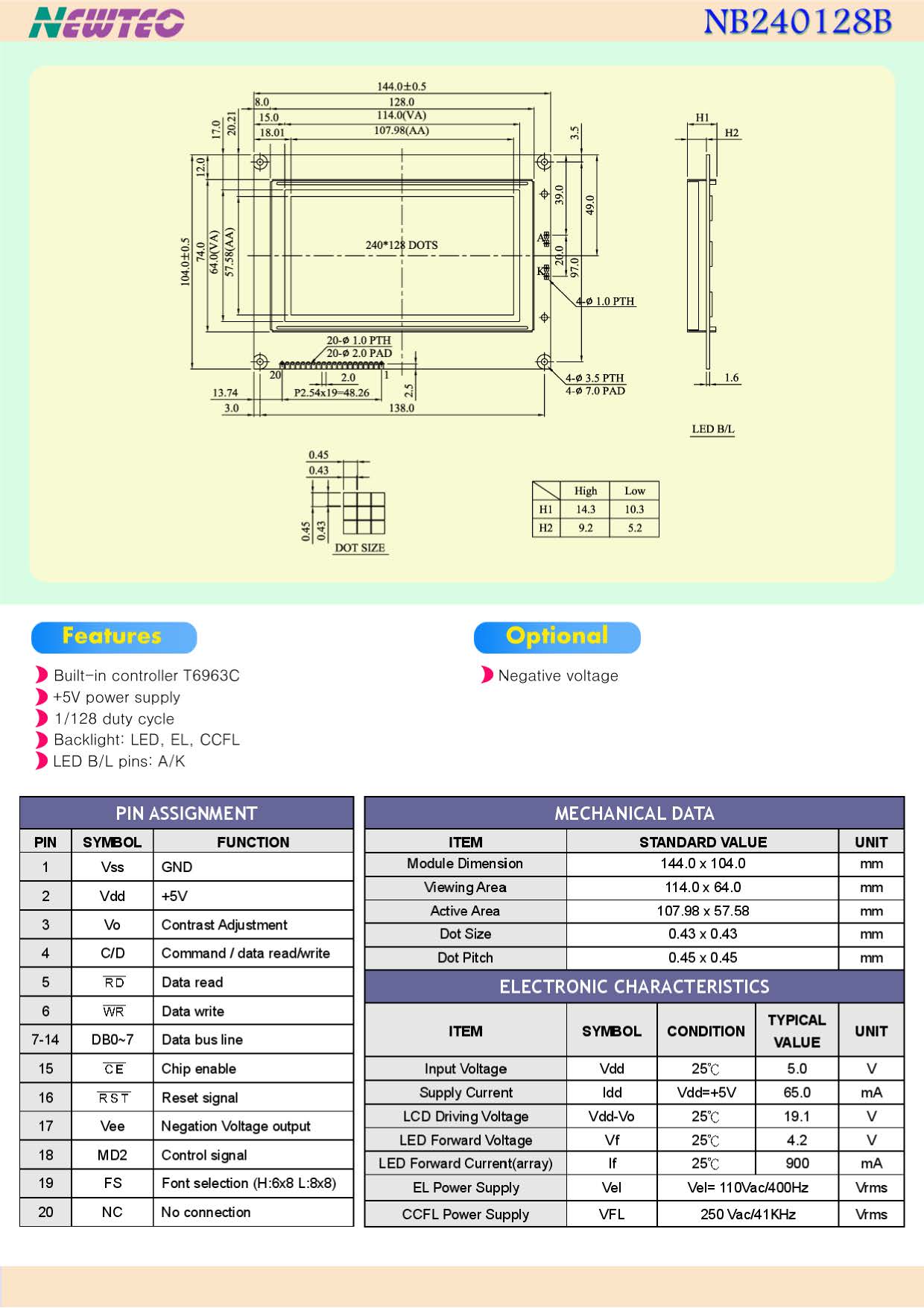

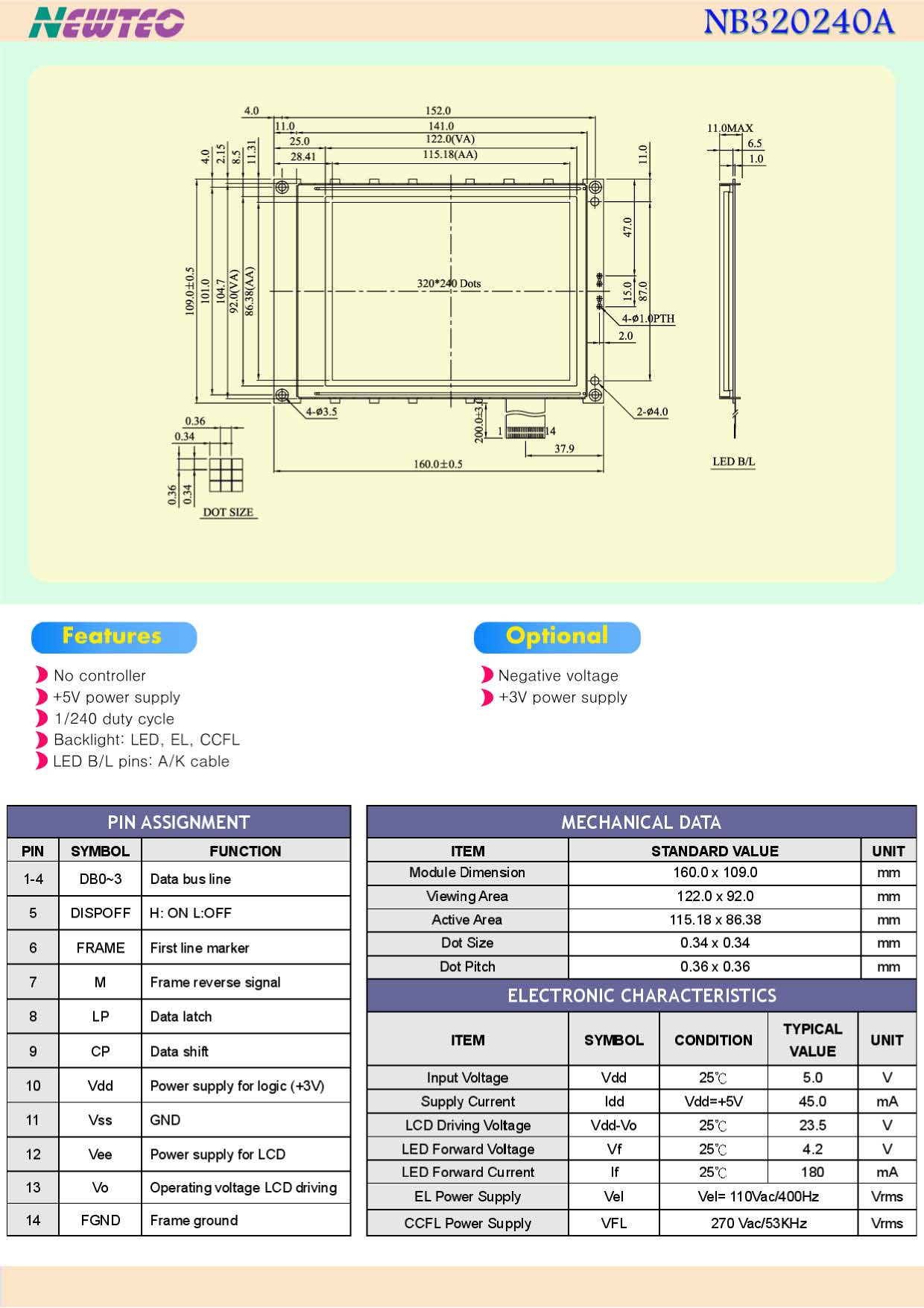

| 240 X 128 | NB240128B | 144.00 X 104.00 | 114.00 X 64.00 | RA6963 | DUTY1/128 | |
| 240 X 128 | NB240128C | 144.00 X 104.00 | 114.00 X 64.00 | NONE | DUTY1/128 | |
| 320 X 240 | NB320240A | 166.80 X 109.00 | 122.00 X 92.00 | NONE | DUTY1/240 | |

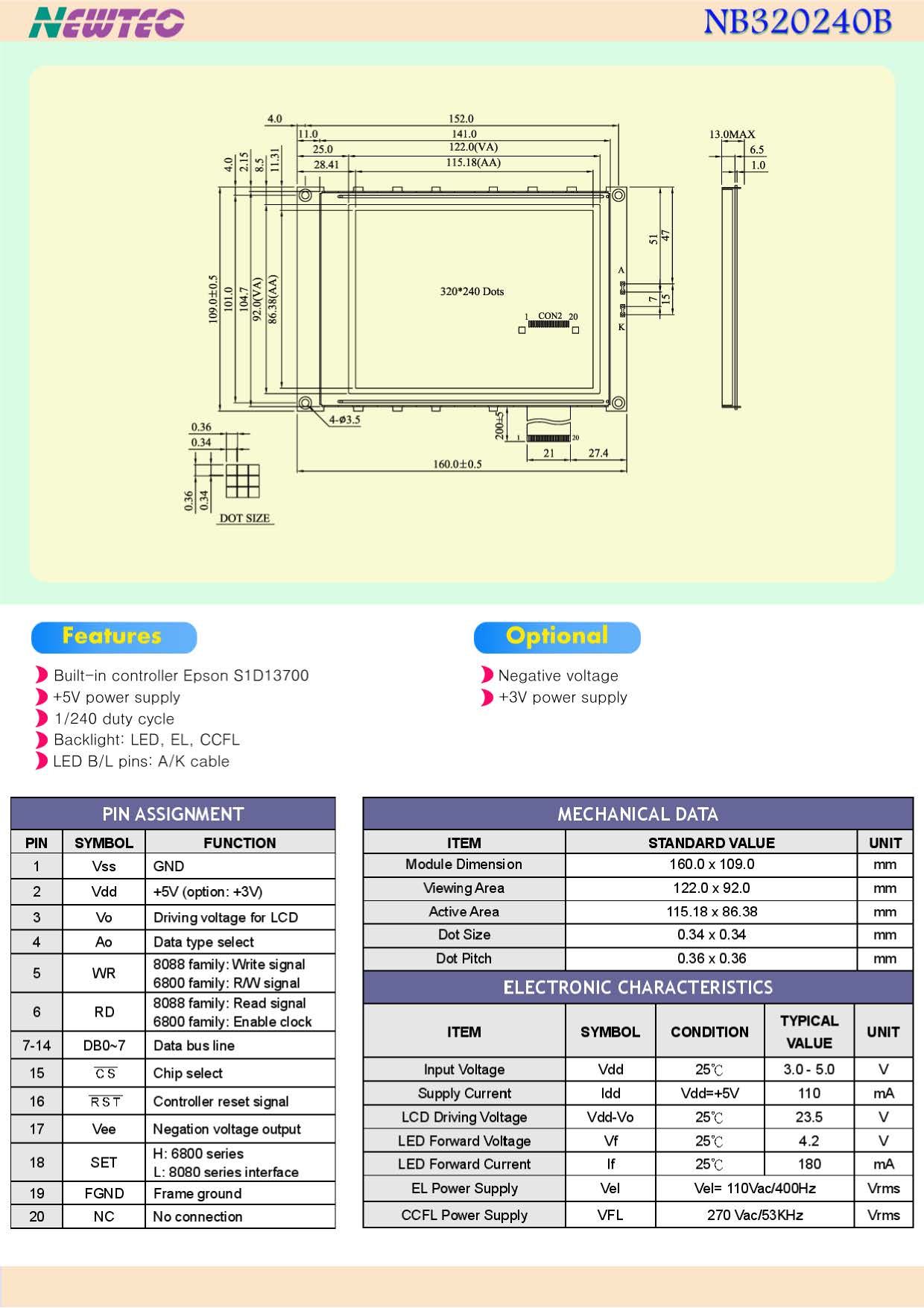

| 320 X 240 | NB320240B | 166.80 X 109.00 | 122.00 X 92.00 | S1D13700 | DUTY1/240 | |
| 320 X 240 | NB320240C | 148.02 X 120.24 | 120.04 X 92.14 | RA8835 | DUTY1/240 | |

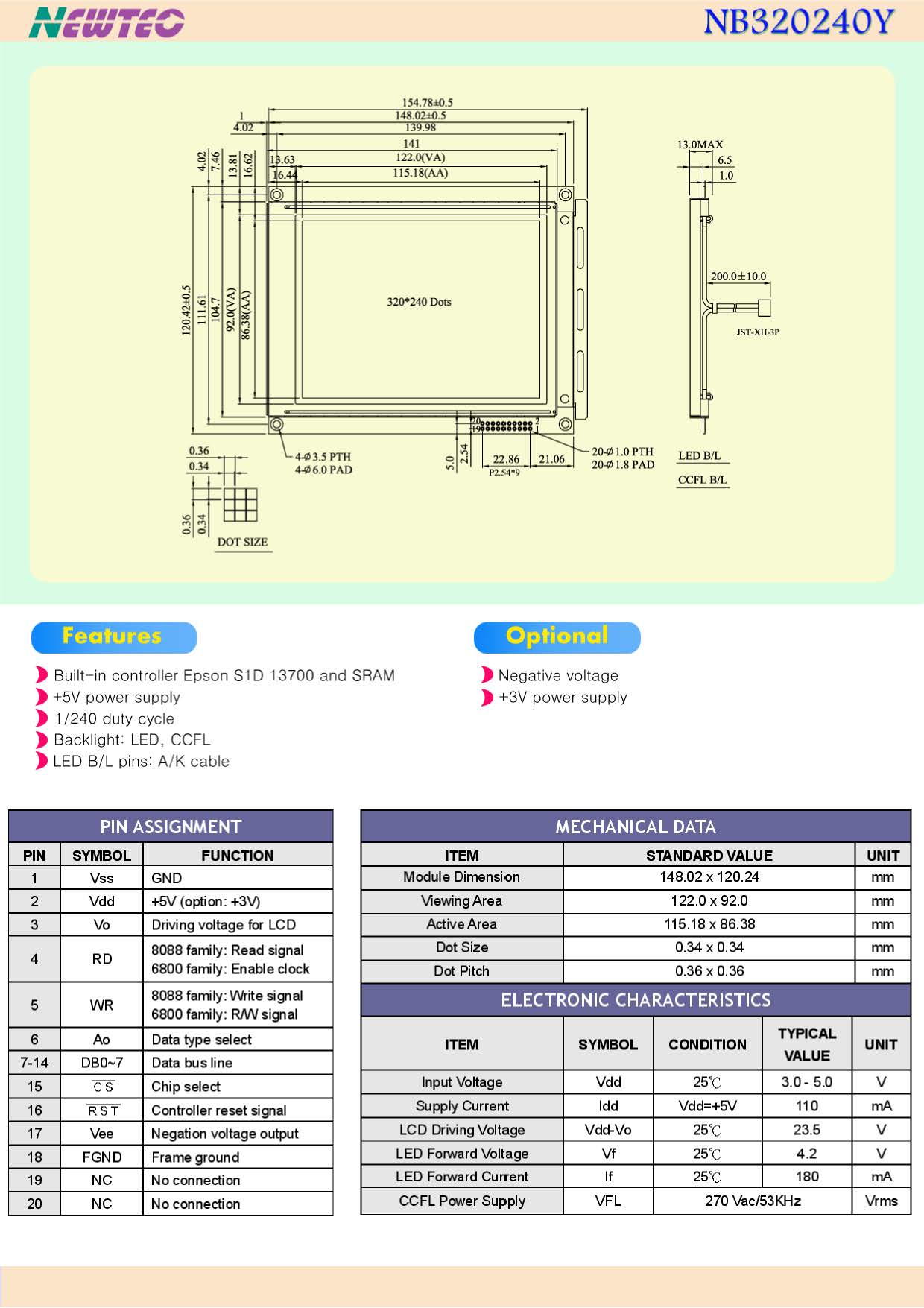

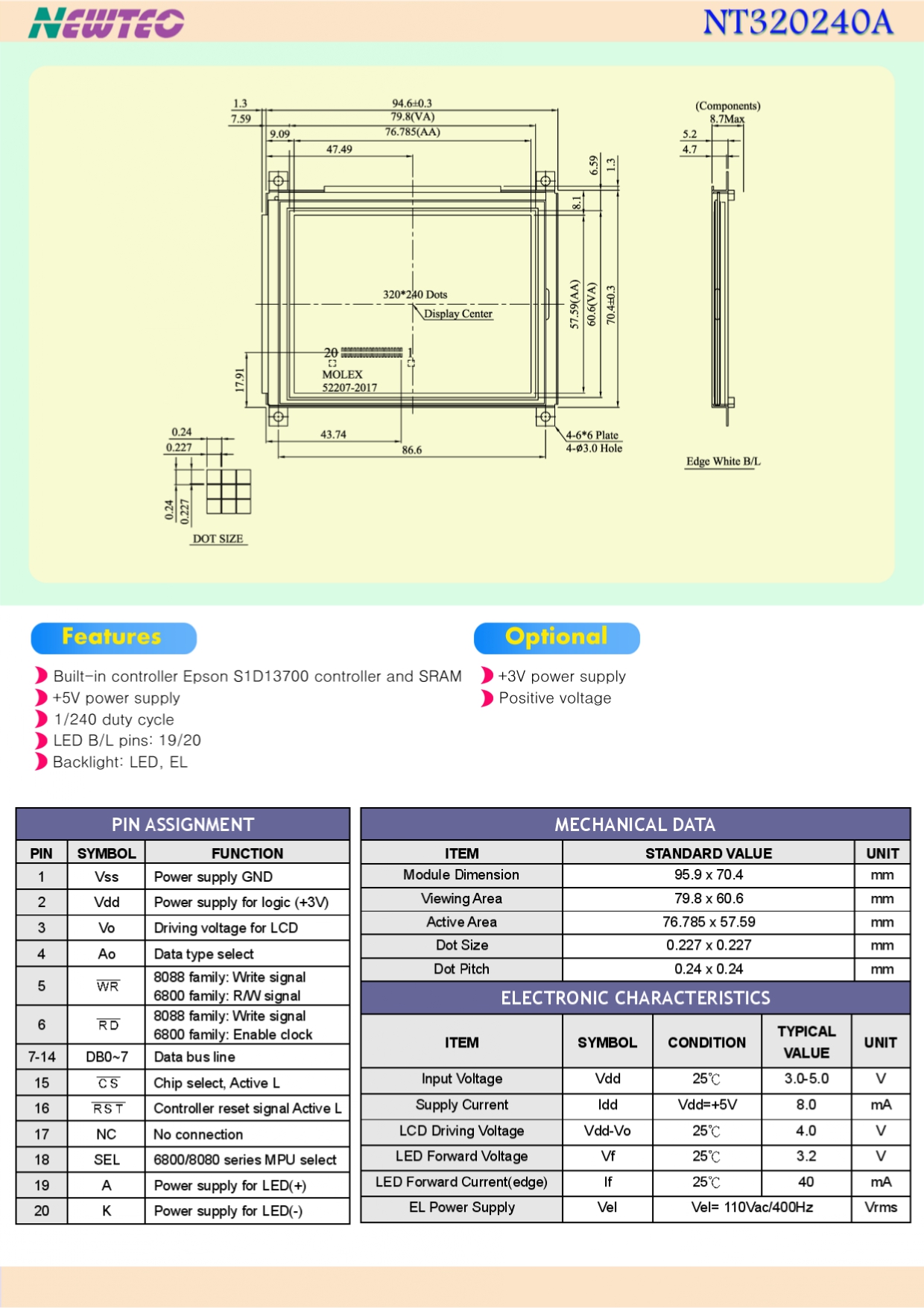

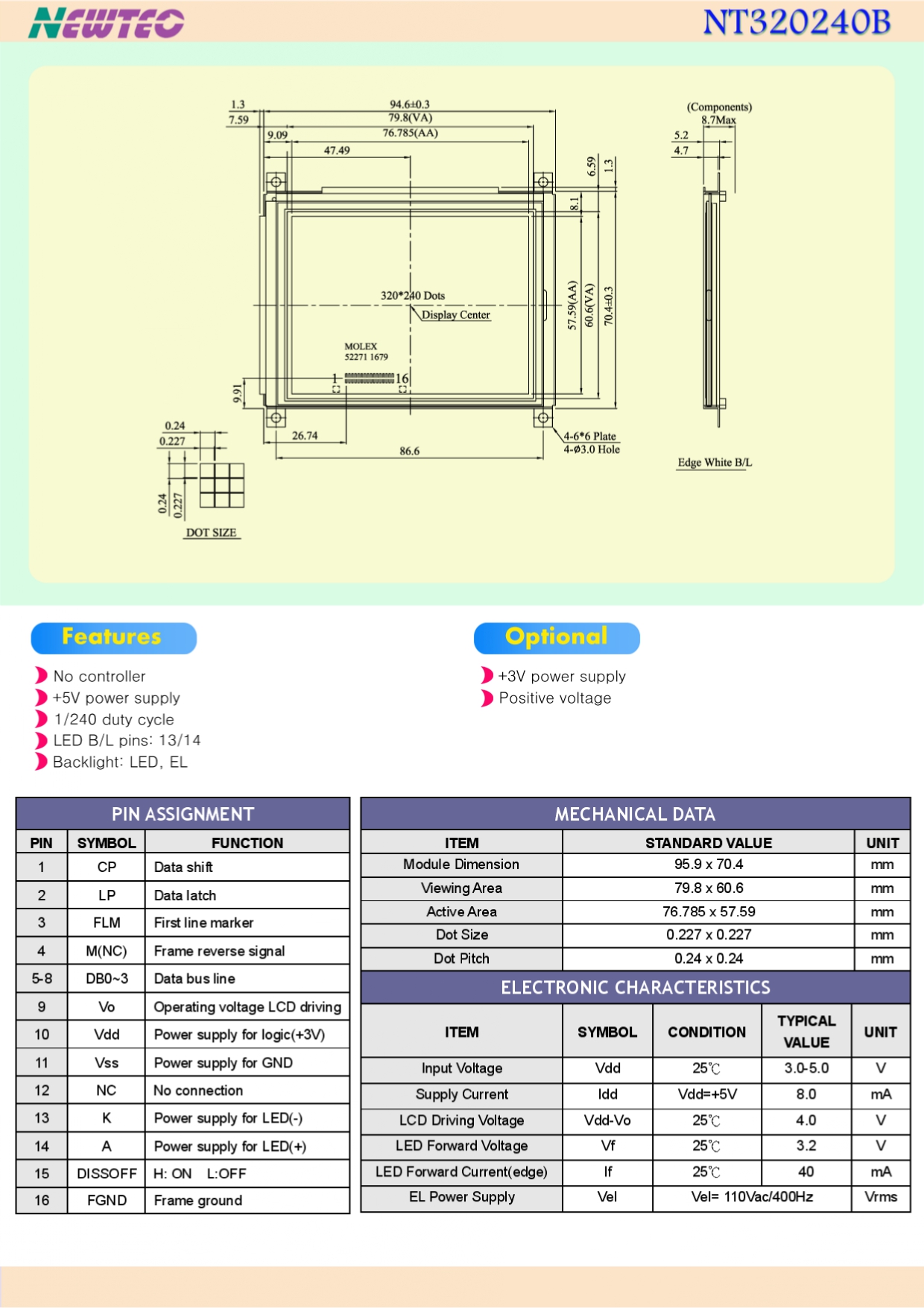

| 320 X 240 | NB320240Y | 148.02 X 120.24 | 120.04 X 92.14 | S1D13700 | DUTY1/240 | |
| 320 X 240 | NB320240Z | 166.80 X 109.00 | 122.00 X 92.00 | RA8835 | DUTY1/240 | |
| 320 X 240 | NT320240A | 95.90 X 70.40 | 79.80 X 60.60 | S1D13700 | DUTY1/240 | |
| 320 X 240 | NT320240B | 95.90 X 70.40 | 79.80 X 60.60 | NONE | DUTY1/240 | |

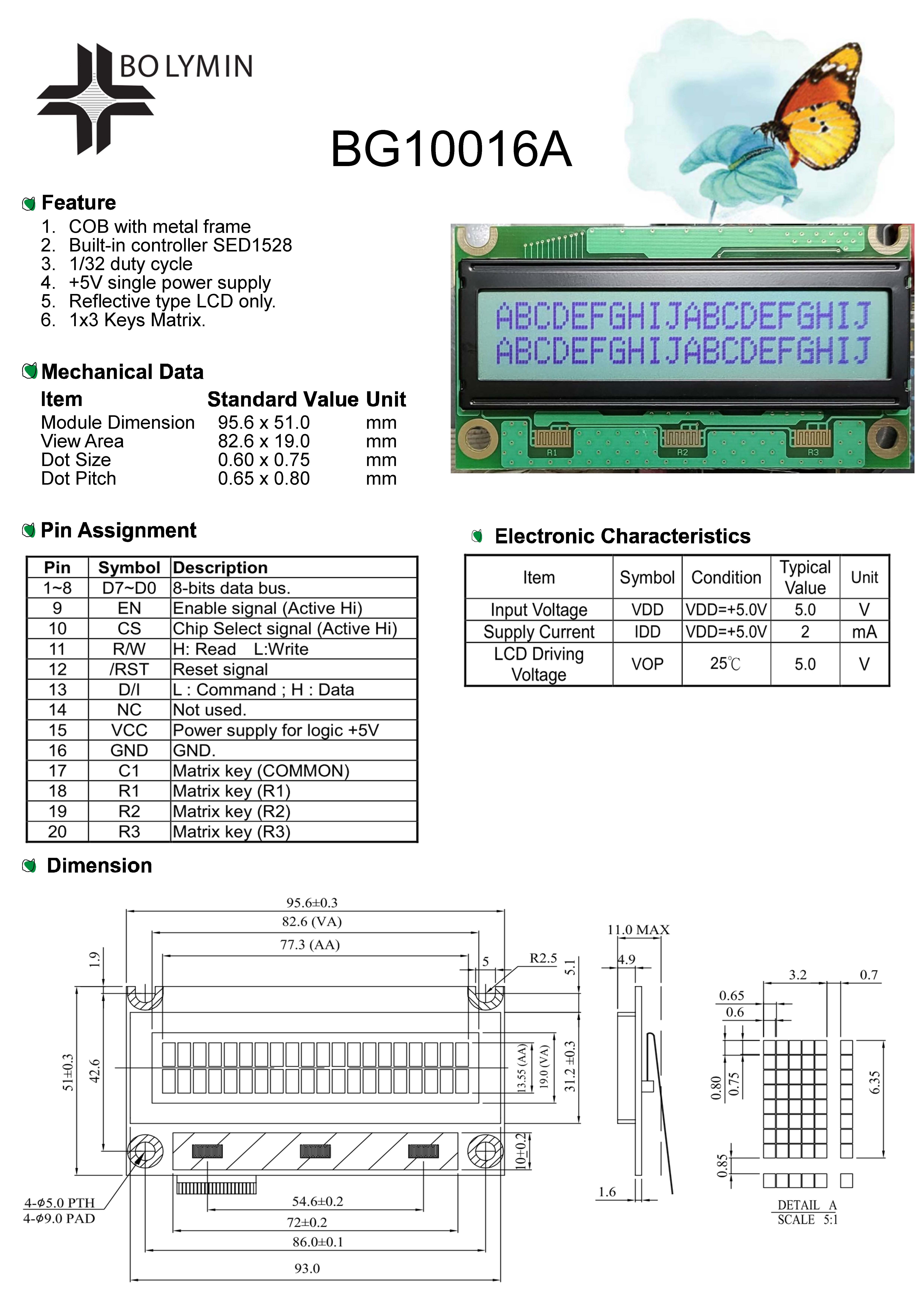

| 100 x 16 | BG10016A | 95.6 x 51.0 | 82.6 x 19 | SED1528 | ||

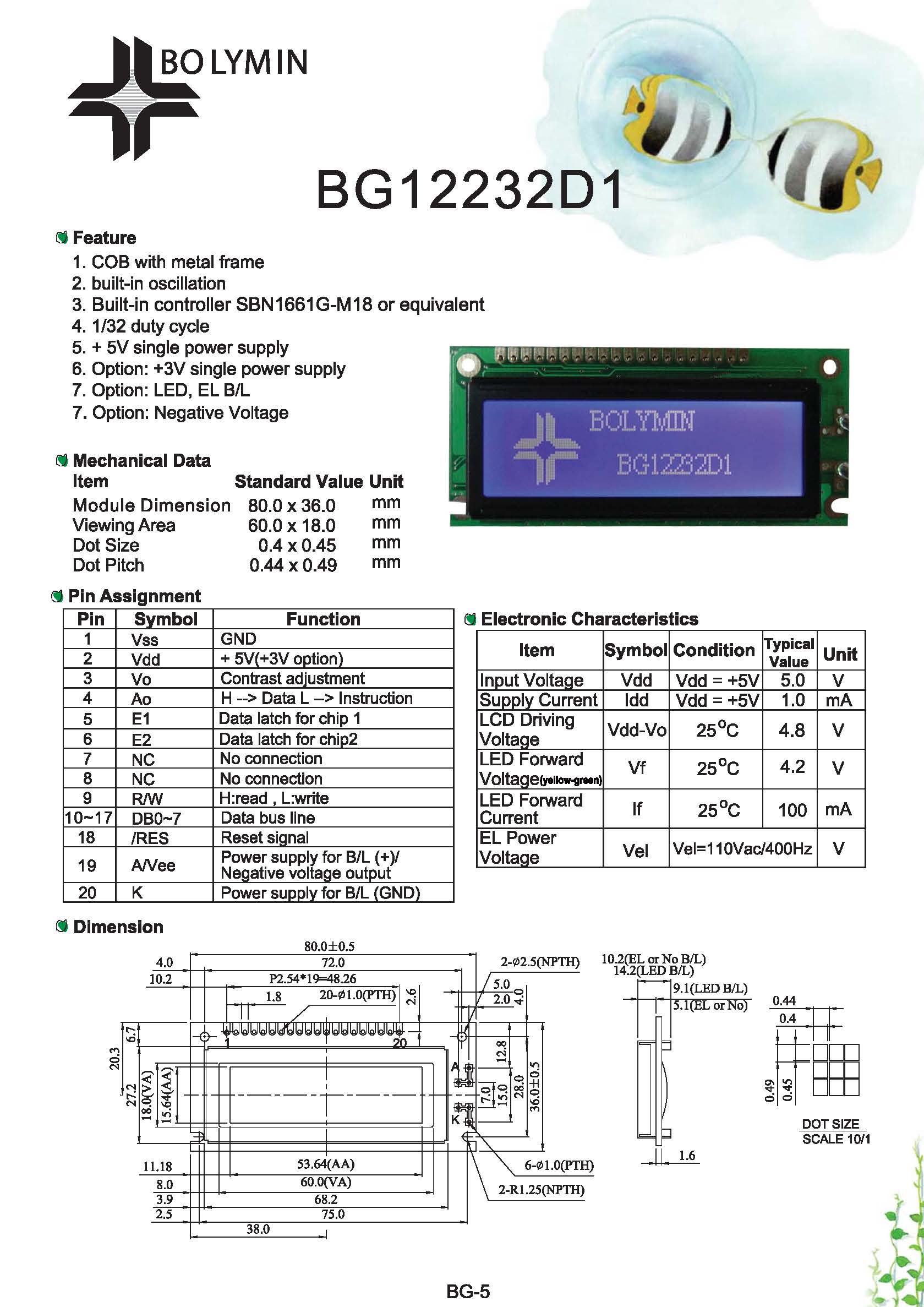

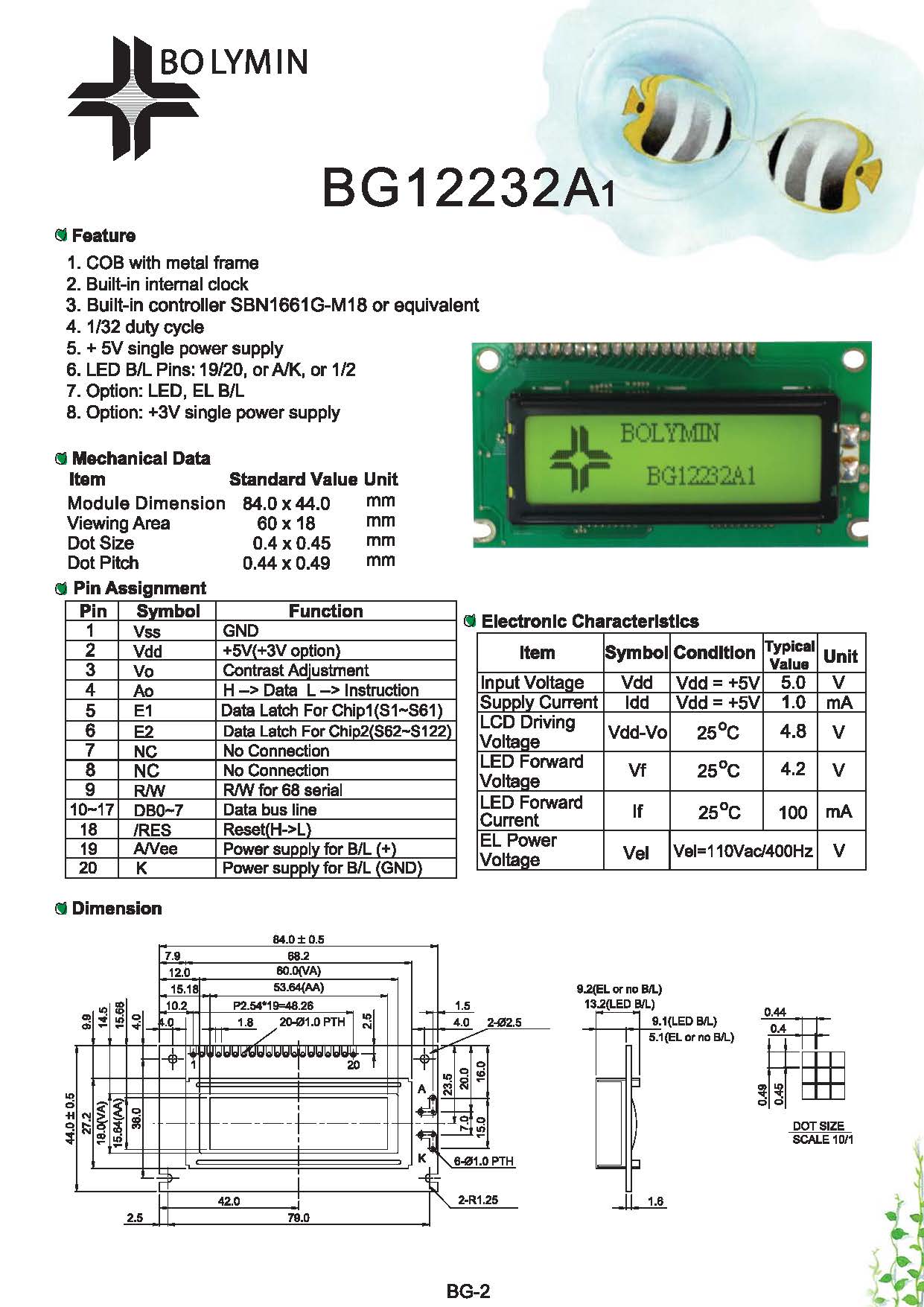

| 122 x 32 | BG12232A1 | 84.0 x 44.0 | 60.0 x 18.0 | SBN1661G-M18 or equivalent | ||
| 122 x 32 | BG12232D1 | 80.0 x 36.0 | 60.0 x 18.0 | SBN1661G-M18 or equivalent | ||

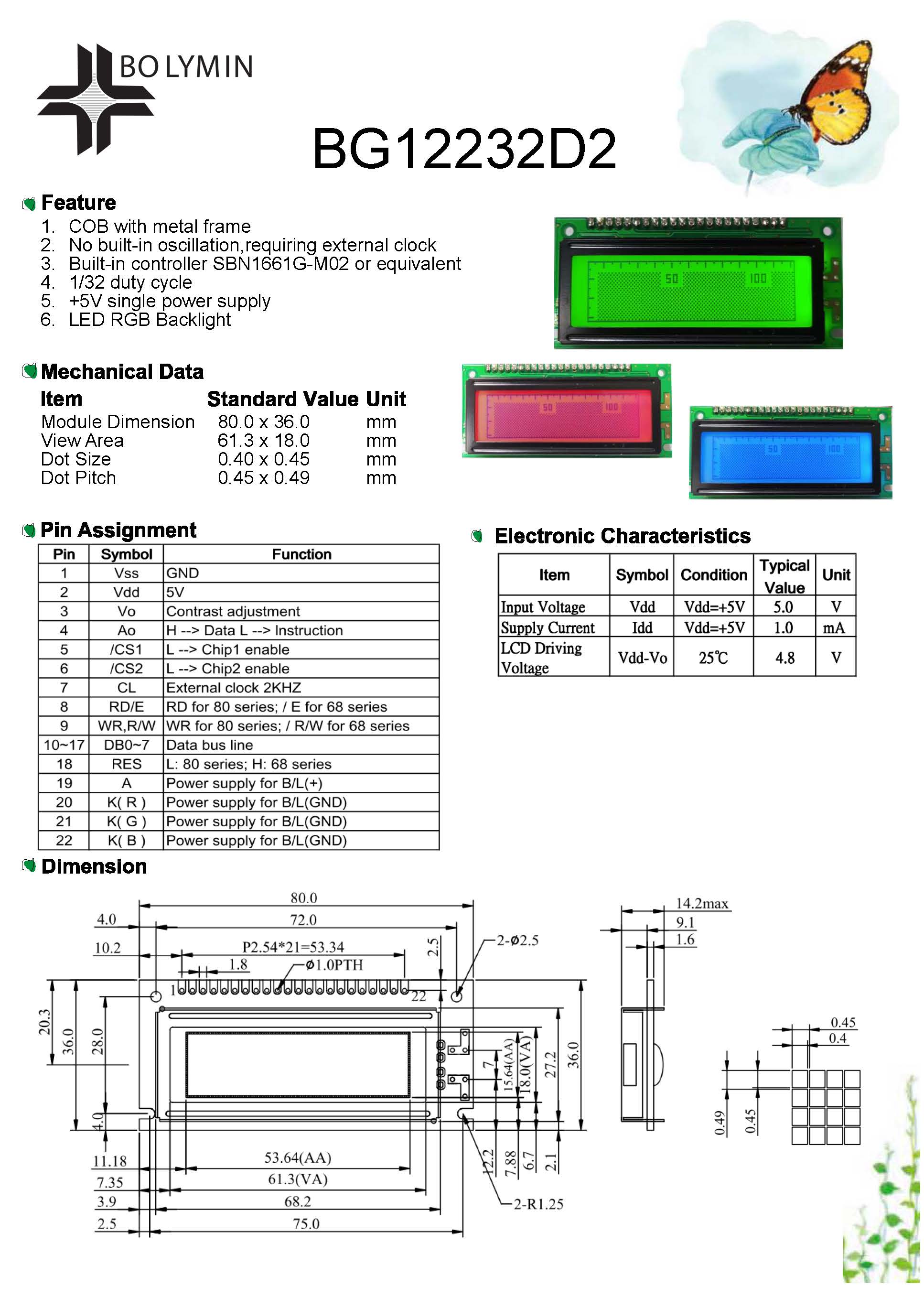

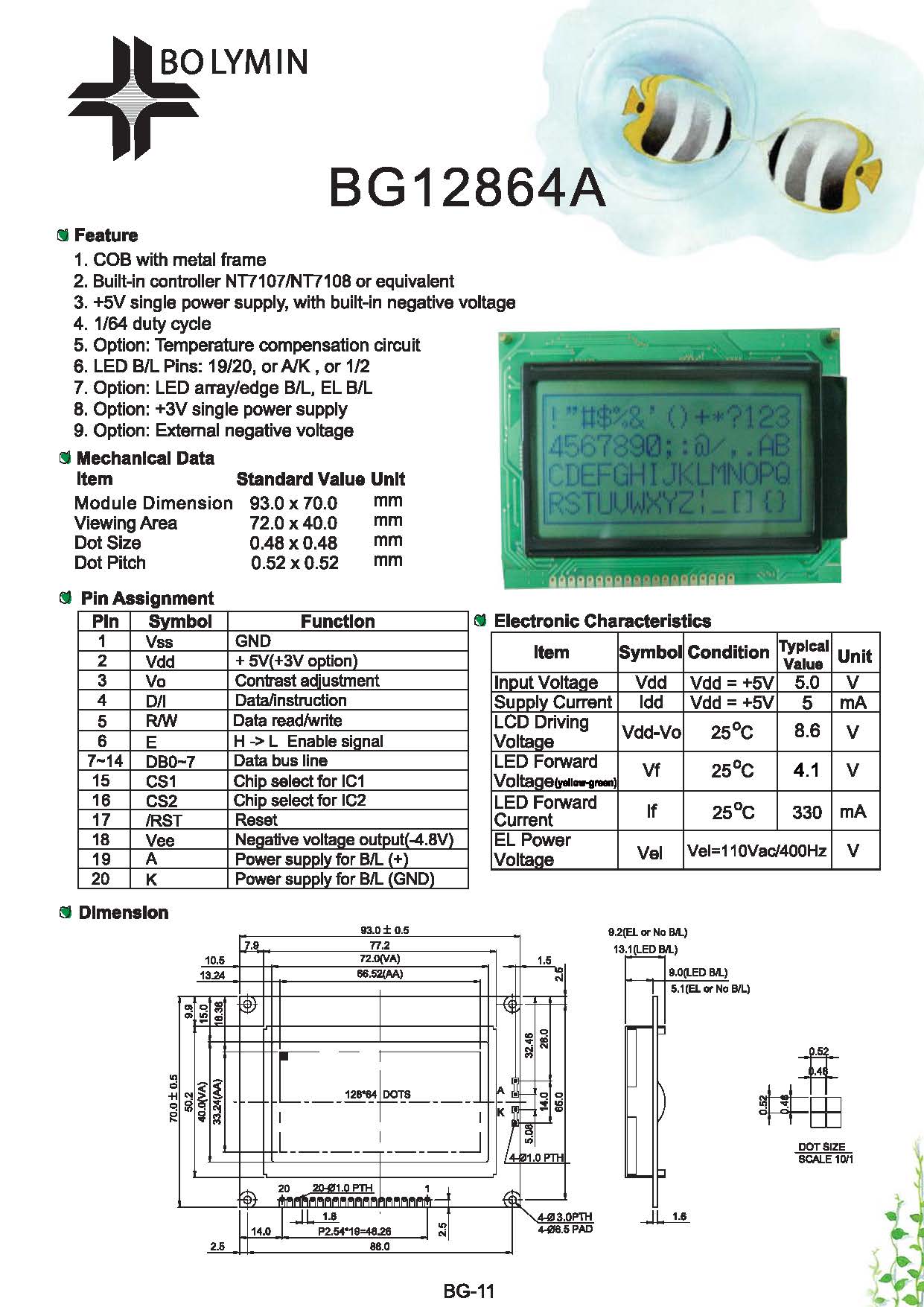

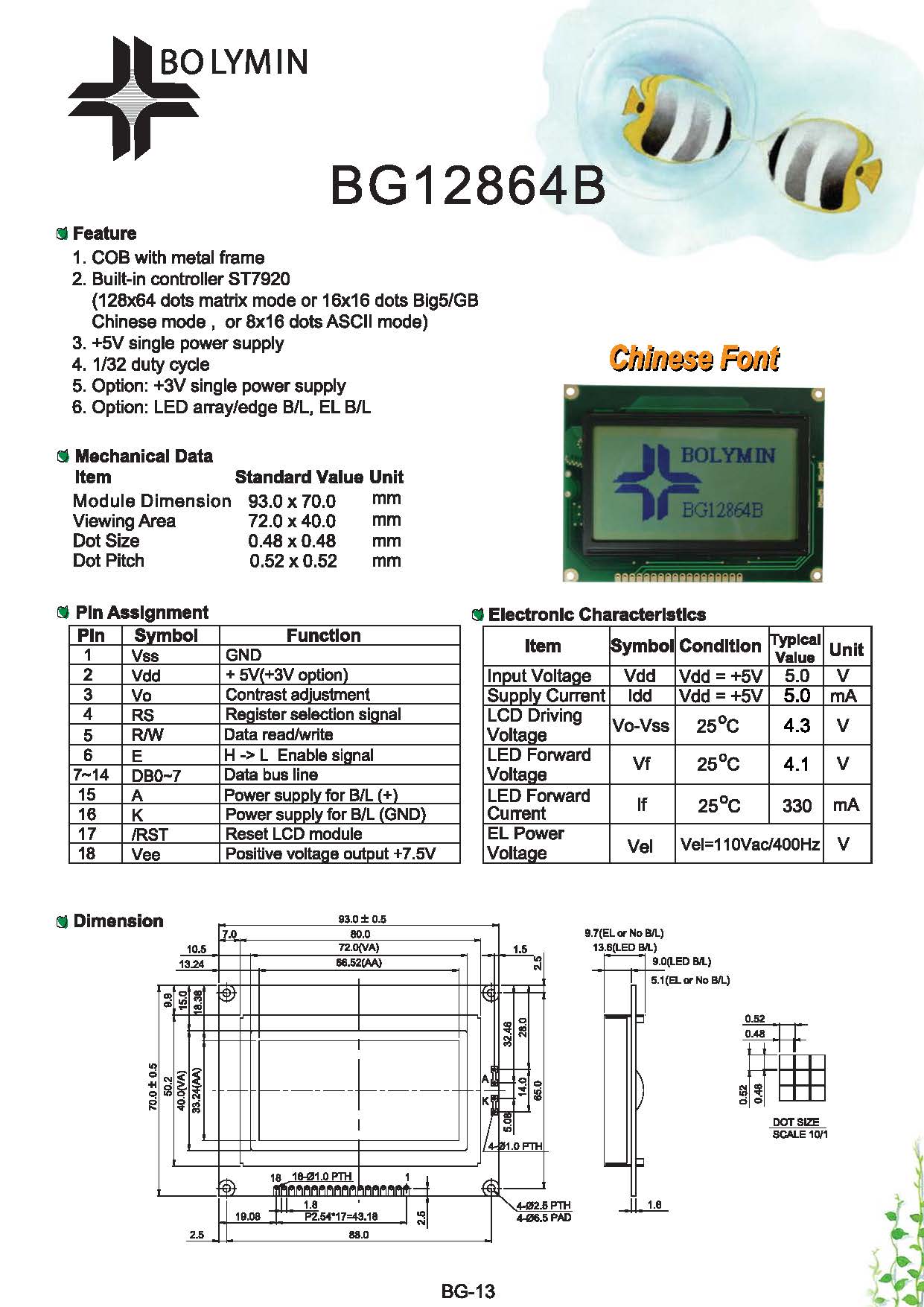

| 122 x 32 | BG12232D2 | 80.0 x 36.0 | 61.3 x 18.0 | SBN1661G-M18 or equivalent | ||
| 128 x 64 | BG12864A | 93.0 x 70.0 | 72.0 x 40.2 | NT7107/NT7108 or equivalent | ||
| 128 x 64 | BG12864B | 93.0 x 70.0 | 72.0 x 40.0 | ST7920 | ||

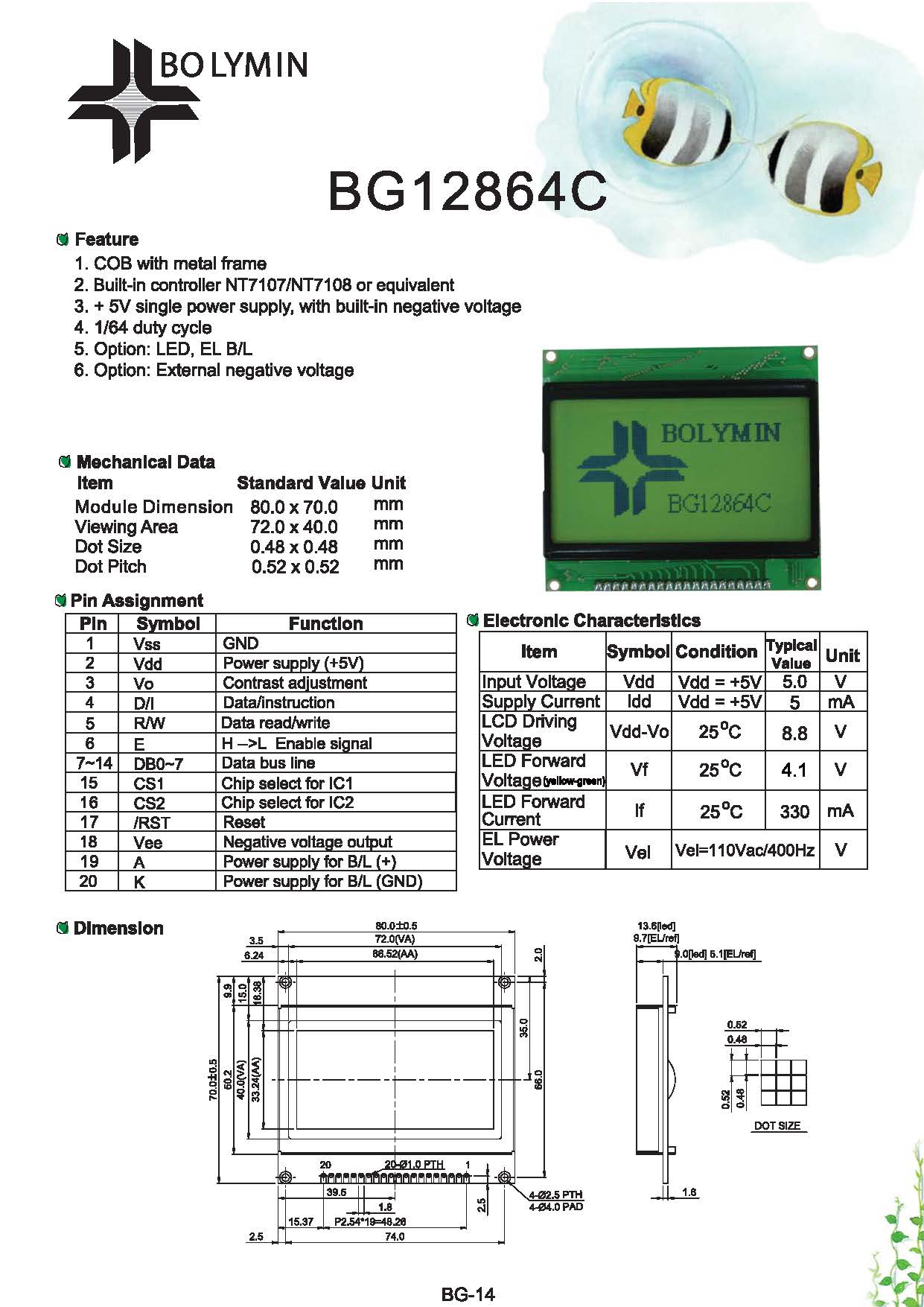

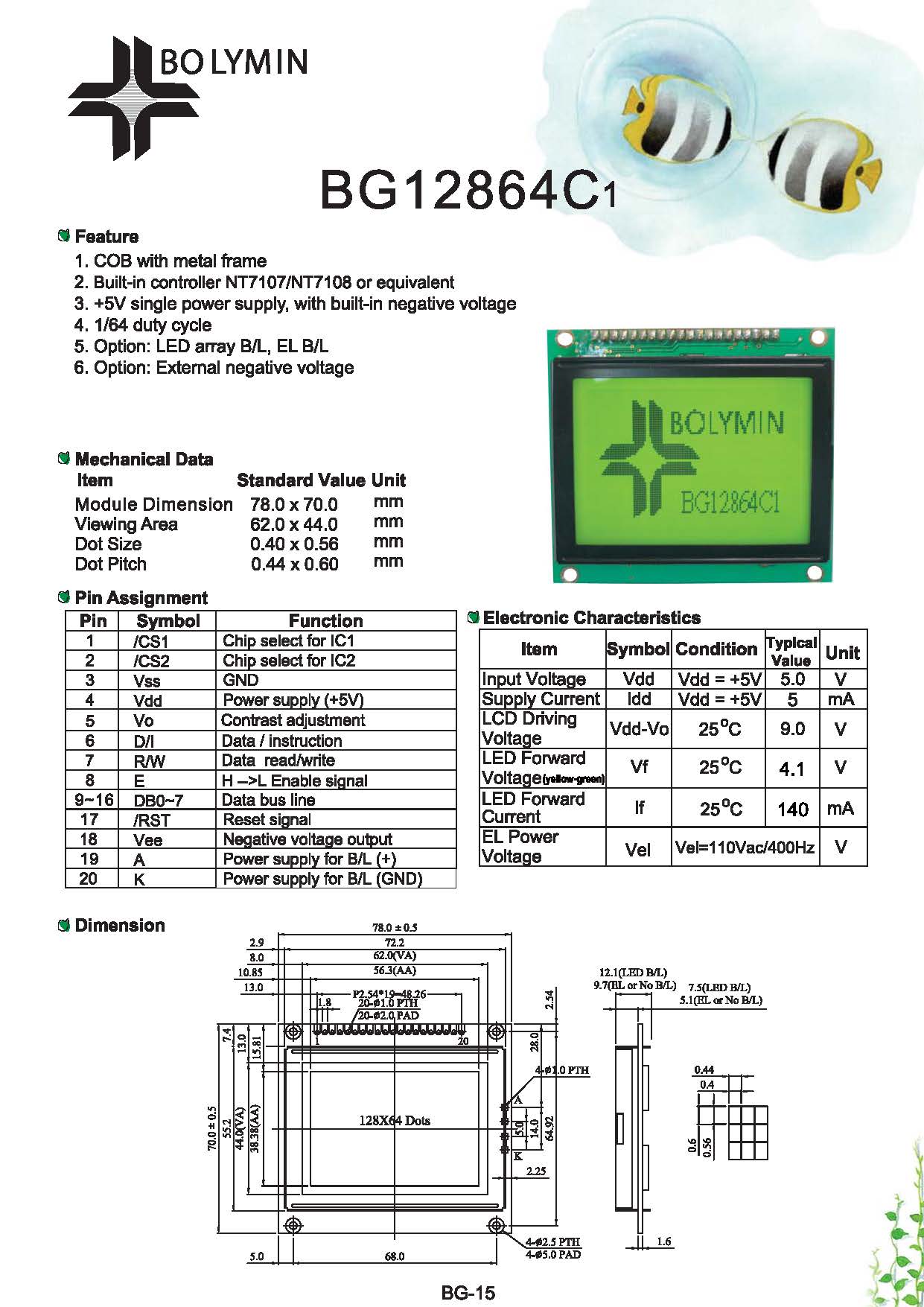

| 128 x 64 | BG12864C | 80.0 x 70.0 | 72.0 x 40.0 | NT7107/NT7108 or equivalent | ||
| 128 x 64 | BG12864C1 | 78.0 x 70.0 | 62.0 x 44.0 | NT7107/NT7108 or equivalent | ||

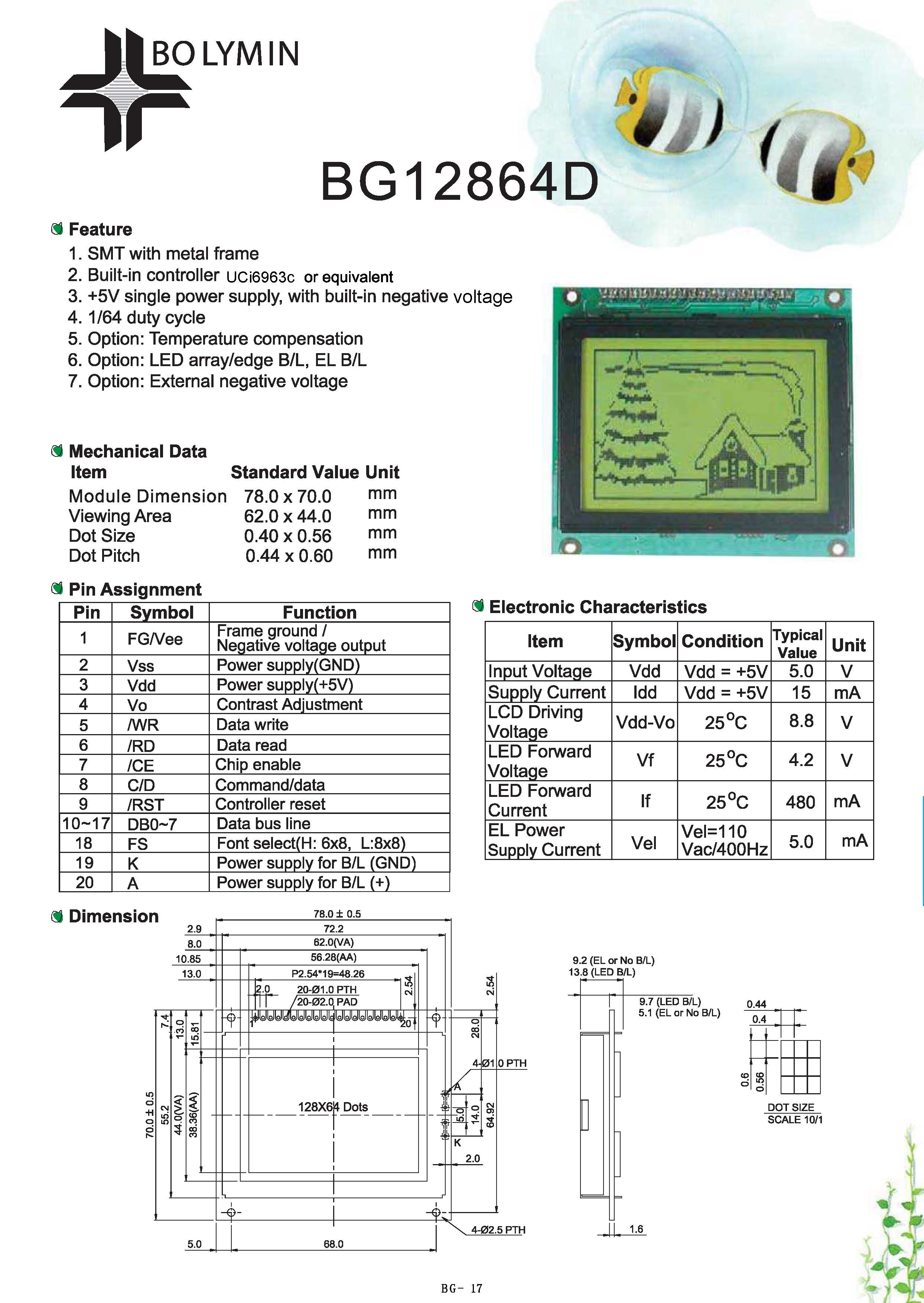

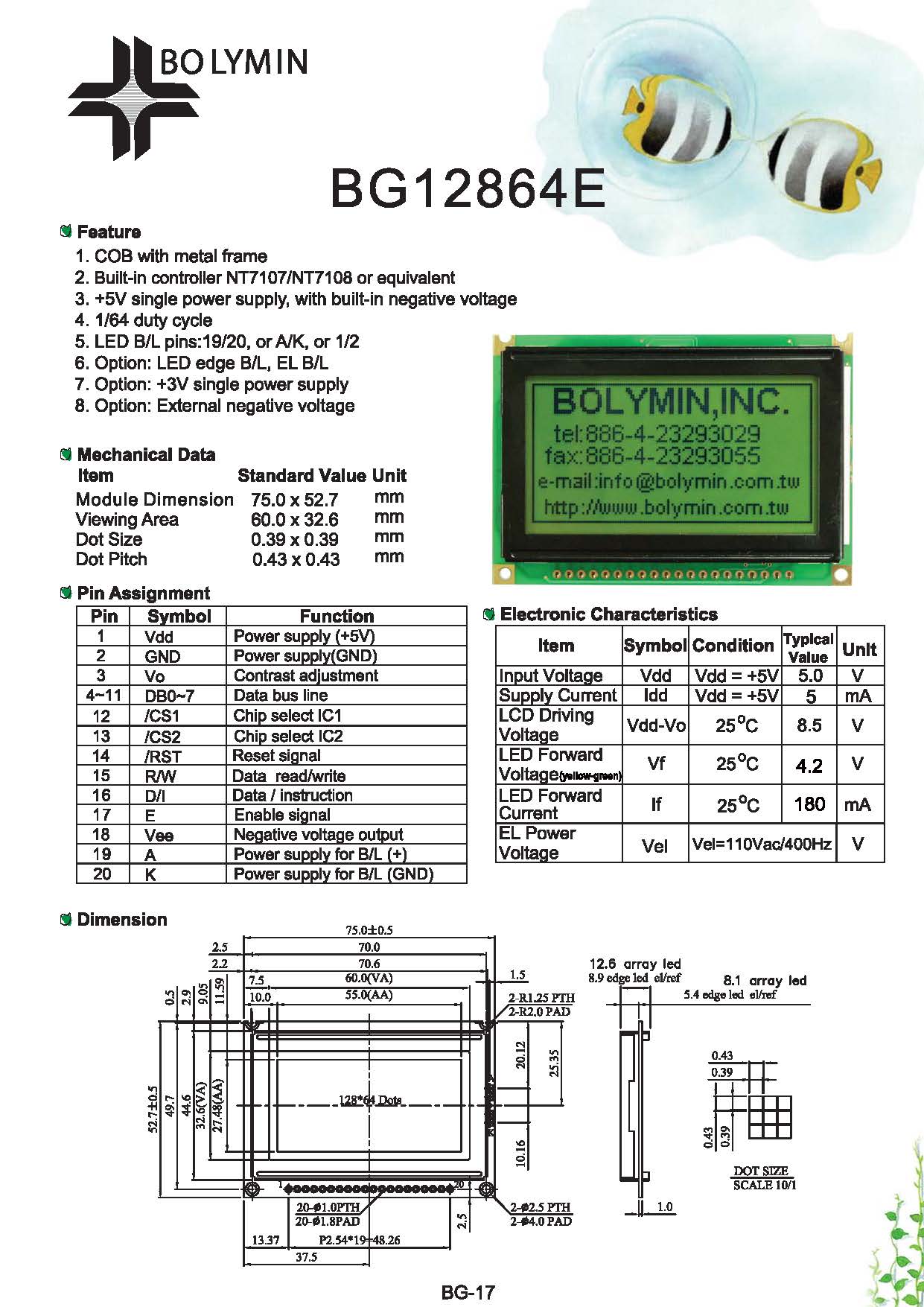

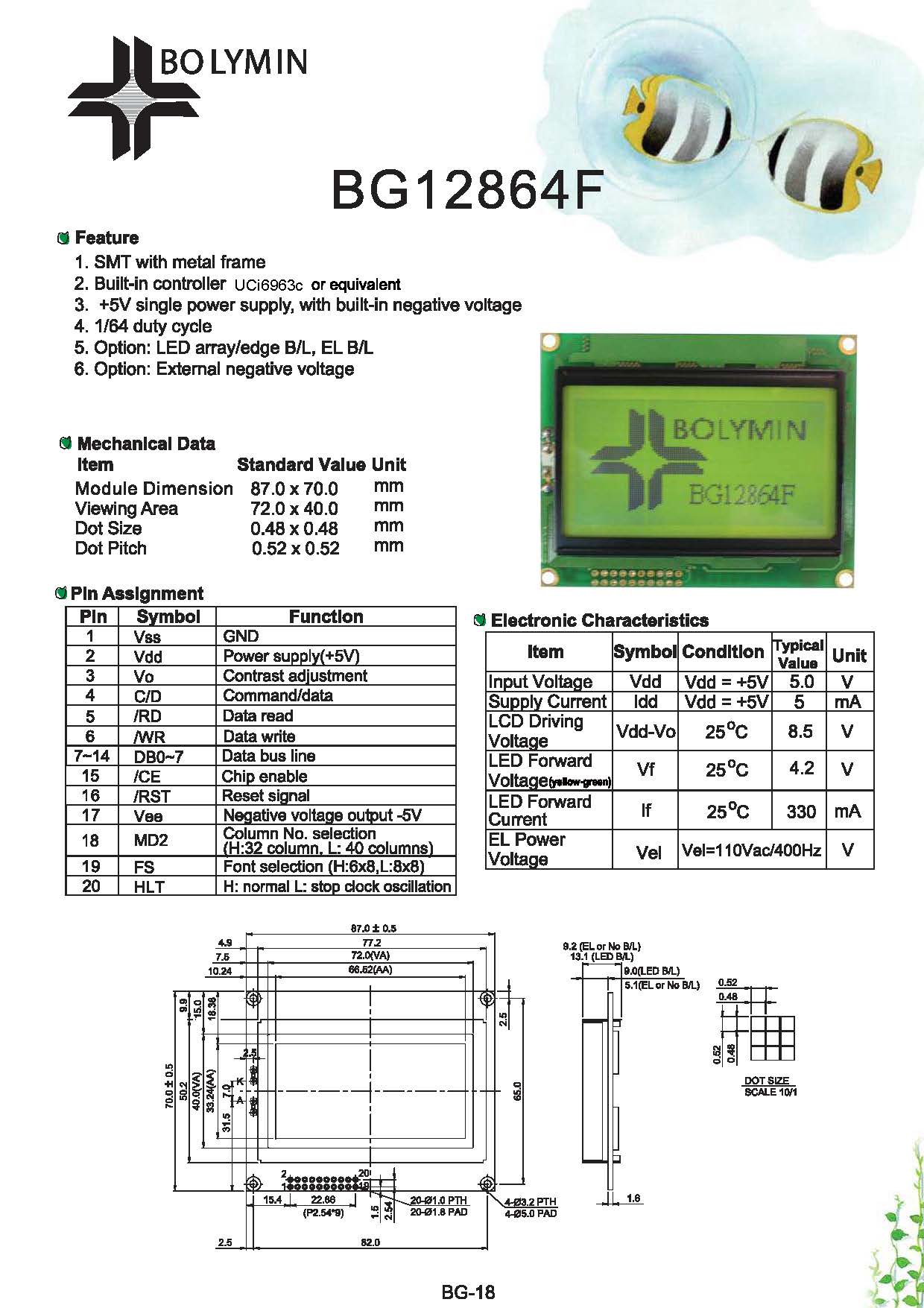

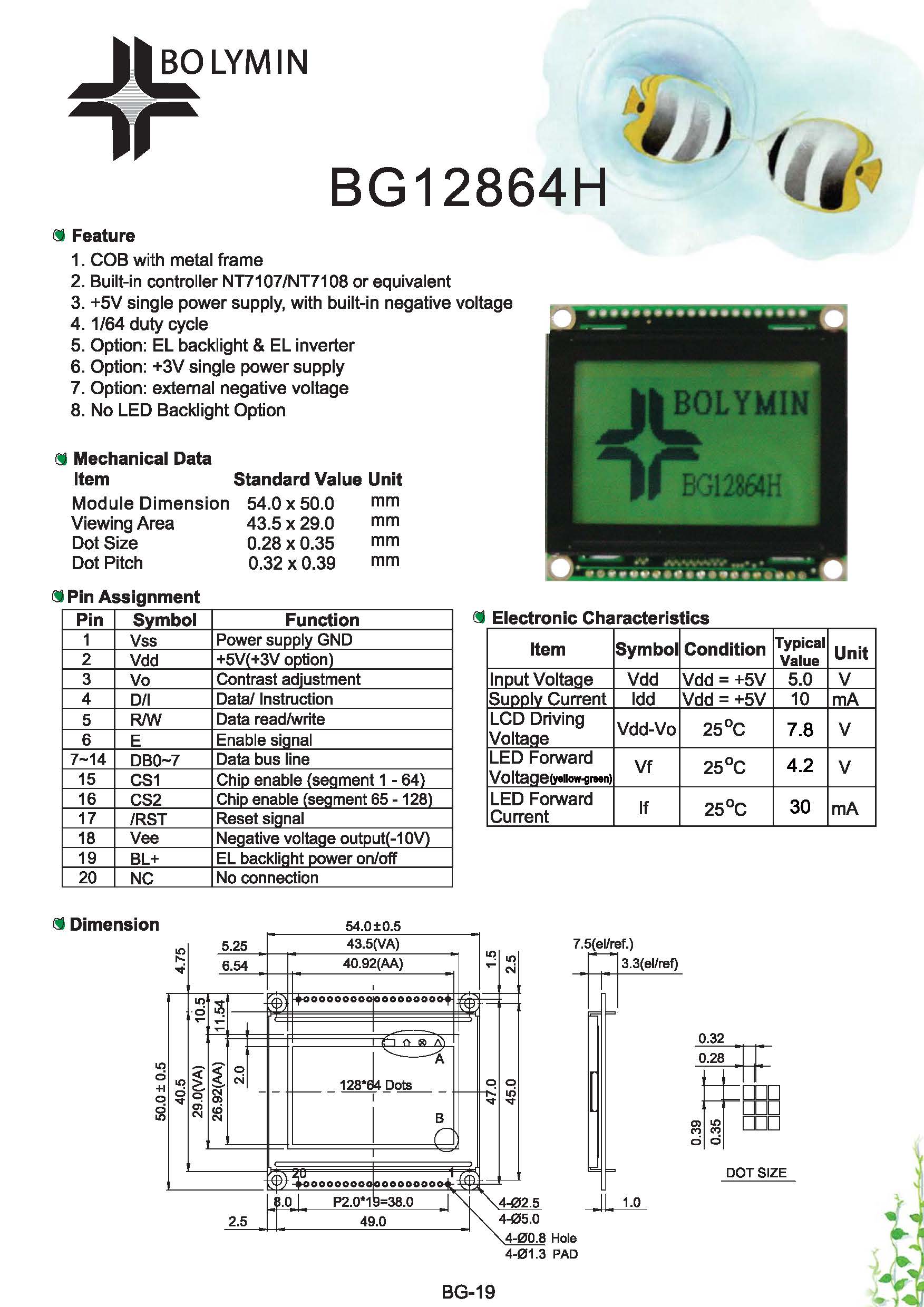

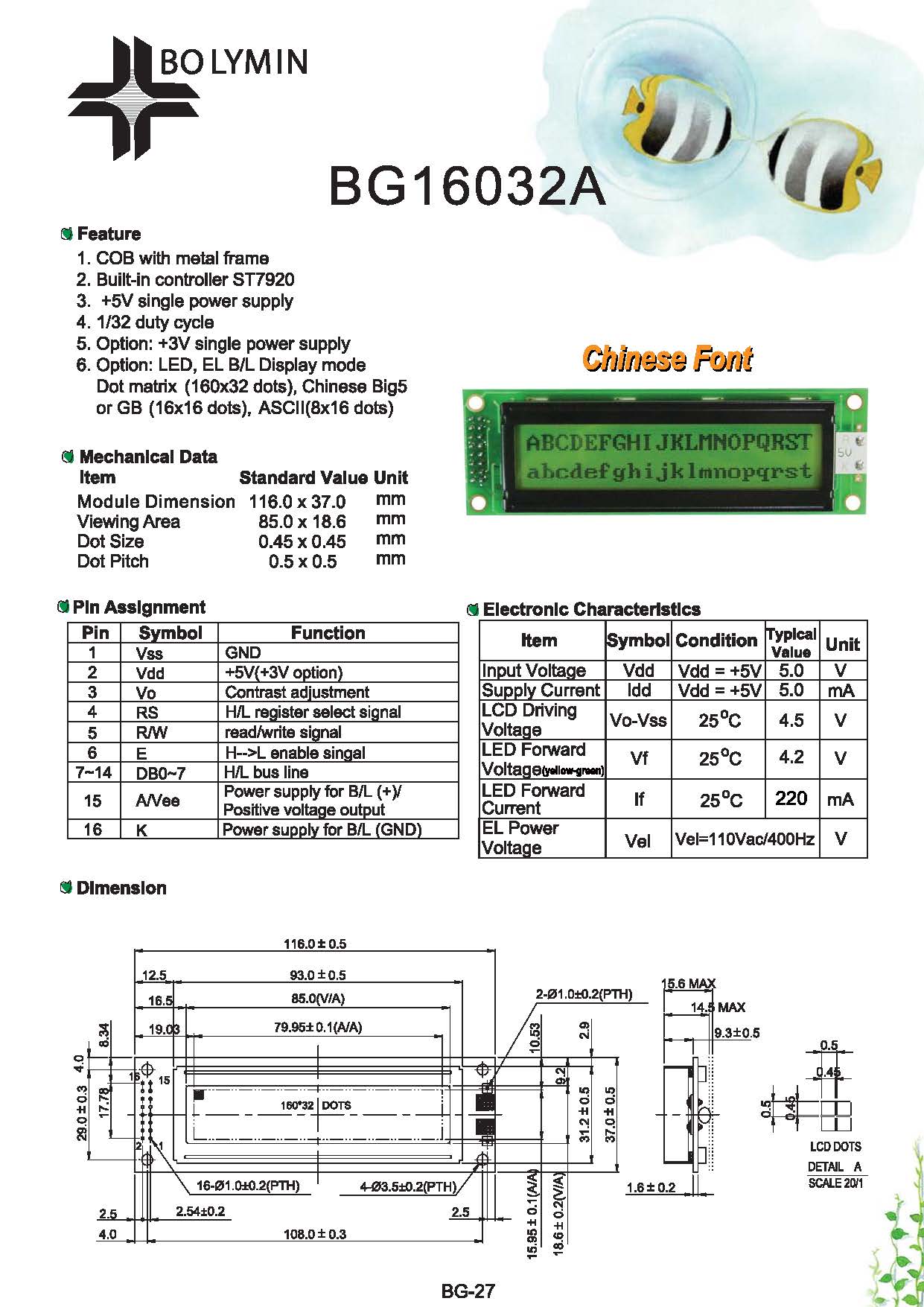

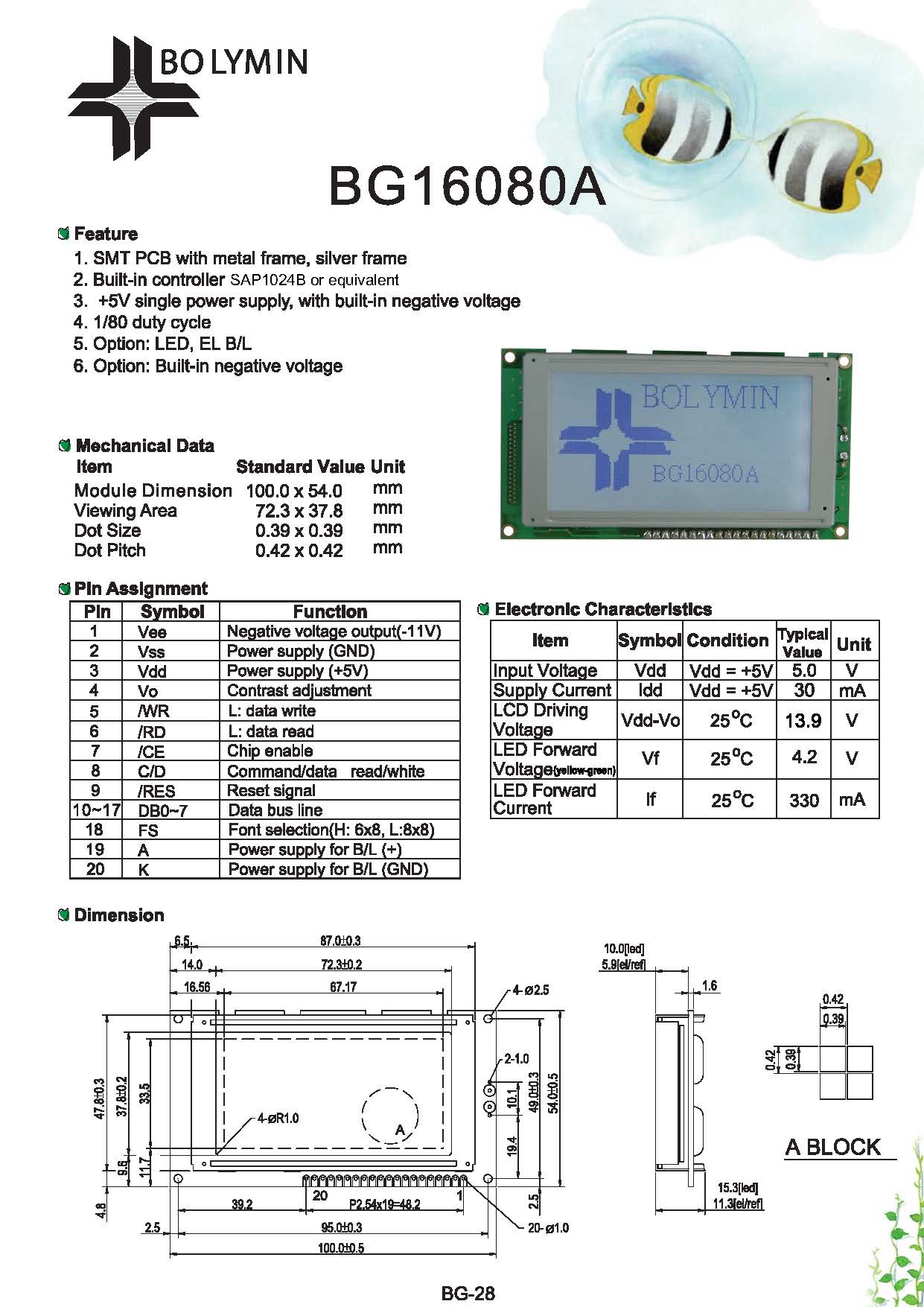

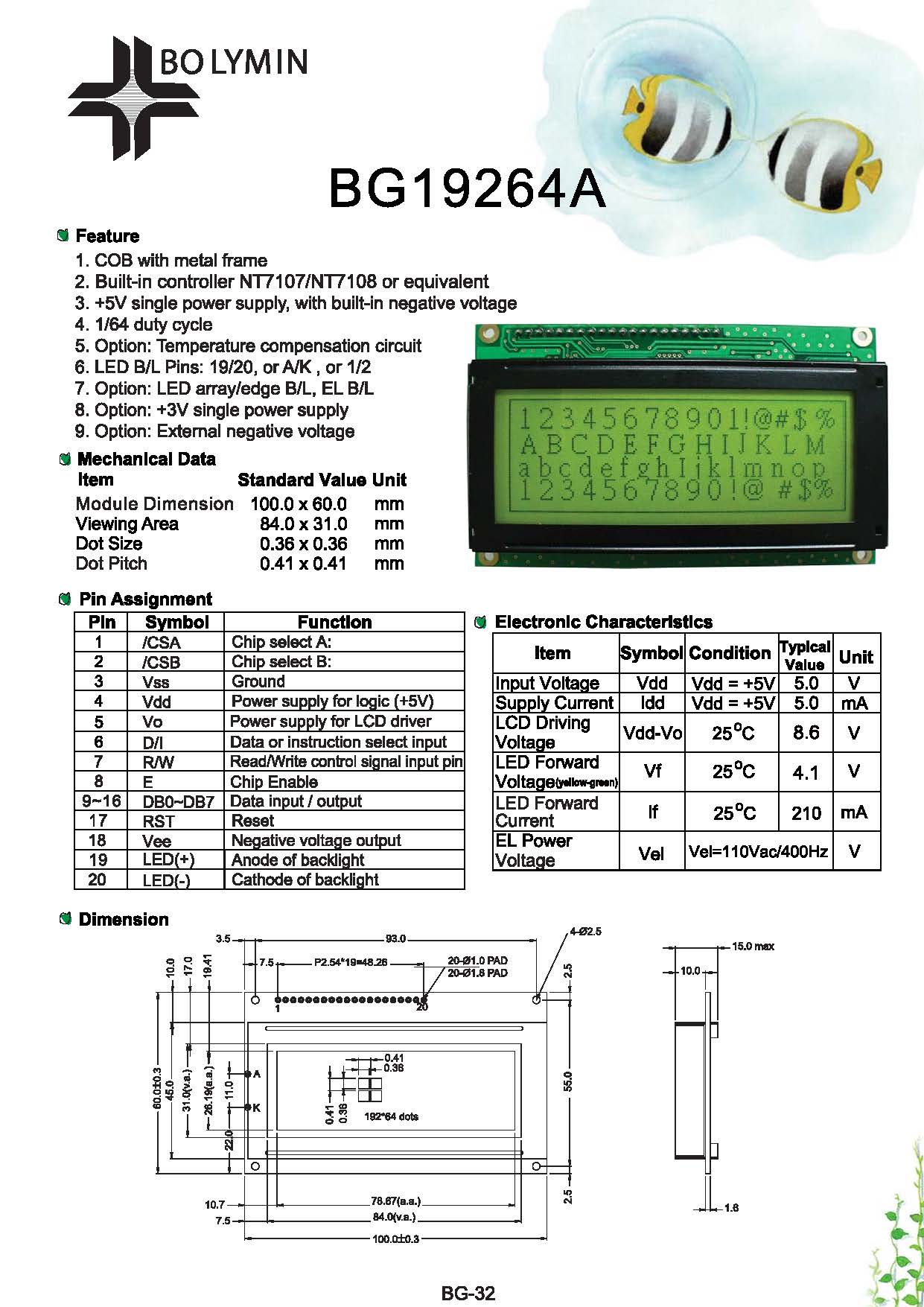

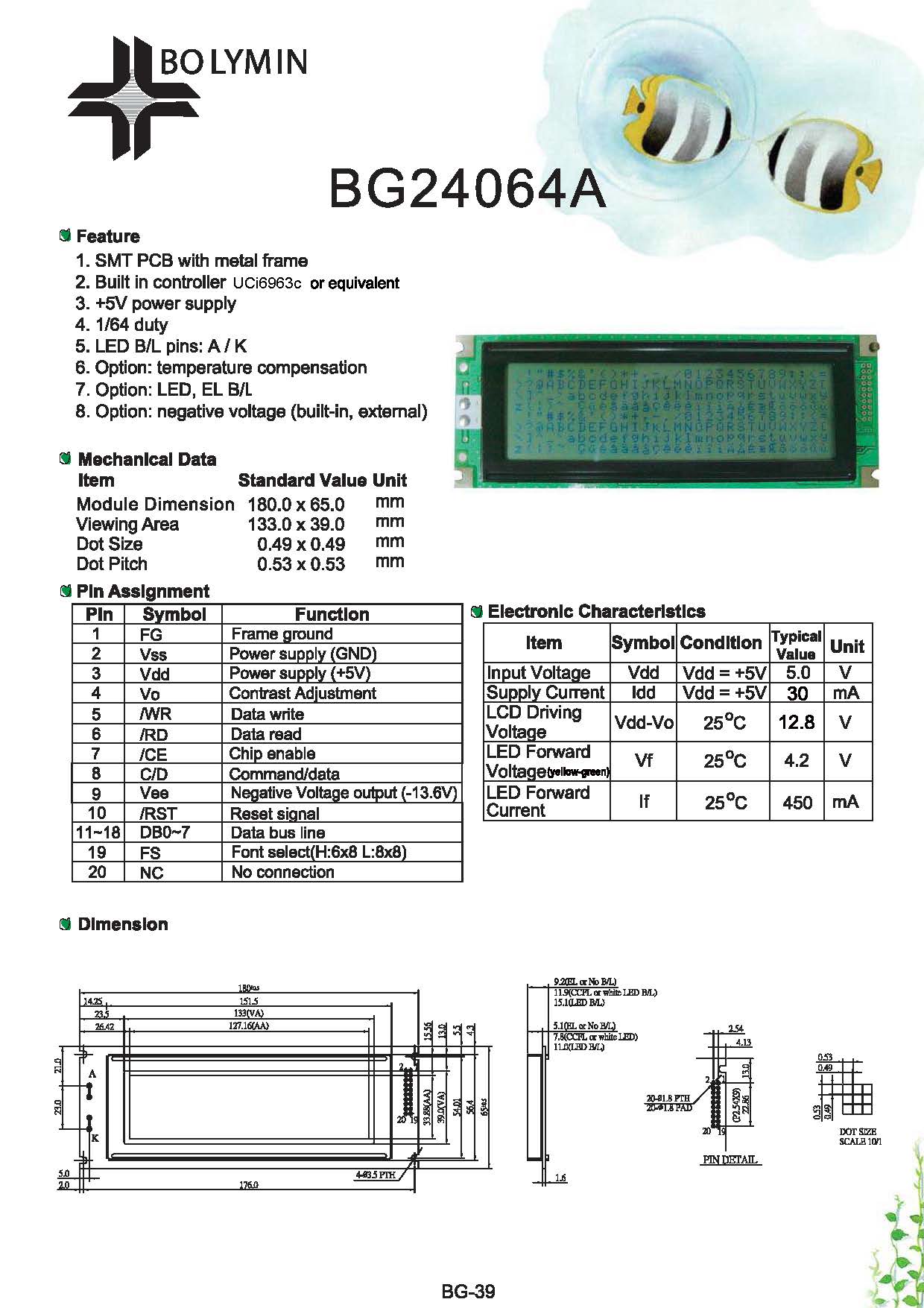

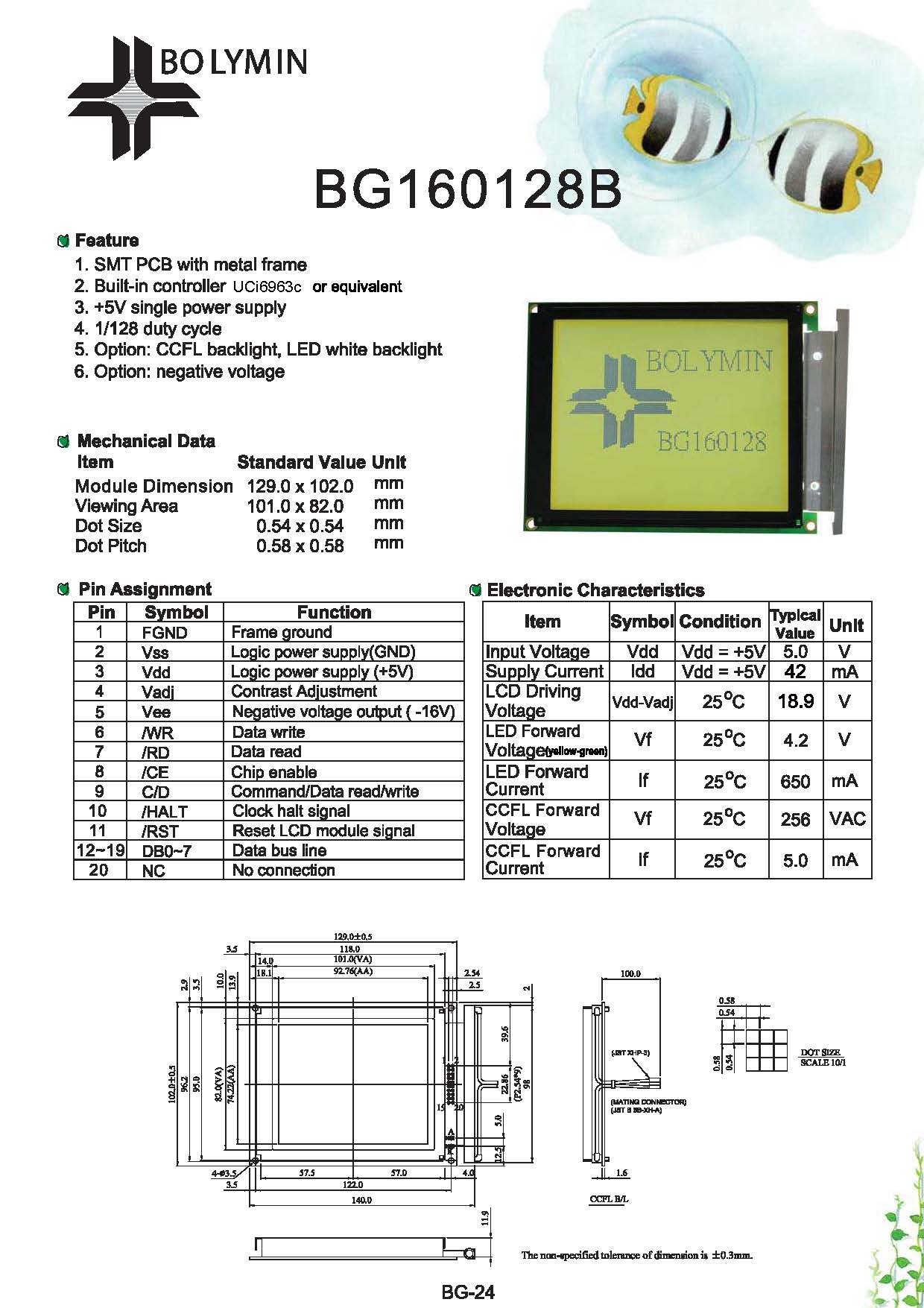

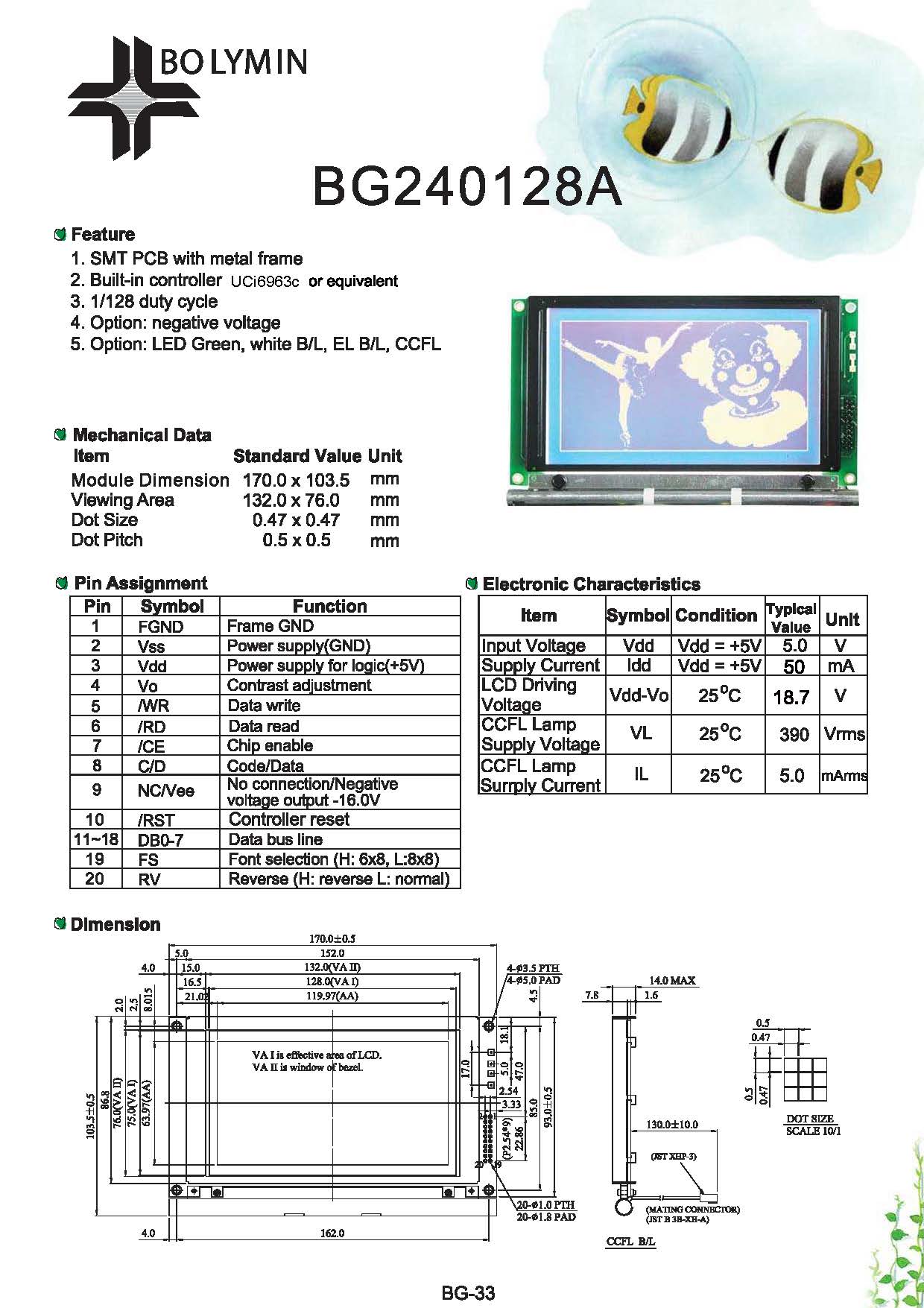

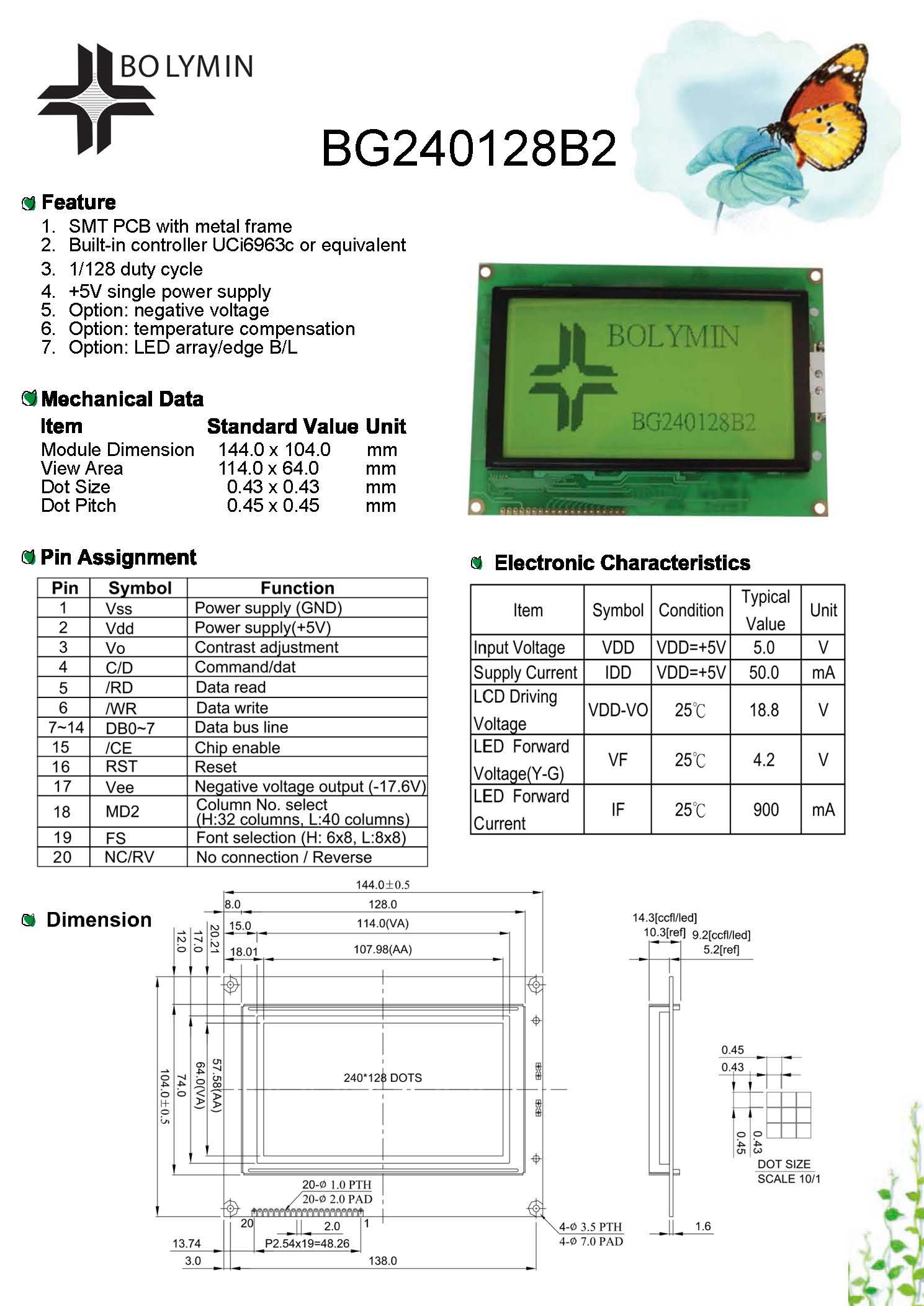

| 128 x 64 | BG12864D | 78.0 x 70.0 | 62.0 x 44.0 | UCI6963C or equivalent | ||
| 128 x 64 | BG12864E | 75.0 x 52.7 | 60.0 x 32.6 | NT7107/NT7108 or equivalent | ||
| 128 x 64 | BG12864F | 87.0 x 70.0 | 72.0 x 40.0 | UCI6963C or equivalent | ||
| 128 x 64 | BG12864H | 54.0 x 50.0 | 43.5 x 29.0 | NT7107/NT7108 or equivalent | ||
| 144 x 32 | BG14432A | 84.0 x 44.0 | 66 x 16 | ST7920 | ||
| 160 x 32 | BG16032A | 116.0 x 37.0 | 85.0 x 18.6 | ST7920 | ||
| 160 x 80 | BG16080A | 100.0 x 54.0 | 67.17 x 33.5 | SAP1024B or equivalent | ||
| 192 x 64 | BG19264A | 100.0 x 60.0 | 84.0 x 31.0 | NT7107/NT7108 or equivalent | ||
| 240 x 64 | BG24064A | 180.0 x 65.0 | 133 x 39 | UCI6963C or equivalent | ||
| 160 x128 | BG160128B | 129.0 x 102.0 | 101.0 x 82.0 | UCI6963C or equivalent | ||
| 240 x 128 | BG240128A | 170.0 x 103.5 | 128.0 x 75.0 | UCI6963C or equivalent | ||
| 240 x 128 | BG240128B2 | 144.0 x 104.0 | 114.0 x 64.0 | UCI6963C or equivalent | ||

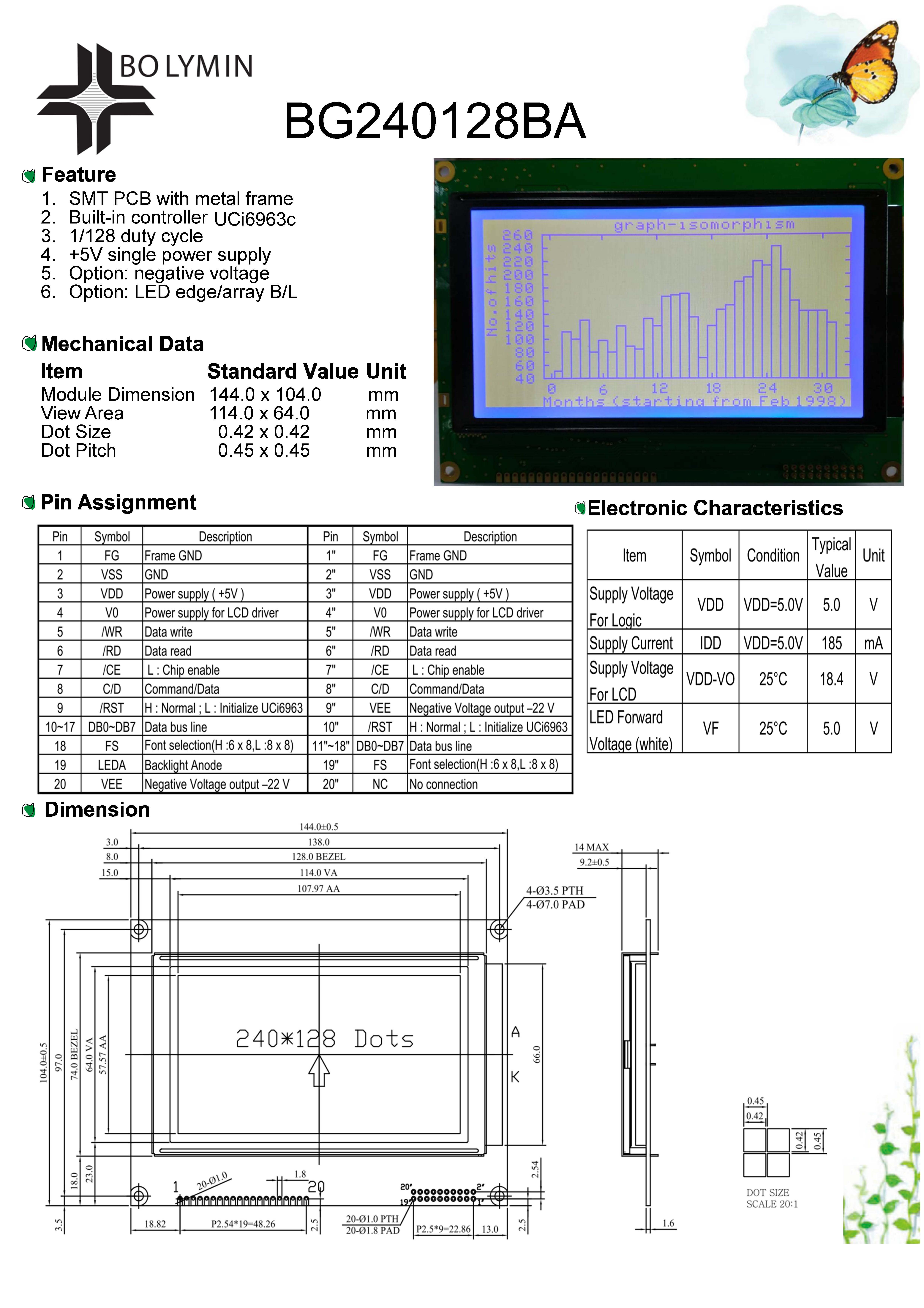

| 240 x 128 | BG240128BA | 144.0 x 104.0 | 114.0 x 64.0 | UCI6963C | ||

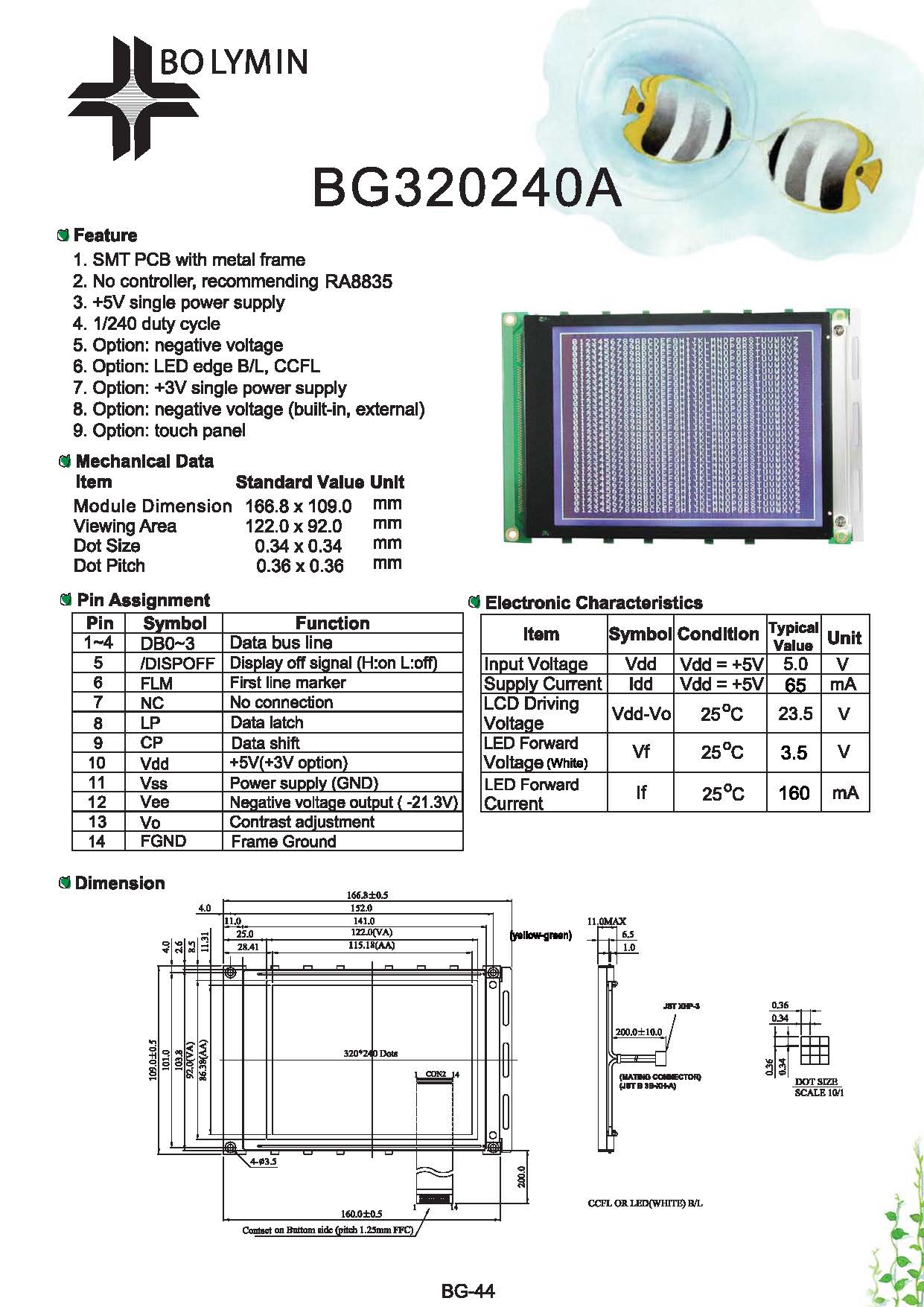

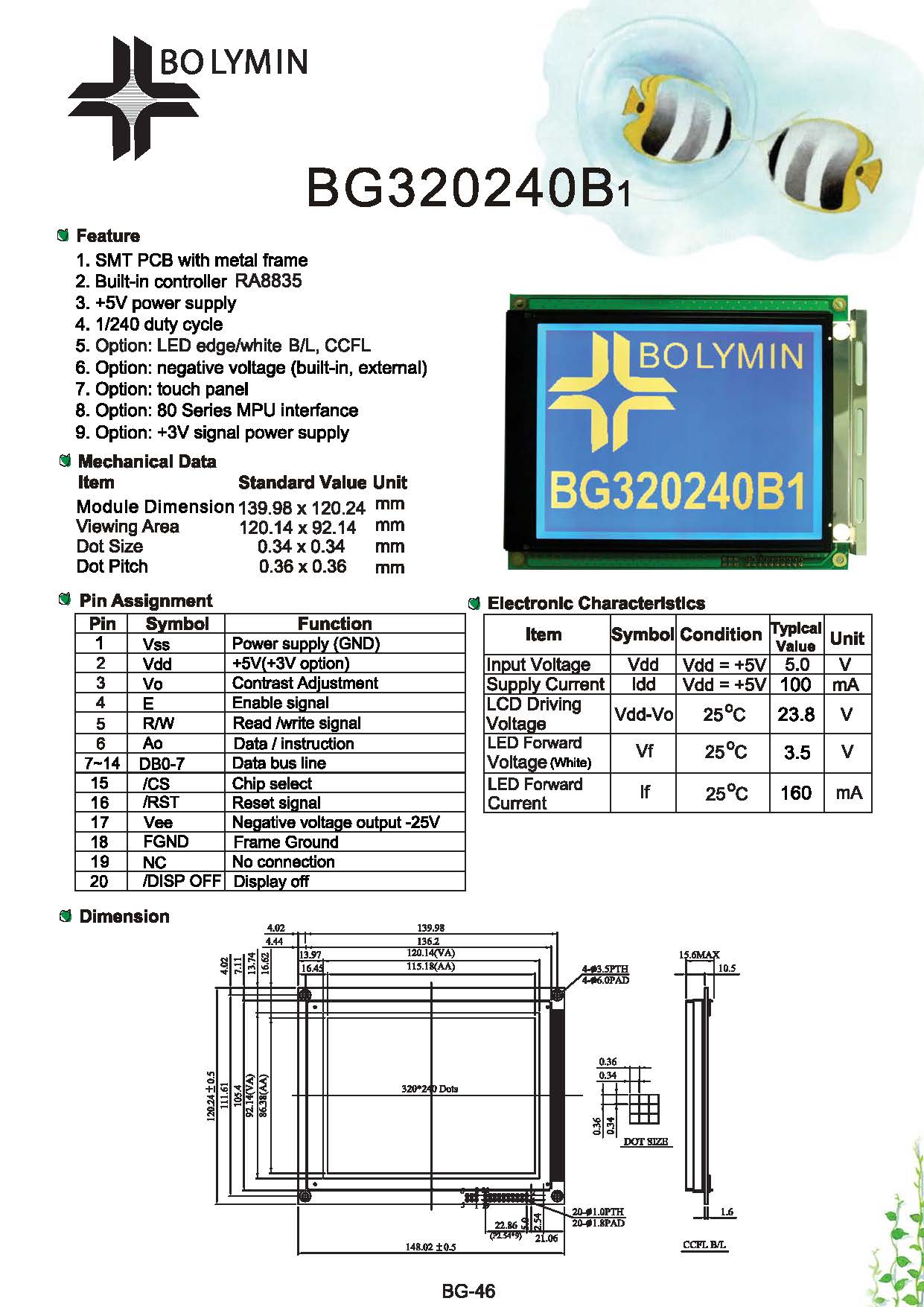

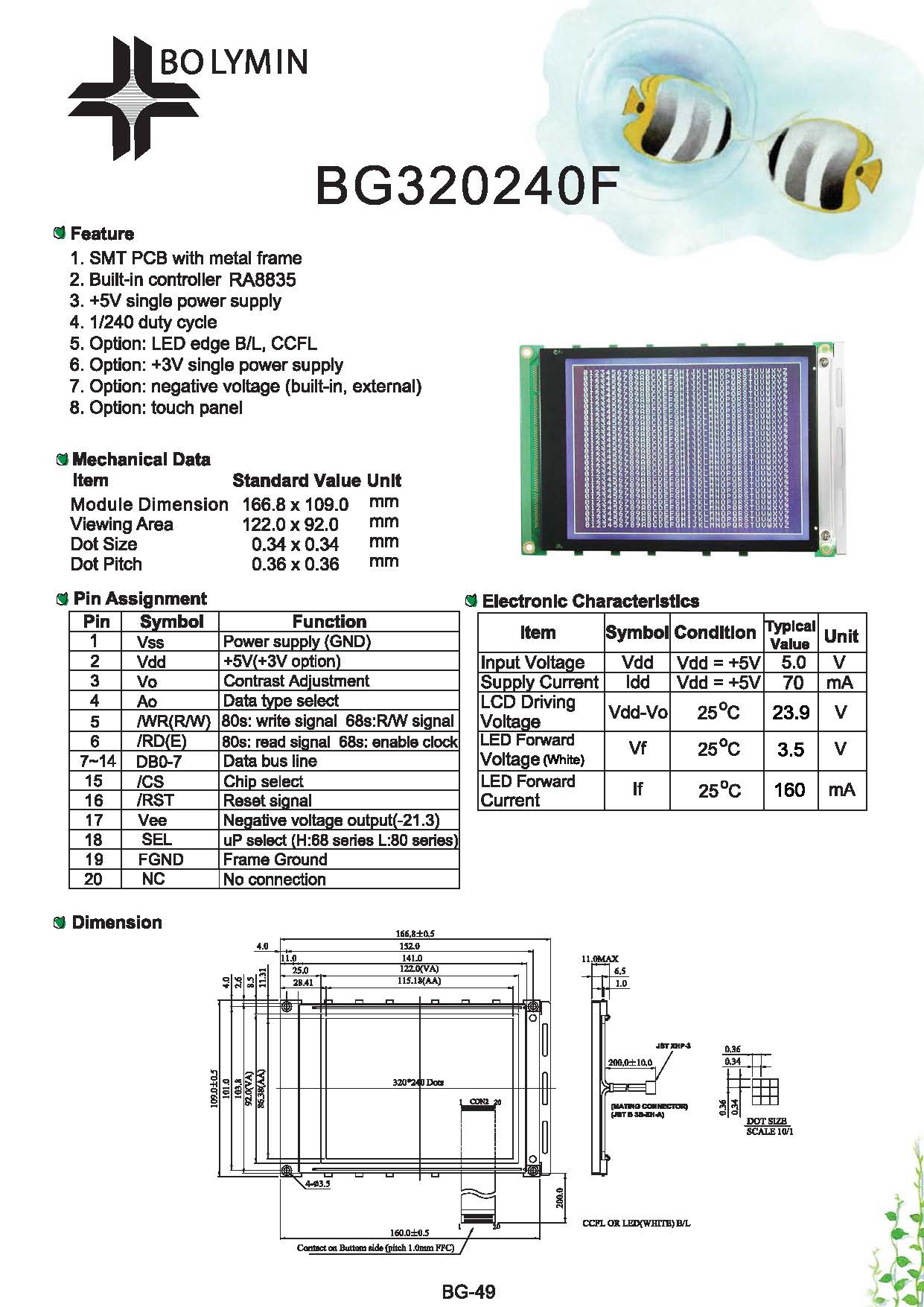

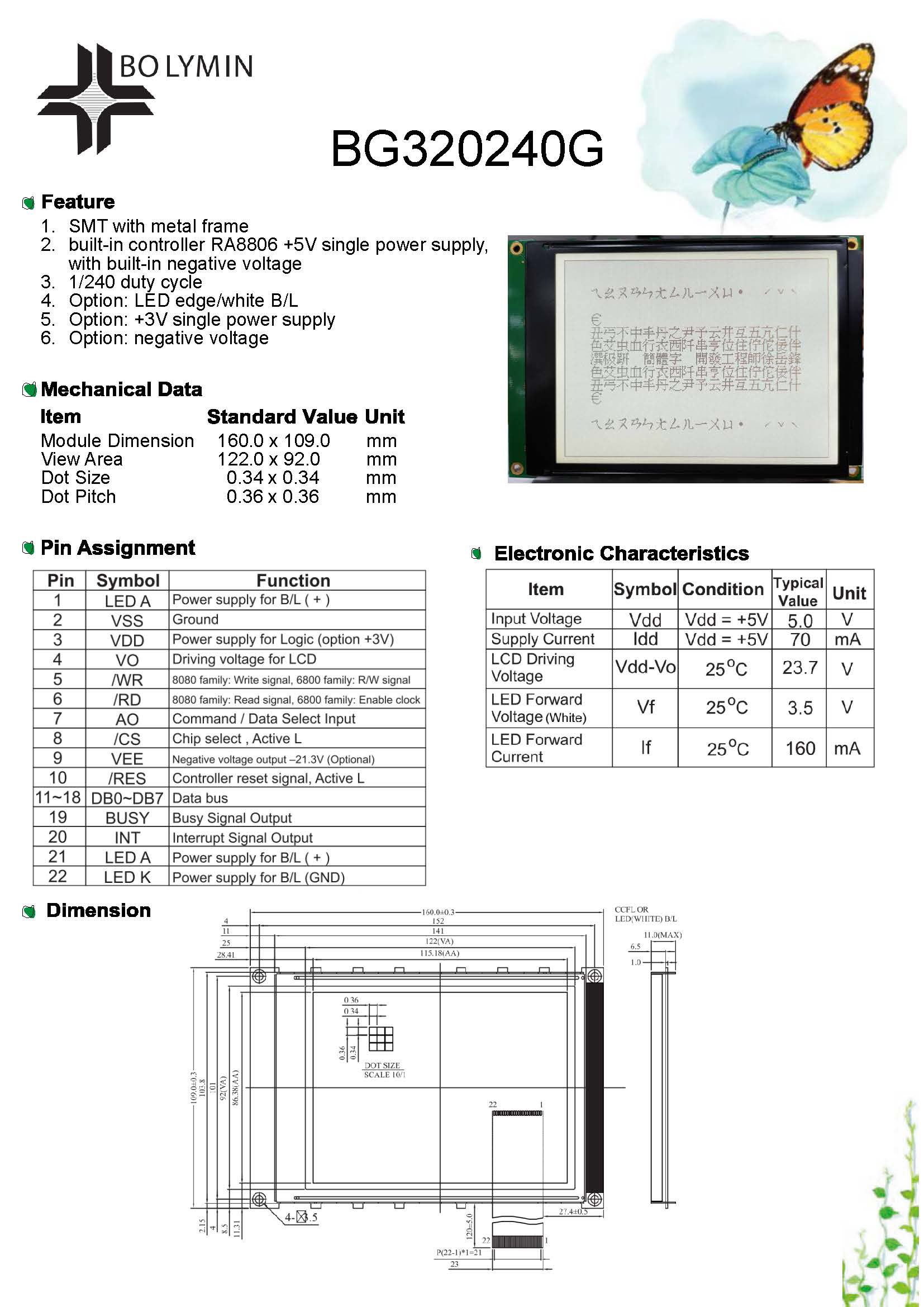

| 320 x 240 | BG320240A | 166.8 x 109.0 | 122.0 x 92.0 | No controller, recommending RA8835 | ||
| 320 x 240 | BG320240B1 | 139.98 x 120.24 | 120.14 x 92.14 | RA8835 | ||
| 320 x 240 | BG320240F | 166.8 x 109.0 | 122.0 x 92.0 | RA8835 | ||
| 320 x 240 | BG320240G | 160.0 x 109.0 | 122.0 x 92.0 | RA8806 + 5V single power supply,with built-in negative voltage |
