| Resolution Size (inch) |
Module Series | Module Dimension (mm) |
View area(mm) | Controller Interface | Other specifications | download |
|---|---|---|---|---|---|---|
| 160 X 3 X 234 | NFA35A | 83.0 X 60.5 X 4.5 | 74.54 X 53.15 | |||
| 320 X 3 X 240 | NFD35B | 76.9 X 63.9 X 3.3 | 73.2 X 55.7 | |||

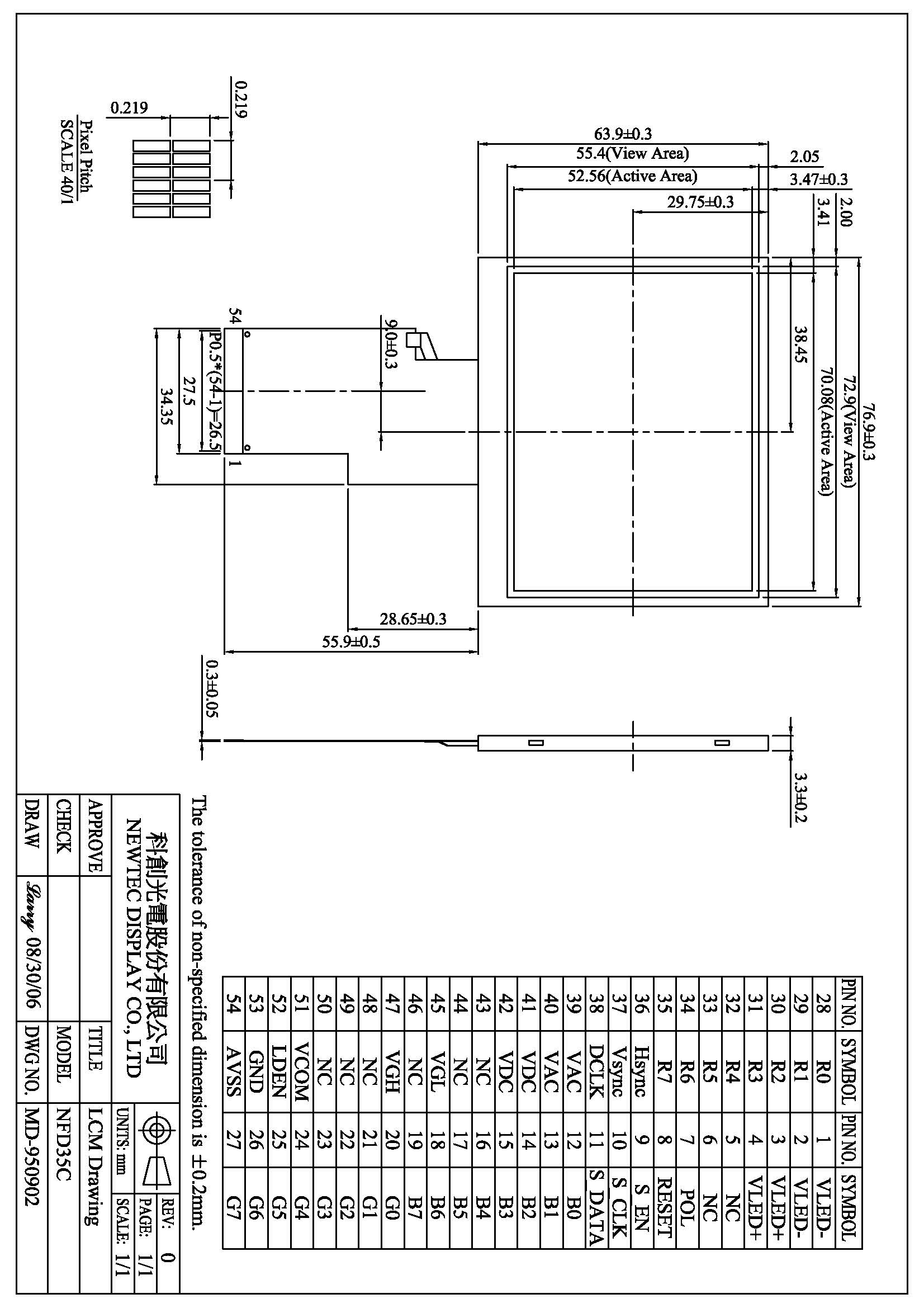

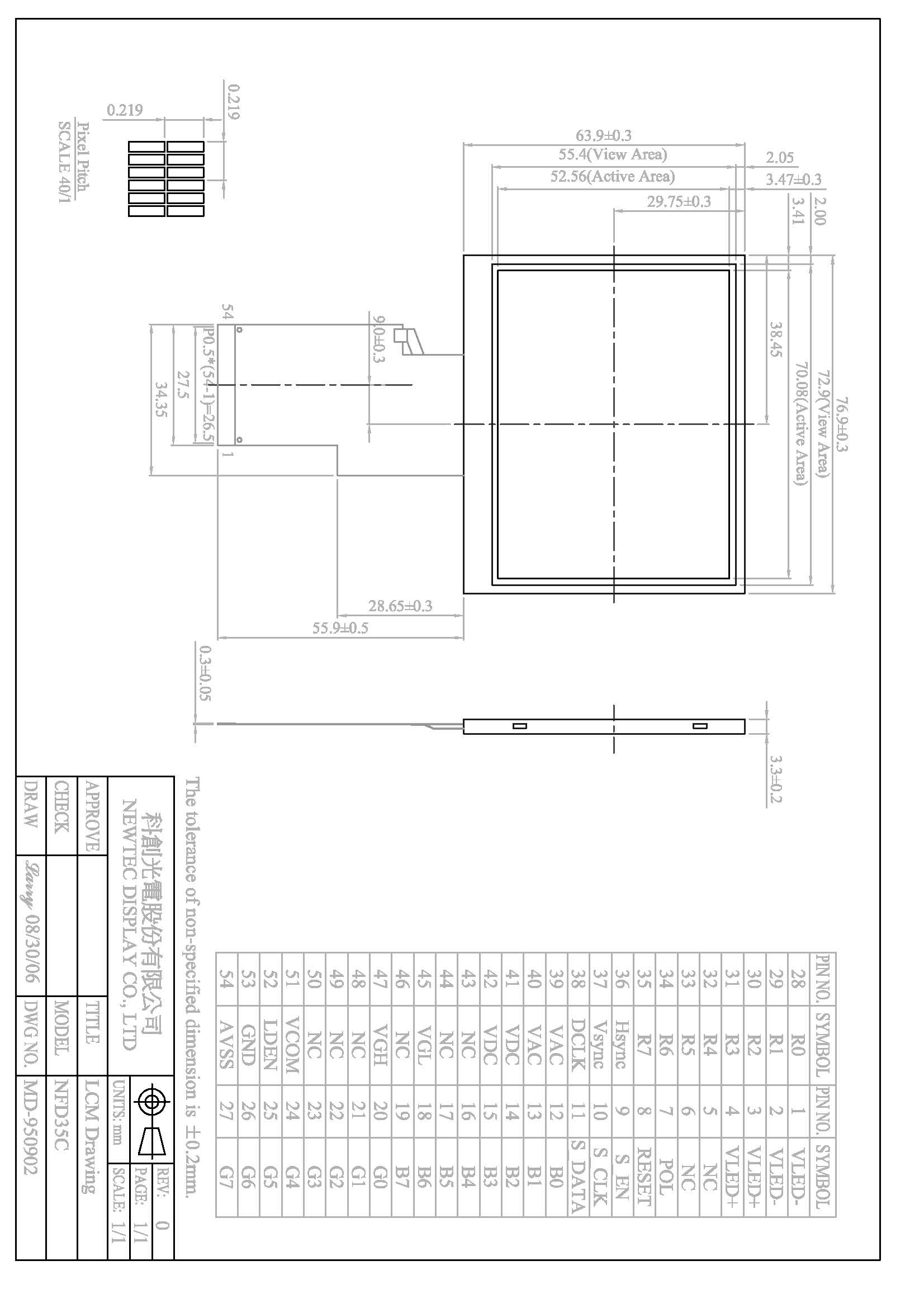

| 320 X 3 X 240 | NFD35C | 76.9 X 63.9 X 3.3 | 73.2 X 55.7 | |||

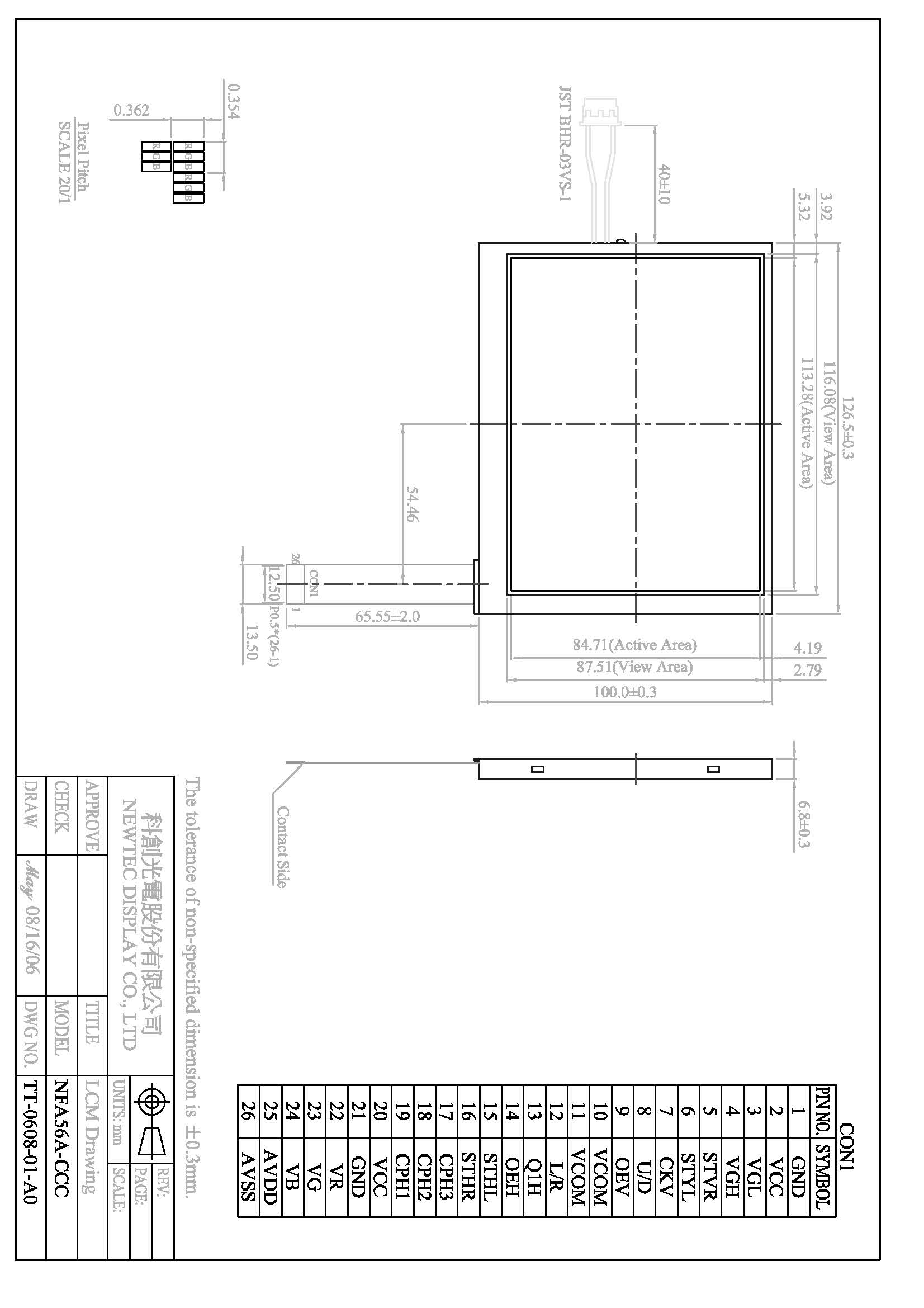

| 320 X 3 X 234 | NFA56A | 126.5 X 100.0 X 6.8 | 116.08 X 87.51 | |||

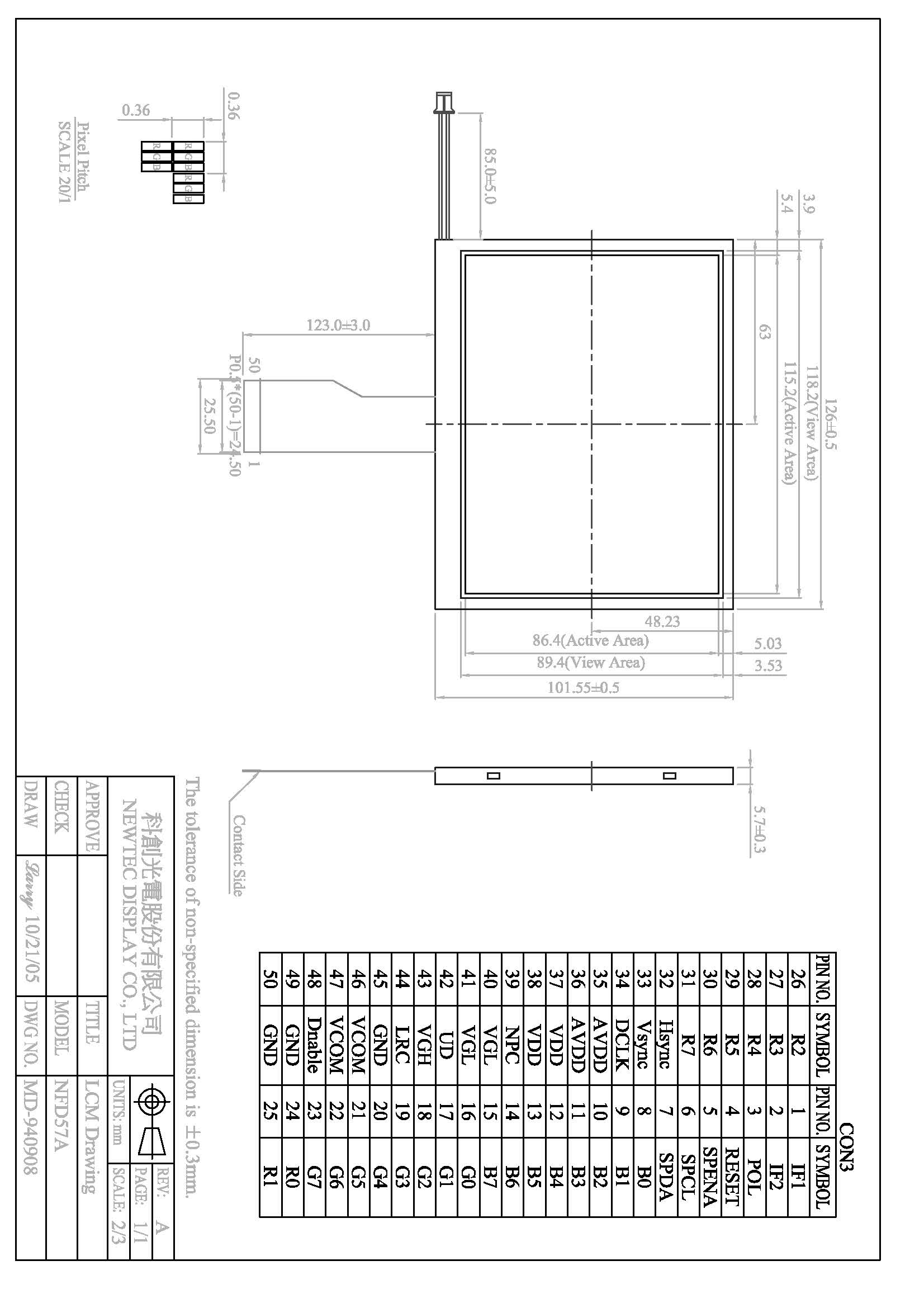

| 320 X 3 X 240 | NFD57A | 126.0 X 101.55 X 5.7 | 118.2 X 89.4 | |||

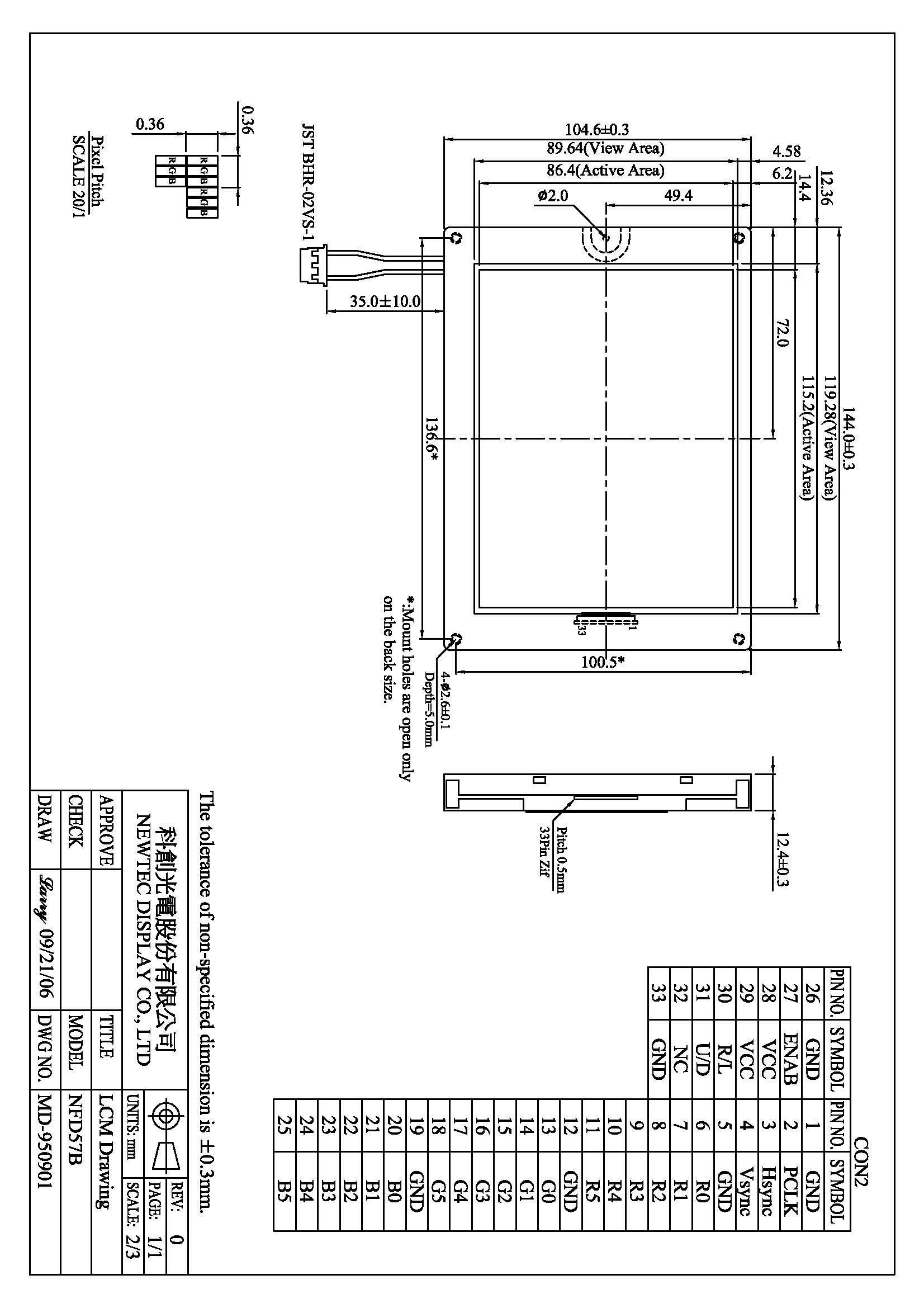

| 320 X 3 X 240 | NFD57B | 144.0 X 104.6 X 13.0 | 121.0 X 92.2 | |||

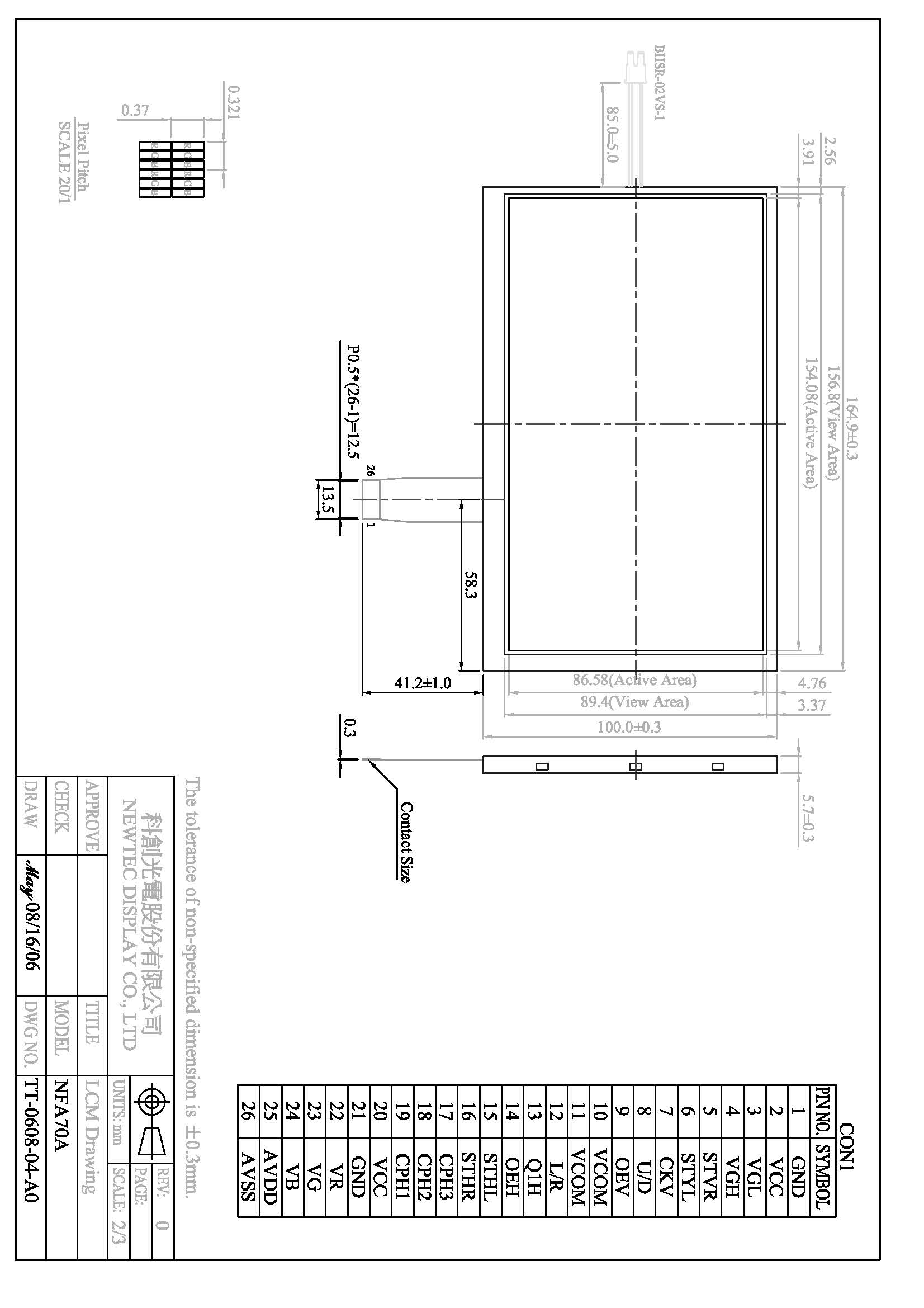

| 480 X 3 X 234 | NFA70A | 164.9 X 100.0 X 5.7 | 156.2 X 88.7 |
